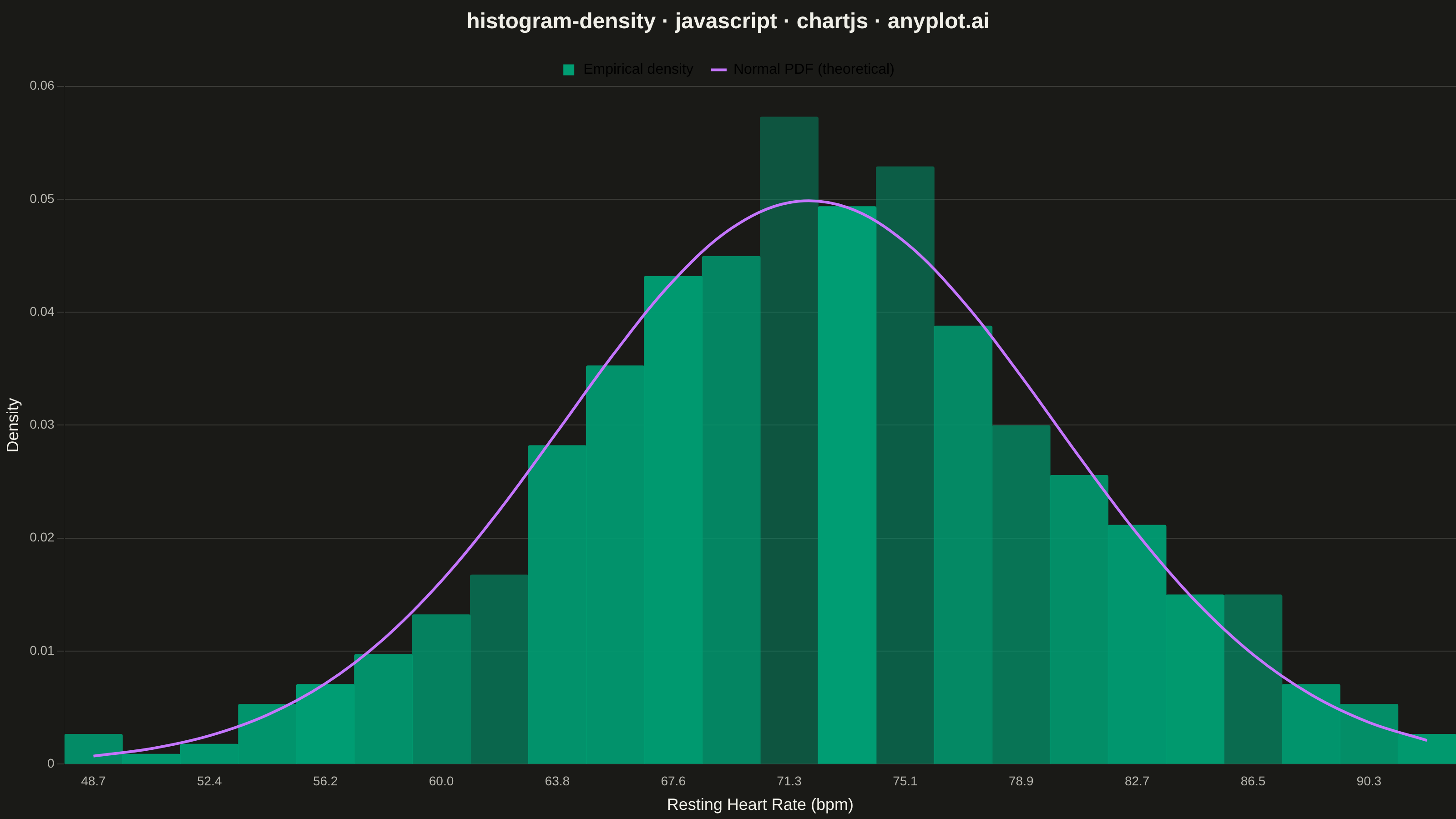

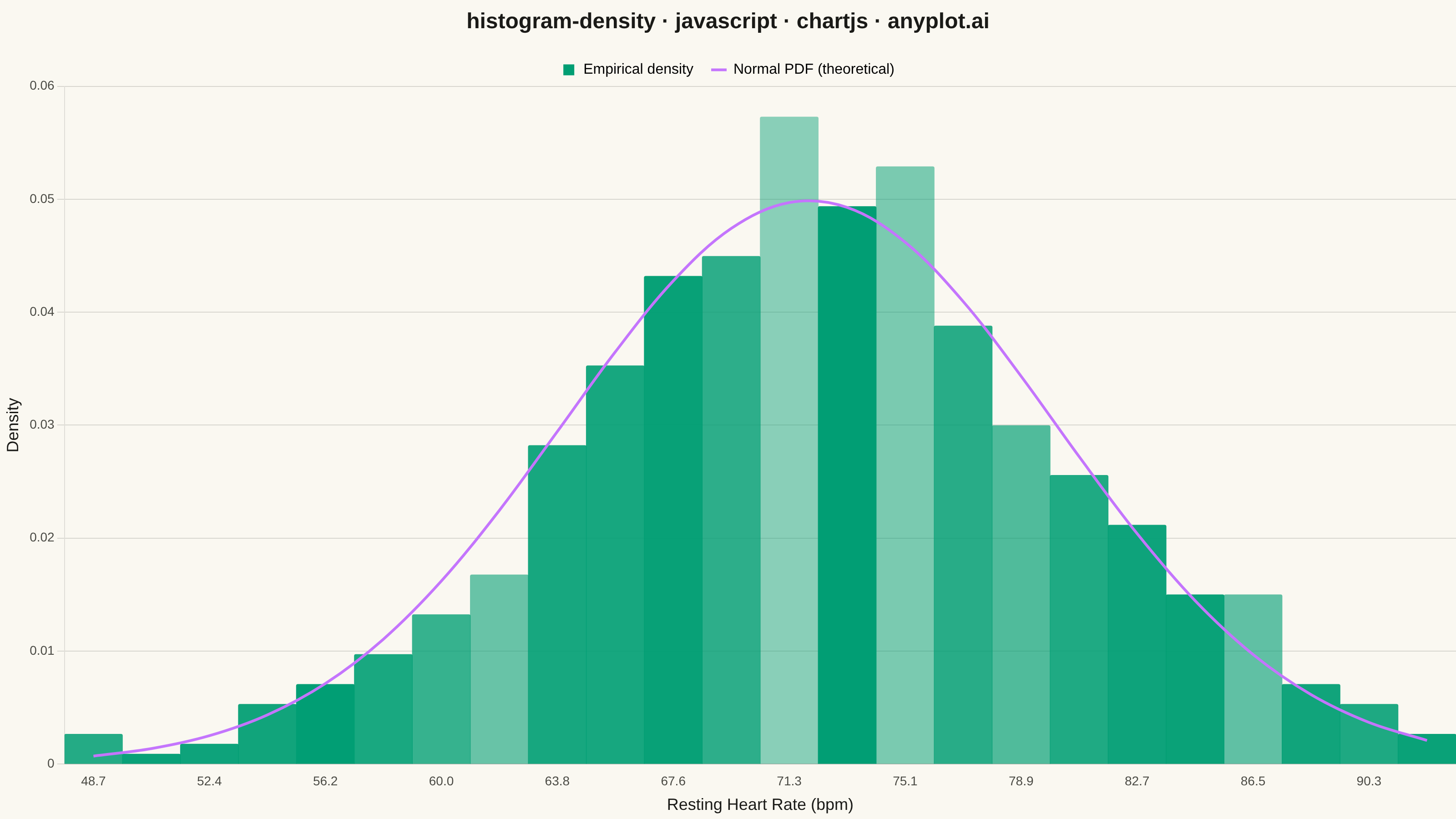

A density histogram displays the distribution of a continuous variable normalized so that the total area under the histogram equals 1, representing probability density instead of raw counts. This normalization allows direct comparison between distributions with different sample sizes and enables overlaying theoretical probability density functions (PDFs) for statistical analysis.
// anyplot.ai
// histogram-density: Density Histogram
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-05
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ---------------------------------------
// Resting heart rate (bpm) for 600 adults, ~Normal(mean=72, std=8).
let seed = 42;
function rand() {
seed = (seed * 1103515245 + 12345) & 0x7fffffff;
return seed / 0x7fffffff;
}
const n = 600;
const mean = 72;
const std = 8;
const samples = [];
for (let i = 0; i < n; i++) {
const u1 = rand();
const u2 = rand();
const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
samples.push(mean + std * z);
}
const binCount = 24;
const dataMin = Math.min(...samples);
const dataMax = Math.max(...samples);
const binWidth = (dataMax - dataMin) / binCount;
const counts = new Array(binCount).fill(0);
for (const value of samples) {
const idx = Math.min(binCount - 1, Math.floor((value - dataMin) / binWidth));
counts[idx]++;
}
// Normalize so total bar area equals 1 (density, not raw count).
const density = counts.map((c) => c / (n * binWidth));
const binCenters = Array.from(
{ length: binCount },
(_, i) => dataMin + (i + 0.5) * binWidth,
);
const labels = binCenters.map((c) => c.toFixed(1));
// Theoretical normal PDF evaluated at each bin center.
const normalPdf = (x) =>
Math.exp(-0.5 * ((x - mean) / std) ** 2) / (std * Math.sqrt(2 * Math.PI));
const pdfValues = binCenters.map(normalPdf);
// Goodness-of-fit residual per bin, used to scriptably shade bars: bins that
// tightly track the theoretical curve render fully saturated, bins that
// deviate render lighter — a visual callout for the fit without extra chrome.
const residuals = density.map((d, i) => Math.abs(d - pdfValues[i]));
const maxResidual = Math.max(...residuals) || 1;
function hexToRgba(hex, alpha) {
const r = parseInt(hex.slice(1, 3), 16);
const g = parseInt(hex.slice(3, 5), 16);
const b = parseInt(hex.slice(5, 7), 16);
return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}
// --- Mount -----------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Chart -----------------------------------------------------------------
new Chart(canvas, {
type: "bar",
data: {
labels,
datasets: [
{
type: "bar",
label: "Empirical density",
data: density,
backgroundColor: (ctx) => {
const i = ctx.dataIndex;
if (i === undefined) return t.palette[0];
const fit = 1 - residuals[i] / maxResidual;
return hexToRgba(t.palette[0], 0.45 + 0.55 * fit);
},
borderWidth: 0,
borderRadius: 2,
categoryPercentage: 1.0,
barPercentage: 1.0,
order: 2,
},
{
type: "line",
label: "Normal PDF (theoretical)",
data: pdfValues,
borderColor: t.palette[1],
backgroundColor: "transparent",
borderWidth: 3,
pointRadius: 0,
tension: 0.35,
fill: false,
order: 1,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: "histogram-density · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 24 },
},
legend: {
labels: {
color: t.ink,
font: { size: 16 },
usePointStyle: true,
boxWidth: 24,
boxHeight: 12,
padding: 20,
generateLabels: (chart) =>
chart.data.datasets.map((ds, i) => ({
text: ds.label,
datasetIndex: i,
hidden: !chart.isDatasetVisible(i),
pointStyle: ds.type === "line" ? "line" : "rect",
fillStyle: ds.type === "line" ? ds.borderColor : t.palette[0],
strokeStyle: ds.type === "line" ? ds.borderColor : t.palette[0],
lineWidth: ds.type === "line" ? 3 : 0,
})),
},
},
tooltip: {
callbacks: {
label: (ctx) => {
if (ctx.dataset.type === "bar") {
const z = ((binCenters[ctx.dataIndex] - mean) / std).toFixed(2);
return `${ctx.dataset.label}: ${ctx.parsed.y.toFixed(4)} (z = ${z})`;
}
return `${ctx.dataset.label}: ${ctx.parsed.y.toFixed(4)}`;
},
},
},
},
scales: {
x: {
ticks: {
color: t.inkSoft,
font: { size: 14 },
maxRotation: 0,
autoSkip: true,
maxTicksLimit: 12,
},
grid: { display: false },
title: {
display: true,
text: "Resting Heart Rate (bpm)",
color: t.ink,
font: { size: 18 },
},
},
y: {
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { color: t.grid },
title: {
display: true,
text: "Density",
color: t.ink,
font: { size: 18 },
},
beginAtZero: true,
},
},
},
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/histogram-density/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
