Density Histogram — Plotly

A density histogram displays the distribution of a continuous variable normalized so that the total area under the histogram equals 1, representing probability density instead of raw counts. This normalization allows direct comparison between distributions with different sample sizes and enables overlaying theoretical probability density functions (PDFs) for statistical analysis.

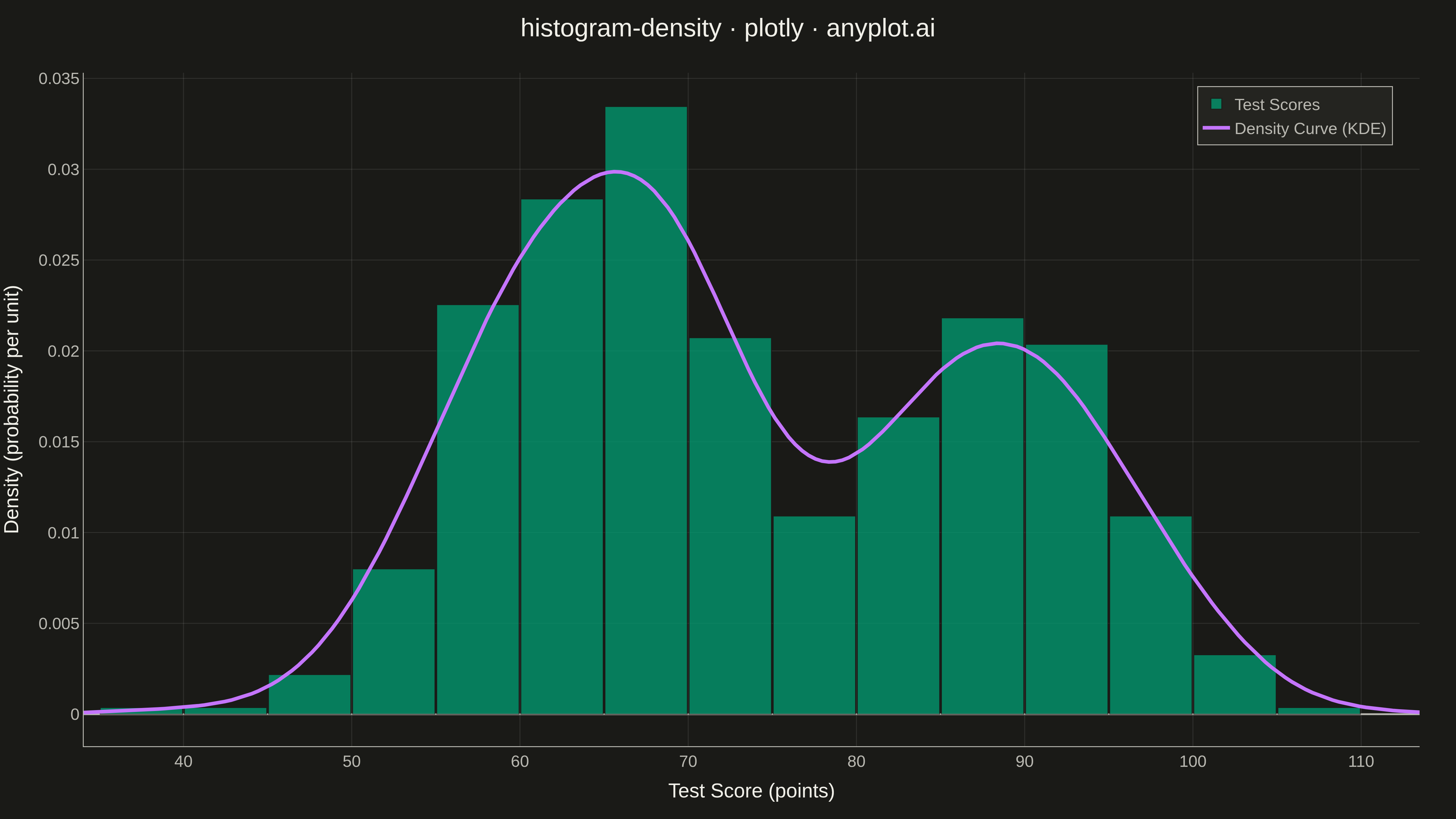

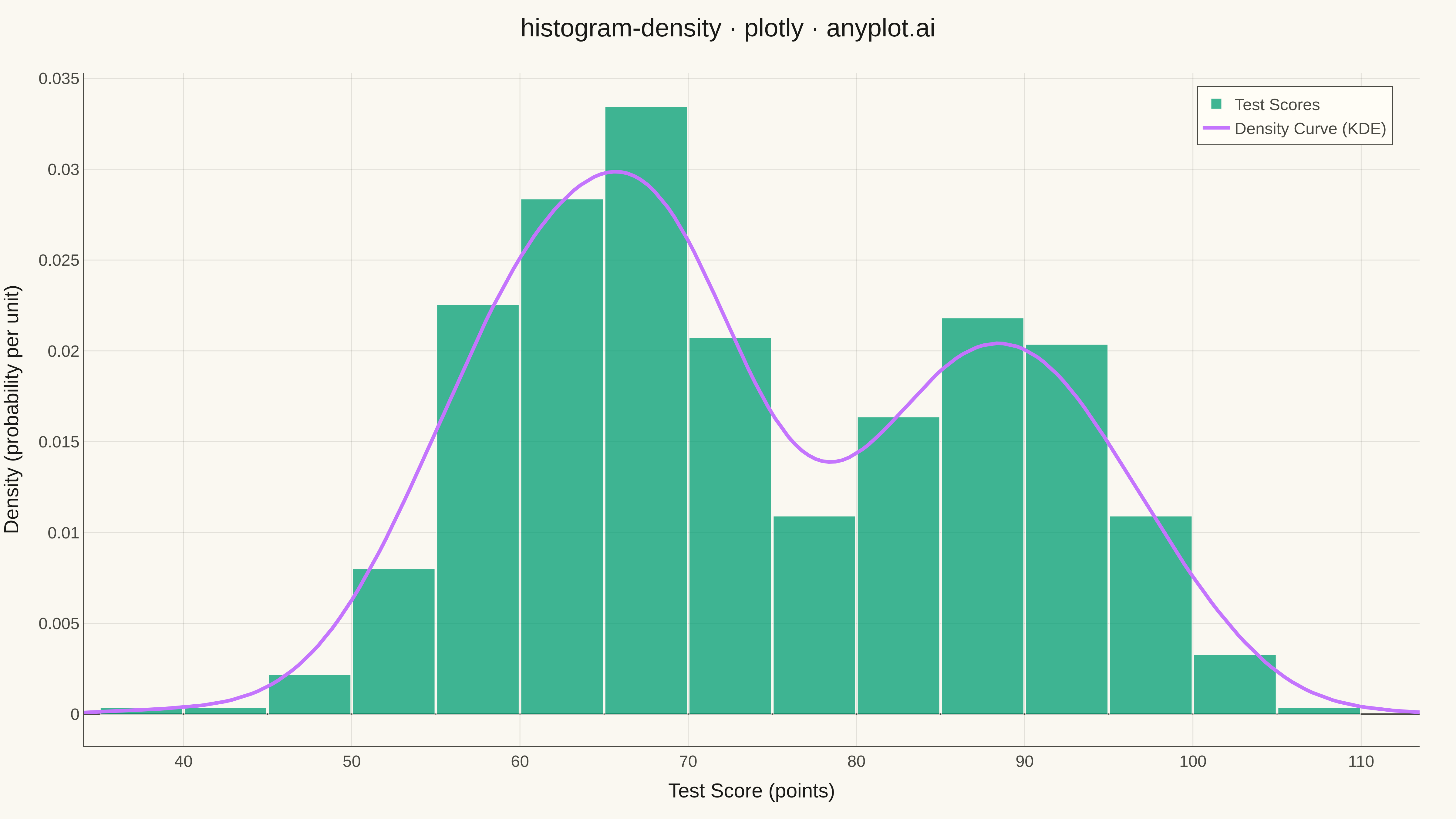

Density Histogram rendered with Plotly

Python source (Plotly)

""" anyplot.ai
histogram-density: Density Histogram
Library: plotly 6.7.0 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-11
"""

import os

import numpy as np
import plotly.graph_objects as go
from scipy import stats


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"

BRAND = "#009E73"  # Okabe-Ito position 1
OKABE_ITO_2 = "#C475FD"  # Okabe-Ito position 2 for KDE curve

# Data - simulated test scores with a more pronounced bimodal distribution
np.random.seed(42)
test_scores = np.concatenate(
    [
        np.random.normal(loc=65, scale=8, size=350),  # Main group (lower peak)
        np.random.normal(loc=90, scale=6, size=200),  # High performers (upper peak)
    ]
)

# Create histogram with density normalization
fig = go.Figure()

# Histogram trace (normalized to density)
fig.add_trace(
    go.Histogram(
        x=test_scores,
        histnorm="probability density",
        nbinsx=30,
        marker={"color": BRAND, "line": {"color": PAGE_BG, "width": 1}},
        opacity=0.75,
        name="Test Scores",
        hovertemplate="<b>Score Range</b>: %{x:.1f}<br><b>Density</b>: %{y:.4f}<extra></extra>",
    )
)

# Overlay KDE (kernel density estimate) for smooth reference curve
x_range = np.linspace(test_scores.min() - 5, test_scores.max() + 5, 200)
kde = stats.gaussian_kde(test_scores)
fig.add_trace(
    go.Scatter(
        x=x_range,
        y=kde(x_range),
        mode="lines",
        line={"color": OKABE_ITO_2, "width": 4},
        name="Density Curve (KDE)",
        hovertemplate="<b>Score</b>: %{x:.1f}<br><b>Density</b>: %{y:.4f}<extra></extra>",
    )
)

# Layout
fig.update_layout(
    title={"text": "histogram-density · plotly · anyplot.ai", "font": {"size": 28, "color": INK}, "x": 0.5, "xanchor": "center"},
    xaxis={
        "title": {"text": "Test Score (points)", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "showgrid": True,
        "gridcolor": GRID,
        "gridwidth": 1,
        "linecolor": INK_SOFT,
        "zerolinecolor": INK_SOFT,
    },
    yaxis={
        "title": {"text": "Density (probability per unit)", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "showgrid": True,
        "gridcolor": GRID,
        "gridwidth": 1,
        "linecolor": INK_SOFT,
        "zerolinecolor": INK_SOFT,
    },
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    font={"color": INK},
    legend={
        "font": {"size": 18, "color": INK_SOFT},
        "x": 0.98,
        "y": 0.98,
        "xanchor": "right",
        "yanchor": "top",
        "bgcolor": ELEVATED_BG,
        "bordercolor": INK_SOFT,
        "borderwidth": 1,
    },
    margin={"l": 80, "r": 40, "t": 80, "b": 80},
    bargap=0.02,
    hovermode="closest",
)

# Save as PNG (4800 x 2700 via scale=3)
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)

# Save as HTML for interactivity
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Density Histogram on anyplot.ai.
