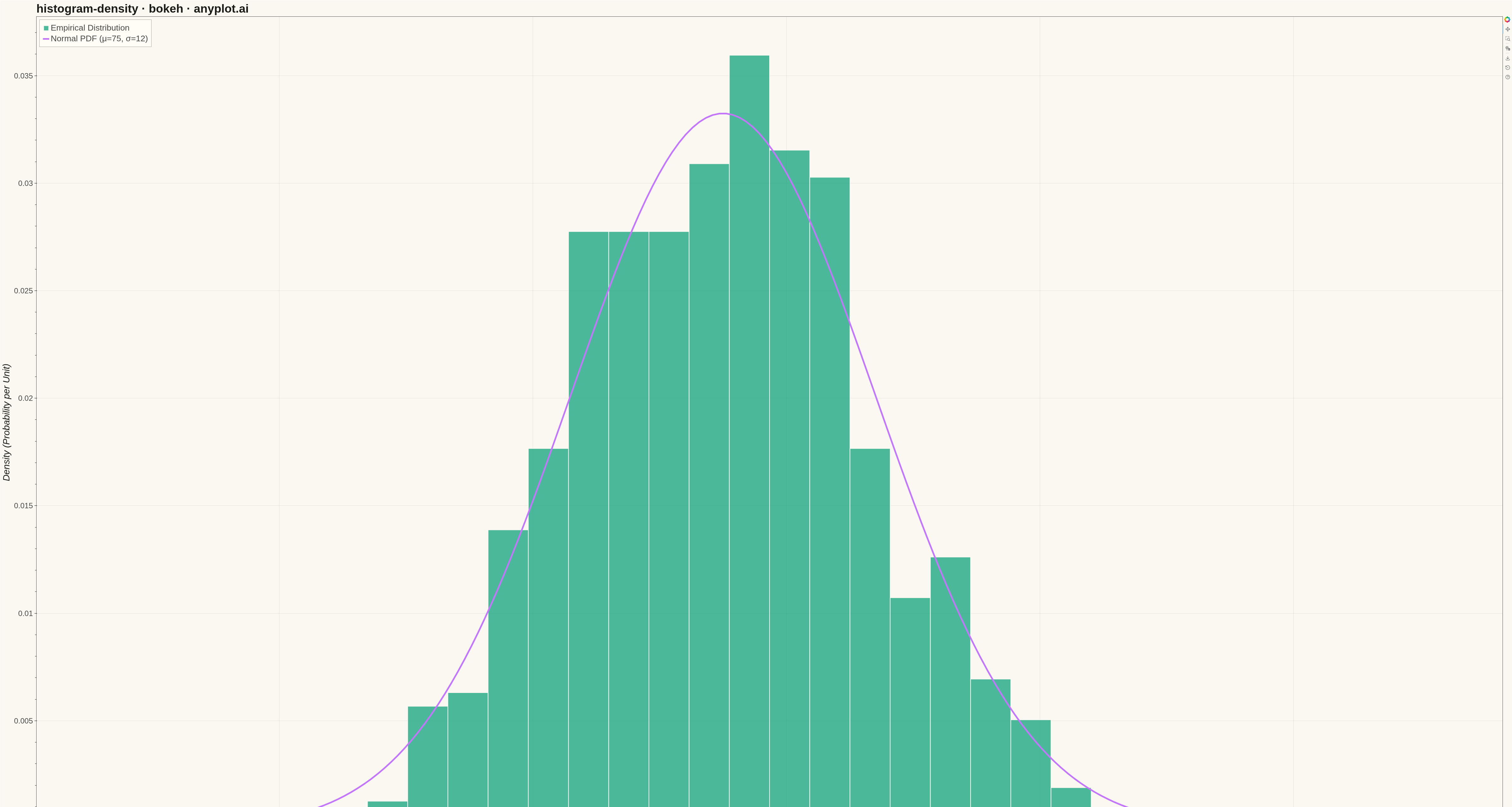

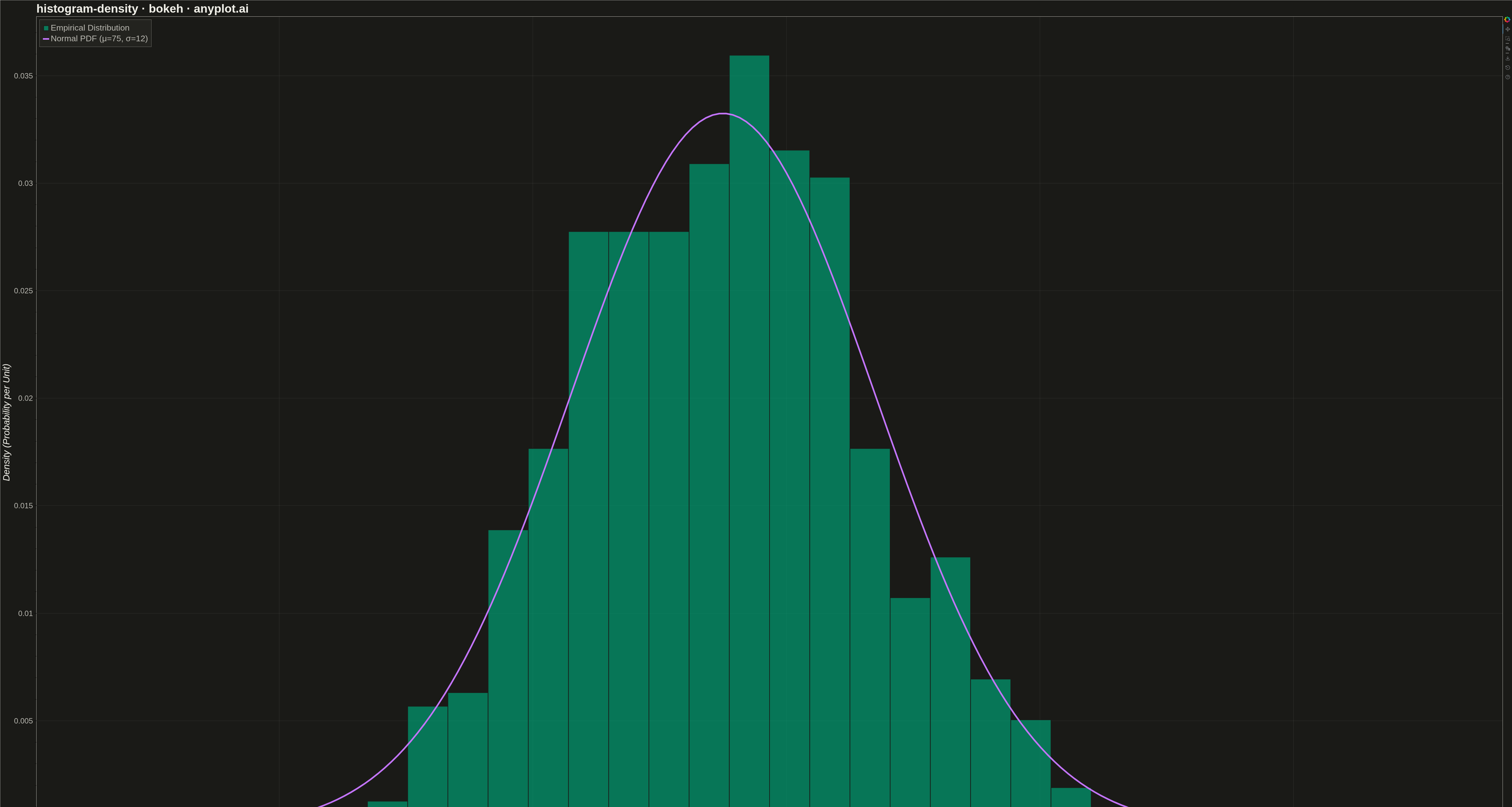

A density histogram displays the distribution of a continuous variable normalized so that the total area under the histogram equals 1, representing probability density instead of raw counts. This normalization allows direct comparison between distributions with different sample sizes and enables overlaying theoretical probability density functions (PDFs) for statistical analysis.
""" anyplot.ai
histogram-density: Density Histogram
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 94/100 | Updated: 2026-05-11
"""
import os
import time
from pathlib import Path
import numpy as np
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Okabe-Ito palette (first series for histogram, second for PDF)
COLOR_HIST = "#009E73"
COLOR_PDF = "#C475FD"
# Data - Test scores with normal-like distribution
np.random.seed(42)
mu, sigma = 75, 12
scores = np.random.normal(loc=mu, scale=sigma, size=500)
# Calculate histogram with density normalization
bin_edges = np.linspace(scores.min() - 5, scores.max() + 5, 31)
hist_counts, edges = np.histogram(scores, bins=bin_edges, density=True)
left_edges = edges[:-1]
right_edges = edges[1:]
# Theoretical normal PDF for overlay
x_pdf = np.linspace(scores.min() - 10, scores.max() + 10, 200)
pdf_values = (1 / (sigma * np.sqrt(2 * np.pi))) * np.exp(-0.5 * ((x_pdf - mu) / sigma) ** 2)
# Sources
hist_source = ColumnDataSource(
data={"left": left_edges, "right": right_edges, "top": hist_counts, "bottom": [0] * len(hist_counts)}
)
pdf_source = ColumnDataSource(data={"x": x_pdf, "y": pdf_values})
# Create figure (4800 x 2700 px)
p = figure(
width=4800,
height=2700,
title="histogram-density · bokeh · anyplot.ai",
x_axis_label="Test Score",
y_axis_label="Density (Probability per Unit)",
)
# Plot histogram bars
p.quad(
left="left",
right="right",
top="top",
bottom="bottom",
source=hist_source,
fill_color=COLOR_HIST,
fill_alpha=0.7,
line_color=PAGE_BG,
line_width=2,
legend_label="Empirical Distribution",
)
# Plot theoretical PDF overlay
p.line(x="x", y="y", source=pdf_source, line_color=COLOR_PDF, line_width=5, legend_label="Normal PDF (μ=75, σ=12)")
# Styling for 4800x2700 px
p.title.text_font_size = "28pt"
p.xaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_font_size = "22pt"
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"
# Theme-adaptive colors
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT
p.title.text_color = INK
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
# Subtle grid
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10
# Legend styling
p.legend.label_text_font_size = "20pt"
p.legend.label_text_color = INK_SOFT
p.legend.location = "top_left"
p.legend.background_fill_color = ELEVATED_BG
p.legend.border_line_color = INK_SOFT
# Y-axis starts at zero
p.y_range.start = 0
# Save interactive HTML
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot with Selenium
W, H = 4800, 2700
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Density Histogram on anyplot.ai.
