Density Histogram — Altair

A density histogram displays the distribution of a continuous variable normalized so that the total area under the histogram equals 1, representing probability density instead of raw counts. This normalization allows direct comparison between distributions with different sample sizes and enables overlaying theoretical probability density functions (PDFs) for statistical analysis.

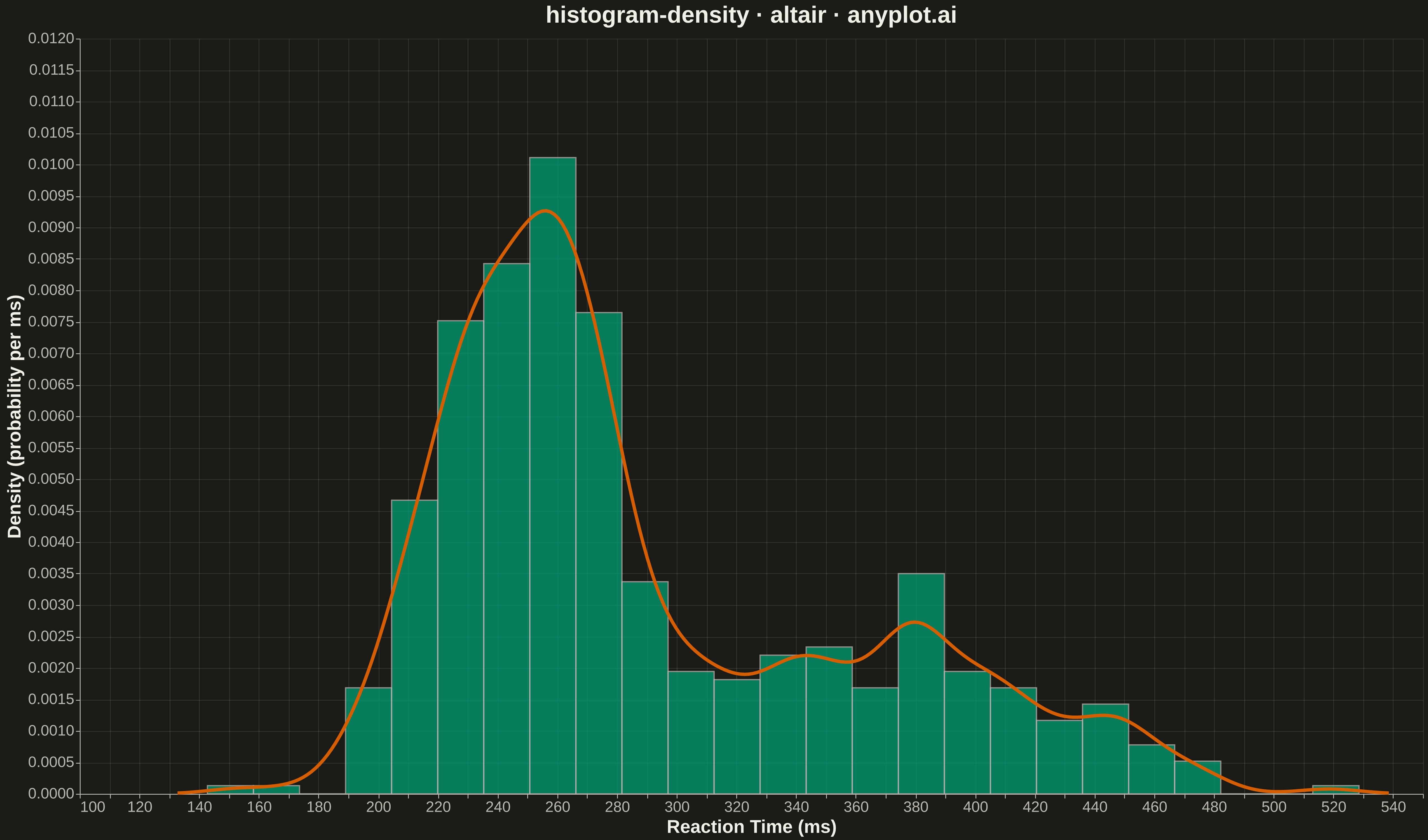

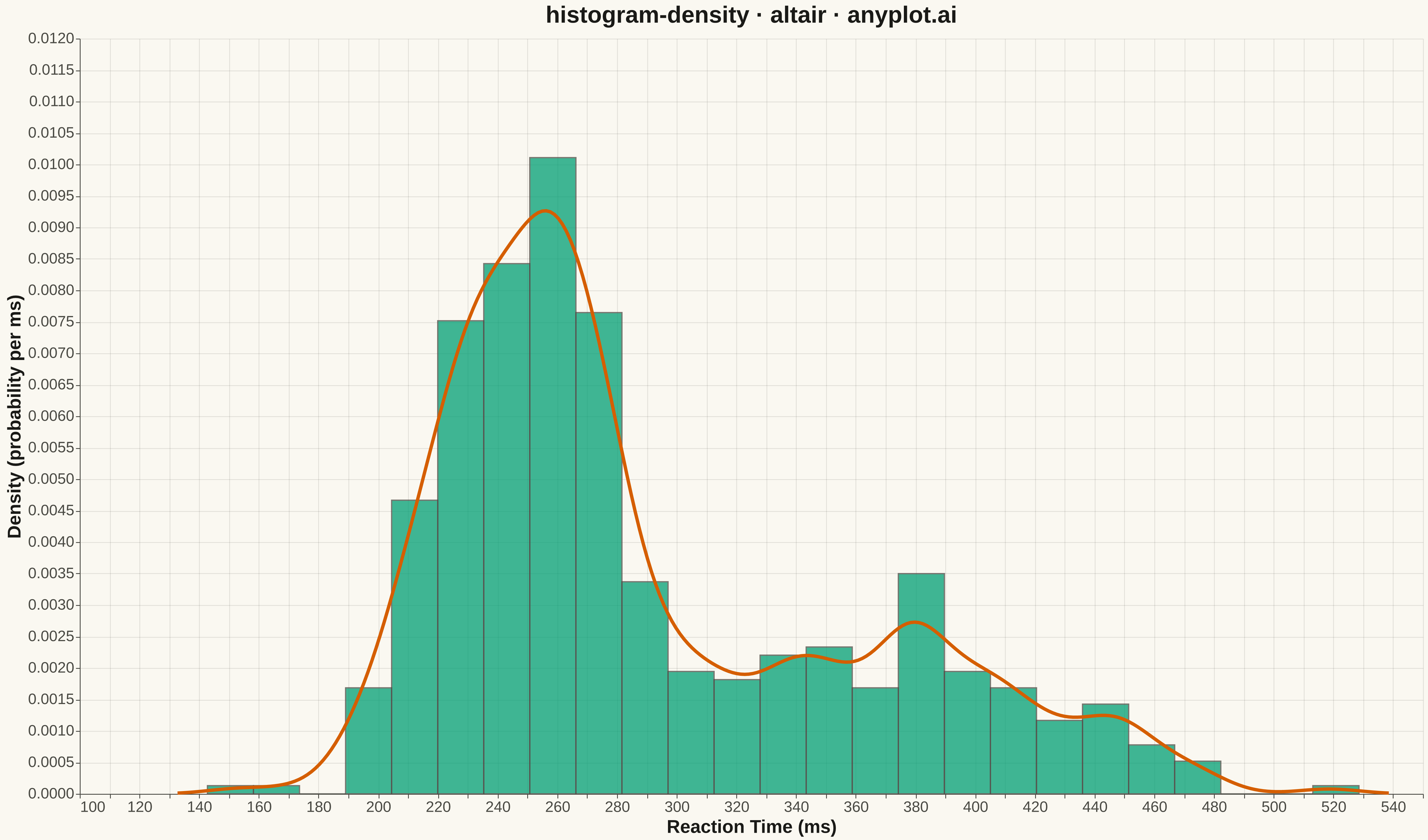

Density Histogram rendered with Altair

Python source (Altair)

""" anyplot.ai
histogram-density: Density Histogram
Library: altair 6.1.0 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-11
"""

import altair as alt
import numpy as np
import pandas as pd
from scipy import stats


# Data - Generate bimodal distribution to show density histogram features
np.random.seed(42)
# Reaction times from two conditions: baseline and fatigued
baseline_times = np.random.normal(loc=250, scale=30, size=350)
fatigued_times = np.random.normal(loc=380, scale=45, size=150)
reaction_times = np.concatenate([baseline_times, fatigued_times])

# Compute histogram data manually for density normalization
num_bins = 25
bins = np.linspace(reaction_times.min() - 10, reaction_times.max() + 10, num_bins + 1)
counts, bin_edges = np.histogram(reaction_times, bins=bins, density=True)
bin_width = bin_edges[1] - bin_edges[0]

# Create DataFrame with bin ranges for proper bar rendering
hist_df = pd.DataFrame(
    {
        "bin_start": bin_edges[:-1],
        "bin_end": bin_edges[1:],
        "Density": counts,
        "bin_center": (bin_edges[:-1] + bin_edges[1:]) / 2,
    }
)

# Create density histogram using rect mark for proper filled bars
histogram = (
    alt.Chart(hist_df)
    .mark_rect(color="#306998", opacity=0.75, stroke="#1a3a5c", strokeWidth=1.5)
    .encode(
        x=alt.X("bin_start:Q", scale=alt.Scale(domain=[bins.min(), bins.max()]), title="Reaction Time (ms)"),
        x2="bin_end:Q",
        y=alt.Y("Density:Q", scale=alt.Scale(domain=[0, counts.max() * 1.1]), title="Density (probability per ms)"),
        tooltip=[
            alt.Tooltip("bin_center:Q", title="Bin Center", format=".0f"),
            alt.Tooltip("Density:Q", title="Density", format=".5f"),
        ],
    )
)

# Create KDE overlay for theoretical density reference
kde = stats.gaussian_kde(reaction_times, bw_method=0.15)
x_kde = np.linspace(reaction_times.min() - 20, reaction_times.max() + 20, 300)
y_kde = kde(x_kde)

kde_df = pd.DataFrame({"Reaction Time (ms)": x_kde, "Density": y_kde})

kde_line = alt.Chart(kde_df).mark_line(color="#FFD43B", strokeWidth=4).encode(x="Reaction Time (ms):Q", y="Density:Q")

# Combine histogram and KDE
chart = (
    alt.layer(histogram, kde_line)
    .properties(
        width=1600,
        height=900,
        title=alt.Title("histogram-density · altair · pyplots.ai", fontSize=28, anchor="middle", color="#333333"),
    )
    .configure_axis(labelFontSize=18, titleFontSize=22, gridColor="#cccccc", gridOpacity=0.3)
    .configure_view(strokeWidth=0)
)

# Save as PNG (1600 × 900 × 3 = 4800 × 2700 px)
chart.save("plot.png", scale_factor=3.0)

# Save interactive HTML version
chart.save("plot.html")

Part of Density Histogram on anyplot.ai.
