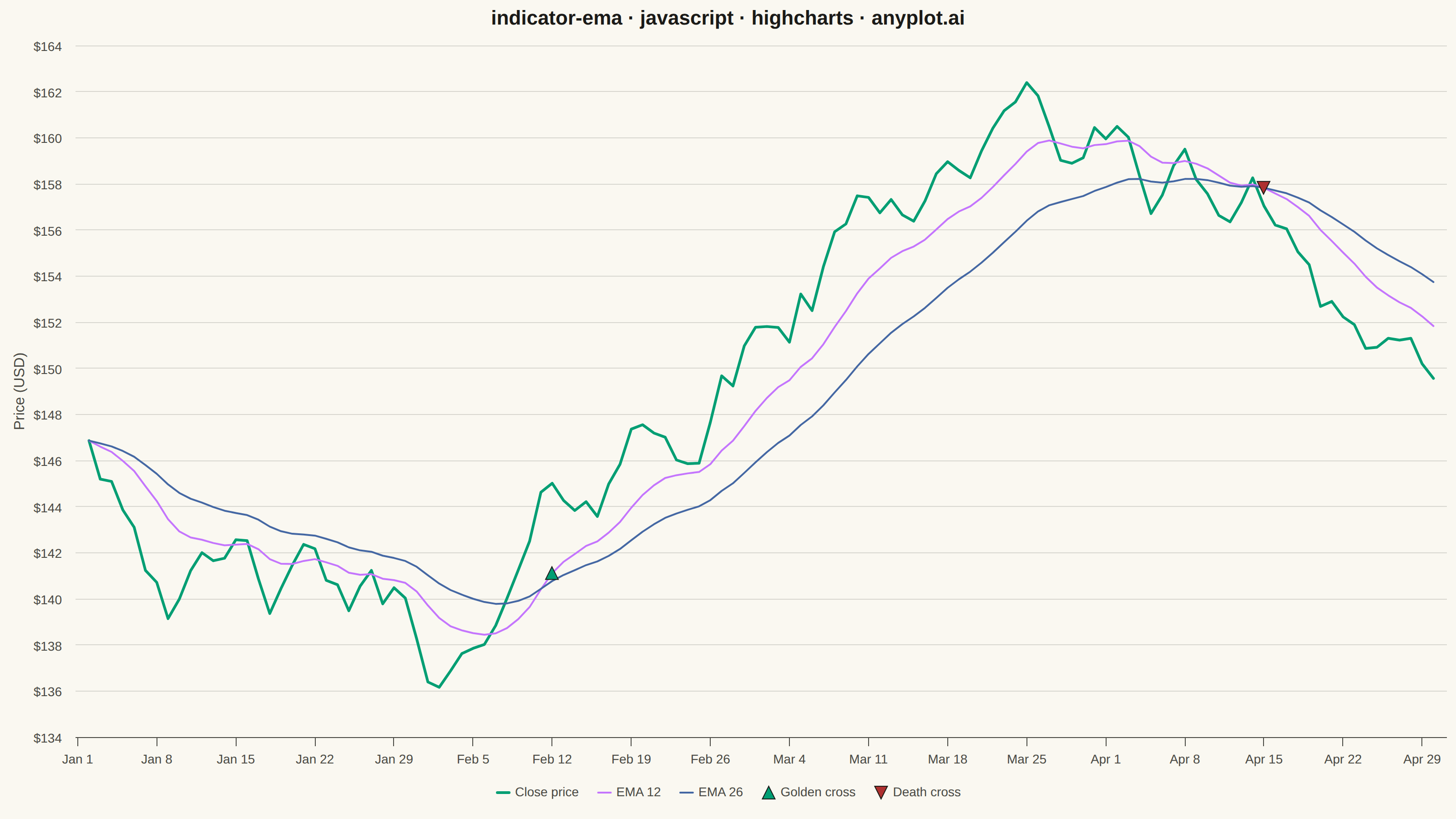

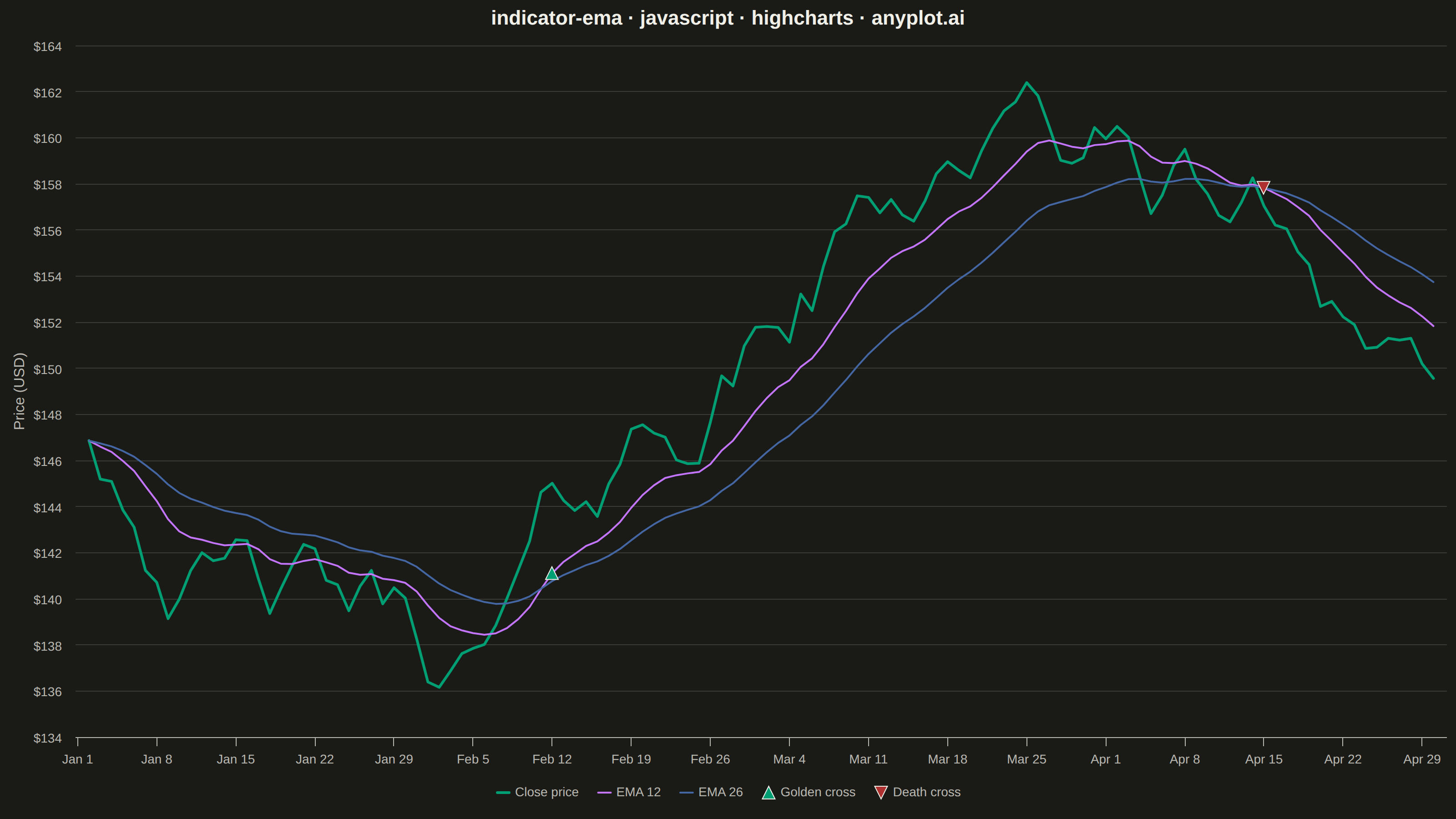

An Exponential Moving Average (EMA) overlay chart displays price data with one or more EMA lines that give greater weight to recent prices, making them more responsive to new information than simple moving averages. The EMA calculation applies an exponential weighting factor that decreases with each older data point, allowing traders to identify trends faster. This technical indicator is fundamental in trading for spotting trend direction, dynamic support/resistance levels, and crossover signals.
// anyplot.ai
// indicator-ema: Exponential Moving Average (EMA) Indicator Chart
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-02
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic fixed-seed LCG) -------------------------
// LCG PRNG (Numerical Recipes constants) — browser has no seeded RNG.
let seed = 42;
function nextRandom() {
seed = (seed * 1664525 + 1013904223) % 4294967296;
return seed / 4294967296;
}
const numPeriods = 120;
const dates = [];
const closePrices = [];
const startDate = Date.UTC(2024, 0, 2);
let price = 148;
// Piecewise drift so the price wanders through a downtrend, an uptrend, then
// a rollover — enough regime change to produce a handful of real EMA crosses.
for (let i = 0; i < numPeriods; i++) {
dates.push(startDate + i * 86400000);
let drift;
if (i < 35) drift = -0.35;
else if (i < 80) drift = 0.55;
else drift = -0.25;
price += drift + (nextRandom() - 0.5) * 3.2;
price = Math.max(price, 20);
closePrices.push(Math.round(price * 100) / 100);
}
function computeEma(values, period) {
const k = 2 / (period + 1);
const ema = new Array(values.length);
ema[0] = values[0];
for (let i = 1; i < values.length; i++) {
ema[i] = values[i] * k + ema[i - 1] * (1 - k);
}
return ema;
}
const shortPeriod = 12;
const longPeriod = 26;
const emaShort = computeEma(closePrices, shortPeriod);
const emaLong = computeEma(closePrices, longPeriod);
// Crossover points: golden cross (short over long, bullish) vs death cross
// (short under long, bearish) — the spec explicitly calls out highlighting
// these, so they carry real information rather than decorative annotation.
// Scan starts once both EMAs have warmed up past the long period — both
// series seed from the same first close, so an earlier start would flag
// that shared seed as a spurious "cross".
const goldenCrosses = [];
const deathCrosses = [];
for (let i = longPeriod; i < numPeriods; i++) {
const prevDiff = emaShort[i - 1] - emaLong[i - 1];
const diff = emaShort[i] - emaLong[i];
if (prevDiff <= 0 && diff > 0) goldenCrosses.push([dates[i], emaShort[i]]);
else if (prevDiff >= 0 && diff < 0)
deathCrosses.push([dates[i], emaShort[i]]);
}
const closeSeries = closePrices.map((v, i) => [dates[i], v]);
const shortSeries = emaShort.map((v, i) => [
dates[i],
Math.round(v * 100) / 100,
]);
const longSeries = emaLong.map((v, i) => [dates[i], Math.round(v * 100) / 100]);
// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "line",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
colors: t.palette,
title: {
text: "indicator-ema · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
xAxis: {
type: "datetime",
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
},
yAxis: {
title: {
text: "Price (USD)",
style: { color: t.inkSoft, fontSize: "16px" },
},
gridLineColor: t.grid,
labels: {
style: { color: t.inkSoft, fontSize: "14px" },
formatter() {
return "$" + this.value;
},
},
},
legend: {
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
tooltip: { enabled: false },
plotOptions: {
series: { animation: false, marker: { enabled: false } },
},
series: [
{
name: "Close price",
type: "line",
data: closeSeries,
color: t.palette[0],
lineWidth: 3,
},
{
name: `EMA ${shortPeriod}`,
type: "line",
data: shortSeries,
color: t.palette[1],
lineWidth: 2,
},
{
name: `EMA ${longPeriod}`,
type: "line",
data: longSeries,
color: t.palette[2],
lineWidth: 2,
},
{
name: "Golden cross",
type: "scatter",
data: goldenCrosses,
color: t.palette[0],
marker: {
enabled: true,
radius: 7,
symbol: "triangle",
lineWidth: 1,
lineColor: t.ink,
},
},
{
name: "Death cross",
type: "scatter",
data: deathCrosses,
color: "#AE3030",
marker: {
enabled: true,
radius: 7,
symbol: "triangle-down",
lineWidth: 1,
lineColor: t.ink,
},
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/indicator-ema/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "indicator-ema",
"language": "javascript",
"library": "highcharts",
"page": "https://anyplot.ai/indicator-ema/javascript/highcharts",
"hub": "https://anyplot.ai/indicator-ema",
"code_json": "https://api.anyplot.ai/specs/indicator-ema/highcharts/code",
"spec_json": "https://api.anyplot.ai/specs/indicator-ema",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/indicator-ema/javascript/highcharts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/indicator-ema/javascript/highcharts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/indicator-ema/javascript/highcharts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/indicator-ema/javascript/highcharts/plot-dark.html",
"quality_score": 91.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Exponential Moving Average (EMA) Indicator Chart on anyplot.ai.
