Exponential Moving Average (EMA) Indicator Chart — Altair

An Exponential Moving Average (EMA) overlay chart displays price data with one or more EMA lines that give greater weight to recent prices, making them more responsive to new information than simple moving averages. The EMA calculation applies an exponential weighting factor that decreases with each older data point, allowing traders to identify trends faster. This technical indicator is fundamental in trading for spotting trend direction, dynamic support/resistance levels, and crossover signals.

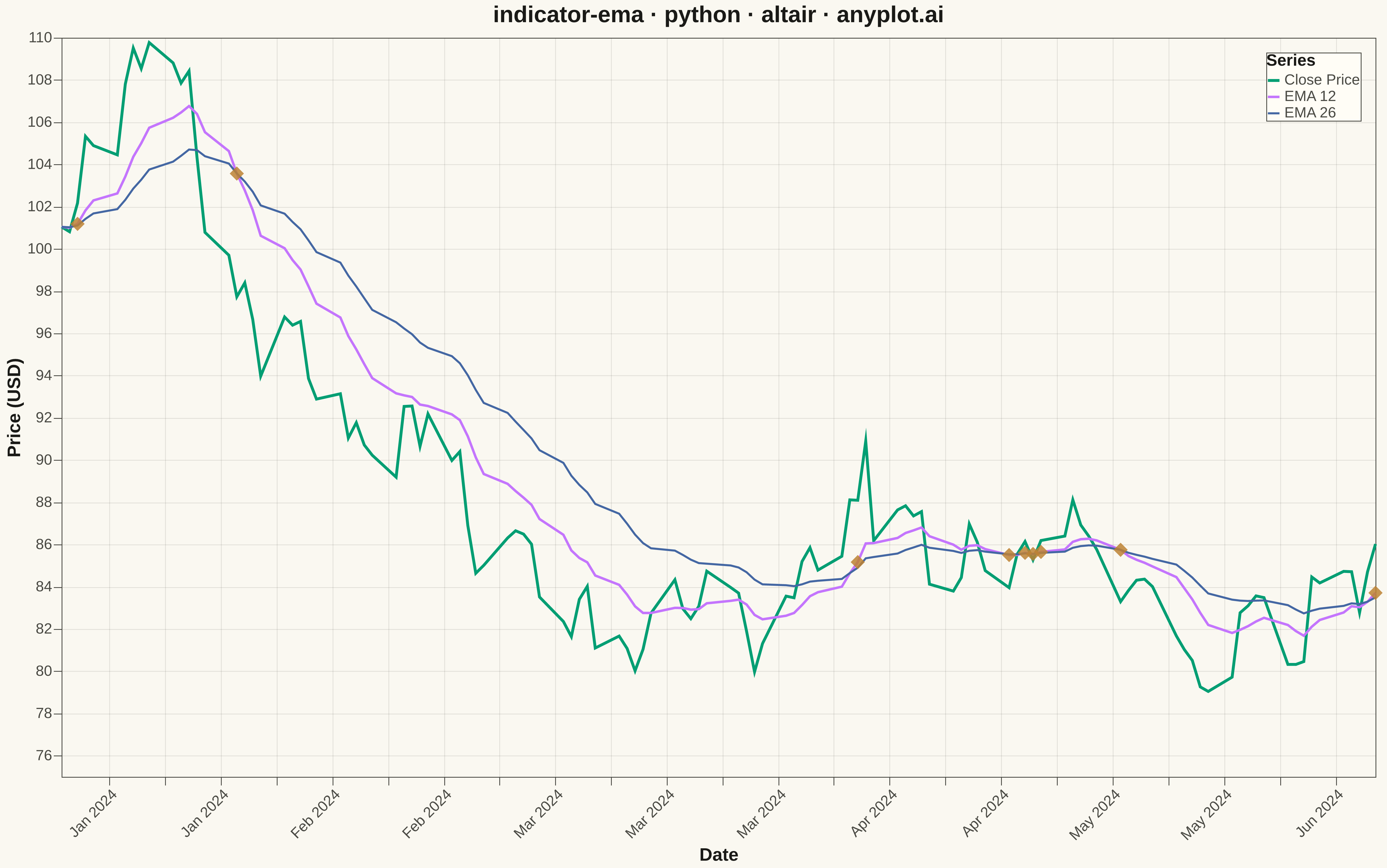

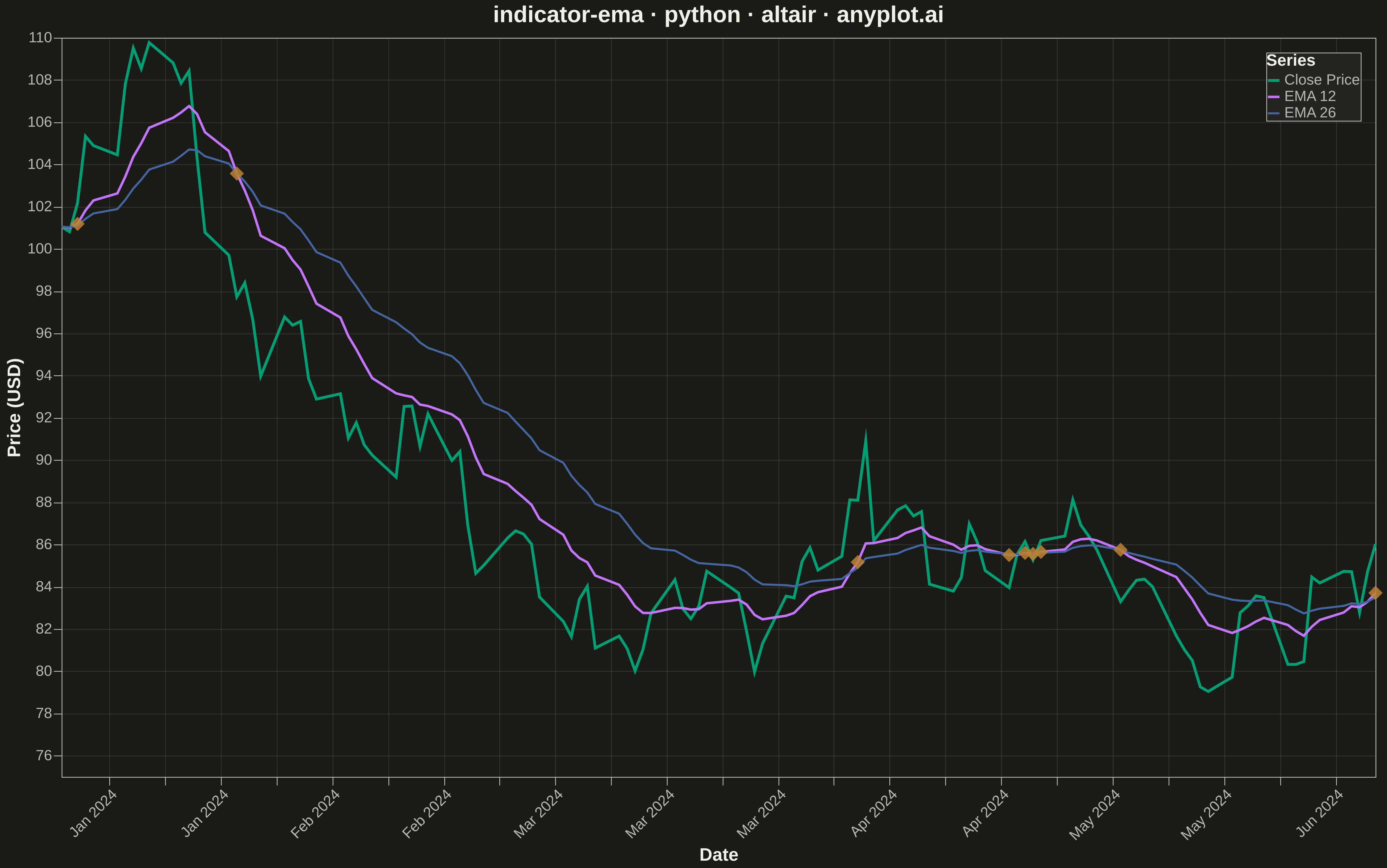

Exponential Moving Average (EMA) Indicator Chart rendered with Altair

Python source (Altair)

""" anyplot.ai
indicator-ema: Exponential Moving Average (EMA) Indicator Chart
Library: altair 6.1.0 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-19
"""

import os

import altair as alt
import numpy as np
import pandas as pd


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT = ["#009E73", "#C475FD", "#4467A3"]

# Data
np.random.seed(42)
n_days = 120
dates = pd.date_range(start="2024-01-01", periods=n_days, freq="B")
returns = np.random.normal(0.0005, 0.02, n_days)
price = 100 * np.cumprod(1 + returns)

df = pd.DataFrame({"date": dates, "close": price})
df["ema_12"] = df["close"].ewm(span=12, adjust=False).mean()
df["ema_26"] = df["close"].ewm(span=26, adjust=False).mean()

# Detect EMA crossover points (sign change in ema_12 - ema_26)
diff = df["ema_12"] - df["ema_26"]
crossover_mask = (diff.shift(1) * diff < 0) & diff.shift(1).notna()
crossover_df = df[crossover_mask][["date", "ema_12"]].rename(columns={"ema_12": "value"})

# Melt into long format for multi-series chart
df_price = df[["date", "close"]].rename(columns={"close": "value"})
df_price["series"] = "Close Price"
df_ema12 = df[["date", "ema_12"]].rename(columns={"ema_12": "value"})
df_ema12["series"] = "EMA 12"
df_ema26 = df[["date", "ema_26"]].rename(columns={"ema_26": "value"})
df_ema26["series"] = "EMA 26"
df_long = pd.concat([df_price, df_ema12, df_ema26], ignore_index=True)

# Scales
color_scale = alt.Scale(domain=["Close Price", "EMA 12", "EMA 26"], range=IMPRINT)
stroke_scale = alt.Scale(domain=["Close Price", "EMA 12", "EMA 26"], range=[3.5, 2.5, 2.5])

# Line chart layer
lines = (
    alt.Chart(df_long)
    .mark_line()
    .encode(
        x=alt.X("date:T", title="Date", axis=alt.Axis(format="%b %Y", labelAngle=-45)),
        y=alt.Y("value:Q", title="Price (USD)", scale=alt.Scale(zero=False)),
        color=alt.Color("series:N", scale=color_scale, legend=alt.Legend(title="Series", orient="top-right")),
        strokeWidth=alt.StrokeWidth("series:N", scale=stroke_scale, legend=None),
        tooltip=[
            alt.Tooltip("date:T", title="Date", format="%Y-%m-%d"),
            alt.Tooltip("series:N", title="Series"),
            alt.Tooltip("value:Q", title="Price", format="$.2f"),
        ],
    )
)

# Crossover markers (diamond points where EMA 12 crosses EMA 26)
crossover_markers = (
    alt.Chart(crossover_df)
    .mark_point(size=300, shape="diamond", filled=True, color="#BD8233", opacity=0.85)
    .encode(
        x=alt.X("date:T"), y=alt.Y("value:Q"), tooltip=[alt.Tooltip("date:T", title="EMA Crossover", format="%Y-%m-%d")]
    )
)

# Compose and style
chart = (
    alt.layer(lines, crossover_markers)
    .properties(width=1600, height=900, title="indicator-ema · python · altair · anyplot.ai", background=PAGE_BG)
    .configure_view(fill=PAGE_BG, stroke=INK_SOFT)
    .configure_axis(
        domainColor=INK_SOFT,
        tickColor=INK_SOFT,
        gridColor=INK,
        gridOpacity=0.10,
        labelColor=INK_SOFT,
        titleColor=INK,
        labelFontSize=18,
        titleFontSize=22,
        tickSize=10,
    )
    .configure_title(fontSize=28, color=INK, anchor="middle")
    .configure_legend(
        fillColor=ELEVATED_BG,
        strokeColor=INK_SOFT,
        labelColor=INK_SOFT,
        titleColor=INK,
        titleFontSize=20,
        labelFontSize=18,
        symbolStrokeWidth=4,
        symbolSize=200,
    )
)

# Save
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")

Part of Exponential Moving Average (EMA) Indicator Chart on anyplot.ai.
