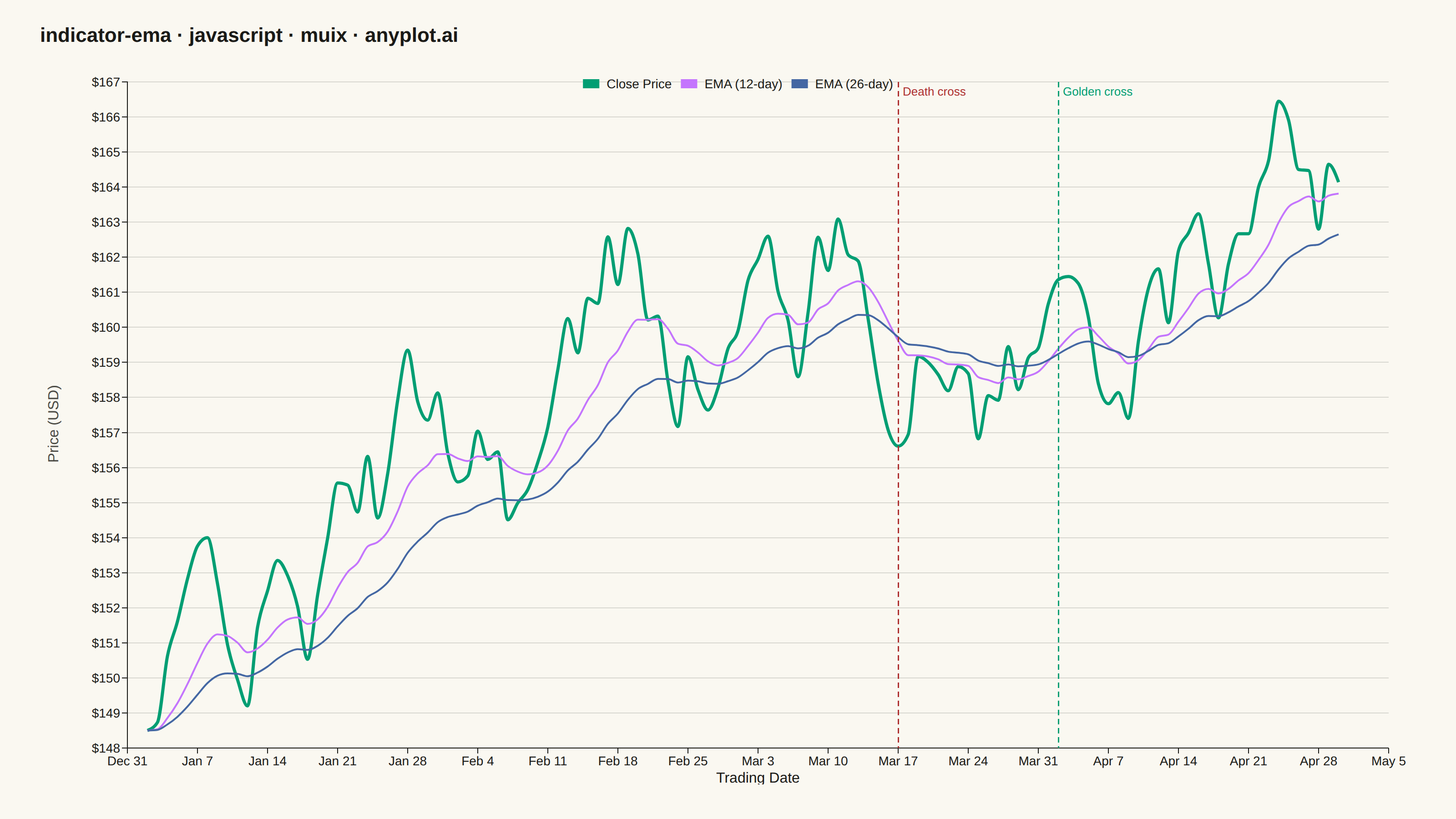

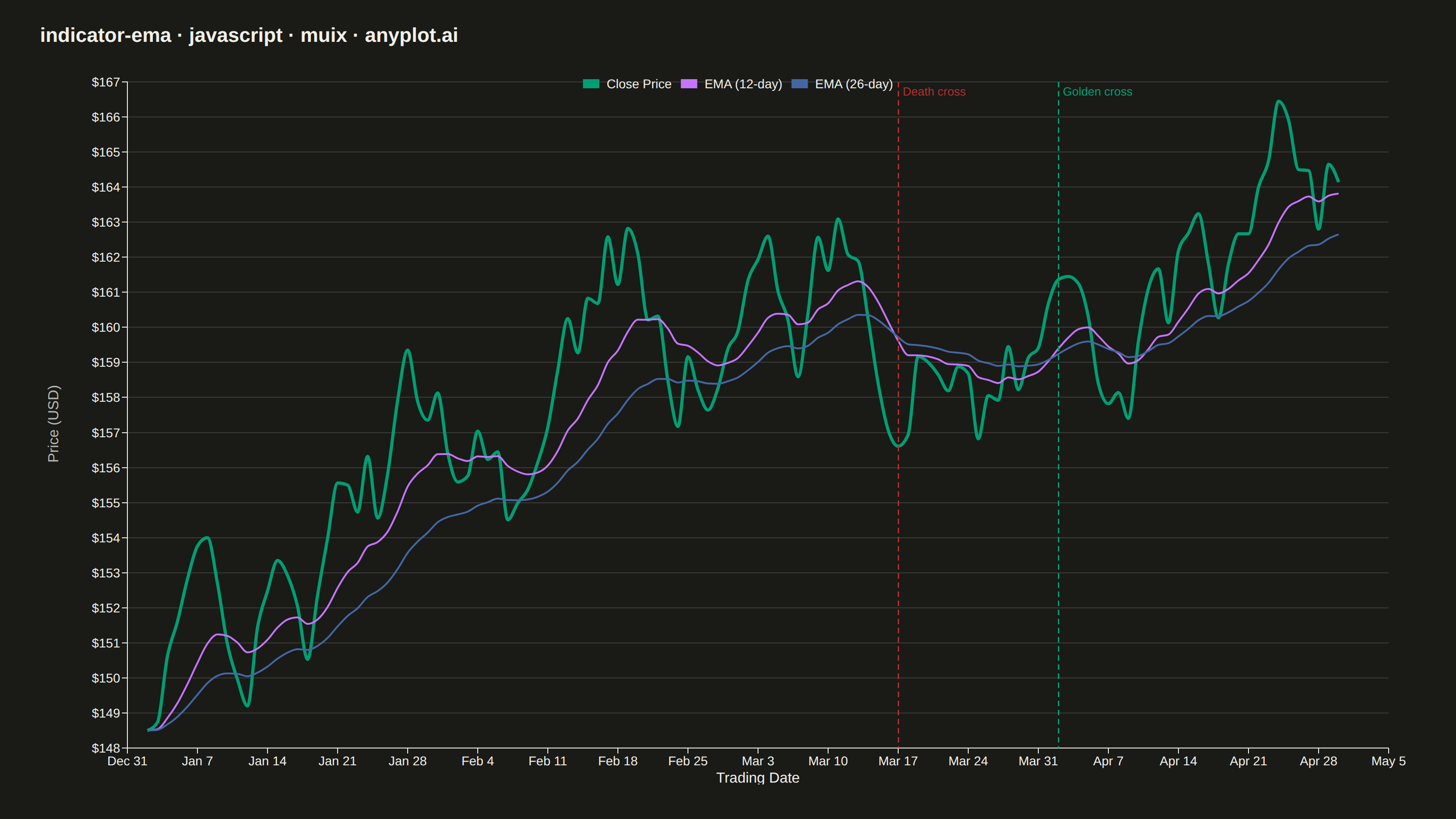

An Exponential Moving Average (EMA) overlay chart displays price data with one or more EMA lines that give greater weight to recent prices, making them more responsive to new information than simple moving averages. The EMA calculation applies an exponential weighting factor that decreases with each older data point, allowing traders to identify trends faster. This technical indicator is fundamental in trading for spotting trend direction, dynamic support/resistance levels, and crossover signals.
// anyplot.ai
// indicator-ema: Exponential Moving Average (EMA) Indicator Chart
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-02
import { LineChart } from "@mui/x-charts/LineChart";
import { ChartsReferenceLine } from "@mui/x-charts/ChartsReferenceLine";
import { Box, Typography } from "@mui/material";
const t = window.ANYPLOT_TOKENS;
// --- Data: 120 trading days of daily closes, deterministic LCG walk --------
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1103515245 + 12345) % 2147483648;
return state / 2147483648;
};
}
const rand = lcg(42);
const NUM_DAYS = 120;
const START_DATE = new Date(2024, 0, 2);
const dates = Array.from({ length: NUM_DAYS }, (_, day) => {
const d = new Date(START_DATE);
d.setDate(d.getDate() + day);
return d;
});
// Random-walk closing price with a mild upward drift plus daily noise.
const closePrices = [];
let price = 148;
for (let day = 0; day < NUM_DAYS; day += 1) {
const drift = 0.15;
const shock = (rand() - 0.5) * 4.2;
price = Math.max(80, price + drift + shock);
closePrices.push(Math.round(price * 100) / 100);
}
const ema = (values, period) => {
const k = 2 / (period + 1);
const out = [values[0]];
for (let i = 1; i < values.length; i += 1) {
out.push(values[i] * k + out[i - 1] * (1 - k));
}
return out;
};
const emaShort = ema(closePrices, 12);
const emaLong = ema(closePrices, 26);
// Crossover points: where the short EMA changes sign relative to the long EMA.
// Golden cross = bullish (short moves above long); death cross = bearish.
const allCrossovers = [];
for (let i = 1; i < NUM_DAYS; i += 1) {
const prevDiff = emaShort[i - 1] - emaLong[i - 1];
const currDiff = emaShort[i] - emaLong[i];
if (prevDiff !== 0 && currDiff !== 0 && Math.sign(prevDiff) !== Math.sign(currDiff)) {
allCrossovers.push({ index: i, bullish: currDiff > 0 });
}
}
// Keep the chart legible: cap the highlighted crossovers to a handful, and
// require a minimum day-gap so neighboring labels never collide.
const MAX_CROSSOVERS = 4;
const MIN_GAP_DAYS = 15;
const crossovers = [];
for (const c of allCrossovers) {
const last = crossovers[crossovers.length - 1];
if (!last || c.index - last.index >= MIN_GAP_DAYS) {
crossovers.push(c);
}
if (crossovers.length >= MAX_CROSSOVERS) break;
}
const TITLE = "indicator-ema · javascript · muix · anyplot.ai";
const dateFormatter = (date) => date.toLocaleDateString("en-US", { month: "short", day: "numeric" });
// --- Chart (default-exported component — the harness mounts it) -----------
export default function Chart() {
const size = window.ANYPLOT_SIZE;
const padding = { top: 28, right: 44, bottom: 24, left: 44 };
const titleBlockHeight = 56;
// MUI X's built-in yAxis `label` positions itself using a fixed
// (tickFontSize + tickSize + 10) offset rather than the tick labels'
// measured width, so a 4-char dollar-formatted tick ("$158") collides
// with the rotated title. Render the y-axis title ourselves in a
// dedicated column instead, and only reserve chart-internal margin for
// the tick labels.
const yAxisLabelColWidth = 32;
const chartWidth = size.width - padding.left - padding.right - yAxisLabelColWidth;
const chartHeight = size.height - padding.top - padding.bottom - titleBlockHeight;
return (
<Box
sx={{
width: size.width,
height: size.height,
boxSizing: "border-box",
padding: `${padding.top}px ${padding.right}px ${padding.bottom}px ${padding.left}px`,
display: "flex",
flexDirection: "column",
}}
>
<Typography sx={{ fontSize: 22, fontWeight: 600, color: "text.primary", mb: "20px", lineHeight: 1 }}>
{TITLE}
</Typography>
<Box sx={{ display: "flex", flexDirection: "row", alignItems: "center" }}>
<Box
sx={{
width: yAxisLabelColWidth,
height: chartHeight,
display: "flex",
alignItems: "center",
justifyContent: "center",
}}
>
<Typography
sx={{
fontSize: 16,
color: "text.secondary",
whiteSpace: "nowrap",
writingMode: "vertical-rl",
transform: "rotate(180deg)",
}}
>
Price (USD)
</Typography>
</Box>
<LineChart
width={chartWidth}
height={chartHeight}
skipAnimation
margin={{ top: 20, right: 30, bottom: 40, left: 64 }}
series={[
{
id: "close",
label: "Close Price",
data: closePrices,
color: t.palette[0],
showMark: false,
valueFormatter: (v) => `$${v.toFixed(2)}`,
},
{
id: "ema12",
label: "EMA (12-day)",
data: emaShort,
color: t.palette[1],
showMark: false,
valueFormatter: (v) => `$${v.toFixed(2)}`,
},
{
id: "ema26",
label: "EMA (26-day)",
data: emaLong,
color: t.palette[2],
showMark: false,
valueFormatter: (v) => `$${v.toFixed(2)}`,
},
]}
xAxis={[
{
data: dates,
scaleType: "time",
label: "Trading Date",
valueFormatter: dateFormatter,
tickLabelStyle: { fontSize: 14 },
labelStyle: { fontSize: 16 },
},
]}
yAxis={[
{
valueFormatter: (v) => `$${v}`,
tickLabelStyle: { fontSize: 14 },
},
]}
grid={{ horizontal: true }}
slotProps={{
legend: {
direction: "row",
labelStyle: { fontSize: 14 },
itemMarkWidth: 18,
itemMarkHeight: 10,
markGap: 8,
},
}}
sx={{
"& .MuiLineElement-series-close": { strokeWidth: 3.5 },
"& .MuiLineElement-series-ema12": { strokeWidth: 2 },
"& .MuiLineElement-series-ema26": { strokeWidth: 2 },
}}
>
{crossovers.map((c) => (
<ChartsReferenceLine
key={c.index}
x={dates[c.index]}
label={c.bullish ? "Golden cross" : "Death cross"}
labelAlign="start"
lineStyle={{
stroke: c.bullish ? t.palette[0] : t.palette[4],
strokeDasharray: "6 4",
strokeWidth: 1.5,
}}
labelStyle={{ fill: c.bullish ? t.palette[0] : t.palette[4], fontSize: 13 }}
/>
))}
</LineChart>
</Box>
</Box>
);
}
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/indicator-ema/muix/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "indicator-ema",
"language": "javascript",
"library": "muix",
"page": "https://anyplot.ai/indicator-ema/javascript/muix",
"hub": "https://anyplot.ai/indicator-ema",
"code_json": "https://api.anyplot.ai/specs/indicator-ema/muix/code",
"spec_json": "https://api.anyplot.ai/specs/indicator-ema",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/indicator-ema/javascript/muix/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/indicator-ema/javascript/muix/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/indicator-ema/javascript/muix/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/indicator-ema/javascript/muix/plot-dark.html",
"quality_score": 88.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Exponential Moving Average (EMA) Indicator Chart on anyplot.ai.
