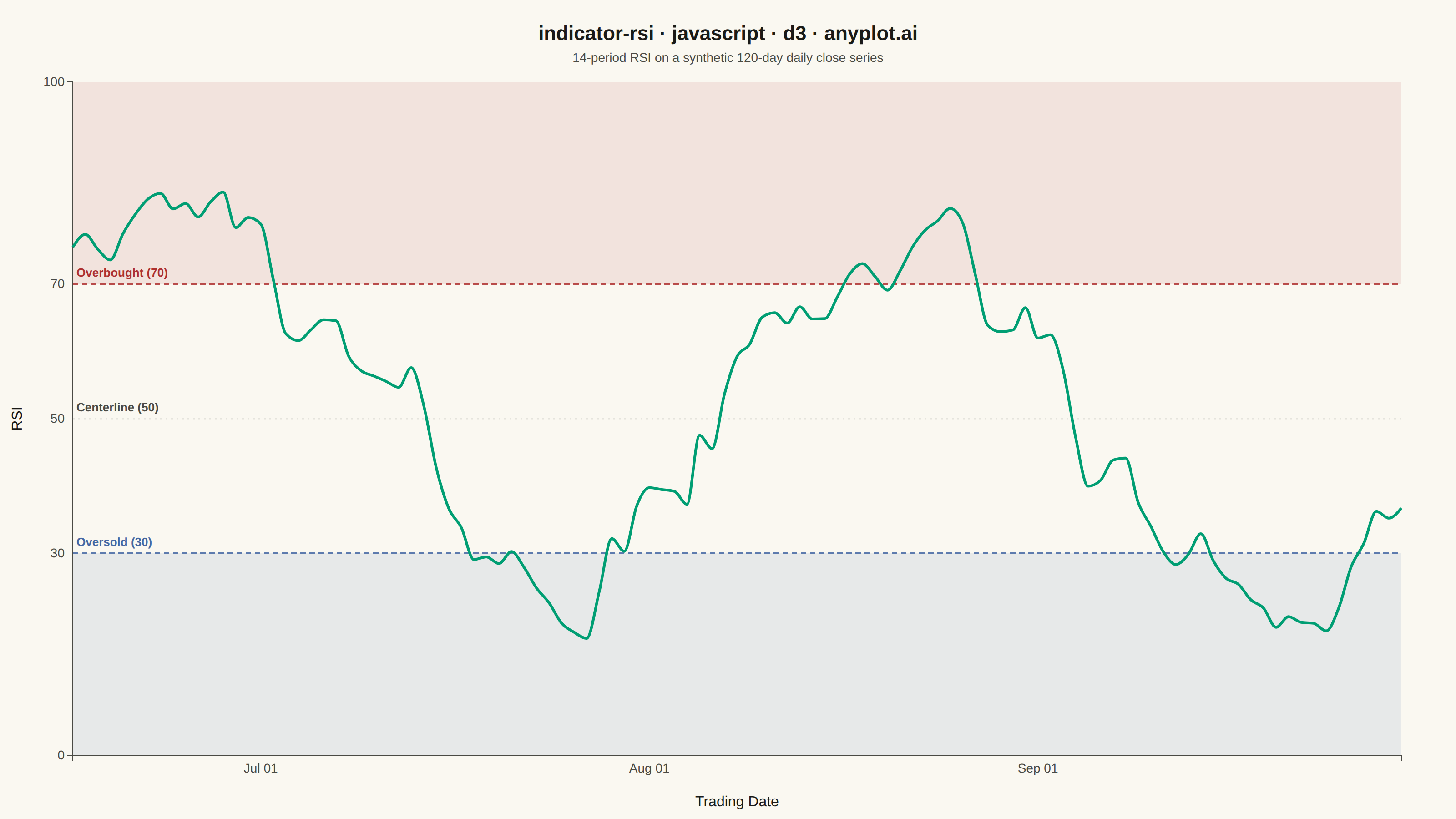

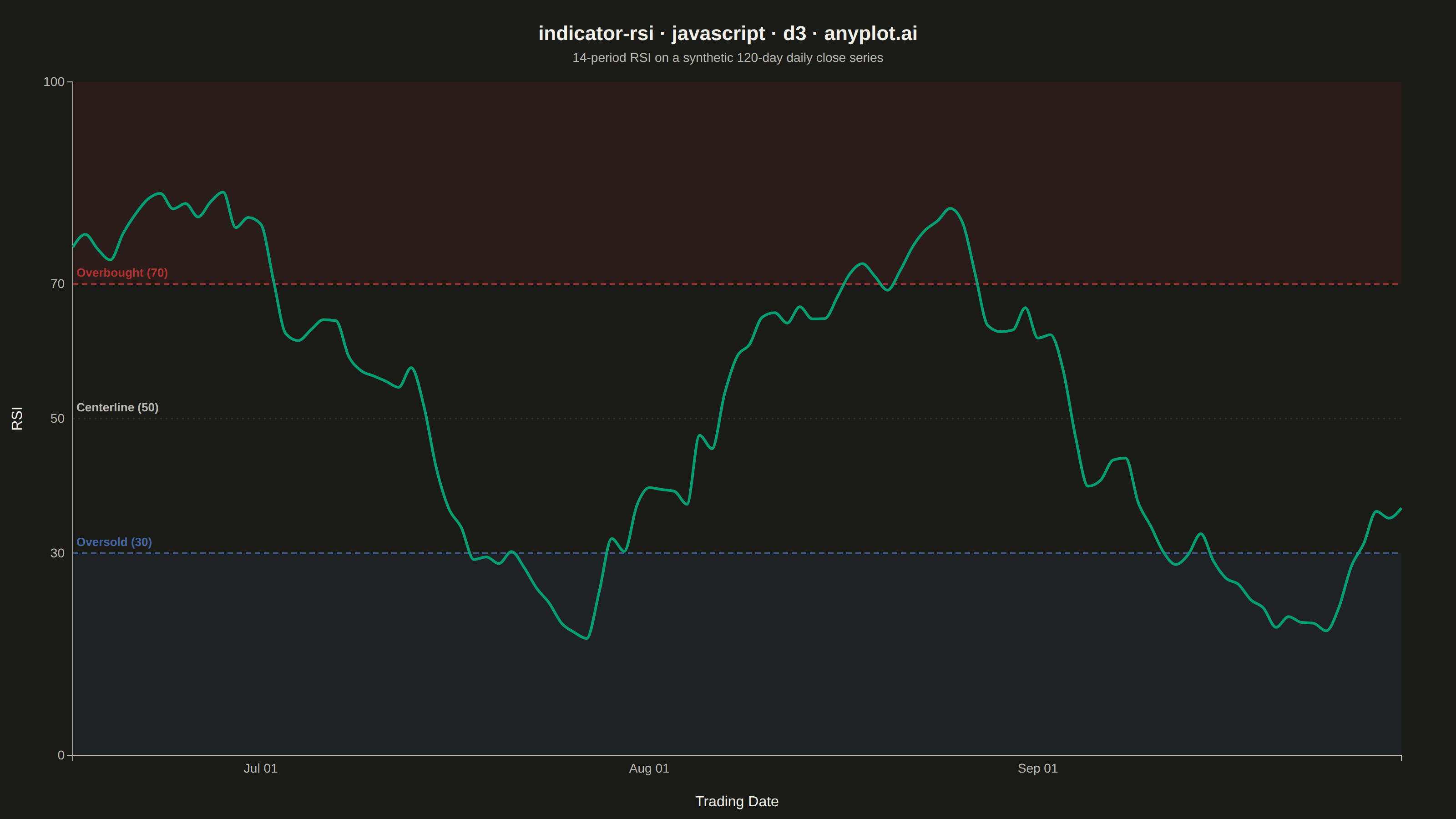

A Relative Strength Index (RSI) chart displaying the momentum oscillator on a 0-100 scale with horizontal threshold lines at 70 (overbought) and 30 (oversold). The RSI measures the speed and magnitude of recent price changes to evaluate overbought or oversold conditions. This is a fundamental momentum indicator in technical analysis, helping traders identify potential reversal points when the market reaches extreme conditions.
// anyplot.ai
// indicator-rsi: RSI Technical Indicator Chart
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-05
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 90, right: 60, bottom: 70, left: 80 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data: 120-day RSI(14) series derived from a synthetic price walk ------
// Deterministic LCG (browser has no seeded Math.random)
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
const rand = lcg(42);
const numDays = 120;
const prices = [180];
for (let i = 1; i < numDays + 1; i++) {
const drift = Math.sin(i / 9) * 0.9;
const noise = (rand() - 0.5) * 3.2;
prices.push(prices[i - 1] + drift + noise);
}
const lookback = 14;
function computeRsi(series, period) {
const rsi = new Array(series.length).fill(null);
let gainSum = 0;
let lossSum = 0;
for (let i = 1; i <= period; i++) {
const change = series[i] - series[i - 1];
if (change > 0) gainSum += change;
else lossSum -= change;
}
let avgGain = gainSum / period;
let avgLoss = lossSum / period;
rsi[period] = avgLoss === 0 ? 100 : 100 - 100 / (1 + avgGain / avgLoss);
for (let i = period + 1; i < series.length; i++) {
const change = series[i] - series[i - 1];
const gain = change > 0 ? change : 0;
const loss = change < 0 ? -change : 0;
avgGain = (avgGain * (period - 1) + gain) / period;
avgLoss = (avgLoss * (period - 1) + loss) / period;
rsi[i] = avgLoss === 0 ? 100 : 100 - 100 / (1 + avgGain / avgLoss);
}
return rsi;
}
const startDate = new Date(2025, 5, 2);
const rsiSeries = computeRsi(prices, lookback);
const data = rsiSeries
.map((value, i) => ({ date: new Date(startDate.getTime() + i * 86400000), value }))
.filter((d) => d.value !== null);
// --- SVG mount ---------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// --- Scales -------------------------------------------------------------------
const x = d3
.scaleTime()
.domain(d3.extent(data, (d) => d.date))
.range([0, iw]);
const y = d3.scaleLinear().domain([0, 100]).range([ih, 0]);
// --- Zone shading (overbought 70-100, oversold 0-30) --------------------------
g.append("rect")
.attr("x", 0)
.attr("y", y(100))
.attr("width", iw)
.attr("height", y(70) - y(100))
.attr("fill", t.palette[4])
.attr("opacity", 0.1);
g.append("rect")
.attr("x", 0)
.attr("y", y(30))
.attr("width", iw)
.attr("height", y(0) - y(30))
.attr("fill", t.palette[2])
.attr("opacity", 0.1);
// --- Threshold + centerline lines ---------------------------------------------
// Labels sit at the left edge (day 14+) where the series has more headroom
// before its terminal value, avoiding the right-edge collision with the line.
const thresholds = [
{ level: 70, label: "Overbought (70)", lineColor: t.palette[4], labelColor: t.palette[4] },
{ level: 50, label: "Centerline (50)", lineColor: t.grid, labelColor: t.inkSoft },
{ level: 30, label: "Oversold (30)", lineColor: t.palette[2], labelColor: t.palette[2] },
];
for (const th of thresholds) {
g.append("line")
.attr("x1", 0)
.attr("x2", iw)
.attr("y1", y(th.level))
.attr("y2", y(th.level))
.attr("stroke", th.lineColor)
.attr("stroke-width", th.level === 50 ? 1.5 : 2)
.attr("stroke-dasharray", th.level === 50 ? "2,4" : "6,4")
.attr("opacity", th.level === 50 ? 0.6 : 0.85);
g.append("text")
.attr("x", 4)
.attr("y", y(th.level) - 8)
.attr("text-anchor", "start")
.attr("fill", th.labelColor)
.style("font-size", "13px")
.style("font-weight", "600")
.text(th.label);
}
// --- Axes -----------------------------------------------------------------
const xAxis = g
.append("g")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(x).ticks(7).tickFormat(d3.timeFormat("%b %d")));
const yAxis = g.append("g").call(d3.axisLeft(y).tickValues([0, 30, 50, 70, 100]));
for (const ax of [xAxis, yAxis]) {
ax.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
ax.selectAll("line").attr("stroke", t.grid);
ax.select(".domain").attr("stroke", t.inkSoft);
}
xAxis.selectAll(".tick line").remove();
yAxis.selectAll(".tick line").remove();
// --- RSI line ---------------------------------------------------------------
const line = d3
.line()
.x((d) => x(d.date))
.y((d) => y(d.value))
.curve(d3.curveMonotoneX);
g.append("path").datum(data).attr("fill", "none").attr("stroke", t.palette[0]).attr("stroke-width", 3).attr("d", line);
// --- Axis labels --------------------------------------------------------------
g.append("text")
.attr("x", iw / 2)
.attr("y", ih + 56)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Trading Date");
g.append("text")
.attr("transform", "rotate(-90)")
.attr("x", -ih / 2)
.attr("y", -56)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("RSI");
// --- Title + subtitle -----------------------------------------------------
const title = "indicator-rsi · javascript · d3 · anyplot.ai";
svg
.append("text")
.attr("x", width / 2)
.attr("y", 44)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text(title);
svg
.append("text")
.attr("x", width / 2)
.attr("y", 68)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text(`14-period RSI on a synthetic 120-day daily close series`);
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/indicator-rsi/d3/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "indicator-rsi",
"language": "javascript",
"library": "d3",
"page": "https://anyplot.ai/indicator-rsi/javascript/d3",
"hub": "https://anyplot.ai/indicator-rsi",
"code_json": "https://api.anyplot.ai/specs/indicator-rsi/d3/code",
"spec_json": "https://api.anyplot.ai/specs/indicator-rsi",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/indicator-rsi/javascript/d3/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/indicator-rsi/javascript/d3/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/indicator-rsi/javascript/d3/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/indicator-rsi/javascript/d3/plot-dark.html",
"quality_score": 88.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of RSI Technical Indicator Chart on anyplot.ai.
