RSI Technical Indicator Chart — Plotly

A Relative Strength Index (RSI) chart displaying the momentum oscillator on a 0-100 scale with horizontal threshold lines at 70 (overbought) and 30 (oversold). The RSI measures the speed and magnitude of recent price changes to evaluate overbought or oversold conditions. This is a fundamental momentum indicator in technical analysis, helping traders identify potential reversal points when the market reaches extreme conditions.

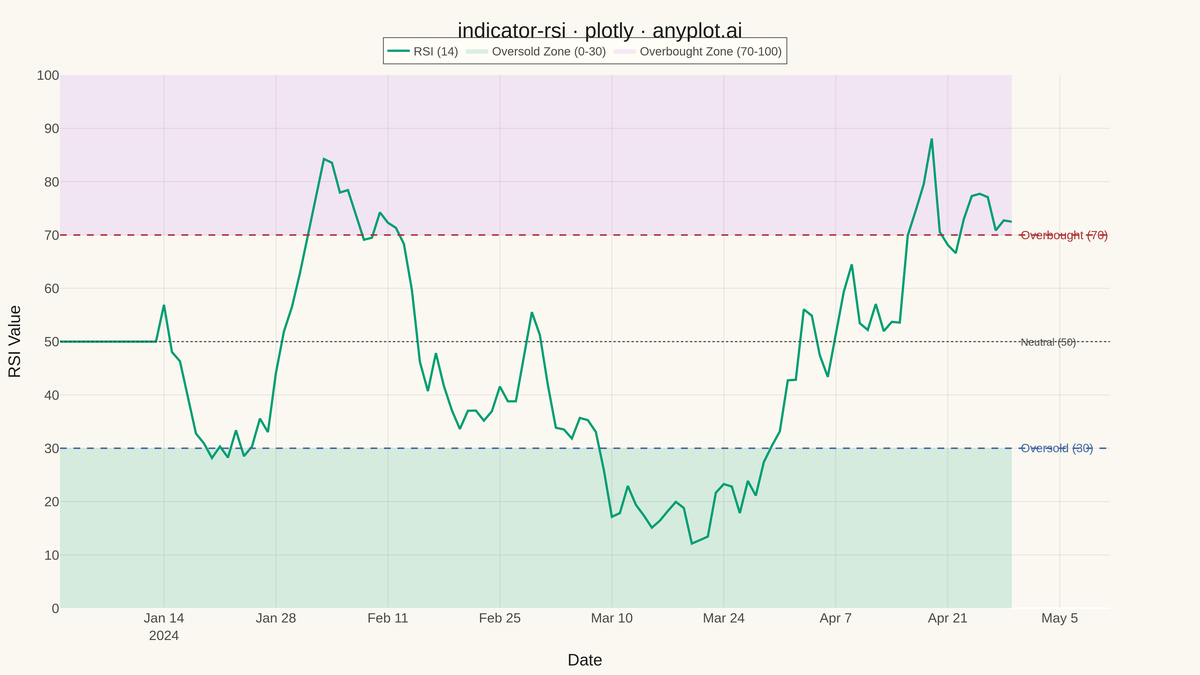

RSI Technical Indicator Chart rendered with Plotly

Python source (Plotly)

""" anyplot.ai
indicator-rsi: RSI Technical Indicator Chart
Library: plotly 6.7.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-16
"""

import os

import numpy as np
import pandas as pd
import plotly.graph_objects as go


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26, 26, 23, 0.10)" if THEME == "light" else "rgba(240, 239, 232, 0.10)"
BRAND = "#009E73"

# Generate sample stock data and calculate RSI
np.random.seed(42)
dates = pd.date_range("2024-01-01", periods=120, freq="D").strftime("%Y-%m-%d")

# Simulate price movement with trends
returns = np.random.randn(120) * 0.015
returns[20:40] += 0.01  # Bull run
returns[60:80] -= 0.012  # Bear period
returns[95:110] += 0.008  # Recovery
price = 100 * np.cumprod(1 + returns)

# Calculate RSI (14-period)
delta = pd.Series(price).diff()
gain = delta.where(delta > 0, 0)
loss = (-delta).where(delta < 0, 0)

avg_gain = gain.rolling(window=14, min_periods=14).mean()
avg_loss = loss.rolling(window=14, min_periods=14).mean()

rs = avg_gain / avg_loss
rsi = 100 - (100 / (1 + rs))
rsi = rsi.fillna(50)

# Create figure
fig = go.Figure()

# Overbought zone (70-100)
fig.add_trace(
    go.Scatter(
        x=dates, y=[100] * len(dates), fill=None, mode="lines", line={"width": 0}, showlegend=False, hoverinfo="skip"
    )
)
fig.add_trace(
    go.Scatter(
        x=dates,
        y=[70] * len(dates),
        fill="tonexty",
        mode="lines",
        line={"width": 0},
        fillcolor="rgba(196, 117, 253, 0.15)",
        name="Overbought Zone (70-100)",
    )
)

# Oversold zone (0-30)
fig.add_trace(
    go.Scatter(
        x=dates, y=[30] * len(dates), fill=None, mode="lines", line={"width": 0}, showlegend=False, hoverinfo="skip"
    )
)
fig.add_trace(
    go.Scatter(
        x=dates,
        y=[0] * len(dates),
        fill="tonexty",
        mode="lines",
        line={"width": 0},
        fillcolor="rgba(0, 158, 115, 0.15)",
        name="Oversold Zone (0-30)",
    )
)

# RSI line
fig.add_trace(go.Scatter(x=dates, y=rsi, mode="lines", name="RSI (14)", line={"color": BRAND, "width": 3}))

# Add reference lines
fig.add_hline(y=70, line_dash="dash", line_color="#AE3030", line_width=2)  # imprint red overbought
fig.add_hline(y=50, line_dash="dot", line_color=INK_SOFT, line_width=1.5)
fig.add_hline(y=30, line_dash="dash", line_color="#4467A3", line_width=2)

# Annotations for threshold lines
fig.add_annotation(
    x=dates[-1],
    y=70,
    text="Overbought (70)",
    showarrow=False,
    xanchor="left",
    xshift=10,
    font={"size": 16, "color": "#AE3030"},
)
fig.add_annotation(
    x=dates[-1],
    y=50,
    text="Neutral (50)",
    showarrow=False,
    xanchor="left",
    xshift=10,
    font={"size": 14, "color": INK_SOFT},
)
fig.add_annotation(
    x=dates[-1],
    y=30,
    text="Oversold (30)",
    showarrow=False,
    xanchor="left",
    xshift=10,
    font={"size": 16, "color": "#4467A3"},
)

# Layout
fig.update_layout(
    title={
        "text": "indicator-rsi · plotly · anyplot.ai",
        "font": {"size": 28, "color": INK},
        "x": 0.5,
        "xanchor": "center",
    },
    xaxis={
        "title": {"text": "Date", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "showgrid": True,
        "gridcolor": GRID,
    },
    yaxis={
        "title": {"text": "RSI Value", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "range": [0, 100],
        "showgrid": True,
        "gridcolor": GRID,
        "dtick": 10,
    },
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    legend={
        "orientation": "h",
        "yanchor": "bottom",
        "y": 1.02,
        "xanchor": "center",
        "x": 0.5,
        "font": {"size": 16, "color": INK_SOFT},
        "bgcolor": ELEVATED_BG,
        "bordercolor": INK_SOFT,
        "borderwidth": 1,
    },
    margin={"l": 80, "r": 120, "t": 100, "b": 80},
)

# Save outputs
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of RSI Technical Indicator Chart on anyplot.ai.
