RSI Technical Indicator Chart — lets-plot

A Relative Strength Index (RSI) chart displaying the momentum oscillator on a 0-100 scale with horizontal threshold lines at 70 (overbought) and 30 (oversold). The RSI measures the speed and magnitude of recent price changes to evaluate overbought or oversold conditions. This is a fundamental momentum indicator in technical analysis, helping traders identify potential reversal points when the market reaches extreme conditions.

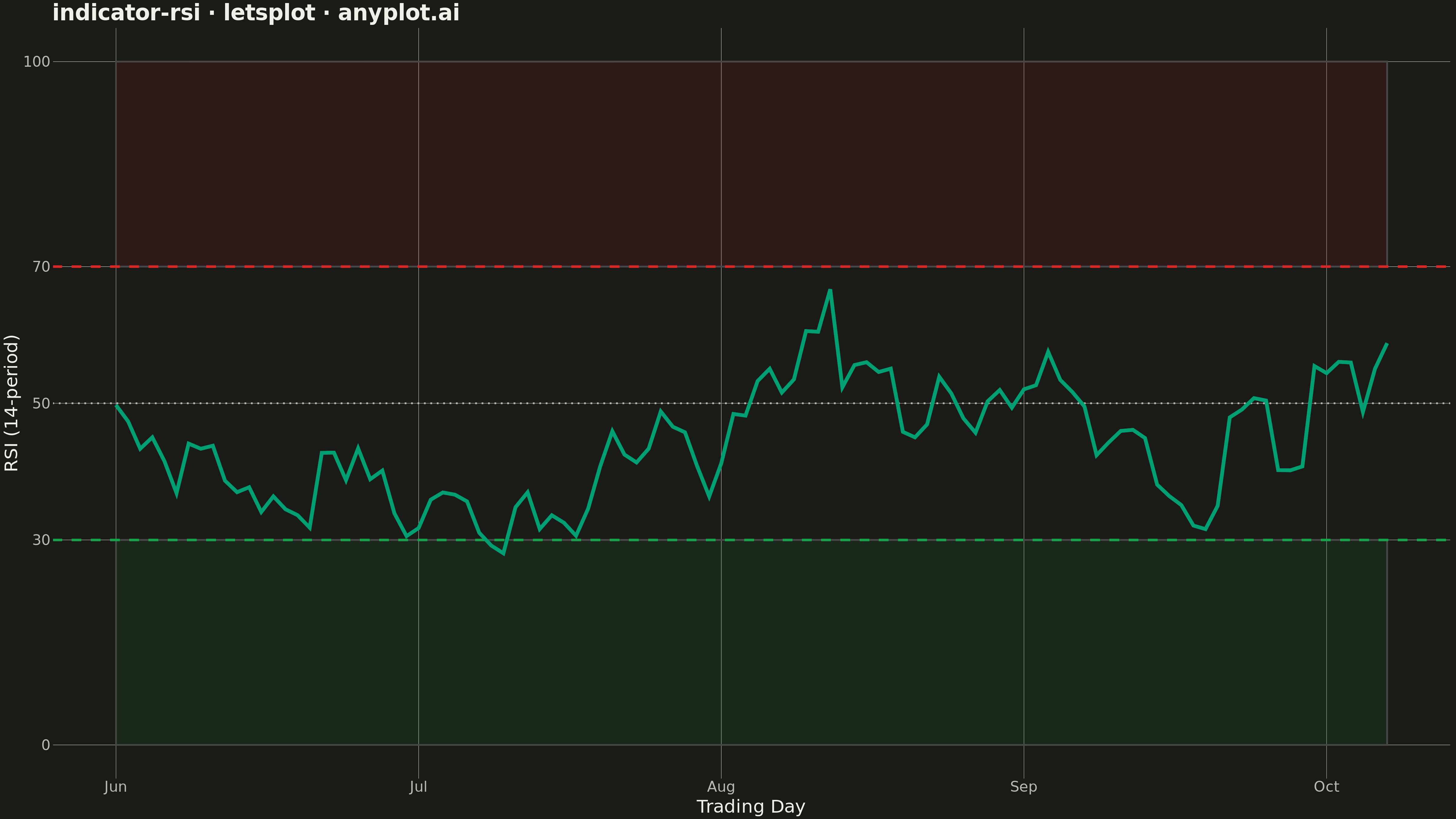

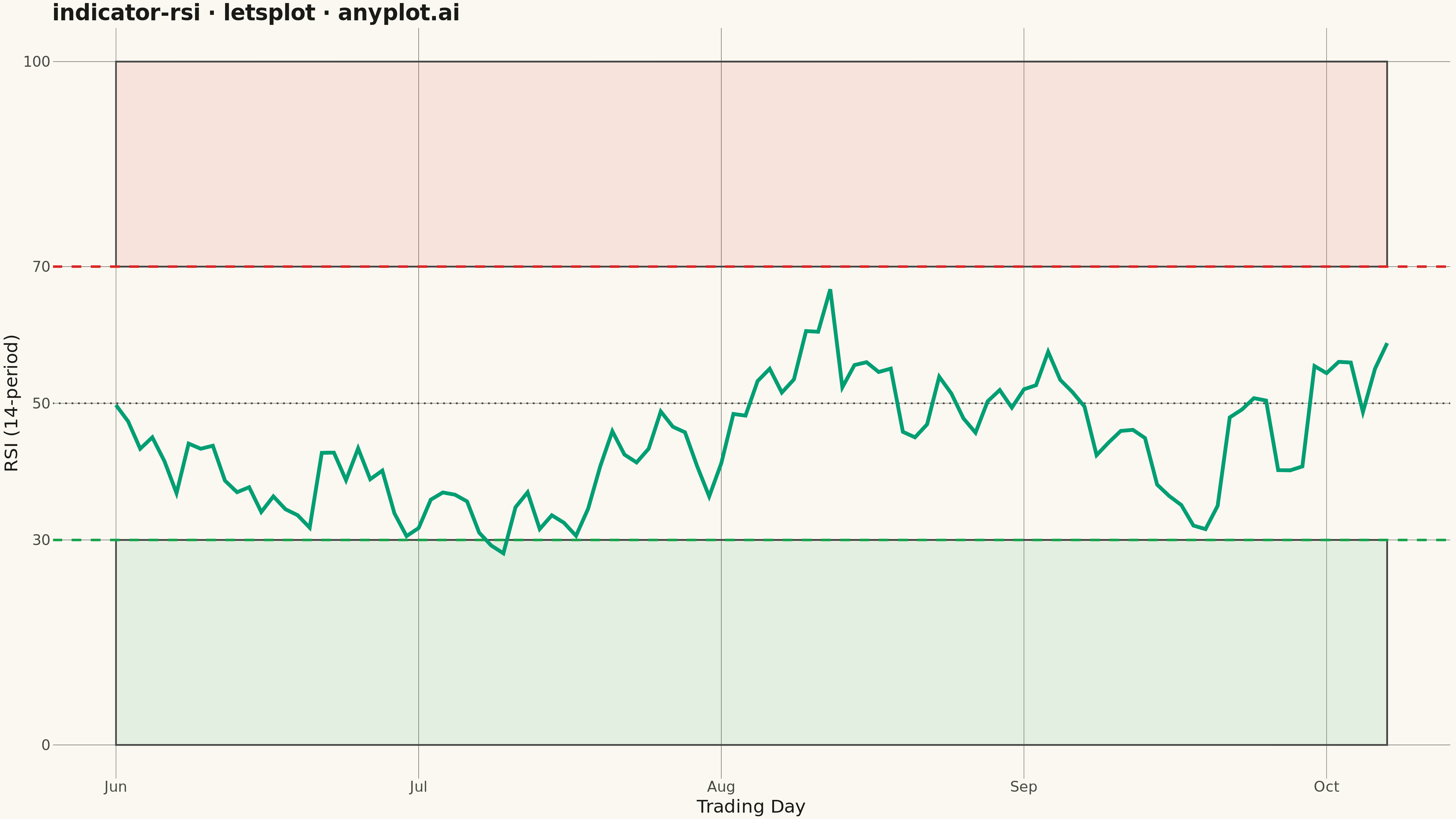

RSI Technical Indicator Chart rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
indicator-rsi: RSI Technical Indicator Chart
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-16
"""
# ruff: noqa: F405

import os

import numpy as np
import pandas as pd
from lets_plot import *


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73"

# Data - Generate realistic stock price data and calculate RSI
np.random.seed(42)

n_days = 120
dates = pd.date_range("2024-06-01", periods=n_days, freq="B")

# Generate volatile price movements to demonstrate overbought/oversold zones
returns = np.random.normal(0.0005, 0.025, n_days)  # Increased volatility
price = 150 * np.exp(np.cumsum(returns))

# Calculate RSI with 14-period lookback
period = 14
delta = np.diff(price)
gains = np.where(delta > 0, delta, 0)
losses = np.where(delta < 0, -delta, 0)

# Calculate average gains/losses using exponential moving average
avg_gain = np.zeros(len(delta))
avg_loss = np.zeros(len(delta))

avg_gain[period - 1] = np.mean(gains[:period])
avg_loss[period - 1] = np.mean(losses[:period])

for i in range(period, len(delta)):
    avg_gain[i] = (avg_gain[i - 1] * (period - 1) + gains[i]) / period
    avg_loss[i] = (avg_loss[i - 1] * (period - 1) + losses[i]) / period

rs = np.where(avg_loss != 0, avg_gain / avg_loss, 100)
rsi = 100 - (100 / (1 + rs))

# Align RSI with dates (first period-1 values are NaN)
rsi_values = np.full(n_days, np.nan)
rsi_values[period:] = rsi[period - 1 :]

df = pd.DataFrame({"date": dates, "rsi": rsi_values}).dropna()

df["date_num"] = range(len(df))

# Create zones for shading
overbought_df = pd.DataFrame(
    {"xmin": [df["date_num"].min()], "xmax": [df["date_num"].max()], "ymin": [70], "ymax": [100]}
)

oversold_df = pd.DataFrame({"xmin": [df["date_num"].min()], "xmax": [df["date_num"].max()], "ymin": [0], "ymax": [30]})

# Create the RSI chart with theme-adaptive styling
plot = (
    ggplot()
    # Overbought zone
    + geom_rect(
        data=overbought_df, mapping=aes(xmin="xmin", xmax="xmax", ymin="ymin", ymax="ymax"), fill="#DC2626", alpha=0.1
    )
    # Oversold zone
    + geom_rect(
        data=oversold_df, mapping=aes(xmin="xmin", xmax="xmax", ymin="ymin", ymax="ymax"), fill="#16A34A", alpha=0.1
    )
    # Horizontal threshold lines
    + geom_hline(yintercept=70, color="#DC2626", size=1.2, linetype="dashed")
    + geom_hline(yintercept=30, color="#16A34A", size=1.2, linetype="dashed")
    + geom_hline(yintercept=50, color=INK_SOFT, size=0.8, linetype="dotted")
    # RSI line in brand color
    + geom_line(data=df, mapping=aes(x="date_num", y="rsi"), color=BRAND, size=1.8)
    # Labels and styling
    + labs(title="indicator-rsi · letsplot · anyplot.ai", x="Trading Day", y="RSI (14-period)")
    + scale_y_continuous(limits=[0, 100], breaks=[0, 30, 50, 70, 100])
    + scale_x_continuous(breaks=[0, 25, 50, 75, 100], labels=["Jun", "Jul", "Aug", "Sep", "Oct"])
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_grid_major=element_line(color=INK_SOFT, size=0.4),
        panel_grid_minor=element_blank(),
        axis_line=element_line(color=INK_SOFT, size=0.5),
        plot_title=element_text(size=24, face="bold", color=INK),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
    )
    + ggsize(1600, 900)
)

# Save as PNG (scale 3x for 4800 × 2700 px)
ggsave(plot, f"plot-{THEME}.png", scale=3)

# Save as HTML for interactive viewing
ggsave(plot, f"plot-{THEME}.html")

Part of RSI Technical Indicator Chart on anyplot.ai.
