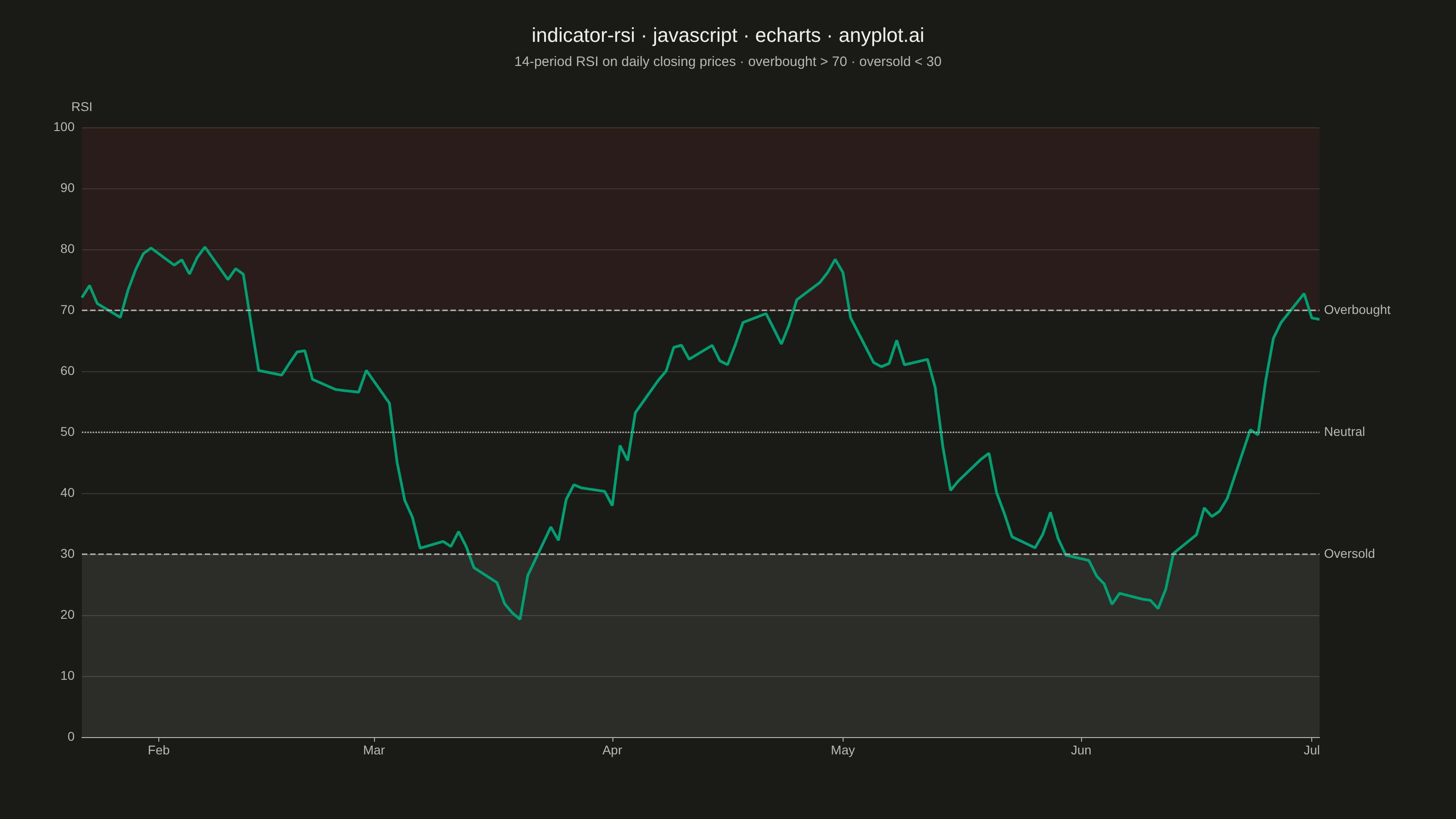

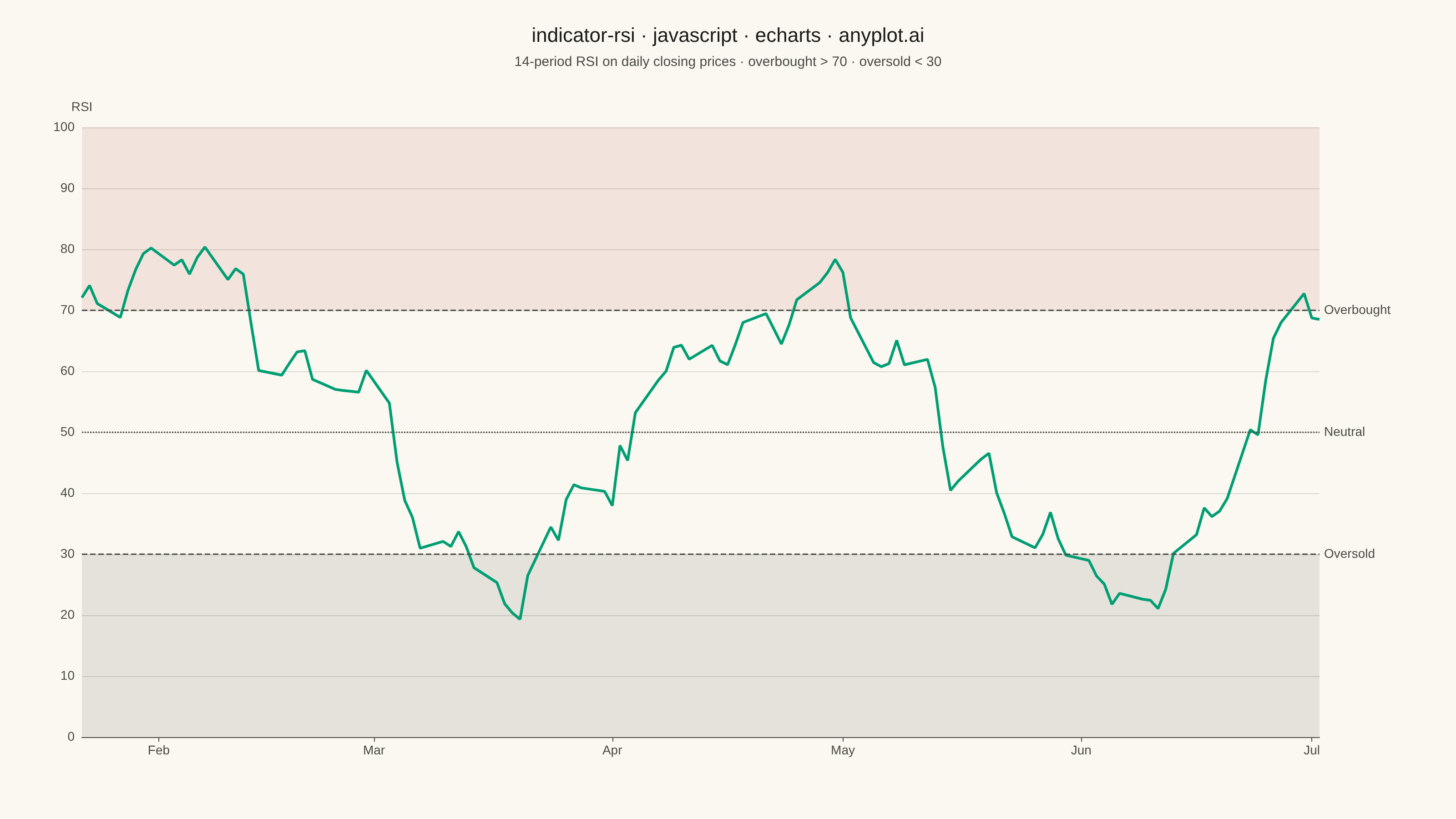

A Relative Strength Index (RSI) chart displaying the momentum oscillator on a 0-100 scale with horizontal threshold lines at 70 (overbought) and 30 (oversold). The RSI measures the speed and magnitude of recent price changes to evaluate overbought or oversold conditions. This is a fundamental momentum indicator in technical analysis, helping traders identify potential reversal points when the market reaches extreme conditions.
// anyplot.ai
// indicator-rsi: RSI Technical Indicator Chart
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-05
const t = window.ANYPLOT_TOKENS;
// --- Helpers -----------------------------------------------------------
function hexToRgba(hex, alpha) {
const h = hex.replace("#", "");
const r = parseInt(h.substring(0, 2), 16);
const g = parseInt(h.substring(2, 4), 16);
const b = parseInt(h.substring(4, 6), 16);
return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
function nextTradingDay(date) {
const next = new Date(date);
do {
next.setUTCDate(next.getUTCDate() + 1);
} while (next.getUTCDay() === 0 || next.getUTCDay() === 6);
return next;
}
function computeRsi(closes, period) {
const rsi = new Array(closes.length).fill(null);
let avgGain = 0;
let avgLoss = 0;
for (let i = 1; i <= period; i += 1) {
const change = closes[i] - closes[i - 1];
avgGain += Math.max(change, 0);
avgLoss += Math.max(-change, 0);
}
avgGain /= period;
avgLoss /= period;
rsi[period] = avgLoss === 0 ? 100 : 100 - 100 / (1 + avgGain / avgLoss);
for (let i = period + 1; i < closes.length; i += 1) {
const change = closes[i] - closes[i - 1];
const gain = Math.max(change, 0);
const loss = Math.max(-change, 0);
avgGain = (avgGain * (period - 1) + gain) / period;
avgLoss = (avgLoss * (period - 1) + loss) / period;
rsi[i] = avgLoss === 0 ? 100 : 100 - 100 / (1 + avgGain / avgLoss);
}
return rsi;
}
// --- Data (in-memory, deterministic LCG-driven price walk) -------------
const lookback = 14;
const totalDays = 130;
const rand = lcg(42);
const dates = [new Date("2025-01-02T00:00:00Z")];
for (let i = 1; i < totalDays; i += 1) {
dates.push(nextTradingDay(dates[i - 1]));
}
const closingPrices = [64.2];
for (let i = 1; i < totalDays; i += 1) {
const cycle = Math.sin(i / 9) * 0.4;
const noise = (rand() - 0.5) * 1.7;
closingPrices.push(Math.max(10, closingPrices[i - 1] + cycle + noise));
}
const rsiValues = computeRsi(closingPrices, lookback);
const rsiSeries = [];
for (let i = lookback; i < totalDays; i += 1) {
rsiSeries.push([dates[i].getTime(), rsiValues[i]]);
}
// --- Init ----------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option ----------------------------------------------------------------
chart.setOption({
animation: false,
backgroundColor: "transparent",
color: [t.palette[0]],
title: {
text: "indicator-rsi · javascript · echarts · anyplot.ai",
subtext: "14-period RSI on daily closing prices · overbought > 70 · oversold < 30",
left: "center",
top: 24,
textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
subtextStyle: { color: t.inkSoft, fontSize: 15 },
},
grid: { left: 90, right: 150, top: 140, bottom: 90 },
xAxis: {
type: "time",
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { show: false },
},
yAxis: {
type: "value",
min: 0,
max: 100,
interval: 10,
name: "RSI",
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { show: false },
splitLine: { lineStyle: { color: t.grid } },
},
series: [
{
type: "line",
name: "RSI (14)",
showSymbol: false,
lineStyle: { width: 3, color: t.palette[0] },
itemStyle: { color: t.palette[0] },
data: rsiSeries,
markArea: {
silent: true,
data: [
[
{ yAxis: 70, itemStyle: { color: hexToRgba(t.palette[4], 0.1) } },
{ yAxis: 100 },
],
[
{ yAxis: 0, itemStyle: { color: hexToRgba(t.inkSoft, 0.12) } },
{ yAxis: 30 },
],
],
},
markLine: {
silent: true,
symbol: "none",
lineStyle: { type: "dashed", color: t.inkSoft, width: 1.5 },
label: { color: t.inkSoft, fontSize: 14, formatter: "{b}", position: "end" },
data: [
{ yAxis: 70, name: "Overbought" },
{ yAxis: 50, name: "Neutral", lineStyle: { type: "dotted" } },
{ yAxis: 30, name: "Oversold" },
],
},
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/indicator-rsi/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
