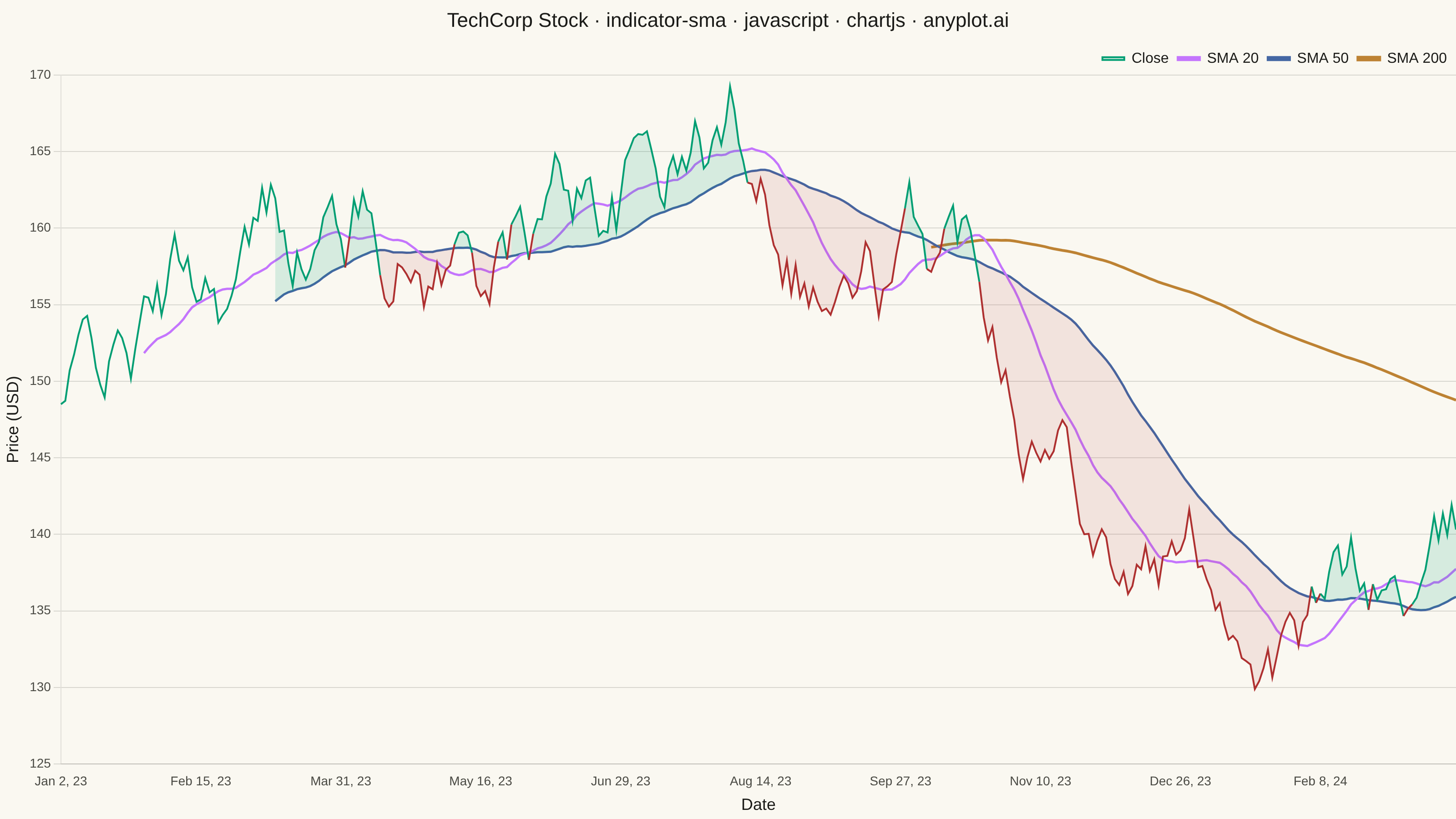

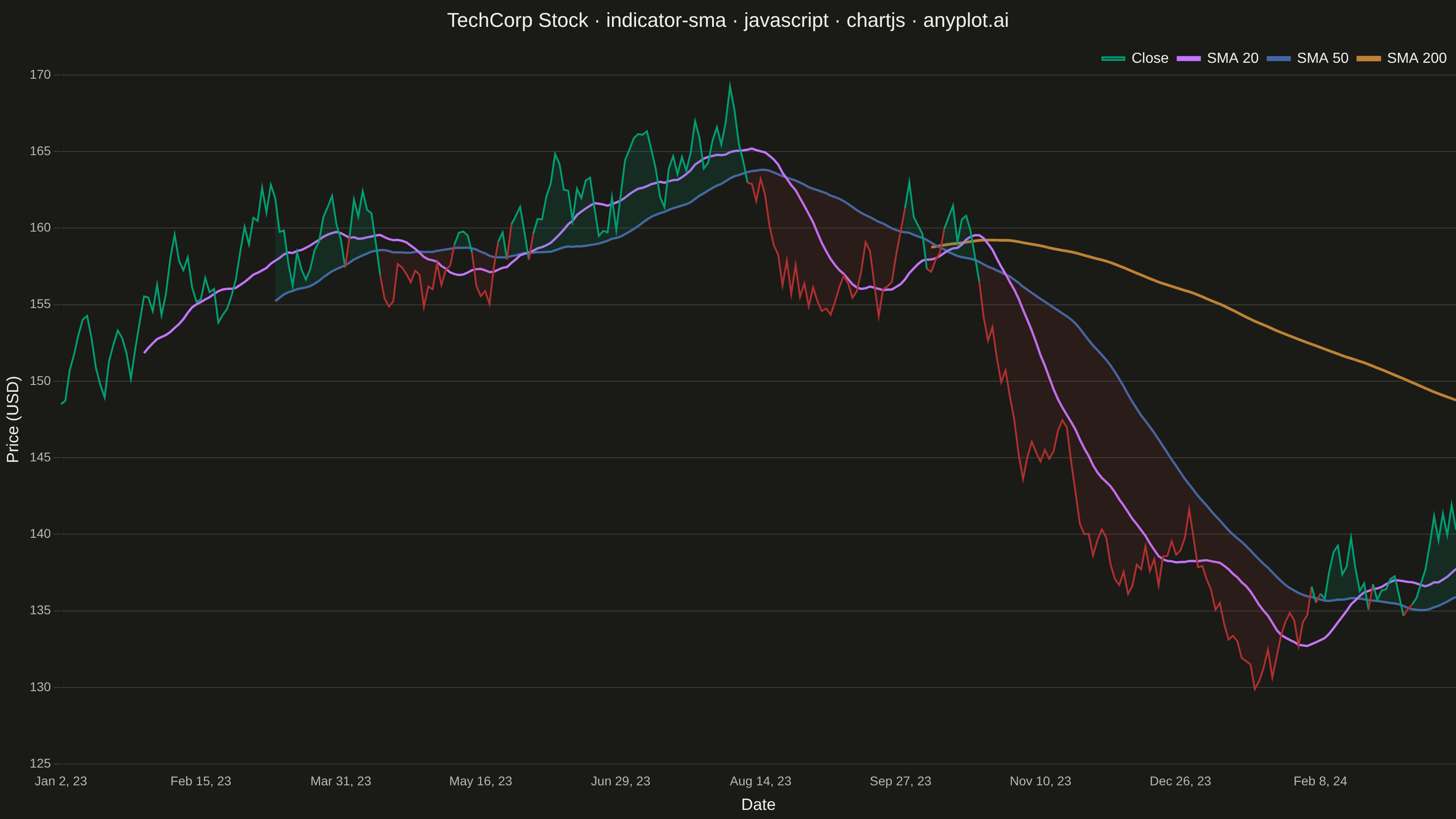

A Simple Moving Average (SMA) chart displays price or value data with one or more SMA overlays, typically showing short, medium, and long-term periods (e.g., 20, 50, 200-day). Each SMA line smooths out price fluctuations by averaging the last N data points, revealing underlying trends at different time scales. This multi-period overlay is fundamental to technical analysis, helping traders identify trend direction, support/resistance levels, and potential crossover signals.
// anyplot.ai
// indicator-sma: Simple Moving Average (SMA) Indicator Chart
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 94/100 | Created: 2026-09-02
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic LCG random walk) ------------------------
function lcg(seed) {
let state = seed;
return function next() {
state = (state * 1103515245 + 12345) % 2147483648;
return state / 2147483648;
};
}
const rand = lcg(42);
const numDays = 320;
const dates = [];
const close = [];
let price = 148;
let cursor = new Date(2023, 0, 2);
while (dates.length < numDays) {
const dow = cursor.getDay();
if (dow !== 0 && dow !== 6) {
dates.push(new Date(cursor));
// regime shift: sustained uptrend, then a pullback — gives the SMAs
// something to cross over
const drift = dates.length < 170 ? 0.0009 : -0.0004;
const shock = (rand() - 0.5) * 0.03;
price *= 1 + drift + shock;
close.push(price);
}
cursor.setDate(cursor.getDate() + 1);
}
function sma(values, period) {
return values.map((_, i) => {
if (i < period - 1) return null;
let sum = 0;
for (let j = i - period + 1; j <= i; j++) sum += values[j];
return sum / period;
});
}
const smaShort = sma(close, 20);
const smaMedium = sma(close, 50);
const smaLong = sma(close, 200);
// Golden-cross / death-cross emphasis: color each Close segment by whether
// price sits above (bullish, brand green) or below (bearish, semantic-red
// anchor) the medium SMA — a Chart.js `segment` feature that turns the
// crossover signal into the chart's visual focal point.
function crossState(i) {
const s = smaMedium[i];
if (s == null) return "above";
return close[i] >= s ? "above" : "below";
}
function hexToRgba(hex, alpha) {
const r = parseInt(hex.slice(1, 3), 16);
const g = parseInt(hex.slice(3, 5), 16);
const b = parseInt(hex.slice(5, 7), 16);
return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}
const bullish = t.palette[0]; // #009E73 brand green
const bearish = t.palette[4]; // #AE3030 matte-red semantic anchor
const bullishFill = hexToRgba(bullish, 0.14);
const bearishFill = hexToRgba(bearish, 0.1);
const labels = dates.map((d) =>
d.toLocaleDateString("en-US", { month: "short", day: "numeric", year: "2-digit" }),
);
// --- Title (fontsize scales down when the descriptive prefix pushes past the
// 67-char baseline) ----------------------------------------------------------
const title = "TechCorp Stock · indicator-sma · javascript · chartjs · anyplot.ai";
const titleFontSize = title.length > 67 ? Math.max(15, Math.round((22 * 67) / title.length)) : 22;
// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
type: "line",
data: {
labels,
datasets: [
{
label: "Close",
data: close,
borderColor: bullish,
backgroundColor: bullishFill,
borderWidth: 2,
pointRadius: 0,
tension: 0,
// Fill the gap between Close and SMA 50 (dataset index 2) rather than
// down to the axis bottom — a narrow, legible band that visualizes
// the crossover spread instead of a heavy full-height area.
fill: 2,
segment: {
borderColor: (ctx) => (crossState(ctx.p0DataIndex) === "below" ? bearish : bullish),
backgroundColor: (ctx) => (crossState(ctx.p0DataIndex) === "below" ? bearishFill : bullishFill),
},
},
{
label: "SMA 20",
data: smaShort,
borderColor: t.palette[1],
backgroundColor: t.palette[1],
borderWidth: 2.5,
pointRadius: 0,
tension: 0,
fill: false,
},
{
label: "SMA 50",
data: smaMedium,
borderColor: t.palette[2],
backgroundColor: t.palette[2],
borderWidth: 2.5,
pointRadius: 0,
tension: 0,
fill: false,
},
{
label: "SMA 200",
data: smaLong,
borderColor: t.palette[3],
backgroundColor: t.palette[3],
borderWidth: 3,
pointRadius: 0,
tension: 0,
fill: false,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
interaction: { mode: "nearest", intersect: false },
plugins: {
title: {
display: true,
text: title,
color: t.ink,
font: { size: titleFontSize, weight: "500" },
},
legend: {
position: "top",
align: "end",
labels: { color: t.ink, font: { size: 16 }, boxWidth: 24, boxHeight: 3 },
},
},
scales: {
x: {
ticks: { color: t.inkSoft, font: { size: 14 }, maxTicksLimit: 10, autoSkip: true },
grid: { display: false },
title: { display: true, text: "Date", color: t.ink, font: { size: 18 } },
},
y: {
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { color: t.grid },
title: { display: true, text: "Price (USD)", color: t.ink, font: { size: 18 } },
},
},
},
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/indicator-sma/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
