A Simple Moving Average (SMA) chart displays price or value data with one or more SMA overlays, typically showing short, medium, and long-term periods (e.g., 20, 50, 200-day). Each SMA line smooths out price fluctuations by averaging the last N data points, revealing underlying trends at different time scales. This multi-period overlay is fundamental to technical analysis, helping traders identify trend direction, support/resistance levels, and potential crossover signals.
""" anyplot.ai
indicator-sma: Simple Moving Average (SMA) Indicator Chart
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 86/100 | Updated: 2026-05-19
"""
import os
import time
from pathlib import Path
import numpy as np
import pandas as pd
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool, Legend
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Okabe-Ito palette (positions 1-4)
COLOR_CLOSE = "#009E73" # brand green — close price (first series)
COLOR_SMA20 = "#C475FD" # vermillion
COLOR_SMA50 = "#4467A3" # blue
COLOR_SMA200 = "#BD8233" # reddish purple
# Data — engineered to produce visible golden cross / death cross signals
np.random.seed(42)
n_days = 300
dates = pd.date_range(start="2024-01-01", periods=n_days, freq="B")
returns = np.concatenate(
[np.random.normal(0.001, 0.012, 100), np.random.normal(-0.002, 0.015, 80), np.random.normal(0.003, 0.013, 120)]
)
price = 100 * np.exp(np.cumsum(returns))
df = pd.DataFrame({"date": dates, "close": price})
df["sma_20"] = df["close"].rolling(window=20).mean()
df["sma_50"] = df["close"].rolling(window=50).mean()
df["sma_200"] = df["close"].rolling(window=200).mean()
source = ColumnDataSource(df)
# Plot
p = figure(
width=4800,
height=2700,
title="indicator-sma · python · bokeh · anyplot.ai",
x_axis_label="Date",
y_axis_label="Price ($)",
x_axis_type="datetime",
tools="pan,wheel_zoom,box_zoom,reset,save",
)
close_line = p.line(x="date", y="close", source=source, line_width=5, color=COLOR_CLOSE, alpha=1.0)
sma20_line = p.line(x="date", y="sma_20", source=source, line_width=2, color=COLOR_SMA20, alpha=0.8, line_dash="dashed")
sma50_line = p.line(x="date", y="sma_50", source=source, line_width=2, color=COLOR_SMA50, alpha=0.8, line_dash="dashed")
sma200_line = p.line(
x="date", y="sma_200", source=source, line_width=2, color=COLOR_SMA200, alpha=0.8, line_dash="dashed"
)
# HoverTool for exact values on mouseover
hover = HoverTool(
tooltips=[
("Date", "@date{%F}"),
("Close", "@close{$0.2f}"),
("SMA 20", "@sma_20{$0.2f}"),
("SMA 50", "@sma_50{$0.2f}"),
("SMA 200", "@sma_200{$0.2f}"),
],
formatters={"@date": "datetime"},
mode="vline",
)
p.add_tools(hover)
# Legend
legend = Legend(
items=[
("Close Price", [close_line]),
("SMA 20", [sma20_line]),
("SMA 50", [sma50_line]),
("SMA 200", [sma200_line]),
],
location="top_left",
)
p.add_layout(legend)
p.legend.label_text_font_size = "22pt"
p.legend.background_fill_color = ELEVATED_BG
p.legend.border_line_color = INK_SOFT
p.legend.label_text_color = INK_SOFT
# Chrome
p.title.text_font_size = "28pt"
p.title.text_color = INK
p.xaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_font_size = "22pt"
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT
p.xgrid.grid_line_color = None
p.ygrid.grid_line_color = INK
p.ygrid.grid_line_alpha = 0.10
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = None

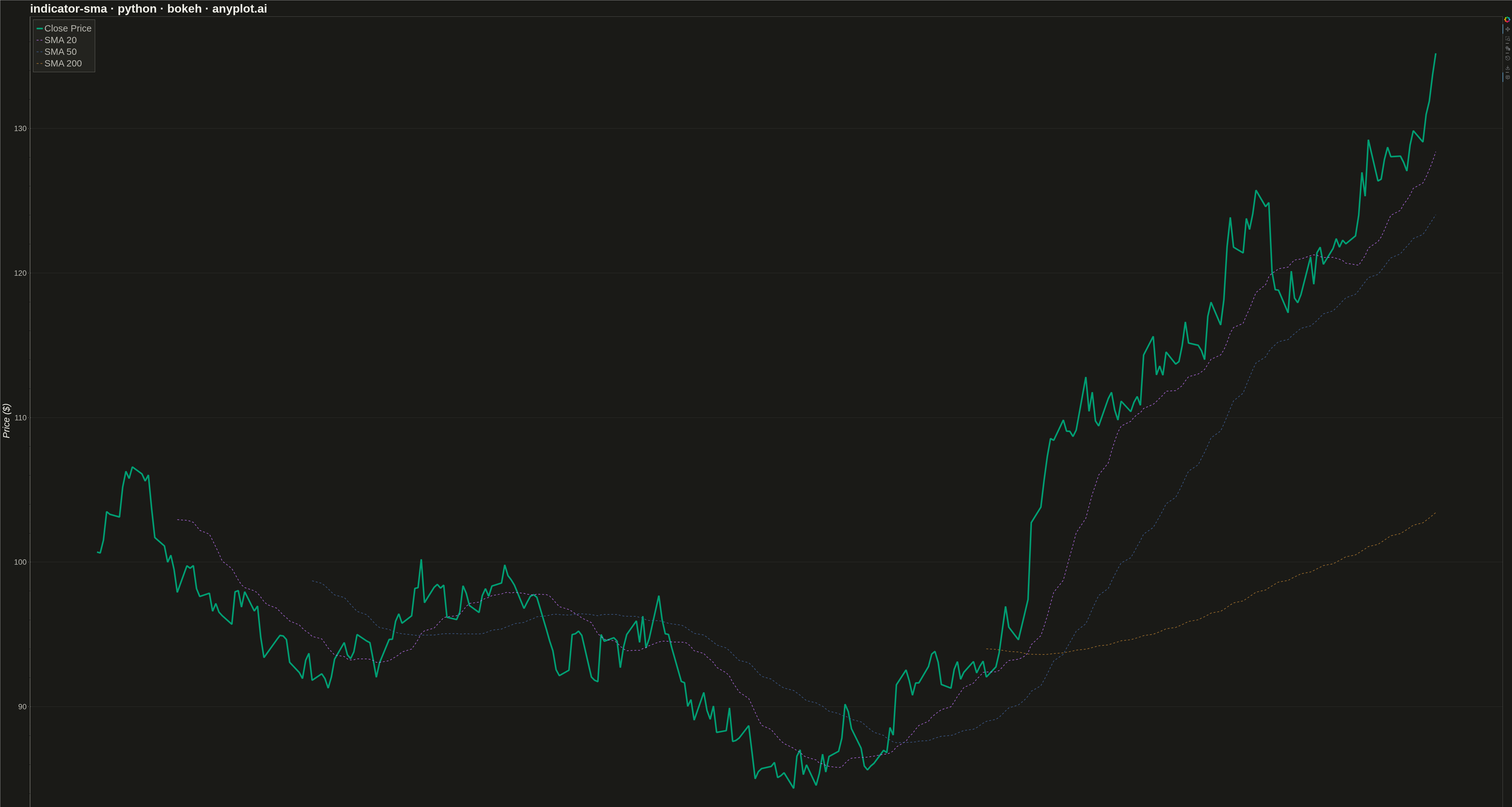

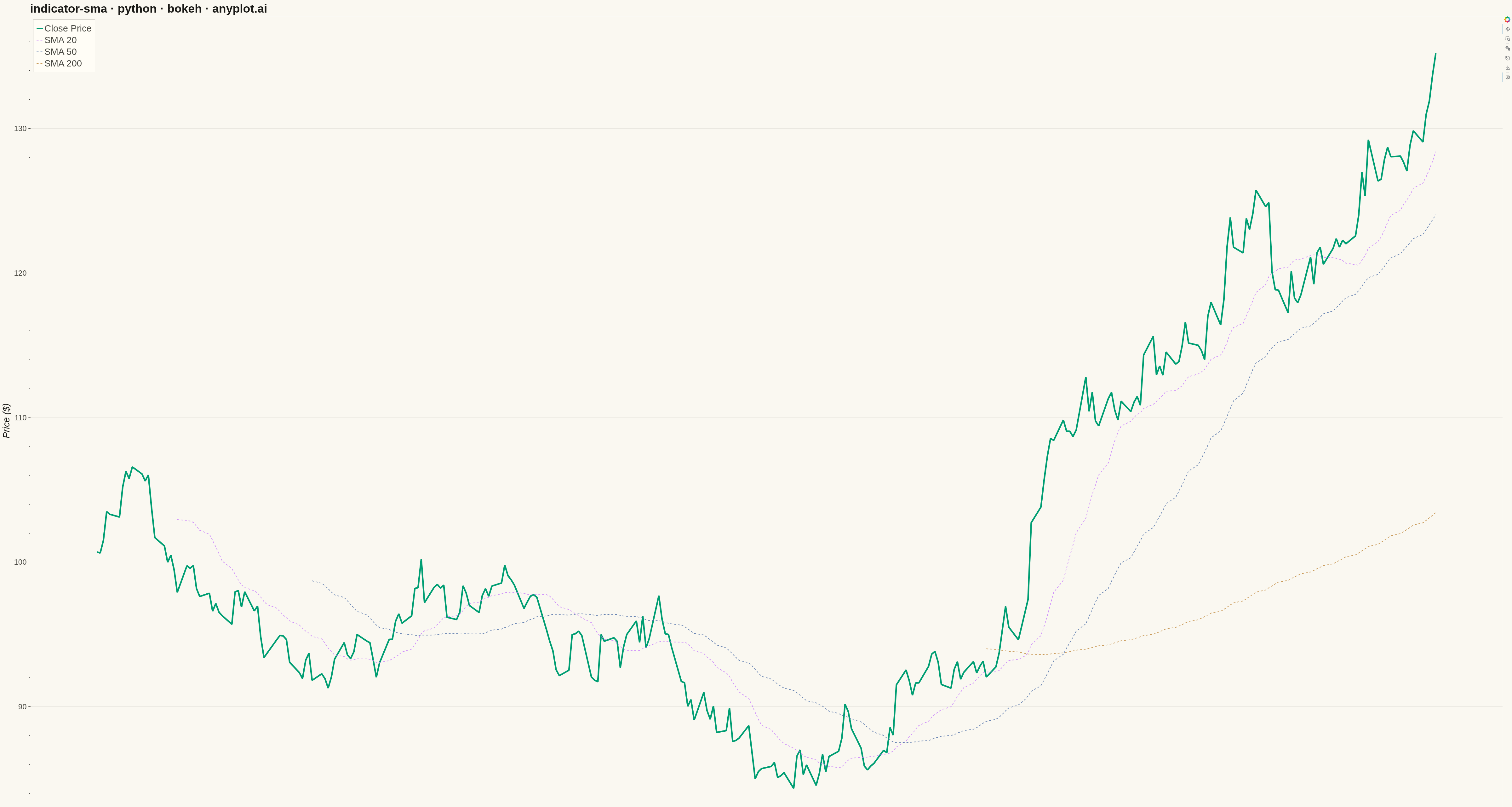

# Save HTML then screenshot with headless Chrome
output_file(f"plot-{THEME}.html")
save(p)
W, H = 4800, 2700
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Simple Moving Average (SMA) Indicator Chart on anyplot.ai.
