Model Learning Curve — Chart.js

A learning curve visualizes model performance (training and validation scores) as a function of training set size. It is essential for diagnosing bias vs variance tradeoffs, determining whether collecting more data would improve model performance, and guiding model selection decisions. The plot typically shows two lines with shaded confidence bands representing variability across cross-validation folds.

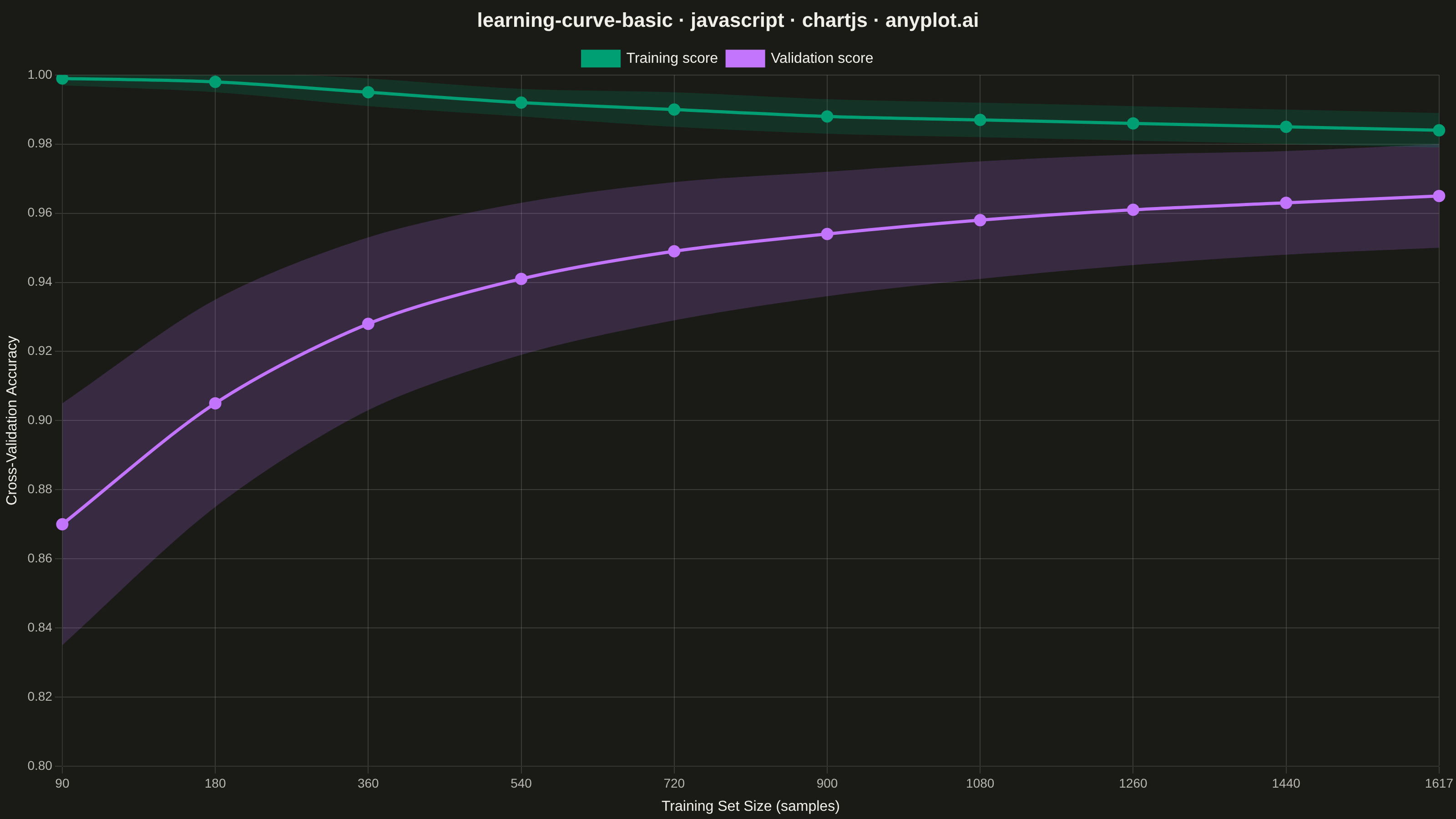

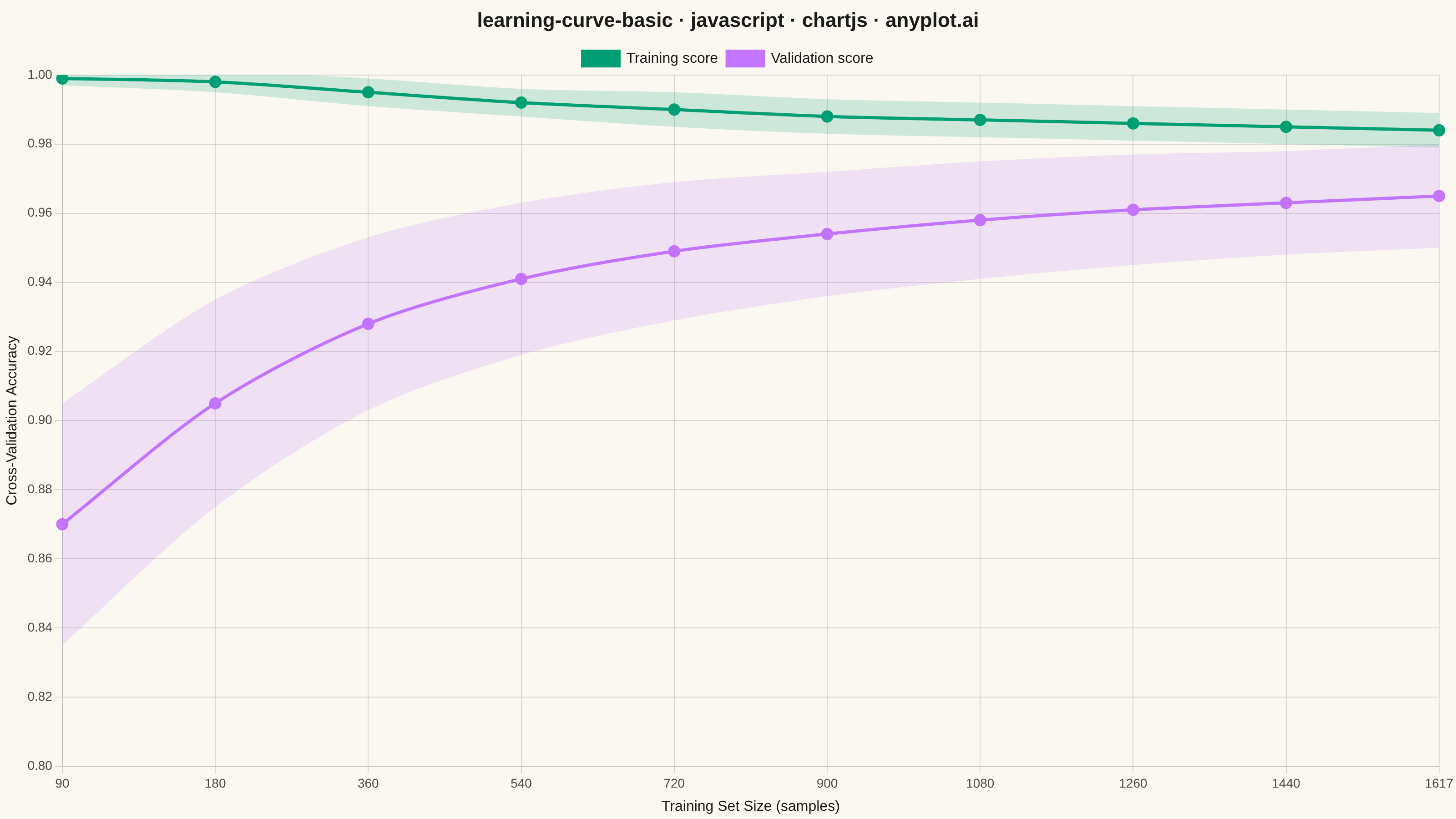

Model Learning Curve rendered with Chart.js

Renders

JavaScript source (Chart.js)

// anyplot.ai
// learning-curve-basic: Model Learning Curve
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-05

//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;

function hexToRgba(hex, alpha) {
  const r = parseInt(hex.slice(1, 3), 16);
  const g = parseInt(hex.slice(3, 5), 16);
  const b = parseInt(hex.slice(5, 7), 16);
  return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}

// --- Data (in-memory, deterministic) ----------------------------------------
// Digit-classifier learning curve: mean +/- 1 std across 8 cross-validation
// folds, evaluated at 10 training-set sizes.
const trainSizes = [90, 180, 360, 540, 720, 900, 1080, 1260, 1440, 1617];
const trainMean = [0.999, 0.998, 0.995, 0.992, 0.99, 0.988, 0.987, 0.986, 0.985, 0.984];
const trainStd = [0.002, 0.003, 0.004, 0.004, 0.005, 0.005, 0.005, 0.005, 0.005, 0.005];
const valMean = [0.87, 0.905, 0.928, 0.941, 0.949, 0.954, 0.958, 0.961, 0.963, 0.965];
const valStd = [0.035, 0.03, 0.025, 0.022, 0.02, 0.018, 0.017, 0.016, 0.015, 0.015];

const trainUpper = trainMean.map((m, i) => m + trainStd[i]);
const trainLower = trainMean.map((m, i) => m - trainStd[i]);
const valUpper = valMean.map((m, i) => m + valStd[i]);
const valLower = valMean.map((m, i) => m - valStd[i]);

const trainColor = t.palette[0]; // brand green
const valColor = t.palette[1]; // lavender

// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// --- Chart ---------------------------------------------------------------
// Confidence bands are drawn first (as fill-only line pairs, hidden from the
// legend), then the mean lines are drawn on top so the bands sit behind them.
new Chart(canvas, {
  type: "line",
  data: {
    labels: trainSizes,
    datasets: [
      {
        label: "Training ±1 SD",
        data: trainUpper,
        borderWidth: 0,
        pointRadius: 0,
        fill: false,
        tension: 0.3,
      },
      {
        label: "Training ±1 SD",
        data: trainLower,
        borderWidth: 0,
        pointRadius: 0,
        backgroundColor: hexToRgba(trainColor, 0.18),
        fill: "-1",
        tension: 0.3,
      },
      {
        label: "Validation ±1 SD",
        data: valUpper,
        borderWidth: 0,
        pointRadius: 0,
        fill: false,
        tension: 0.3,
      },
      {
        label: "Validation ±1 SD",
        data: valLower,
        borderWidth: 0,
        pointRadius: 0,
        backgroundColor: hexToRgba(valColor, 0.18),
        fill: "-1",
        tension: 0.3,
      },
      {
        label: "Training score",
        data: trainMean,
        borderColor: trainColor,
        backgroundColor: trainColor,
        pointBackgroundColor: trainColor,
        borderWidth: 3.5,
        pointRadius: 5,
        fill: false,
        tension: 0.3,
      },
      {
        label: "Validation score",
        data: valMean,
        borderColor: valColor,
        backgroundColor: valColor,
        pointBackgroundColor: valColor,
        borderWidth: 3.5,
        pointRadius: 5,
        fill: false,
        tension: 0.3,
      },
    ],
  },
  options: {
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    plugins: {
      title: {
        display: true,
        text: "learning-curve-basic · javascript · chartjs · anyplot.ai",
        color: t.ink,
        font: { size: 22 },
      },
      legend: {
        labels: {
          color: t.ink,
          font: { size: 16 },
          filter: (item) => !item.text.includes("±1 SD"),
        },
      },
    },
    scales: {
      x: {
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { color: t.grid },
        title: { display: true, text: "Training Set Size (samples)", color: t.ink, font: { size: 16 } },
      },
      y: {
        min: 0.8,
        max: 1.0,
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { color: t.grid },
        title: { display: true, text: "Cross-Validation Accuracy", color: t.ink, font: { size: 16 } },
      },
    },
  },
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/learning-curve-basic/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "learning-curve-basic",
  "language": "javascript",
  "library": "chartjs",
  "page": "https://anyplot.ai/learning-curve-basic/javascript/chartjs",
  "hub": "https://anyplot.ai/learning-curve-basic",
  "code_json": "https://api.anyplot.ai/specs/learning-curve-basic/chartjs/code",
  "spec_json": "https://api.anyplot.ai/specs/learning-curve-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/learning-curve-basic/javascript/chartjs/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/learning-curve-basic/javascript/chartjs/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/learning-curve-basic/javascript/chartjs/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/learning-curve-basic/javascript/chartjs/plot-dark.html",
  "quality_score": 91.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Model Learning Curve on anyplot.ai.
