A learning curve visualizes model performance (training and validation scores) as a function of training set size. It is essential for diagnosing bias vs variance tradeoffs, determining whether collecting more data would improve model performance, and guiding model selection decisions. The plot typically shows two lines with shaded confidence bands representing variability across cross-validation folds.

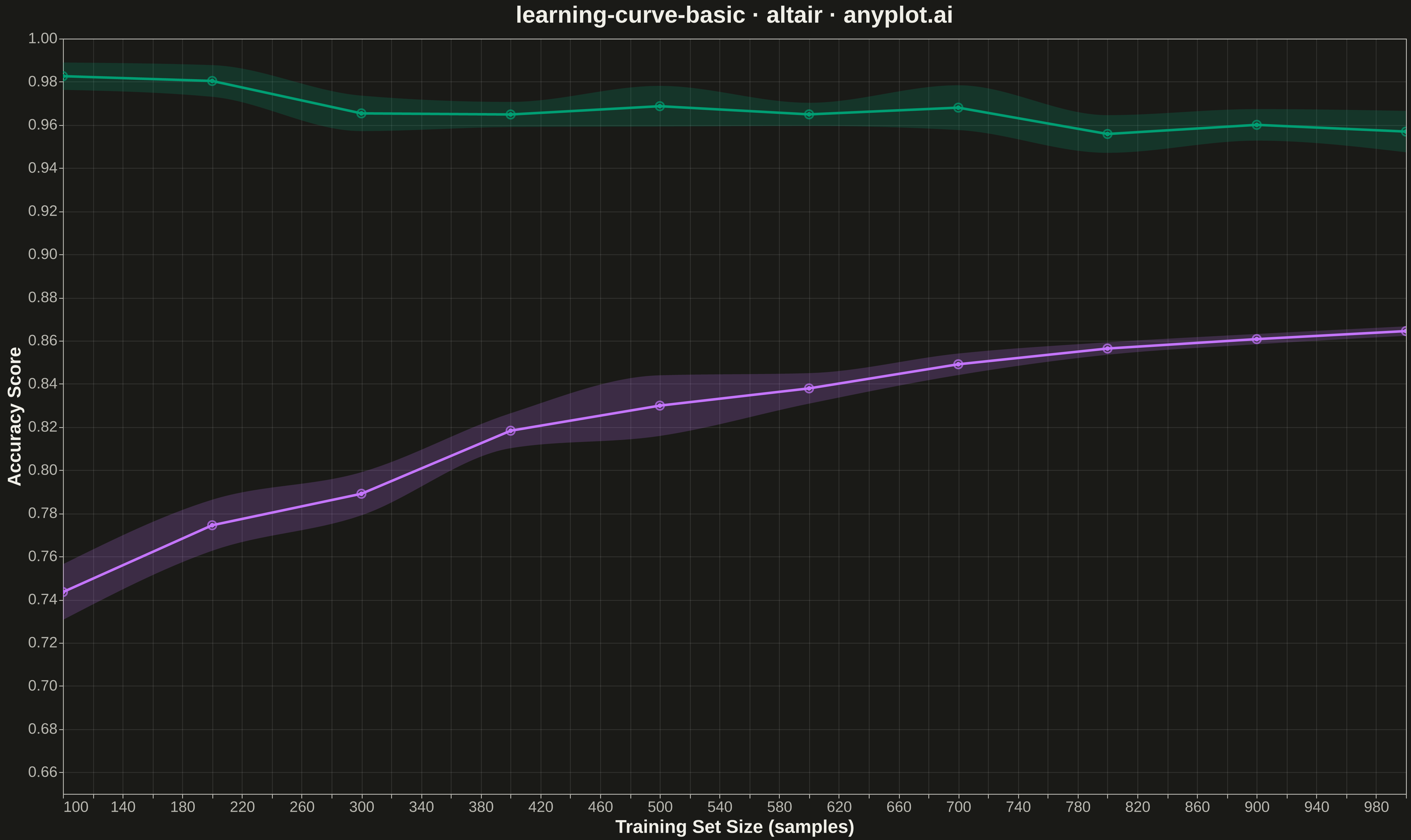

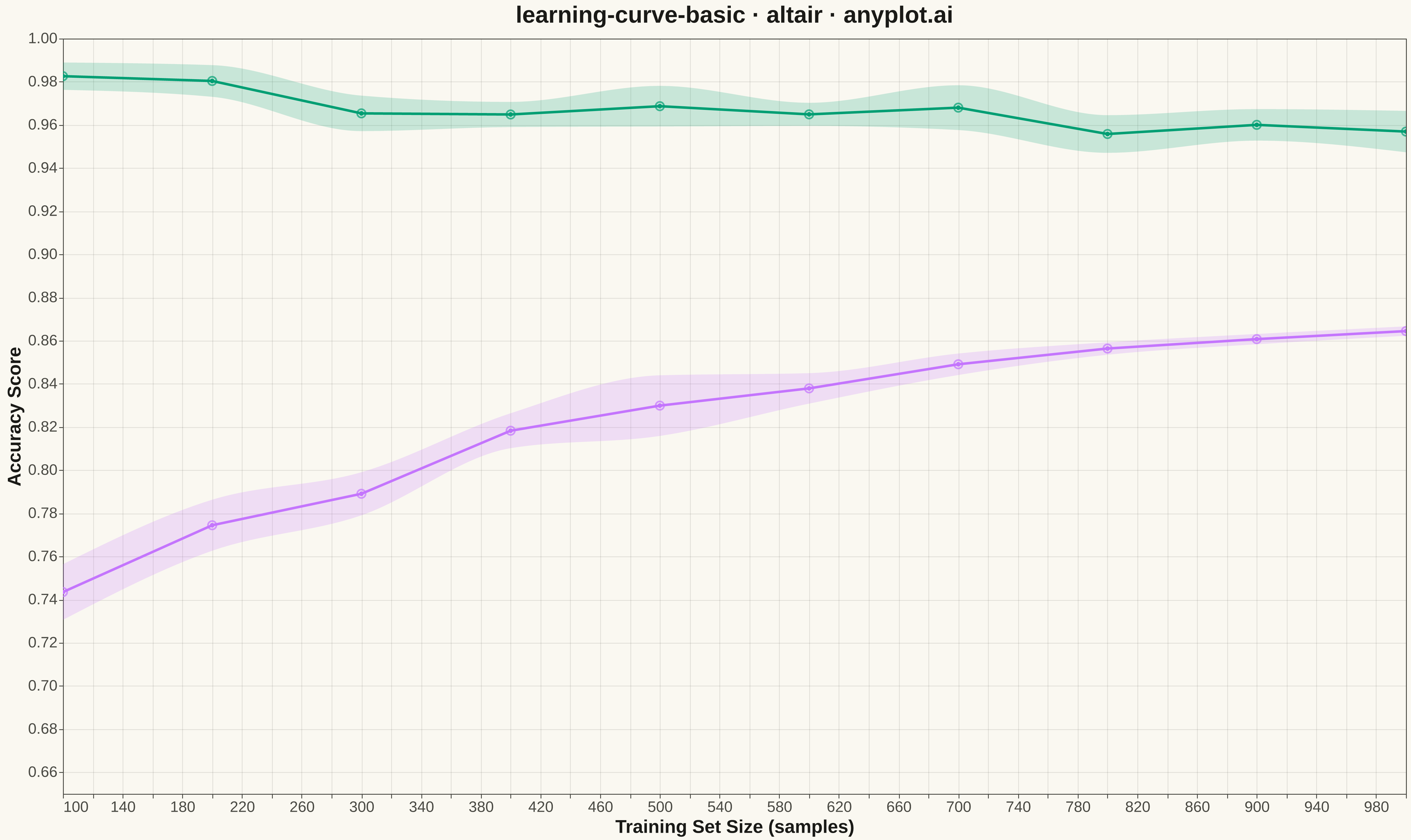

Model Learning Curve rendered with Altair
Python source (Altair)

""" anyplot.ai
learning-curve-basic: Model Learning Curve
Library: altair 6.1.0 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-10
"""

import os
import sys


saved_path = sys.path[:]
sys.path = [p for p in sys.path if p not in ("", ".", os.getcwd())]

import altair as alt
import numpy as np
import pandas as pd


sys.path = saved_path

# Theme setup
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
BRAND = "#009E73"  # Training (first series)
ACCENT = "#C475FD"  # Validation (second series)

# Data - simulate learning curve for a classification model
np.random.seed(42)

# Training set sizes (10 points from 100 to 1000 samples)
train_sizes = np.linspace(100, 1000, 10).astype(int)

# Simulate 5-fold cross-validation scores
n_folds = 5
n_sizes = len(train_sizes)

# Training scores: start high, remain high (slight decrease variance with more data)
train_scores = np.zeros((n_folds, n_sizes))
for i, size in enumerate(train_sizes):
    base_score = 0.98 - 0.02 * (size / 1000)
    noise = np.random.normal(0, 0.01, n_folds)
    train_scores[:, i] = np.clip(base_score + noise, 0.85, 1.0)

# Validation scores: start lower, improve with more data (learning curve shape)
val_scores = np.zeros((n_folds, n_sizes))
for i, size in enumerate(train_sizes):
    base_score = 0.70 + 0.18 * (1 - np.exp(-size / 400))
    noise = np.random.normal(0, 0.025 * np.exp(-size / 500), n_folds)
    val_scores[:, i] = np.clip(base_score + noise, 0.6, 0.95)

# Compute means and standard deviations
train_mean = train_scores.mean(axis=0)
train_std = train_scores.std(axis=0)
val_mean = val_scores.mean(axis=0)
val_std = val_scores.std(axis=0)

# Create DataFrame for Altair with enhanced tooltips
data = []
for i, size in enumerate(train_sizes):
    data.append(
        {
            "Training Set Size": size,
            "Score": train_mean[i],
            "Score_lower": train_mean[i] - train_std[i],
            "Score_upper": train_mean[i] + train_std[i],
            "Type": "Training",
            "Score_display": f"{train_mean[i]:.3f}",
            "Std": f"±{train_std[i]:.3f}",
        }
    )
    data.append(
        {
            "Training Set Size": size,
            "Score": val_mean[i],
            "Score_lower": val_mean[i] - val_std[i],
            "Score_upper": val_mean[i] + val_std[i],
            "Type": "Validation",
            "Score_display": f"{val_mean[i]:.3f}",
            "Std": f"±{val_std[i]:.3f}",
        }
    )

df = pd.DataFrame(data)

# Define color scale using Okabe-Ito palette
color_scale = alt.Scale(domain=["Training", "Validation"], range=[BRAND, ACCENT])

# Tighter Y-axis scale showing only relevant data range
y_scale = alt.Scale(domain=[0.65, 1.0])

# Create the confidence bands
band = (
    alt.Chart(df)
    .mark_area(opacity=0.2, interpolate="monotone")
    .encode(
        x=alt.X("Training Set Size:Q", title="Training Set Size (samples)"),
        y=alt.Y("Score_lower:Q", scale=y_scale),
        y2="Score_upper:Q",
        color=alt.Color("Type:N", scale=color_scale, legend=None),
    )
)

# Create the lines with enhanced tooltips
line = (
    alt.Chart(df)
    .mark_line(size=3, point=True, tension=0.3)
    .encode(
        x=alt.X("Training Set Size:Q", title="Training Set Size (samples)"),
        y=alt.Y("Score:Q", title="Accuracy Score", scale=y_scale),
        color=alt.Color("Type:N", scale=color_scale),
        tooltip=[
            alt.Tooltip("Training Set Size:Q", format=","),
            alt.Tooltip("Score:Q", format=".3f", title="Score"),
            alt.Tooltip("Std", title="Std Dev"),
            alt.Tooltip("Type:N", title="Curve Type"),
        ],
    )
)

# Points for better interactivity
points = (
    alt.Chart(df)
    .mark_point(size=100)
    .encode(
        x=alt.X("Training Set Size:Q"),
        y=alt.Y("Score:Q", scale=y_scale),
        color=alt.Color("Type:N", scale=color_scale, legend=None),
        tooltip=[
            alt.Tooltip("Training Set Size:Q", format=",", title="Size"),
            alt.Tooltip("Score:Q", format=".3f", title="Score"),
            alt.Tooltip("Std", title="Std Dev"),
            alt.Tooltip("Type:N", title="Type"),
        ],
    )
)

# Combine layers
chart = (
    alt.layer(band, line, points)
    .properties(
        width=1600,
        height=900,
        title=alt.Title("learning-curve-basic · altair · anyplot.ai", fontSize=28, anchor="middle", color=INK),
        background=PAGE_BG,
    )
    .configure_view(fill=PAGE_BG, stroke=INK_SOFT, continuousWidth=1600, continuousHeight=900)
    .configure_axis(
        domainColor=INK_SOFT,
        tickColor=INK_SOFT,
        gridColor=INK,
        gridOpacity=0.1,
        labelColor=INK_SOFT,
        labelFontSize=18,
        titleColor=INK,
        titleFontSize=22,
    )
    .configure_legend(
        fillColor=ELEVATED_BG,
        strokeColor=INK_SOFT,
        labelColor=INK_SOFT,
        labelFontSize=16,
        titleColor=INK,
        titleFontSize=18,
        padding=10,
        cornerRadius=5,
    )
    .interactive()
)

# Save outputs
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")
Part of Model Learning Curve on anyplot.ai.
