A learning curve visualizes model performance (training and validation scores) as a function of training set size. It is essential for diagnosing bias vs variance tradeoffs, determining whether collecting more data would improve model performance, and guiding model selection decisions. The plot typically shows two lines with shaded confidence bands representing variability across cross-validation folds.
// anyplot.ai
// learning-curve-basic: Model Learning Curve
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 87/100 | Created: 2026-09-05
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Random-forest churn classifier: accuracy vs. training set size, 8-fold CV.
// Training score drifts down as the model can no longer memorize every fold;
// validation score climbs and the fold-to-fold spread narrows — the classic
// high-variance-shrinking-with-data signature.
const trainSizes = [50, 100, 200, 300, 400, 500, 700, 900, 1200, 1500];
const trainMean = [99, 98.5, 97.5, 96.8, 96.2, 95.8, 95.1, 94.6, 94.1, 93.8];
const trainStd = [0.8, 1.0, 0.9, 0.8, 0.7, 0.6, 0.6, 0.5, 0.5, 0.4];
const validationMean = [71, 76, 81, 84.5, 86.5, 87.8, 89.5, 90.5, 91.2, 91.7];
const validationStd = [5.5, 4.8, 3.8, 3.2, 2.8, 2.4, 2.0, 1.7, 1.5, 1.3];
const toPairs = (mean) => mean.map((m, i) => [trainSizes[i], m]);
const bandLower = (mean, std) =>
mean.map((m, i) => [trainSizes[i], m - std[i]]);
const bandRange = (std) => std.map((s, i) => [trainSizes[i], 2 * s]);
const trainColor = t.palette[0];
const validationColor = t.palette[1];
// --- Chart -------------------------------------------------------------------

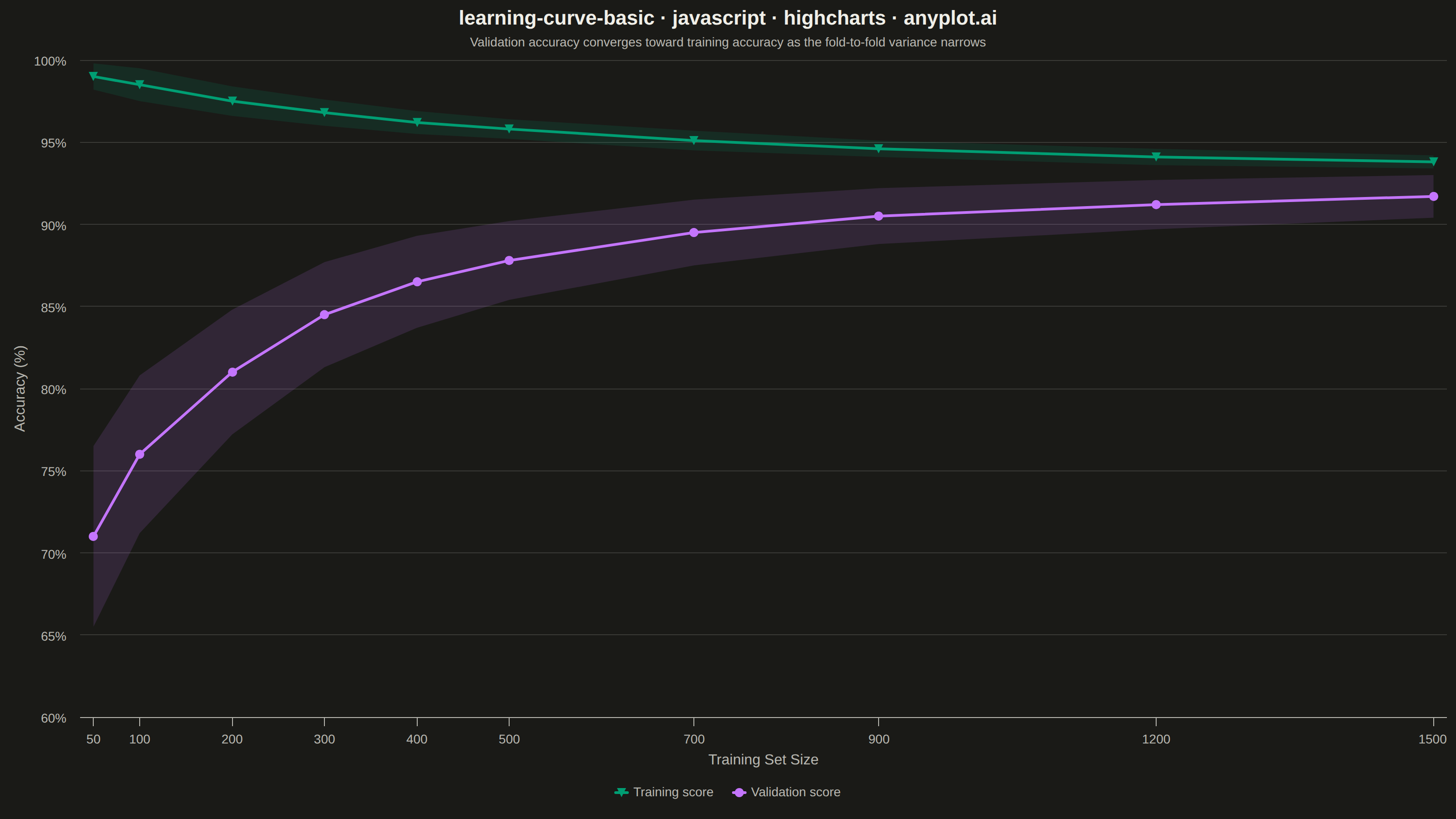

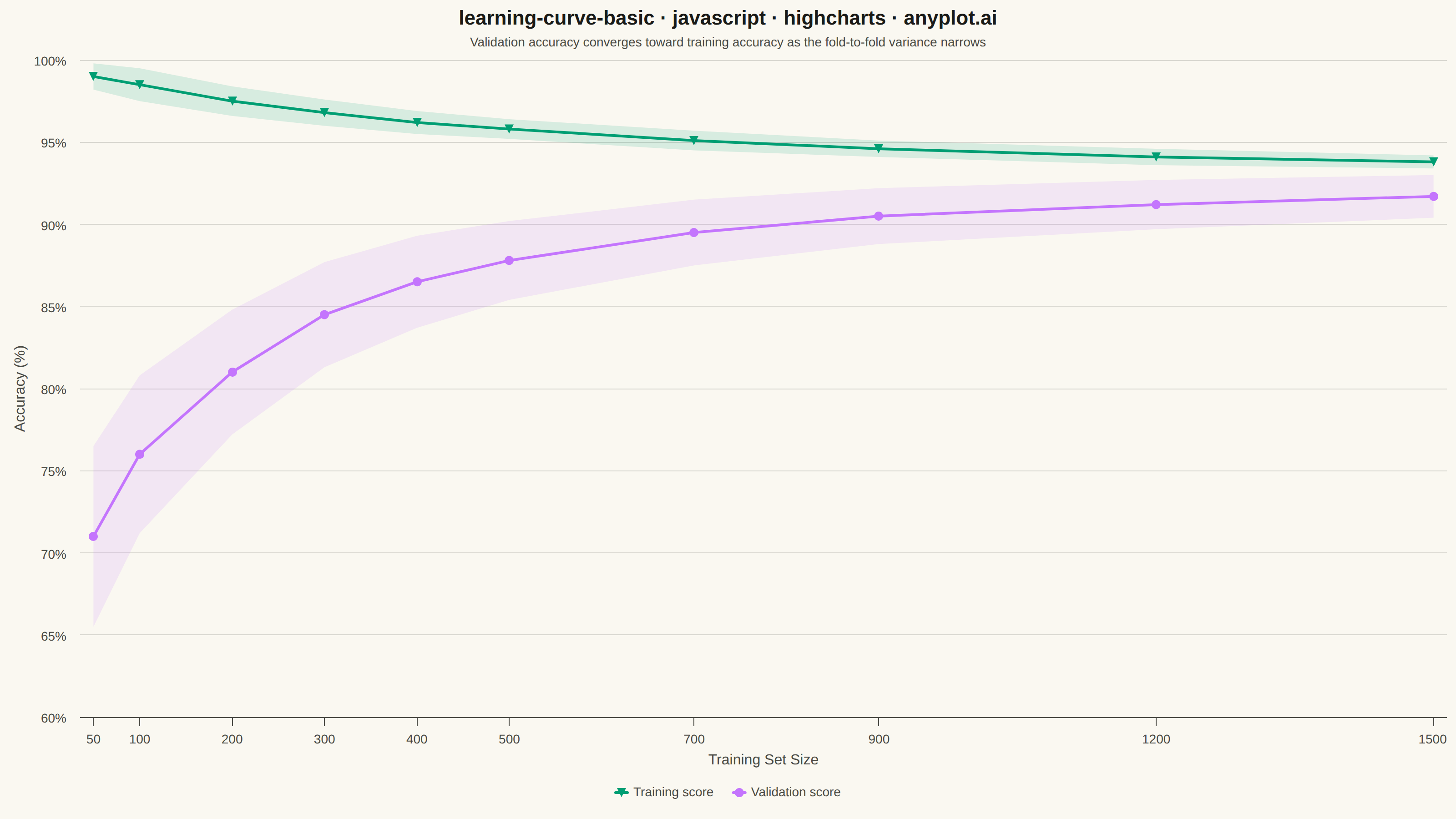

Highcharts.chart("container", {
chart: {
type: "line",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
colors: t.palette,
title: {
text: "learning-curve-basic · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
subtitle: {
text: "Validation accuracy converges toward training accuracy as the fold-to-fold variance narrows",
style: { color: t.inkSoft, fontSize: "14px" },
},
xAxis: {
type: "linear",
tickPositions: trainSizes,
lineColor: t.inkSoft,
tickColor: t.inkSoft,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
title: {
text: "Training Set Size",
style: { color: t.inkSoft, fontSize: "16px" },
},
},
yAxis: {
title: {
text: "Accuracy (%)",
style: { color: t.inkSoft, fontSize: "16px" },
},
labels: {
format: "{value}%",
style: { color: t.inkSoft, fontSize: "14px" },
},
gridLineColor: t.grid,
min: 60,
max: 100,
reversedStacks: false,
},
legend: {
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
tooltip: { valueSuffix: "%" },
plotOptions: {
series: { animation: false, marker: { enabled: false } },
},
series: [
// Confidence bands: a transparent base area stacked with a translucent
// range area — the classic Highcharts-core technique for a min/max band
// without the arearange series type (which lives in highcharts-more).
{
name: "Training band base",
type: "area",
data: bandLower(trainMean, trainStd),
stacking: "normal",
stack: "train-band",
color: "transparent",
lineWidth: 0,
fillOpacity: 0,
enableMouseTracking: false,
showInLegend: false,
},
{
name: "Training ± 1 SD",
type: "area",
data: bandRange(trainStd),
stacking: "normal",
stack: "train-band",
color: Highcharts.color(trainColor).setOpacity(0.18).get(),
lineWidth: 0,
enableMouseTracking: false,
showInLegend: false,
},
{
name: "Validation band base",
type: "area",
data: bandLower(validationMean, validationStd),
stacking: "normal",
stack: "validation-band",
color: "transparent",
lineWidth: 0,
fillOpacity: 0,
enableMouseTracking: false,
showInLegend: false,
},
{
name: "Validation ± 1 SD",
type: "area",
data: bandRange(validationStd),
stacking: "normal",
stack: "validation-band",
color: Highcharts.color(validationColor).setOpacity(0.18).get(),
lineWidth: 0,
enableMouseTracking: false,
showInLegend: false,
},
{
name: "Training score",
type: "line",
data: toPairs(trainMean),
color: trainColor,
lineWidth: 3,
marker: { enabled: true, radius: 5 },
},
{
name: "Validation score",
type: "line",
data: toPairs(validationMean),
color: validationColor,
lineWidth: 3,
marker: { enabled: true, radius: 5 },
},
],
});
