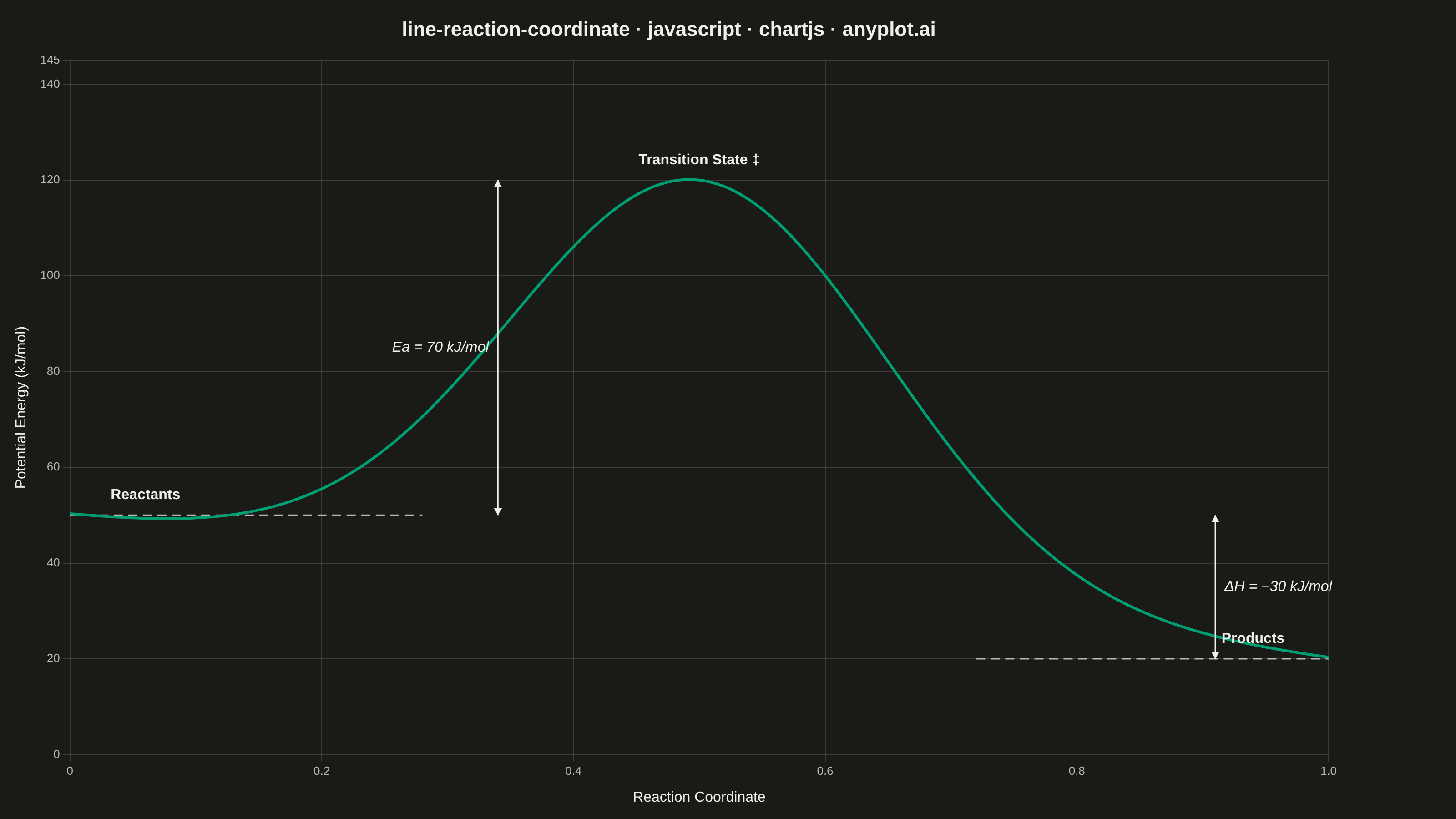

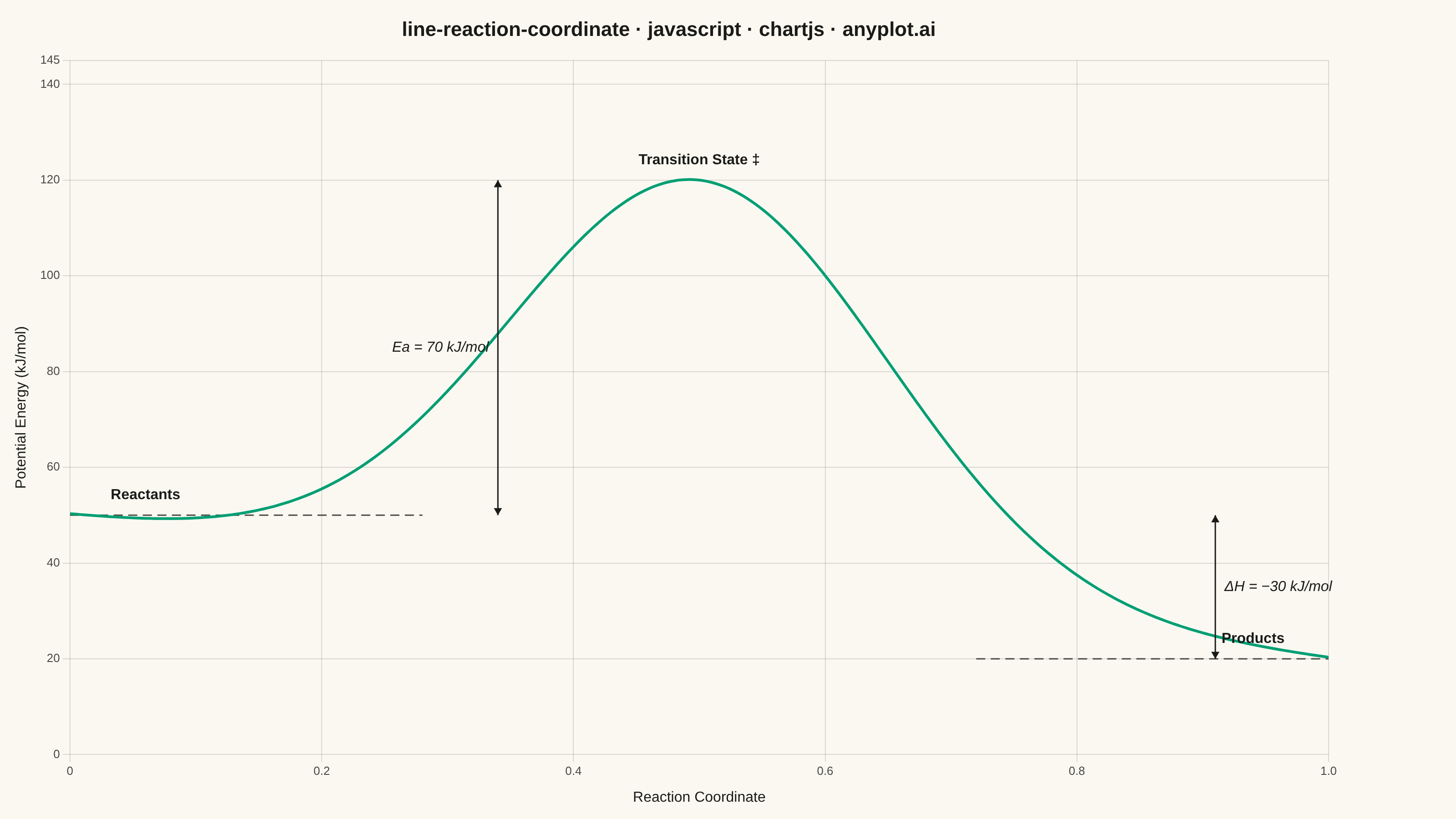

A reaction coordinate diagram plots potential energy against reaction progress, showing the energy landscape of a chemical transformation. The smooth curve traces the path from reactants through the transition state (energy maximum) to products, clearly depicting the activation energy barrier and overall enthalpy change. This fundamental chemistry visualization is essential for understanding reaction kinetics and thermodynamics.
// anyplot.ai
// line-reaction-coordinate: Reaction Coordinate Energy Diagram
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 89/100 | Created: 2026-06-24
const t = window.ANYPLOT_TOKENS;
// --- Data -------------------------------------------------------------------
// Single-step exothermic reaction: reactants=50 kJ/mol, TS=120 kJ/mol, products=20 kJ/mol
const POINTS = 200;
const curveData = [];
for (let i = 0; i <= POINTS; i++) {
const x = i / POINTS;
const base = 50 - 30 * x;
const barrier = 85 * Math.exp(-0.5 * Math.pow((x - 0.5) / 0.15, 2));
curveData.push({ x, y: parseFloat((base + barrier).toFixed(3)) });
}
// Dashed horizontal reference lines at reactant and product energy levels
const reactantRef = [{ x: 0, y: 50 }, { x: 0.28, y: 50 }];
const productRef = [{ x: 0.72, y: 20 }, { x: 1.0, y: 20 }];
// --- Mount ------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Background plugin ------------------------------------------------------
const bgPlugin = {
id: "bg",
beforeDraw(chart) {
const { ctx, width, height } = chart;
ctx.save();
ctx.fillStyle = t.pageBg;
ctx.fillRect(0, 0, width, height);
ctx.restore();
},
};
// --- Arrow helper -----------------------------------------------------------
function arrowHead(ctx, fromX, fromY, toX, toY, size) {
const angle = Math.atan2(toY - fromY, toX - fromX);
ctx.beginPath();
ctx.moveTo(toX, toY);
ctx.lineTo(
toX - size * Math.cos(angle - Math.PI / 6),
toY - size * Math.sin(angle - Math.PI / 6)
);
ctx.lineTo(
toX - size * Math.cos(angle + Math.PI / 6),
toY - size * Math.sin(angle + Math.PI / 6)
);
ctx.closePath();
ctx.fill();
}
// --- Annotation plugin: state labels + Ea and ΔH double-headed arrows ------
const annotPlugin = {
id: "annot",
afterDraw(chart) {
const ctx = chart.ctx;
const xS = chart.scales.x;
const yS = chart.scales.y;
const px = (xv, yv) => ({ x: xS.getPixelForValue(xv), y: yS.getPixelForValue(yv) });
ctx.save();
ctx.fillStyle = t.ink;
ctx.strokeStyle = t.ink;
// State labels
ctx.font = "bold 16px sans-serif";
ctx.textAlign = "center";
ctx.textBaseline = "bottom";
const rPos = px(0.06, 50);
ctx.fillText("Reactants", rPos.x, rPos.y - 14);
const tsPos = px(0.5, 120);
ctx.fillText("Transition State ‡", tsPos.x, tsPos.y - 14);
const pPos = px(0.94, 20);
ctx.fillText("Products", pPos.x, pPos.y - 14);
// Ea double-headed arrow (reactant energy level → transition state peak)
const EA_X = 0.34;
const eaBot = px(EA_X, 50);
const eaTop = px(EA_X, 120);
ctx.lineWidth = 1.5;
ctx.beginPath();
ctx.moveTo(eaBot.x, eaBot.y);
ctx.lineTo(eaTop.x, eaTop.y);
ctx.stroke();
arrowHead(ctx, eaBot.x, eaBot.y, eaTop.x, eaTop.y, 9);
arrowHead(ctx, eaTop.x, eaTop.y, eaBot.x, eaBot.y, 9);
const eaMid = px(EA_X, 85);
ctx.font = "italic 16px sans-serif";
ctx.textAlign = "right";
ctx.textBaseline = "middle";
ctx.fillText("Ea = 70 kJ/mol", eaMid.x - 10, eaMid.y);
// ΔH double-headed arrow (reactant energy level → product energy level)
const DH_X = 0.91;
const dhTop = px(DH_X, 50);
const dhBot = px(DH_X, 20);
ctx.lineWidth = 1.5;
ctx.beginPath();
ctx.moveTo(dhTop.x, dhTop.y);
ctx.lineTo(dhBot.x, dhBot.y);
ctx.stroke();
arrowHead(ctx, dhBot.x, dhBot.y, dhTop.x, dhTop.y, 9);
arrowHead(ctx, dhTop.x, dhTop.y, dhBot.x, dhBot.y, 9);
const dhMid = px(DH_X, 35);
ctx.font = "italic 16px sans-serif";
ctx.textAlign = "left";
ctx.textBaseline = "middle";
ctx.fillText("ΔH = −30 kJ/mol", dhMid.x + 10, dhMid.y);
ctx.restore();
},
};
// --- Chart ------------------------------------------------------------------
new Chart(canvas, {
type: "line",
plugins: [bgPlugin, annotPlugin],
data: {
datasets: [
{
label: "Potential Energy",
data: curveData,
borderColor: t.palette[0],
backgroundColor: "transparent",
borderWidth: 3,
tension: 0.3,
pointRadius: 0,
pointHoverRadius: 0,
fill: false,
},
{
label: "Reactant level",
data: reactantRef,
borderColor: t.inkSoft,
backgroundColor: "transparent",
borderWidth: 1.5,
borderDash: [10, 6],
tension: 0,
pointRadius: 0,
pointHoverRadius: 0,
fill: false,
},
{
label: "Product level",
data: productRef,
borderColor: t.inkSoft,
backgroundColor: "transparent",
borderWidth: 1.5,
borderDash: [10, 6],
tension: 0,
pointRadius: 0,
pointHoverRadius: 0,
fill: false,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
layout: {
padding: { top: 20, right: 140, bottom: 10, left: 10 },
},
plugins: {
title: {
display: true,
text: "line-reaction-coordinate · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22 },
padding: { bottom: 20 },
},
legend: { display: false },
tooltip: { enabled: false },
},
scales: {
x: {
type: "linear",
min: 0,
max: 1,
title: {
display: true,
text: "Reaction Coordinate",
color: t.ink,
font: { size: 16 },
padding: { top: 8 },
},
ticks: {
color: t.inkSoft,
font: { size: 13 },
maxTicksLimit: 6,
},
grid: { color: t.grid },
border: { display: false },
},
y: {
min: 0,
max: 145,
title: {
display: true,
text: "Potential Energy (kJ/mol)",
color: t.ink,
font: { size: 16 },
padding: { bottom: 8 },
},
ticks: {
color: t.inkSoft,
font: { size: 13 },
},
grid: { color: t.grid },
border: { display: false },
},
},
},
});
