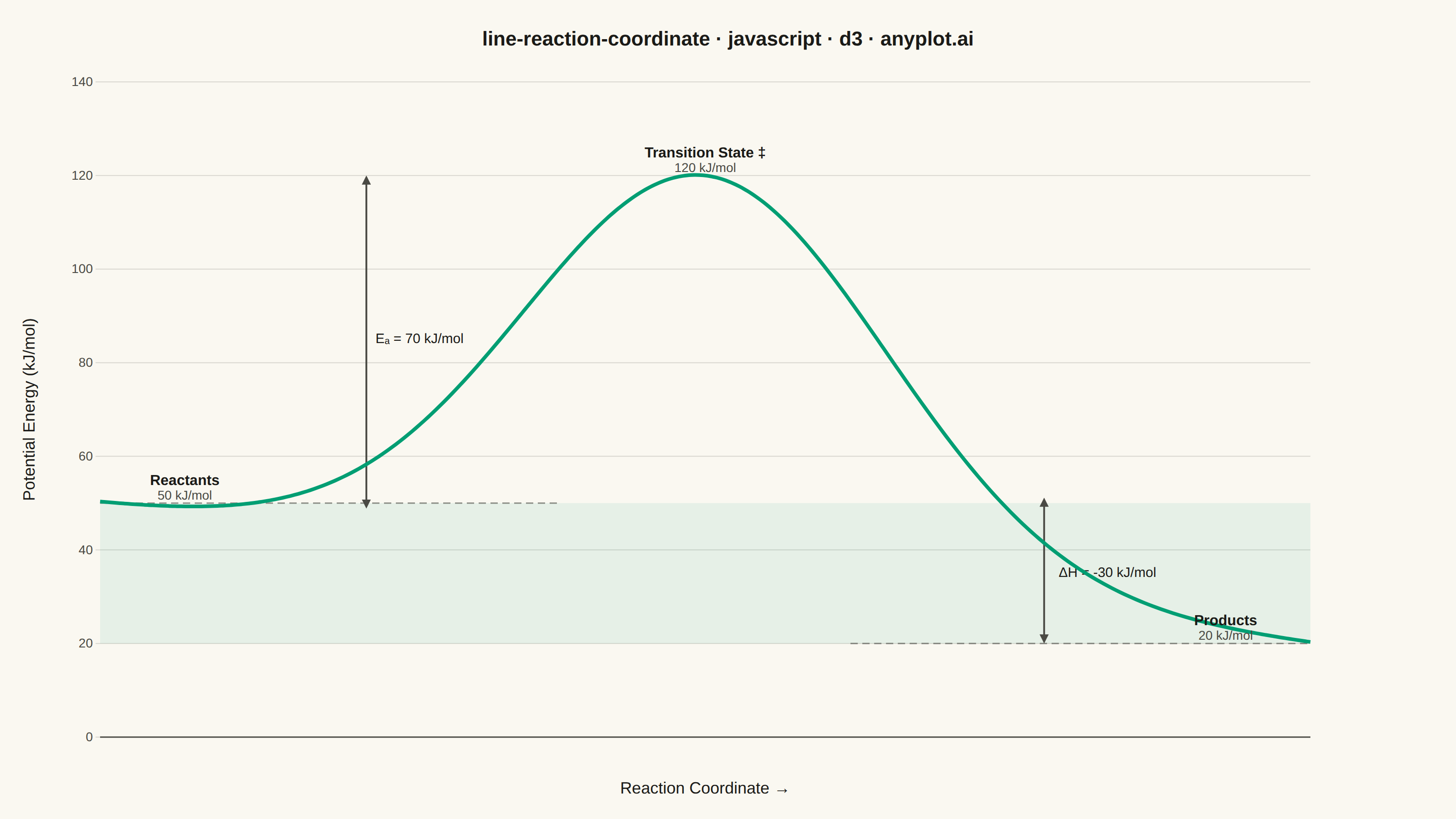

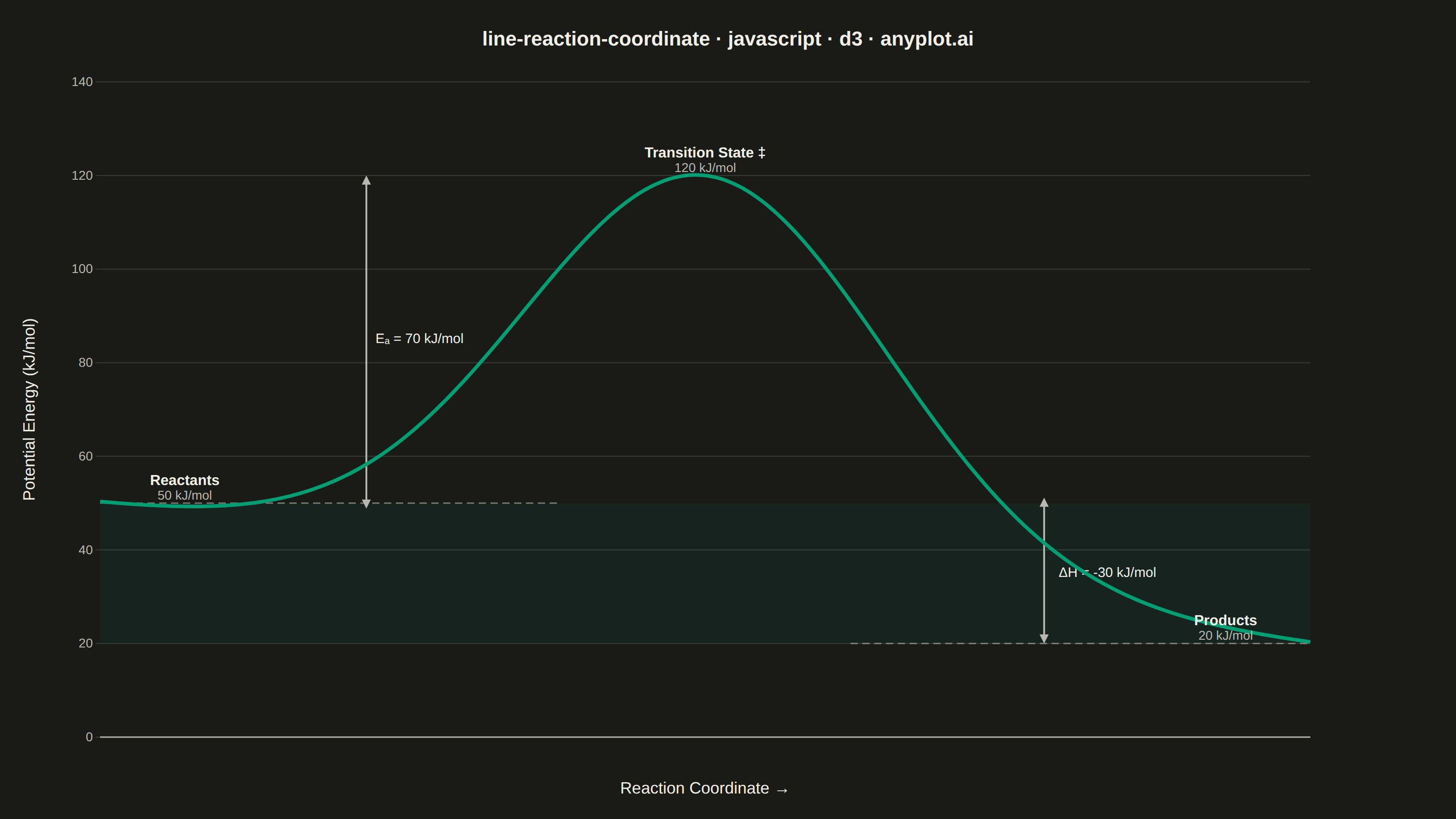

A reaction coordinate diagram plots potential energy against reaction progress, showing the energy landscape of a chemical transformation. The smooth curve traces the path from reactants through the transition state (energy maximum) to products, clearly depicting the activation energy barrier and overall enthalpy change. This fundamental chemistry visualization is essential for understanding reaction kinetics and thermodynamics.
// anyplot.ai
// line-reaction-coordinate: Reaction Coordinate Energy Diagram
// Library: d3 7.9.0 | JavaScript 22.22.3
// Quality: 91/100 | Created: 2026-06-24
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 90, right: 160, bottom: 90, left: 110 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// Data: single-step exothermic reaction
// Reactants: 50 kJ/mol, Transition State: 120 kJ/mol, Products: 20 kJ/mol
const E_r = 50, E_ts = 120, E_p = 20;
const sigma = 0.15;
const A = E_ts - (E_r + (E_p - E_r) * 0.5); // Gaussian amplitude = 85
const N = 300;
const curveData = Array.from({ length: N }, (_, i) => {
const x = i / (N - 1);
const energy = E_r + A * Math.exp(-Math.pow(x - 0.5, 2) / (2 * sigma * sigma)) + (E_p - E_r) * x;
return { x, energy };
});
// --- SVG mount
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// --- Scales
const xScale = d3.scaleLinear().domain([0, 1]).range([0, iw]);
const yScale = d3.scaleLinear().domain([0, 140]).range([ih, 0]);
// --- Defs: arrowhead markers for double-headed arrows
const defs = svg.append("defs");
defs.append("marker")
.attr("id", "arrow-end")
.attr("viewBox", "0 -5 10 10")
.attr("refX", 8).attr("refY", 0)
.attr("markerWidth", 5).attr("markerHeight", 5)
.attr("orient", "auto")
.append("path").attr("d", "M0,-5L10,0L0,5").attr("fill", t.inkSoft);
defs.append("marker")
.attr("id", "arrow-start")
.attr("viewBox", "0 -5 10 10")
.attr("refX", 2).attr("refY", 0)
.attr("markerWidth", 5).attr("markerHeight", 5)
.attr("orient", "auto-start-reverse")
.append("path").attr("d", "M0,-5L10,0L0,5").attr("fill", t.inkSoft);
// --- Y-axis gridlines
g.append("g")
.selectAll("line.grid")
.data(yScale.ticks(7))
.join("line")
.attr("class", "grid")
.attr("x1", 0).attr("x2", iw)
.attr("y1", d => yScale(d)).attr("y2", d => yScale(d))
.attr("stroke", t.grid)
.attr("stroke-width", 1);
// --- Subtle shaded ΔH region between reactant and product energy levels
g.append("rect")
.attr("x", 0)
.attr("y", yScale(E_r))
.attr("width", iw)
.attr("height", yScale(E_p) - yScale(E_r))
.attr("fill", t.palette[0])
.attr("opacity", 0.08);
// --- Horizontal dashed reference lines at reactant and product energy levels
g.append("line")
.attr("x1", 0).attr("x2", xScale(0.38))
.attr("y1", yScale(E_r)).attr("y2", yScale(E_r))
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.5)
.attr("stroke-dasharray", "8,5")
.attr("opacity", 0.6);
g.append("line")
.attr("x1", xScale(0.62)).attr("x2", iw)
.attr("y1", yScale(E_p)).attr("y2", yScale(E_p))
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.5)
.attr("stroke-dasharray", "8,5")
.attr("opacity", 0.6);
// --- Ea double-headed arrow (reactant level → transition state peak)
const eaX = xScale(0.22);
g.append("line")
.attr("x1", eaX).attr("y1", yScale(E_r) - 2)
.attr("x2", eaX).attr("y2", yScale(E_ts) + 2)
.attr("stroke", t.inkSoft)
.attr("stroke-width", 2)
.attr("marker-start", "url(#arrow-start)")
.attr("marker-end", "url(#arrow-end)");
g.append("text")
.attr("x", eaX + 10)
.attr("y", yScale((E_r + E_ts) / 2))
.attr("fill", t.ink)
.attr("dominant-baseline", "middle")
.style("font-size", "15px")
.text(`Eₐ = ${E_ts - E_r} kJ/mol`);
// --- ΔH double-headed arrow (reactant level → product level)
const dhX = xScale(0.78);
g.append("line")
.attr("x1", dhX).attr("y1", yScale(E_r) + 2)
.attr("x2", dhX).attr("y2", yScale(E_p) - 2)
.attr("stroke", t.inkSoft)
.attr("stroke-width", 2)
.attr("marker-start", "url(#arrow-start)")
.attr("marker-end", "url(#arrow-end)");
g.append("text")
.attr("x", dhX + 16)
.attr("y", yScale((E_r + E_p) / 2))
.attr("fill", t.ink)
.attr("dominant-baseline", "middle")
.style("font-size", "15px")
.text(`ΔH = ${E_p - E_r} kJ/mol`);
// --- Main reaction coordinate curve
const line = d3.line()
.x(d => xScale(d.x))
.y(d => yScale(d.energy))
.curve(d3.curveCatmullRom.alpha(0.5));
g.append("path")
.datum(curveData)
.attr("fill", "none")
.attr("stroke", t.palette[0])
.attr("stroke-width", 4)
.attr("d", line);
// --- Direct labels for Reactants, Transition State, Products
// Reactants
g.append("text")
.attr("x", xScale(0.07))
.attr("y", yScale(E_r) - 20)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.style("font-weight", "600")
.text("Reactants");
g.append("text")
.attr("x", xScale(0.07))
.attr("y", yScale(E_r) - 4)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text(`${E_r} kJ/mol`);
// Transition State
g.append("text")
.attr("x", xScale(0.5))
.attr("y", yScale(E_ts) - 20)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.style("font-weight", "600")
.text("Transition State ‡");
g.append("text")
.attr("x", xScale(0.5))
.attr("y", yScale(E_ts) - 4)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text(`${E_ts} kJ/mol`);
// Products
g.append("text")
.attr("x", xScale(0.93))
.attr("y", yScale(E_p) - 20)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.style("font-weight", "600")
.text("Products");
g.append("text")
.attr("x", xScale(0.93))
.attr("y", yScale(E_p) - 4)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text(`${E_p} kJ/mol`);
// --- Axes
const xAxis = g.append("g")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(xScale).ticks(0).tickSize(0));
xAxis.select(".domain").attr("stroke", t.inkSoft).attr("stroke-width", 1.5);
xAxis.selectAll("text").remove();
const yAxis = g.append("g")
.call(d3.axisLeft(yScale).ticks(7).tickSize(5));
yAxis.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
yAxis.selectAll(".tick line").attr("stroke", t.grid);
yAxis.select(".domain").attr("stroke", "none");
// --- Axis labels
svg.append("text")
.attr("transform", `translate(${margin.left - 72},${margin.top + ih / 2}) rotate(-90)`)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "18px")
.text("Potential Energy (kJ/mol)");
svg.append("text")
.attr("x", margin.left + iw / 2)
.attr("y", margin.top + ih + 62)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "18px")
.text("Reaction Coordinate →");
// --- Title
svg.append("text")
.attr("x", width / 2).attr("y", 50)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("line-reaction-coordinate · javascript · d3 · anyplot.ai");
Part of Reaction Coordinate Energy Diagram on anyplot.ai.
