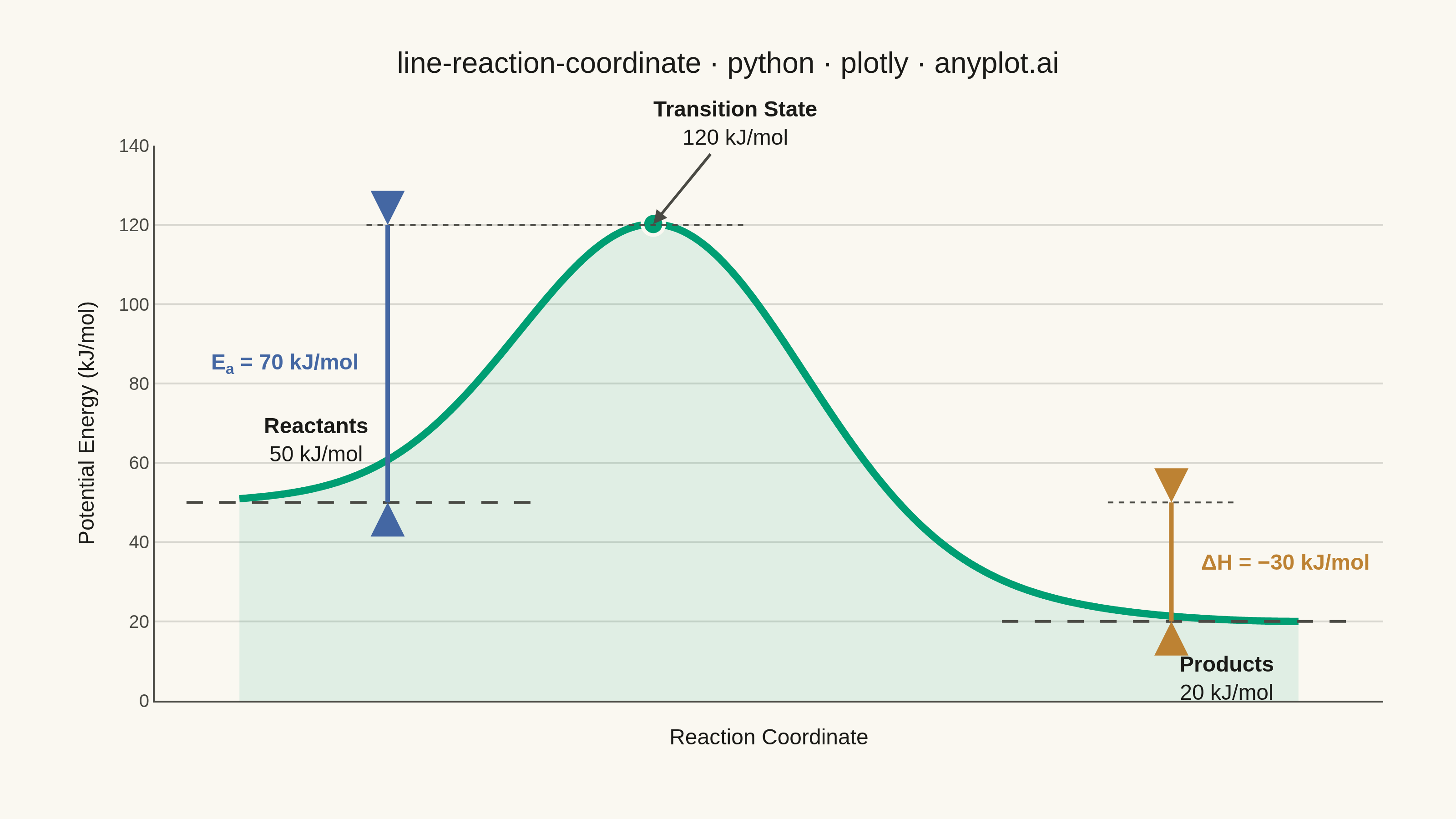

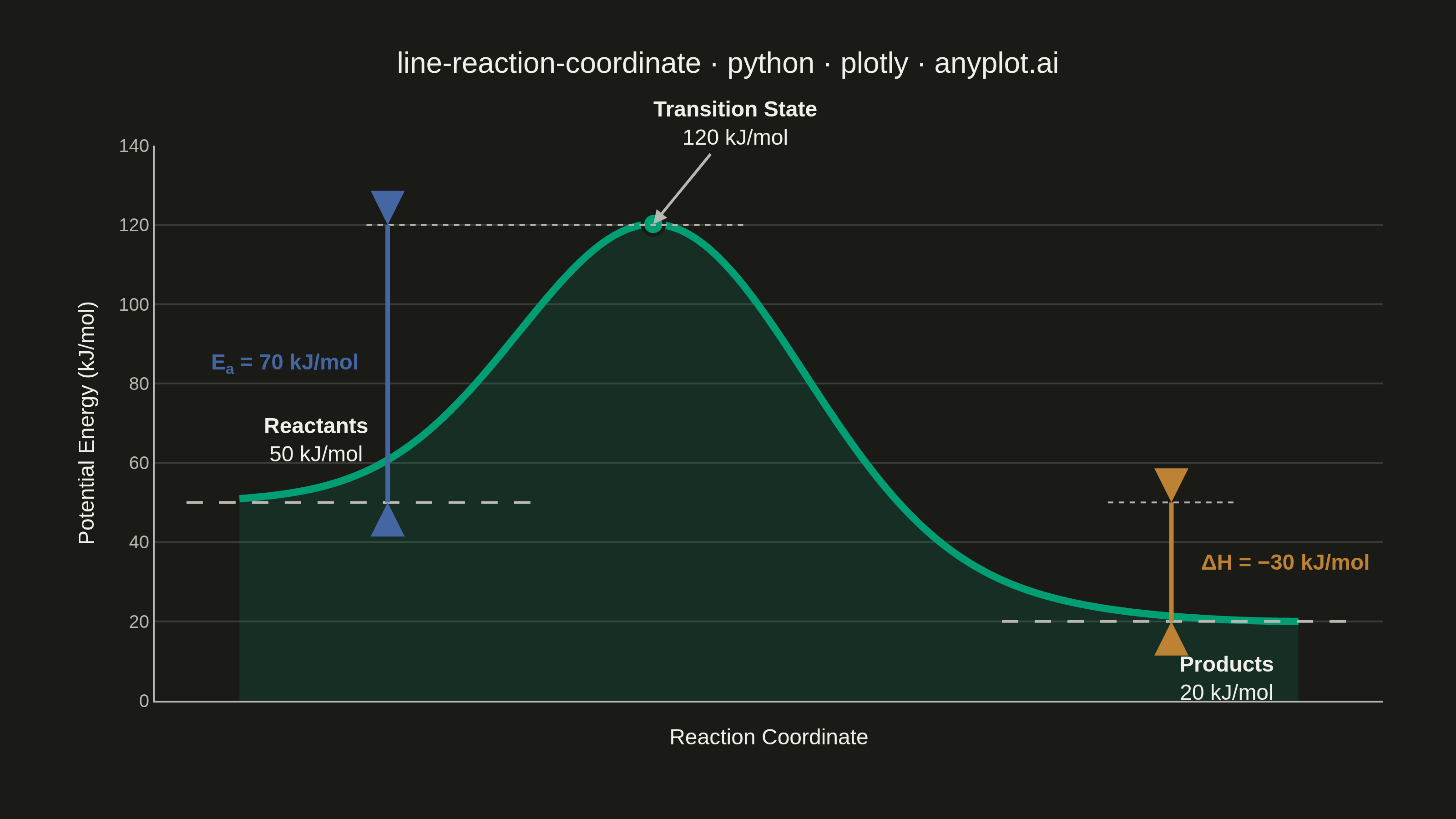

A reaction coordinate diagram plots potential energy against reaction progress, showing the energy landscape of a chemical transformation. The smooth curve traces the path from reactants through the transition state (energy maximum) to products, clearly depicting the activation energy barrier and overall enthalpy change. This fundamental chemistry visualization is essential for understanding reaction kinetics and thermodynamics.
""" anyplot.ai
line-reaction-coordinate: Reaction Coordinate Energy Diagram
Library: plotly 6.8.0 | Python 3.13.14
Quality: 93/100 | Updated: 2026-06-24
"""
import os
import numpy as np
import plotly.graph_objects as go
# Theme tokens — Imprint palette (see prompts/default-style-guide.md)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
GRID = "rgba(26,26,23,0.15)" if THEME == "light" else "rgba(240,239,232,0.15)"
# Imprint palette — curve + scientific annotation colors
BRAND = "#009E73" # brand green — main reaction curve (Imprint position 1)
EA_COLOR = "#4467A3" # blue — activation energy (Imprint position 3, kinetic)
DH_COLOR = "#BD8233" # ochre — enthalpy change (Imprint position 4, thermodynamic)
FILL_COLOR = "rgba(0,158,115,0.10)" if THEME == "light" else "rgba(0,158,115,0.15)"
# Data — single-step exothermic reaction
reactant_energy = 50.0
transition_energy = 120.0
product_energy = 20.0
peak_pos = 0.4
reaction_coord = np.linspace(0, 1, 500)
baseline = reactant_energy + (product_energy - reactant_energy) * (3 * reaction_coord**2 - 2 * reaction_coord**3)
barrier_height = transition_energy - (
reactant_energy + (product_energy - reactant_energy) * (3 * peak_pos**2 - 2 * peak_pos**3)
)
gaussian_bump = barrier_height * np.exp(-((reaction_coord - peak_pos) ** 2) / (2 * 0.018))
energy = baseline + gaussian_bump
peak_idx = int(np.argmax(energy))
# Plot
fig = go.Figure()
# Filled area under curve with brand green tint
fig.add_trace(
go.Scatter(
x=reaction_coord,
y=energy,
mode="lines",
line={"color": "rgba(0,0,0,0)", "width": 0},
fill="tozeroy",
fillcolor=FILL_COLOR,
showlegend=False,
hoverinfo="skip",
)
)
# Main reaction energy curve
fig.add_trace(
go.Scatter(
x=reaction_coord,
y=energy,
mode="lines",
line={"color": BRAND, "width": 4, "shape": "spline"},
showlegend=False,
hovertemplate="Reaction Coordinate: %{x:.2f}<br>Energy: %{y:.1f} kJ/mol<extra></extra>",
)
)
# Transition state peak marker dot
fig.add_trace(
go.Scatter(
x=[reaction_coord[peak_idx]],
y=[energy[peak_idx]],
mode="markers",
marker={"color": BRAND, "size": 12, "symbol": "circle", "line": {"color": PAGE_BG, "width": 2}},
showlegend=False,
hoverinfo="skip",
)
)
# Horizontal dashed lines at reactant and product energy levels
for x0, x1, y_level in [(-0.05, 0.28, reactant_energy), (0.72, 1.05, product_energy)]:
fig.add_shape(
type="line", x0=x0, x1=x1, y0=y_level, y1=y_level, line={"color": INK_SOFT, "width": 1.5, "dash": "dash"}
)
# Reference dashed line at reactant level on ΔH side
fig.add_shape(
type="line",
x0=0.82,
x1=0.94,
y0=reactant_energy,
y1=reactant_energy,
line={"color": INK_SOFT, "width": 1, "dash": "dot"},
)
# Reference dashed line at transition state level for Ea
ea_x = 0.14
fig.add_shape(
type="line",
x0=ea_x - 0.02,
x1=peak_pos + 0.08,
y0=transition_energy,
y1=transition_energy,
line={"color": INK_SOFT, "width": 1, "dash": "dot"},
)
# Activation energy (Ea) double-headed arrow
fig.add_shape(
type="line", x0=ea_x, y0=reactant_energy, x1=ea_x, y1=transition_energy, line={"color": EA_COLOR, "width": 2.5}
)
fig.add_annotation(
x=ea_x,
y=transition_energy,
ax=0,
ay=-14,
text="",
showarrow=True,
arrowhead=2,
arrowsize=1.5,
arrowwidth=2.5,
arrowcolor=EA_COLOR,
)
fig.add_annotation(
x=ea_x,
y=reactant_energy,
ax=0,
ay=14,
text="",
showarrow=True,
arrowhead=2,
arrowsize=1.5,
arrowwidth=2.5,
arrowcolor=EA_COLOR,
)
fig.add_annotation(
x=ea_x,
y=(reactant_energy + transition_energy) / 2,
text="<b>E<sub>a</sub> = 70 kJ/mol</b>",
showarrow=False,
xanchor="right",
xshift=-14,
font={"size": 12, "color": EA_COLOR, "family": "Arial, sans-serif"},
)
# Enthalpy change (ΔH) double-headed arrow
dh_x = 0.88
fig.add_shape(
type="line", x0=dh_x, y0=product_energy, x1=dh_x, y1=reactant_energy, line={"color": DH_COLOR, "width": 2.5}
)
fig.add_annotation(
x=dh_x,
y=reactant_energy,
ax=0,
ay=-14,
text="",
showarrow=True,
arrowhead=2,
arrowsize=1.5,
arrowwidth=2.5,
arrowcolor=DH_COLOR,
)
fig.add_annotation(
x=dh_x,
y=product_energy,
ax=0,
ay=14,
text="",
showarrow=True,
arrowhead=2,
arrowsize=1.5,
arrowwidth=2.5,
arrowcolor=DH_COLOR,
)
fig.add_annotation(
x=dh_x,
y=(reactant_energy + product_energy) / 2,
text="<b>ΔH = −30 kJ/mol</b>",
showarrow=False,
xanchor="left",
xshift=14,
font={"size": 12, "color": DH_COLOR, "family": "Arial, sans-serif"},
)
# Labels — Reactants, Transition State, Products
fig.add_annotation(
x=0.02,
y=reactant_energy,
text="<b>Reactants</b><br>50 kJ/mol",
showarrow=False,
yshift=34,
xanchor="left",
font={"size": 12, "color": INK, "family": "Arial, sans-serif"},
)
fig.add_annotation(
x=reaction_coord[peak_idx],
y=energy[peak_idx],
text="<b>Transition State</b><br>120 kJ/mol",
showarrow=True,
ay=-55,
ax=45,
arrowhead=2,
arrowsize=1,
arrowwidth=1.5,
arrowcolor=INK_SOFT,
font={"size": 12, "color": INK, "family": "Arial, sans-serif"},
)
fig.add_annotation(
x=0.98,
y=product_energy,
text="<b>Products</b><br>20 kJ/mol",
showarrow=False,
yshift=-32,
xanchor="right",
font={"size": 12, "color": INK, "family": "Arial, sans-serif"},
)
# Title — length 55 chars < 67 baseline, no scaling needed
title = "line-reaction-coordinate · python · plotly · anyplot.ai"
title_len = len(title)
title_fontsize = round(16 * (67 / title_len)) if title_len > 67 else 16
# Style
fig.update_layout(
autosize=False,
paper_bgcolor=PAGE_BG,
plot_bgcolor=PAGE_BG,
font={"family": "Arial, sans-serif", "color": INK},
title={
"text": title,
"font": {"size": title_fontsize, "family": "Arial, sans-serif", "color": INK},
"x": 0.5,
"xanchor": "center",
},
xaxis={
"title": {
"text": "Reaction Coordinate",
"font": {"size": 12, "family": "Arial, sans-serif", "color": INK},
"standoff": 15,
},
"tickfont": {"size": 10, "color": INK_SOFT},
"showgrid": False,
"showticklabels": False,
"zeroline": False,
"range": [-0.08, 1.08],
"showline": True,
"linecolor": INK_SOFT,
"linewidth": 1,
},
yaxis={
"title": {
"text": "Potential Energy (kJ/mol)",
"font": {"size": 12, "family": "Arial, sans-serif", "color": INK},
"standoff": 10,
},
"tickfont": {"size": 10, "color": INK_SOFT},
"gridcolor": GRID,
"gridwidth": 1,
"zeroline": False,
"range": [0, 140],
"showline": True,
"linecolor": INK_SOFT,
"linewidth": 1,
"dtick": 20,
},
margin={"l": 85, "r": 40, "t": 80, "b": 65},
)
# Save
fig.write_image(f"plot-{THEME}.png", width=800, height=450, scale=4)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")
Part of Reaction Coordinate Energy Diagram on anyplot.ai.
