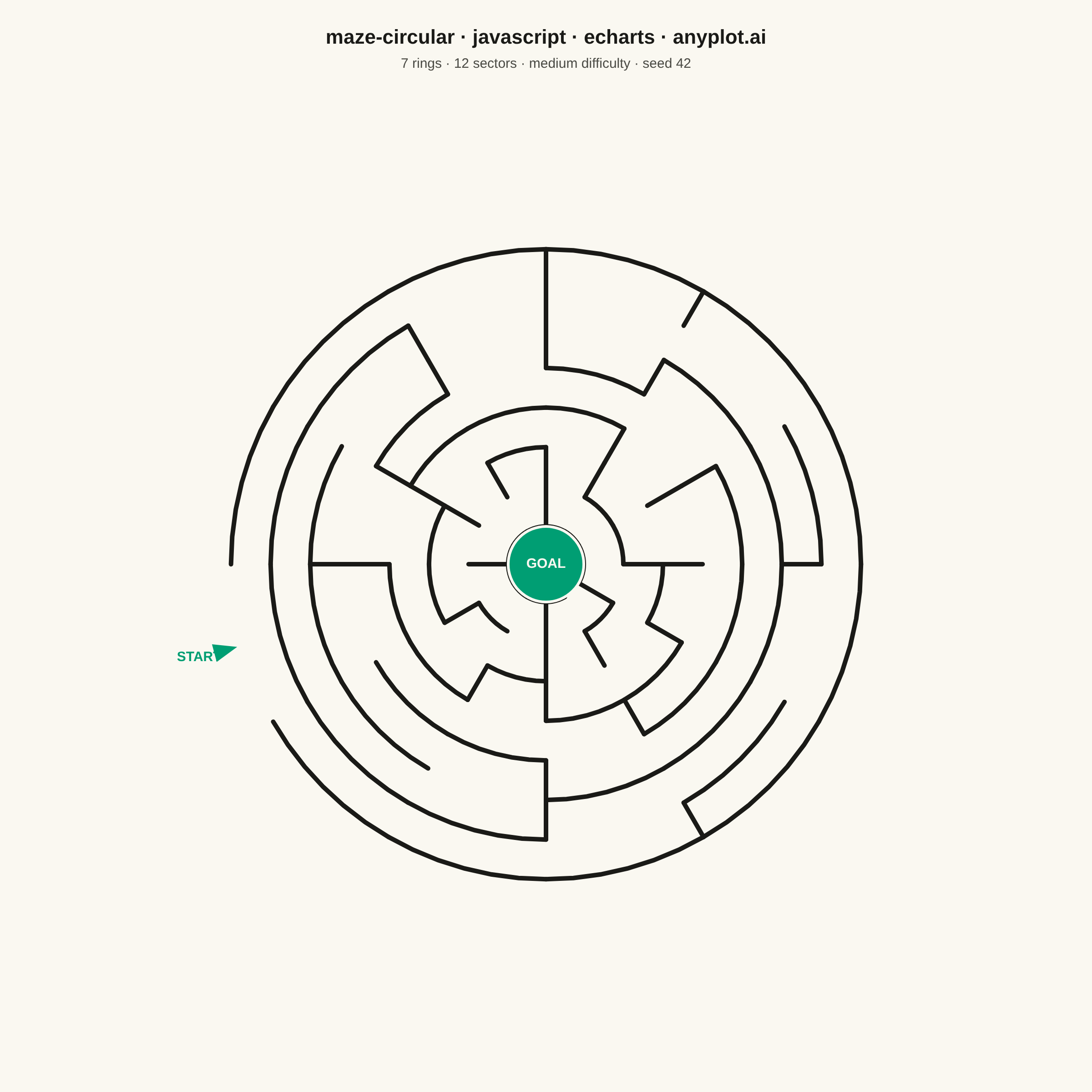

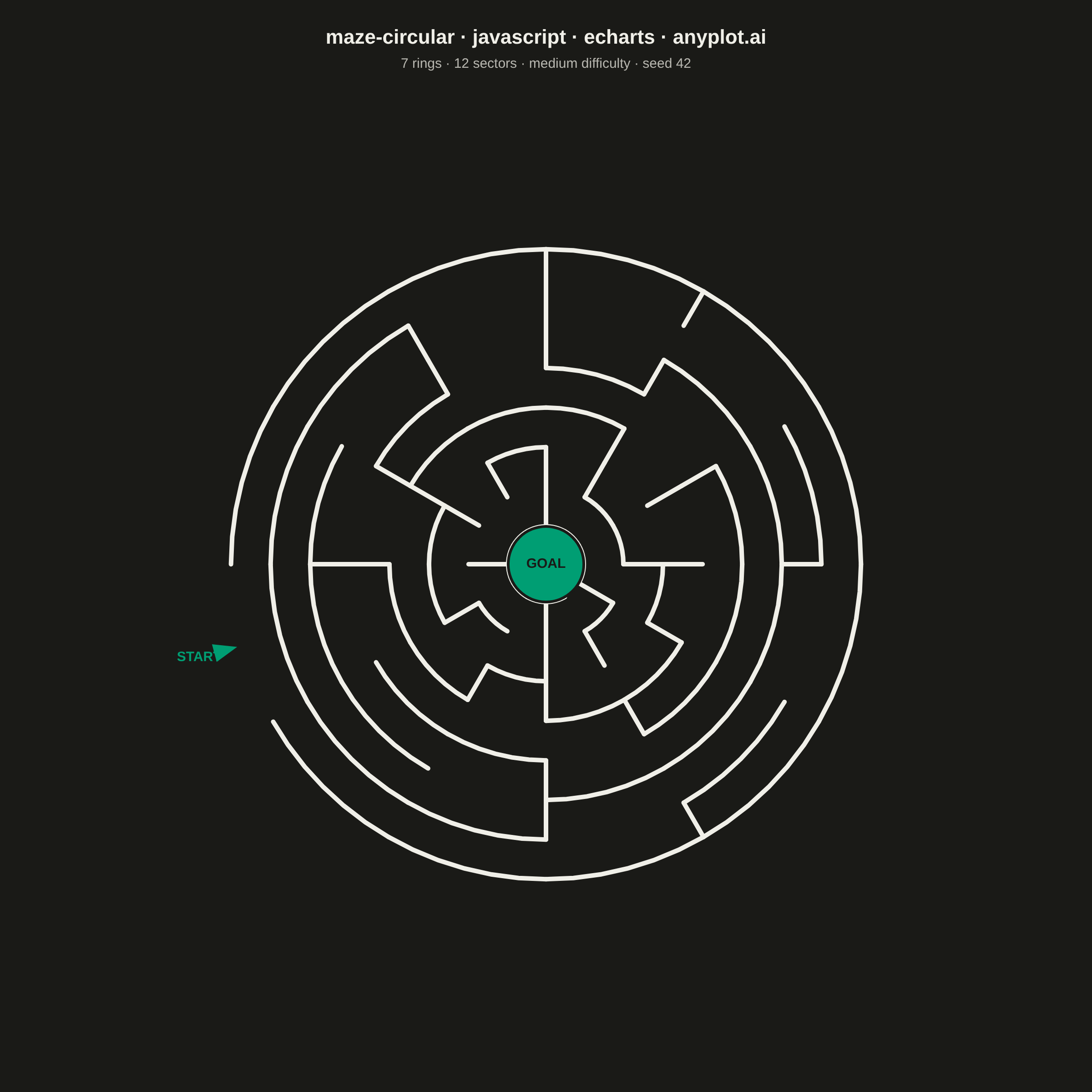

A circular maze puzzle visualization featuring concentric rings connected by radial passages. Unlike rectangular mazes, this design creates a unique solving experience where the player navigates inward through ring-shaped corridors. The maze has an entry point on the outer edge and a goal at the center, with algorithmically generated walls ensuring exactly one solvable path.
// anyplot.ai
// maze-circular: Circular Maze Puzzle
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 92/100 | Created: 2026-09-02
//# anyplot-orientation: square
//
// ECharts has no native maze primitive, so the maze is built by hand: a graph
// of one center hub plus ring x sector cells, carved into a spanning tree via
// randomized DFS (recursive backtracker). A spanning tree connects every cell
// through exactly one path, which is what guarantees the maze has exactly one
// solution from the outer entry to the center goal -- no loops, no shortcuts.
// The walls are drawn as polylines (arcs approximated by sampled points) and
// straight radial segments inside a single hidden-axis custom series so the
// geometry maps 1:1 onto the mount's actual pixel scale via api.coord().
const t = window.ANYPLOT_TOKENS;
// --- Maze parameters (one concrete scenario: 7 rings, medium difficulty) ---
const RINGS = 7;
const SECTORS = 12;
const DIFFICULTY = "medium";
const SEED = 42;
const HUB_RADIUS = 0.12; // fraction of the outer radius reserved for the goal hub
const OUTER_RADIUS = 1.0;
const RING_WIDTH = (OUTER_RADIUS - HUB_RADIUS) / RINGS;
const ANGLE_STEP = (2 * Math.PI) / SECTORS;
const ANGLE_OFFSET = Math.PI / 2; // sector 0 starts at 12 o'clock
// --- Deterministic RNG (mulberry32) -----------------------------------------
let seedState = SEED >>> 0;
function rand() {
seedState = (seedState + 0x6d2b79f5) >>> 0;
let z = seedState;
z = Math.imul(z ^ (z >>> 15), z | 1);
z ^= z + Math.imul(z ^ (z >>> 7), z | 61);
return ((z ^ (z >>> 14)) >>> 0) / 4294967296;
}
// --- Graph: "C" (center hub) plus one node per (ring, sector) cell ----------
function cellId(ring, sector) {
return `${ring}_${sector}`;
}
function ringOf(node) {
return node === "C" ? -1 : Number(node.split("_")[0]);
}
function neighborsOf(node) {
if (node === "C") {
const out = [];
for (let s = 0; s < SECTORS; s++) out.push(cellId(0, s));
return out;
}
const [ringStr, sectorStr] = node.split("_");
const ring = Number(ringStr);
const sector = Number(sectorStr);
const out = [
cellId(ring, (sector + 1) % SECTORS),
cellId(ring, (sector - 1 + SECTORS) % SECTORS),
];
out.push(ring === 0 ? "C" : cellId(ring - 1, sector));
if (ring < RINGS - 1) out.push(cellId(ring + 1, sector));
return out;
}
function edgeKey(a, b) {
return a < b ? `${a}|${b}` : `${b}|${a}`;
}
// DIFFICULTY biases *which* spanning tree the carve picks -- it never adds
// loops, so the exactly-one-solution guarantee always holds. "easy" favors
// moves toward the center (short, direct solution path); "hard" favors
// lateral/outward moves (long, winding solution path with more dead ends).
const RING_MOVE_WEIGHT = {
easy: { inward: 4, lateral: 1, outward: 0.5 },
medium: { inward: 1, lateral: 1, outward: 1 },
hard: { inward: 0.4, lateral: 1, outward: 2 },
}[DIFFICULTY];
function pickWeighted(current, options) {
const currentRing = ringOf(current);
const weights = options.map((node) => {
const nodeRing = ringOf(node);
if (nodeRing < currentRing) return RING_MOVE_WEIGHT.inward;
if (nodeRing > currentRing) return RING_MOVE_WEIGHT.outward;
return RING_MOVE_WEIGHT.lateral;
});
let roll = rand() * weights.reduce((sum, w) => sum + w, 0);
for (let i = 0; i < options.length; i++) {
roll -= weights[i];
if (roll <= 0) return options[i];
}
return options[options.length - 1];
}
// Randomized DFS (recursive backtracker) -> spanning tree = exactly one path
// between any two cells, which is what guarantees a single maze solution.
const visited = new Set(["C"]);
const passages = new Set();
const stack = ["C"];
while (stack.length > 0) {
const current = stack[stack.length - 1];
const options = neighborsOf(current).filter((n) => !visited.has(n));
if (options.length === 0) {
stack.pop();
continue;
}
const next = pickWeighted(current, options);
passages.add(edgeKey(current, next));
visited.add(next);
stack.push(next);
}
const entrySector = Math.floor(rand() * SECTORS);
// --- Geometry helpers --------------------------------------------------------
function angleOf(sector) {
return ANGLE_OFFSET + sector * ANGLE_STEP;
}
function ringRadius(ringBoundary) {
return HUB_RADIUS + ringBoundary * RING_WIDTH;
}
function arcPoints(radius, angleStart, angleEnd, steps) {
const pts = [];
for (let k = 0; k <= steps; k++) {
const angle = angleStart + ((angleEnd - angleStart) * k) / steps;
pts.push([radius * Math.cos(angle), radius * Math.sin(angle)]);
}
return pts;
}
// --- Wall segments (data-space points, mapped to pixels via api.coord) -----
const arcWalls = []; // circumferential walls, one polyline per drawn segment
const radialWalls = []; // radial walls, one [p1, p2] pair per drawn segment
for (let ringBoundary = 0; ringBoundary <= RINGS; ringBoundary++) {
const radius = ringRadius(ringBoundary);
for (let sector = 0; sector < SECTORS; sector++) {
let present;
if (ringBoundary === 0) {
present = !passages.has(edgeKey("C", cellId(0, sector)));
} else if (ringBoundary === RINGS) {
present = sector !== entrySector; // outer boundary, minus the entry gap
} else {
present = !passages.has(
edgeKey(cellId(ringBoundary - 1, sector), cellId(ringBoundary, sector)),
);
}
if (present) {
arcWalls.push(arcPoints(radius, angleOf(sector), angleOf(sector + 1), 6));
}
}
}
for (let ring = 0; ring < RINGS; ring++) {
const innerRadius = ringRadius(ring);
const outerRadius = ringRadius(ring + 1);
for (let sector = 0; sector < SECTORS; sector++) {
const prevSector = (sector - 1 + SECTORS) % SECTORS;
const present = !passages.has(edgeKey(cellId(ring, prevSector), cellId(ring, sector)));
if (present) {
const angle = angleOf(sector);
radialWalls.push([
[innerRadius * Math.cos(angle), innerRadius * Math.sin(angle)],
[outerRadius * Math.cos(angle), outerRadius * Math.sin(angle)],
]);
}
}
}
// --- Entry marker: an inward-pointing arrow at the outer gap ---------------
const entryAngle = angleOf(entrySector) + ANGLE_STEP / 2;
const entryCos = Math.cos(entryAngle);
const entrySin = Math.sin(entryAngle);
const entryArrowOuter = [(OUTER_RADIUS + 0.09) * entryCos, (OUTER_RADIUS + 0.09) * entrySin];
const entryArrowInner = [(OUTER_RADIUS + 0.015) * entryCos, (OUTER_RADIUS + 0.015) * entrySin];
const entryLabelAt = [(OUTER_RADIUS + 0.14) * entryCos, (OUTER_RADIUS + 0.14) * entrySin];
// --- Init & render ------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
const AX = { type: "value", min: -1.3, max: 1.3, show: false };
const option = {
animation: false,
backgroundColor: "transparent",
title: {
text: "maze-circular · javascript · echarts · anyplot.ai",
subtext: `${RINGS} rings · ${SECTORS} sectors · ${DIFFICULTY} difficulty · seed ${SEED}`,
left: "center",
top: 26,
textStyle: { color: t.ink, fontSize: 22, fontWeight: "bold" },
subtextStyle: { color: t.inkSoft, fontSize: 15 },
},
// top+bottom sums to the same 300px as left+right so the plotting box
// stays square (no elliptical distortion); the split is uneven to shift
// the box down slightly and balance the whitespace above vs below it.
grid: { left: 150, right: 150, top: 170, bottom: 130 },
xAxis: AX,
yAxis: AX,
series: [
{
type: "custom",
coordinateSystem: "cartesian2d",
silent: true,
data: [0],
renderItem: (params, api) => {
const children = [];
for (const pts of arcWalls) {
children.push({
type: "polyline",
shape: { points: pts.map((p) => api.coord(p)) },
style: { stroke: t.ink, lineWidth: 5, fill: "none", lineCap: "round" },
});
}
for (const [p1, p2] of radialWalls) {
const a = api.coord(p1);
const b = api.coord(p2);
children.push({
type: "line",
shape: { x1: a[0], y1: a[1], x2: b[0], y2: b[1] },
style: { stroke: t.ink, lineWidth: 5, lineCap: "round" },
});
}
// Goal hub at the center
const centerPx = api.coord([0, 0]);
const hubRadiusPx = api.coord([HUB_RADIUS, 0])[0] - centerPx[0];
children.push({
type: "circle",
shape: { cx: centerPx[0], cy: centerPx[1], r: hubRadiusPx },
style: { fill: t.palette[0], stroke: t.pageBg, lineWidth: 3 },
});
children.push({
type: "text",
style: {
text: "GOAL",
x: centerPx[0],
y: centerPx[1],
fill: t.pageBg,
fontSize: 15,
fontWeight: "bold",
align: "center",
verticalAlign: "middle",
},
});
// Entry arrow (points inward through the gap) + label
const outerPx = api.coord(entryArrowOuter);
const innerPx = api.coord(entryArrowInner);
const dx = innerPx[0] - outerPx[0];
const dy = innerPx[1] - outerPx[1];
const len = Math.hypot(dx, dy) || 1;
const perpX = (-dy / len) * 10;
const perpY = (dx / len) * 10;
children.push({
type: "polygon",
shape: {
points: [
[innerPx[0], innerPx[1]],
[outerPx[0] + perpX, outerPx[1] + perpY],
[outerPx[0] - perpX, outerPx[1] - perpY],
],
},
style: { fill: t.palette[0] },
});
const labelPx = api.coord(entryLabelAt);
children.push({
type: "text",
style: {
text: "START",
x: labelPx[0],
y: labelPx[1],
fill: t.palette[0],
fontSize: 15,
fontWeight: "bold",
align: "center",
verticalAlign: "middle",
},
});
return { type: "group", silent: true, children };
},
},
],
};
chart.setOption(option);
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/maze-circular/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
