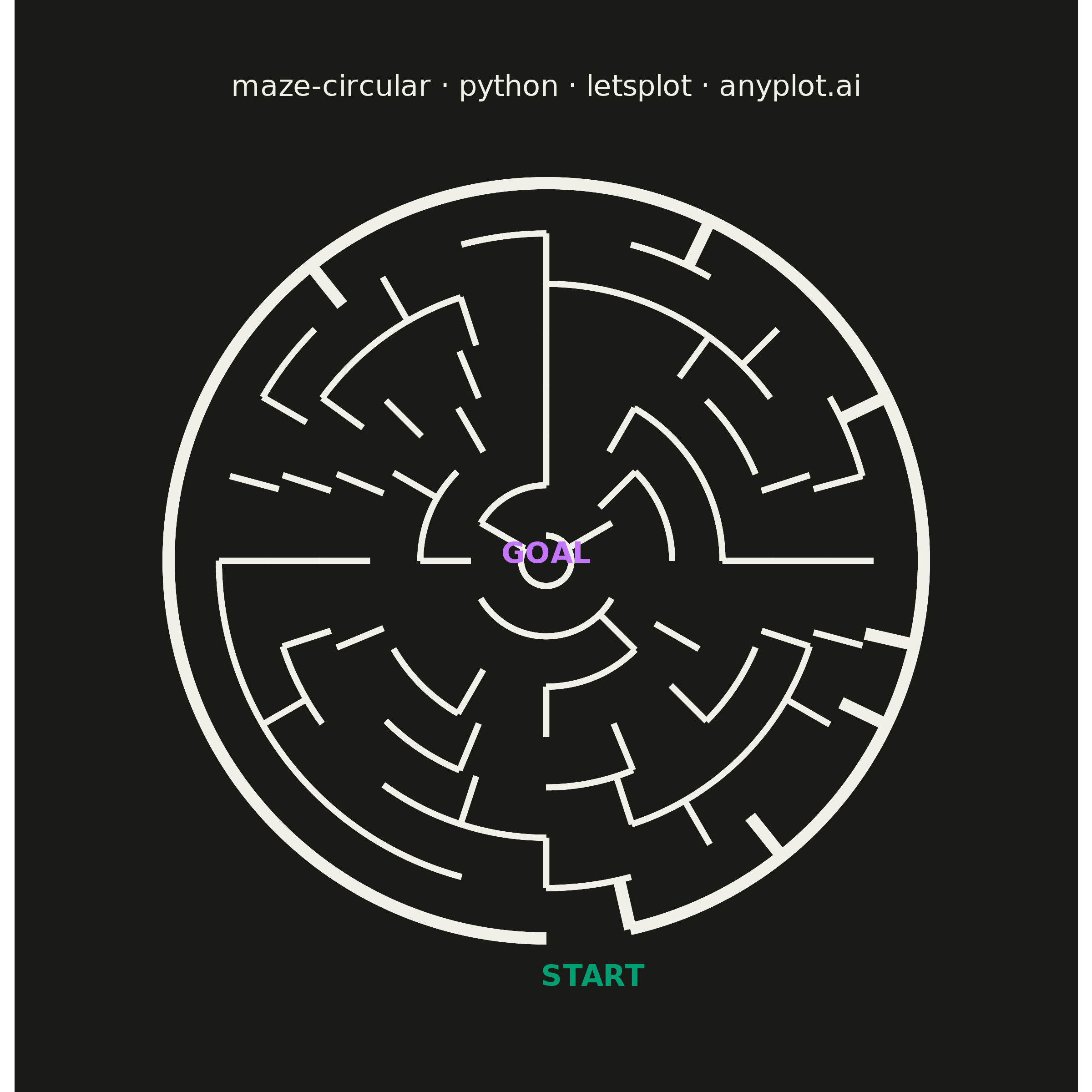

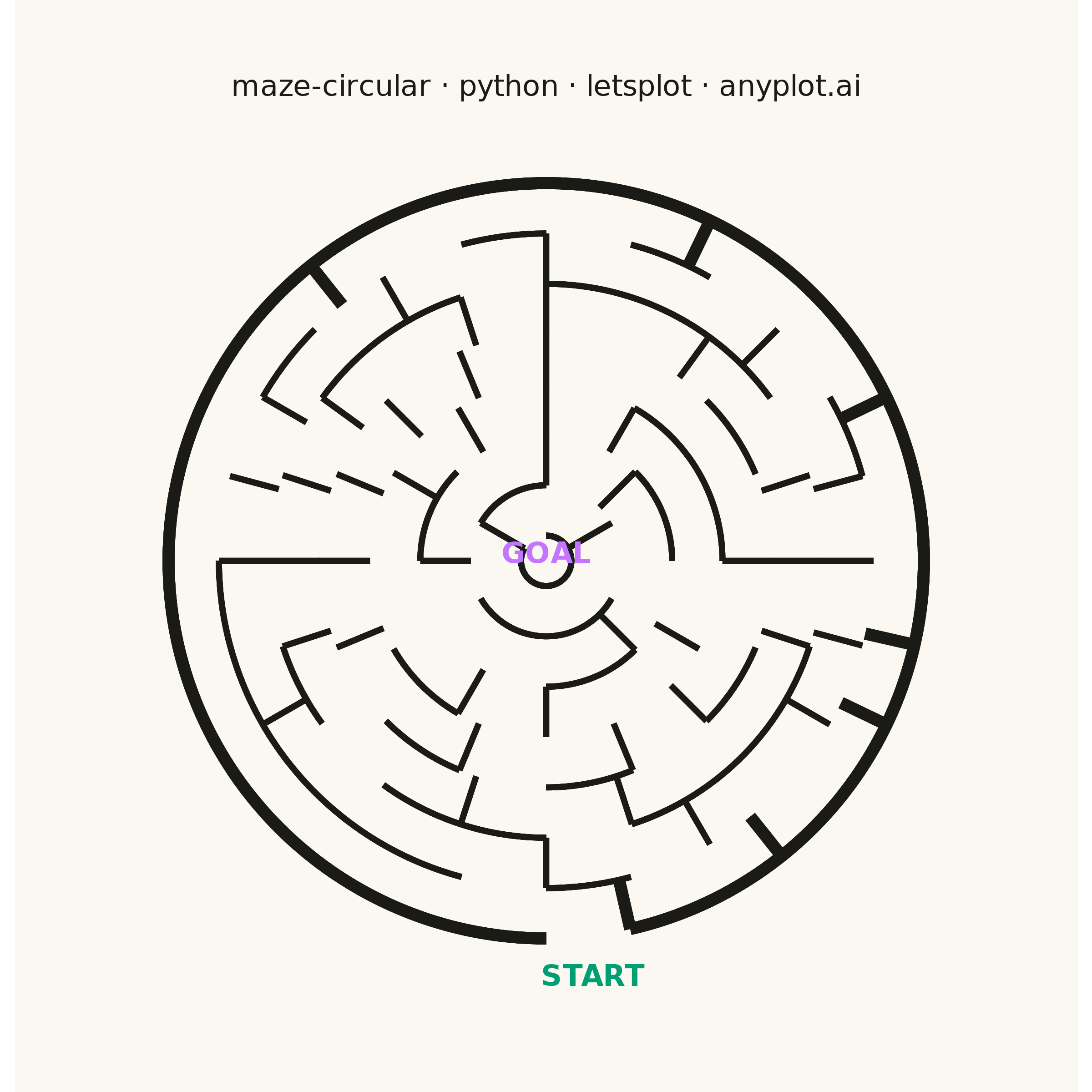

A circular maze puzzle visualization featuring concentric rings connected by radial passages. Unlike rectangular mazes, this design creates a unique solving experience where the player navigates inward through ring-shaped corridors. The maze has an entry point on the outer edge and a goal at the center, with algorithmically generated walls ensuring exactly one solvable path.
""" anyplot.ai
maze-circular: Circular Maze Puzzle
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-20
"""
import os
import numpy as np
import pandas as pd
from lets_plot import *
LetsPlot.setup_html()
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
BRAND = "#009E73" # Okabe-Ito position 1 — START marker
ACCENT = "#C475FD" # Okabe-Ito position 2 — GOAL marker
# Maze parameters
np.random.seed(42)
num_rings = 7
sectors_per_ring = [1] # Center has 1 sector, each ring has more sectors
for ring in range(1, num_rings + 1):
sectors_per_ring.append(max(6, ring * 4)) # Increasing sectors per ring
# Build adjacency graph for cells
# Each cell is (ring, sector) where ring 0 is center
cells = [(0, 0)] # Center cell
for ring in range(1, num_rings + 1):
for sector in range(sectors_per_ring[ring]):
cells.append((ring, sector))
# Find neighbors for each cell
neighbors = {cell: [] for cell in cells}
# Center connects to all sectors in ring 1
for sector in range(sectors_per_ring[1]):
neighbors[(0, 0)].append((1, sector))
neighbors[(1, sector)].append((0, 0))
# Connections within same ring (adjacent sectors)
for ring in range(1, num_rings + 1):
n_sectors = sectors_per_ring[ring]
for sector in range(n_sectors):
next_sector = (sector + 1) % n_sectors
neighbors[(ring, sector)].append((ring, next_sector))
neighbors[(ring, next_sector)].append((ring, sector))
# Connections between adjacent rings (radial passages)
for ring in range(1, num_rings):
inner_sectors = sectors_per_ring[ring]
outer_sectors = sectors_per_ring[ring + 1]
ratio = outer_sectors / inner_sectors
for inner_sector in range(inner_sectors):
outer_start = int(inner_sector * ratio)
outer_end = int((inner_sector + 1) * ratio)
for outer_sector in range(outer_start, outer_end):
neighbors[(ring, inner_sector)].append((ring + 1, outer_sector))
neighbors[(ring + 1, outer_sector)].append((ring, inner_sector))
# DFS maze generation
visited = set()
passages = set() # Edges in the spanning tree
stack = [(0, 0)]
visited.add((0, 0))
while stack:
current = stack[-1]
unvisited_neighbors = [n for n in neighbors[current] if n not in visited]
if unvisited_neighbors:
next_cell = unvisited_neighbors[np.random.randint(len(unvisited_neighbors))]
visited.add(next_cell)
passages.add((current, next_cell))
passages.add((next_cell, current))
stack.append(next_cell)
else:
stack.pop()
# Geometry parameters
ring_width = 1.0
center_radius = 0.5
entrance_sector = 0
n_arc_points = 100 # Increased for smoother arcs
# Collect wall segments — outer ring gets heavier weight for visual depth
wall_segments = []
# Draw arc walls (circular walls between rings)
for ring in range(1, num_rings + 1):
outer_r = center_radius + ring * ring_width
n_sectors = sectors_per_ring[ring]
lw = 3.0 if ring == num_rings else 1.5 # Outer boundary emphasized
for sector in range(n_sectors):
# Check if there's a passage to the outer ring
if ring < num_rings:
has_passage = False
outer_sectors_count = sectors_per_ring[ring + 1]
ratio = outer_sectors_count / n_sectors
outer_start = int(sector * ratio)
outer_end = int((sector + 1) * ratio)
for outer_sector in range(outer_start, outer_end):
if ((ring, sector), (ring + 1, outer_sector)) in passages:
has_passage = True
break
if has_passage:
continue # Don't draw outer wall — there's a passage
# Skip entrance opening on outer wall
if ring == num_rings and sector == entrance_sector:
continue
# Draw arc for outer wall of this sector
theta_start = 2 * np.pi * sector / n_sectors - np.pi / 2
theta_end = 2 * np.pi * (sector + 1) / n_sectors - np.pi / 2
theta_vals = np.linspace(theta_start, theta_end, n_arc_points)
for i in range(len(theta_vals) - 1):
x1, y1 = outer_r * np.cos(theta_vals[i]), outer_r * np.sin(theta_vals[i])
x2, y2 = outer_r * np.cos(theta_vals[i + 1]), outer_r * np.sin(theta_vals[i + 1])
wall_segments.append({"x": x1, "y": y1, "xend": x2, "yend": y2, "lw": lw})
# Draw radial walls (between sectors in same ring)
for ring in range(1, num_rings + 1):
n_sectors = sectors_per_ring[ring]
inner_r = center_radius + (ring - 1) * ring_width if ring > 1 else center_radius
outer_r = center_radius + ring * ring_width
lw = 3.0 if ring == num_rings else 1.5 # Outer boundary emphasized
for sector in range(n_sectors):
next_sector = (sector + 1) % n_sectors
if ((ring, sector), (ring, next_sector)) in passages:
continue # Don't draw wall — there's a passage
theta = 2 * np.pi * (sector + 1) / n_sectors - np.pi / 2
x1, y1 = inner_r * np.cos(theta), inner_r * np.sin(theta)
x2, y2 = outer_r * np.cos(theta), outer_r * np.sin(theta)
wall_segments.append({"x": x1, "y": y1, "xend": x2, "yend": y2, "lw": lw})
# Draw inner walls for ring 1 connecting to center
inner_r = center_radius
for sector in range(sectors_per_ring[1]):
if ((0, 0), (1, sector)) not in passages:
n_inner_sectors = sectors_per_ring[1]
theta_start = 2 * np.pi * sector / n_inner_sectors - np.pi / 2
theta_end = 2 * np.pi * (sector + 1) / n_inner_sectors - np.pi / 2
theta_vals = np.linspace(theta_start, theta_end, n_arc_points // 2)
for i in range(len(theta_vals) - 1):
x1, y1 = inner_r * np.cos(theta_vals[i]), inner_r * np.sin(theta_vals[i])
x2, y2 = inner_r * np.cos(theta_vals[i + 1]), inner_r * np.sin(theta_vals[i + 1])
wall_segments.append({"x": x1, "y": y1, "xend": x2, "yend": y2, "lw": 1.5})
df_walls = pd.DataFrame(wall_segments)
# Markers for start and goal
outer_r = center_radius + num_rings * ring_width
entrance_n_sectors = sectors_per_ring[num_rings]
entrance_theta = (
2 * np.pi * entrance_sector / entrance_n_sectors + 2 * np.pi * (entrance_sector + 1) / entrance_n_sectors
) / 2 - np.pi / 2
start_x = (outer_r + 0.8) * np.cos(entrance_theta)
start_y = (outer_r + 0.8) * np.sin(entrance_theta)
df_markers = pd.DataFrame(
{
"x": [start_x, 0],
"y": [start_y, 0.15], # GOAL shifted up to clear innermost ring walls
"label": ["START", "GOAL"],
"color": [BRAND, ACCENT],
"info": [f"Entry — outer ring, sector {entrance_sector}", f"Navigate {num_rings} rings, seed 42"],
}
)
# Plot — wall size aesthetic drives visual hierarchy; tooltips + ggtb() use lets_plot interactivity
plot_radius = outer_r + 1.5
plot = (
ggplot()
+ geom_segment(aes(x="x", y="y", xend="xend", yend="yend", size="lw"), data=df_walls, color=INK, show_legend=False)
+ scale_size_identity()
+ geom_text(
aes(x="x", y="y", label="label", color="color"),
data=df_markers,
size=8,
fontface="bold",
show_legend=False,
tooltips=layer_tooltips().line("@label").line("@info"),
)
+ scale_color_identity()
+ coord_fixed(ratio=1, xlim=(-plot_radius, plot_radius), ylim=(-plot_radius, plot_radius))
+ theme_void()
+ theme(
plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
plot_title=element_text(size=16, color=INK, hjust=0.5),
plot_margin=[40, 40, 40, 40],
)
+ labs(title="maze-circular · python · letsplot · anyplot.ai")
+ ggsize(600, 600)
+ ggtb()
)
# Save
ggsave(plot, f"plot-{THEME}.png", path=".", scale=4)
ggsave(plot, f"plot-{THEME}.html", path=".")
Part of Circular Maze Puzzle on anyplot.ai.
