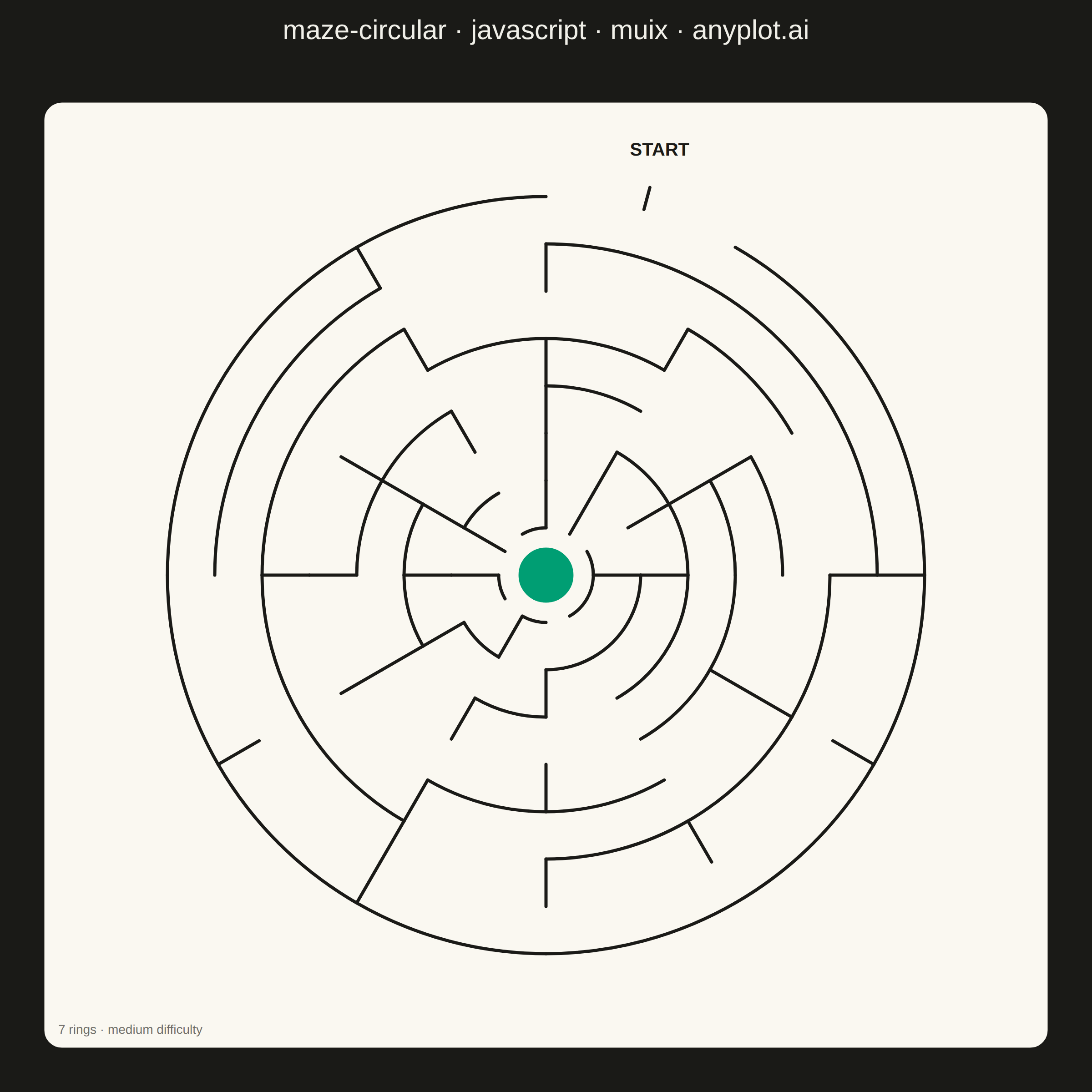

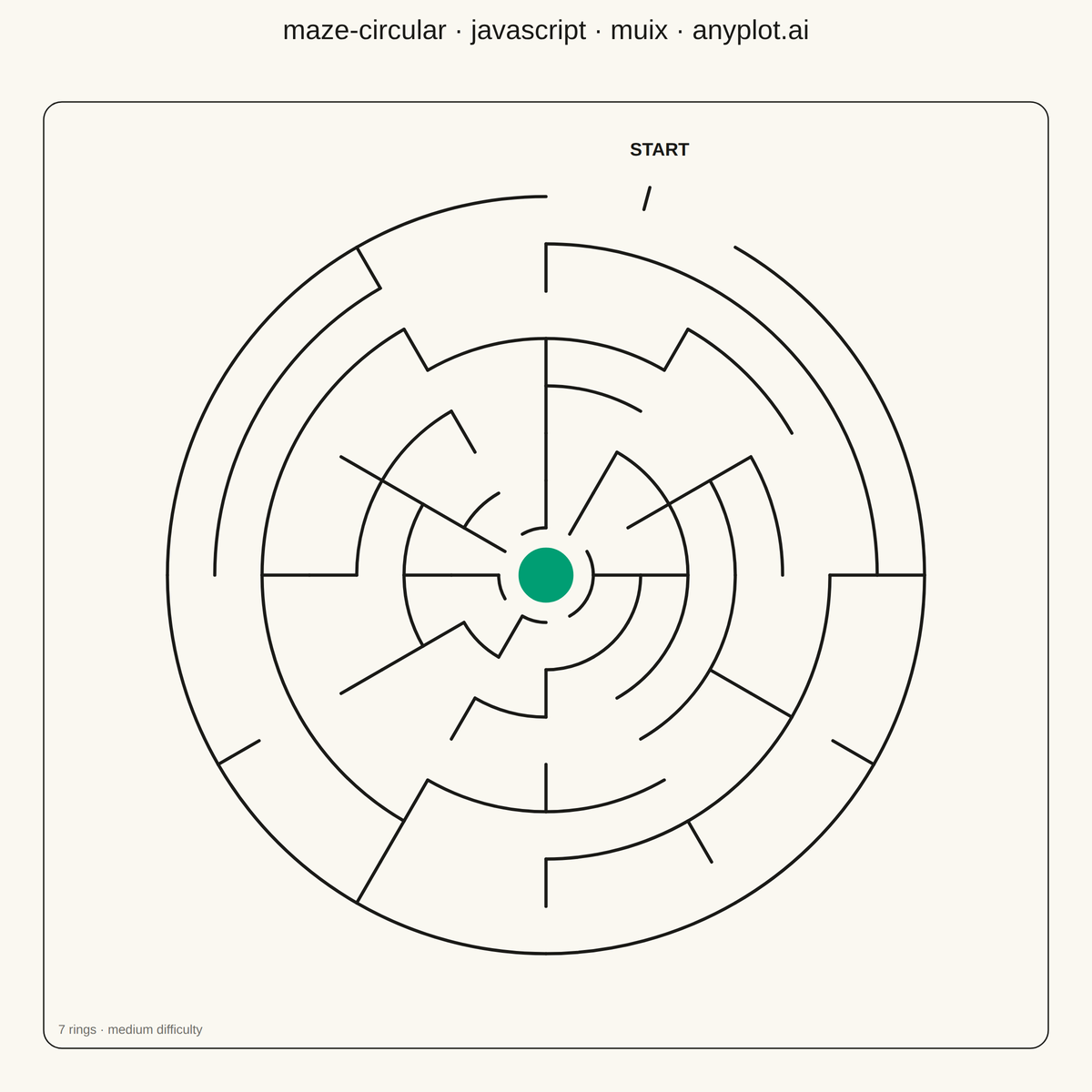

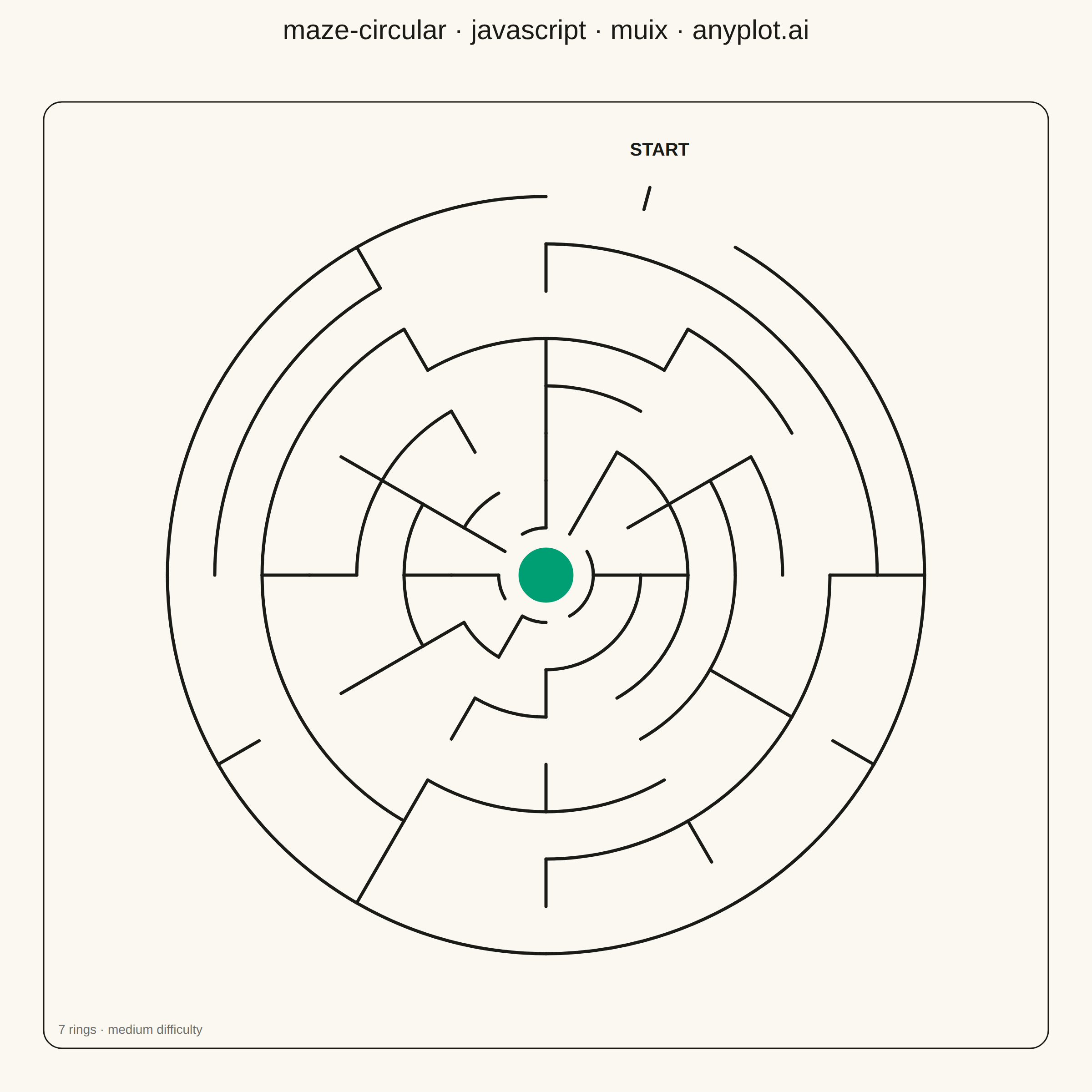

A circular maze puzzle visualization featuring concentric rings connected by radial passages. Unlike rectangular mazes, this design creates a unique solving experience where the player navigates inward through ring-shaped corridors. The maze has an entry point on the outer edge and a goal at the center, with algorithmically generated walls ensuring exactly one solvable path.
// anyplot.ai
// maze-circular: Circular Maze Puzzle
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 87/100 | Created: 2026-09-02
//# anyplot-orientation: square
import Box from "@mui/material/Box";
import Typography from "@mui/material/Typography";
import { ScatterChart } from "@mui/x-charts/ScatterChart";
import { useDrawingArea } from "@mui/x-charts/hooks";
const t = window.ANYPLOT_TOKENS;
// The maze itself is a print artifact — "black walls on white background for
// print-friendly output" per spec — so its ink/paper colors stay fixed across
// themes, like the crossword-basic muix implementation does for its grid.
// Only the surrounding page and title follow ANYPLOT_THEME.
const PAPER = "#FAF8F1";
const INK = "#1A1A17";
const GOAL_GREEN = "#009E73";
// --- Deterministic PRNG (mulberry32) — the browser has no seeded RNG --------
function mulberry32(seed) {
let a = seed;
return function random() {
a |= 0;
a = (a + 0x6d2b79f5) | 0;
let z = Math.imul(a ^ (a >>> 15), 1 | a);
z = (z + Math.imul(z ^ (z >>> 7), 61 | z)) ^ z;
return ((z ^ (z >>> 14)) >>> 0) / 4294967296;
};
}
const rand = mulberry32(42);
// --- Maze topology: a hub cell + RINGS concentric rings of SECTORS cells ----
const RINGS = 7;
const SECTORS = 12;
const ENTRY_SECTOR = 0;
// Spec's difficulty parameter — "7 rings with medium difficulty" is the
// spec's own example, so that's the tier demonstrated here. Difficulty biases
// how the spanning tree grows: a high CONTINUE_BIAS keeps extending the most
// recently carved passage (long, winding corridors with few branch points —
// harder to trace by eye), while a low bias favors a uniformly random
// frontier pick (many short branches, more decision points — easier). The
// carve is still a spanning tree either way, so "exactly one solution" always
// holds; only the corridor character (the spec's "passage density" feel)
// changes with difficulty.
const DIFFICULTY = "medium";
const CONTINUE_BIAS = { easy: 0.15, medium: 0.55, hard: 0.85 }[DIFFICULTY];
const adjacency = new Map();
function addEdge(a, b) {
const key = a < b ? `${a}|${b}` : `${b}|${a}`;
if (!adjacency.has(a)) adjacency.set(a, []);
if (!adjacency.has(b)) adjacency.set(b, []);
adjacency.get(a).push({ to: b, key });
adjacency.get(b).push({ to: a, key });
}
for (let s = 0; s < SECTORS; s++) addEdge("hub", `1-${s}`);
for (let r = 1; r <= RINGS; r++) {
for (let s = 0; s < SECTORS; s++) addEdge(`${r}-${s}`, `${r}-${(s + 1) % SECTORS}`);
}
for (let r = 1; r < RINGS; r++) {
for (let s = 0; s < SECTORS; s++) addEdge(`${r}-${s}`, `${r + 1}-${s}`);
}
// Randomized Prim's algorithm, biased by difficulty, carves a spanning tree
// over the cell graph. A spanning tree has no cycles, so there is exactly one
// path between the hub and any cell — including the entry — which is what
// "exactly one solvable path" requires, regardless of the bias.
const passageKeys = new Set();
const visited = new Set(["hub"]);
let frontier = adjacency.get("hub").map((edge) => ({ ...edge, from: "hub" }));
let lastAdded = "hub";
while (frontier.length > 0) {
const continuing = rand() < CONTINUE_BIAS ? frontier.filter((edge) => edge.from === lastAdded) : [];
const pool = continuing.length > 0 ? continuing : frontier;
const edge = pool[Math.floor(rand() * pool.length)];
frontier.splice(frontier.indexOf(edge), 1);
if (visited.has(edge.to)) continue;
visited.add(edge.to);
lastAdded = edge.to;
passageKeys.add(edge.key);
adjacency.get(edge.to).forEach((next) => {
if (!visited.has(next.to)) frontier.push({ ...next, from: edge.to });
});
}
const isPassage = (a, b) => passageKeys.has(a < b ? `${a}|${b}` : `${b}|${a}`);
// --- Polar geometry (unit disc, radius 1 = outer wall) ----------------------
const HUB_R = 1 / (RINGS + 1);
const RING_WIDTH = (1 - HUB_R) / RINGS;
const ringInner = (r) => HUB_R + (r - 1) * RING_WIDTH;
const ringOuter = (r) => HUB_R + r * RING_WIDTH;
const ANGLE_STEP = (2 * Math.PI) / SECTORS;
const angleOf = (s) => -Math.PI / 2 + s * ANGLE_STEP; // sector 0 starts at 12 o'clock
function polar(cx, cy, scale, radius, angle) {
return [cx + scale * radius * Math.cos(angle), cy + scale * radius * Math.sin(angle)];
}
function arcPath(cx, cy, scale, radius, a0, a1) {
const [x0, y0] = polar(cx, cy, scale, radius, a0);
const [x1, y1] = polar(cx, cy, scale, radius, a1);
const large = a1 - a0 > Math.PI ? 1 : 0;
return `M ${x0} ${y0} A ${scale * radius} ${scale * radius} 0 ${large} 1 ${x1} ${y1}`;
}
// Draws the whole puzzle as raw SVG paths sized off the chart's own drawing
// area — MUI X owns layout/scaling, the maze geometry is ours.
function MazeMark() {
const { left, top, width, height } = useDrawingArea();
const cx = left + width / 2;
const cy = top + height / 2;
const halfDim = Math.min(width, height) / 2;
const scale = halfDim * 0.8;
const walls = [];
// Hub <-> ring 1 boundary
for (let s = 0; s < SECTORS; s++) {
if (!isPassage("hub", `1-${s}`)) {
walls.push(arcPath(cx, cy, scale, HUB_R, angleOf(s), angleOf(s + 1)));
}
}
// Sector-divider (circumferential) walls, per ring
for (let r = 1; r <= RINGS; r++) {
for (let s = 0; s < SECTORS; s++) {
const a = `${r}-${s}`;
const b = `${r}-${(s + 1) % SECTORS}`;
if (isPassage(a, b)) continue;
const boundaryAngle = angleOf(s + 1);
const [x0, y0] = polar(cx, cy, scale, ringInner(r), boundaryAngle);
const [x1, y1] = polar(cx, cy, scale, ringOuter(r), boundaryAngle);
walls.push(`M ${x0} ${y0} L ${x1} ${y1}`);
}
}
// Ring-boundary (radial) walls between adjacent rings
for (let r = 1; r < RINGS; r++) {
for (let s = 0; s < SECTORS; s++) {
if (!isPassage(`${r}-${s}`, `${r + 1}-${s}`)) {
walls.push(arcPath(cx, cy, scale, ringOuter(r), angleOf(s), angleOf(s + 1)));
}
}
}
// Outer perimeter, with a gap left open at the entry sector
for (let s = 0; s < SECTORS; s++) {
if (s === ENTRY_SECTOR) continue;
walls.push(arcPath(cx, cy, scale, 1, angleOf(s), angleOf(s + 1)));
}
const entryMid = angleOf(ENTRY_SECTOR) + ANGLE_STEP / 2;
const [tickX0, tickY0] = polar(cx, cy, scale, 1, entryMid);
const [tickX1, tickY1] = polar(cx, cy, scale, 1.06, entryMid);
const [labelX, labelY] = polar(cx, cy, scale, 1.16, entryMid);
return (
<g>
<rect
x={left}
y={top}
width={width}
height={height}
rx={20}
ry={20}
fill={PAPER}
stroke={INK}
strokeWidth={1.5}
/>
{walls.map((d, i) => (
<path key={i} d={d} fill="none" stroke={INK} strokeWidth={3.5} strokeLinecap="round" />
))}
<line x1={tickX0} y1={tickY0} x2={tickX1} y2={tickY1} stroke={INK} strokeWidth={3.5} strokeLinecap="round" />
<text x={labelX} y={labelY} fontSize={20} fontWeight={600} fill={INK} textAnchor="middle" dominantBaseline="middle">
START
</text>
<circle cx={cx} cy={cy} r={scale * HUB_R * 0.6} fill={GOAL_GREEN} stroke={PAPER} strokeWidth={2} />
<text x={left + 16} y={top + height - 16} fontSize={14} fill={INK} fillOpacity={0.65} textAnchor="start">
{RINGS} rings · {DIFFICULTY} difficulty
</text>
</g>
);
}
const TITLE = "maze-circular · javascript · muix · anyplot.ai";
const TITLE_HEIGHT = 64;
export default function Chart() {
const { width, height } = window.ANYPLOT_SIZE;
const chartHeight = height - TITLE_HEIGHT;
const margin = 48;
return (
<Box sx={{ width, height, bgcolor: t.pageBg, display: "flex", flexDirection: "column" }}>
<Typography
sx={{
color: t.ink,
fontSize: 30,
fontWeight: 500,
textAlign: "center",
lineHeight: 1.2,
pt: "16px",
height: TITLE_HEIGHT,
fontFamily: "inherit",
}}
>
{TITLE}
</Typography>
<Box sx={{ flex: 1, display: "flex", alignItems: "center", justifyContent: "center" }}>
<ScatterChart
width={width}
height={chartHeight}
skipAnimation
disableVoronoi
series={[{ id: "maze", type: "scatter", data: [{ x: 0, y: 0, id: "c" }] }]}
xAxis={[{ scaleType: "linear", min: -1.3, max: 1.3, disableTicks: true, disableLine: true }]}
yAxis={[{ scaleType: "linear", min: -1.3, max: 1.3, disableTicks: true, disableLine: true }]}
topAxis={null}
bottomAxis={null}
leftAxis={null}
rightAxis={null}
margin={{ top: margin, bottom: margin, left: margin, right: margin }}
slots={{ scatter: MazeMark }}
slotProps={{ legend: { hidden: true } }}
/>
</Box>
</Box>
);
}
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/maze-circular/muix/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "maze-circular",
"language": "javascript",
"library": "muix",
"page": "https://anyplot.ai/maze-circular/javascript/muix",
"hub": "https://anyplot.ai/maze-circular",
"code_json": "https://api.anyplot.ai/specs/maze-circular/muix/code",
"spec_json": "https://api.anyplot.ai/specs/maze-circular",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/maze-circular/javascript/muix/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/maze-circular/javascript/muix/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/maze-circular/javascript/muix/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/maze-circular/javascript/muix/plot-dark.html",
"quality_score": 87.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Circular Maze Puzzle on anyplot.ai.
