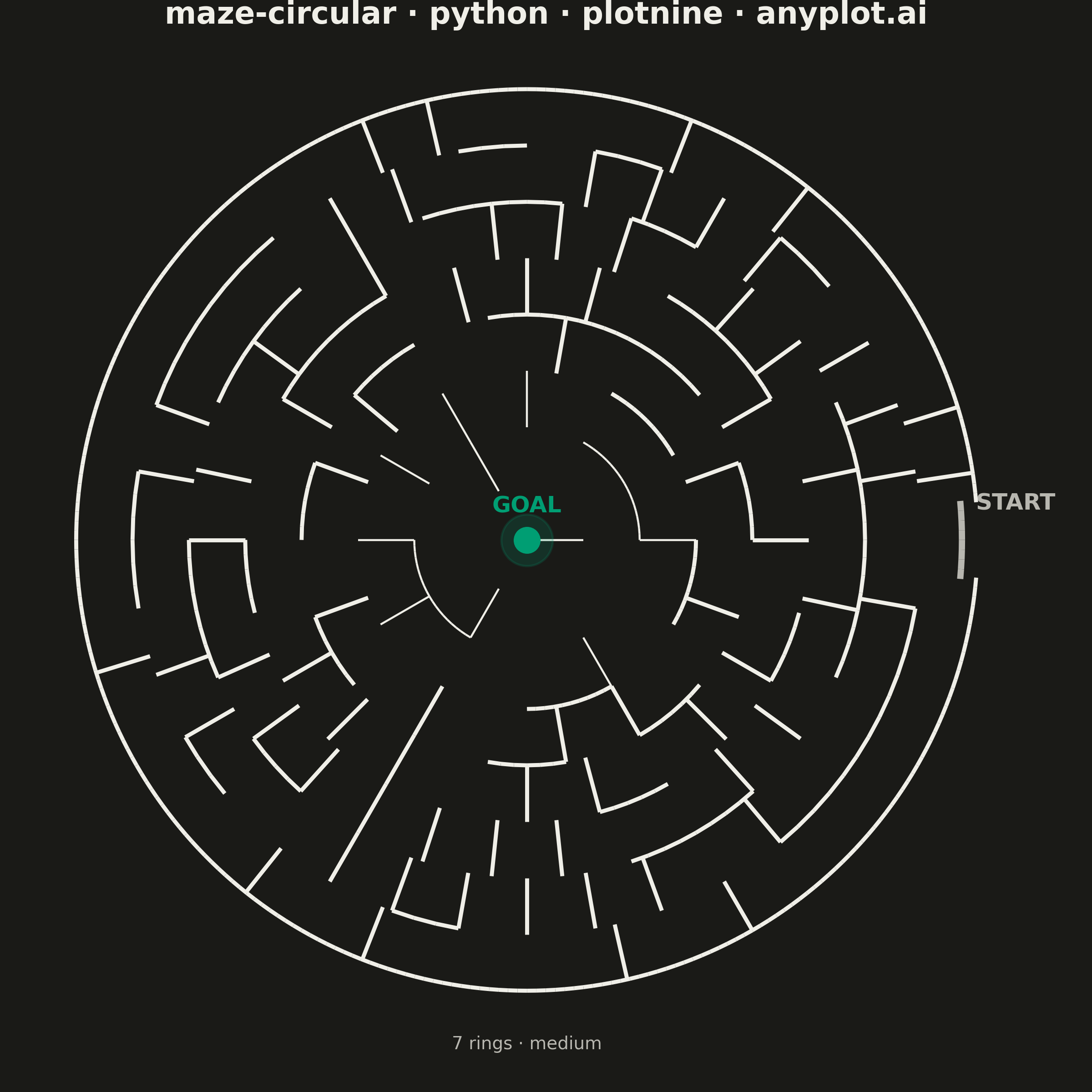

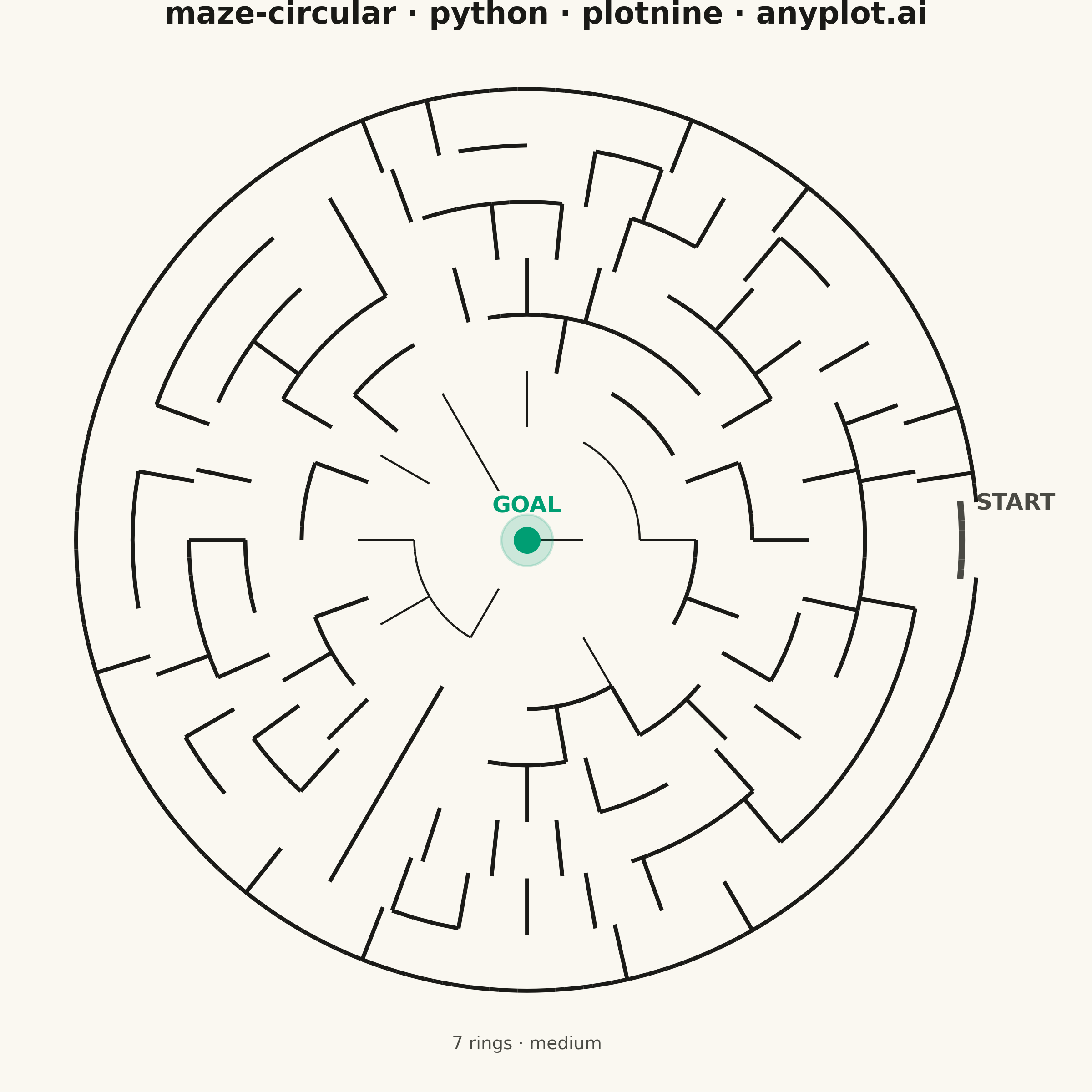

A circular maze puzzle visualization featuring concentric rings connected by radial passages. Unlike rectangular mazes, this design creates a unique solving experience where the player navigates inward through ring-shaped corridors. The maze has an entry point on the outer edge and a goal at the center, with algorithmically generated walls ensuring exactly one solvable path.
""" anyplot.ai
maze-circular: Circular Maze Puzzle
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-20
"""
import os
import numpy as np
import pandas as pd
from plotnine import (
aes,
coord_fixed,
element_rect,
element_text,
geom_point,
geom_segment,
geom_text,
ggplot,
labs,
theme,
theme_void,
)
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GOAL_COLOR = "#009E73" # Okabe-Ito position 1
# Maze parameters
np.random.seed(42)
difficulty = "medium"
n_rings = {"easy": 5, "medium": 7, "hard": 9}[difficulty]
base_sectors = [1, 6, 12, 18, 24, 30, 36, 42, 48, 54]
sectors_per_ring = base_sectors[: n_rings + 1]
ring_width = 1.0
radii = [i * ring_width for i in range(n_rings + 2)]
# Initialize maze walls
radial_walls = []
arc_walls = []
for ring in range(n_rings + 1):
n_sec = sectors_per_ring[min(ring, len(sectors_per_ring) - 1)]
radial_walls.append([True] * n_sec)
arc_walls.append([True] * n_sec)
# DFS maze generation from center — neighbors computed inline (flat KISS structure)
visited = {(0, 0)}
stack = [(0, 0)]
while stack:
ring, sector = stack[-1]
n_sec = sectors_per_ring[min(ring, len(sectors_per_ring) - 1)]
nbrs = [(ring, (sector - 1) % n_sec, "radial_prev"), (ring, (sector + 1) % n_sec, "radial_next")]
if ring > 0:
n_inn = sectors_per_ring[min(ring - 1, len(sectors_per_ring) - 1)]
nbrs.append((ring - 1, int(sector * n_inn / n_sec), "arc_inner"))
if ring < n_rings:
n_out = sectors_per_ring[min(ring + 1, len(sectors_per_ring) - 1)]
s0 = int(sector * n_out / n_sec)
s1 = int((sector + 1) * n_out / n_sec)
for s in range(s0, s1):
nbrs.append((ring + 1, s % n_out, "arc_outer"))
unvisited = [(nr, ns, wt) for nr, ns, wt in nbrs if (nr, ns) not in visited]
if unvisited:
nr, ns, wt = unvisited[np.random.randint(len(unvisited))]
if wt == "radial_prev":
radial_walls[ring][sector] = False
elif wt == "radial_next":
radial_walls[ring][(sector + 1) % n_sec] = False
elif wt == "arc_inner":
arc_walls[ring - 1][ns] = False
else:
arc_walls[ring][sector] = False
visited.add((nr, ns))
stack.append((nr, ns))
else:
stack.pop()
# Entry gap on outer ring (sector 0 — rightmost)
n_outer = sectors_per_ring[min(n_rings, len(sectors_per_ring) - 1)]
entry_sector = 0
entry_angle_0 = 2 * np.pi * entry_sector / n_outer
gap_half = np.pi / n_outer * 1.2 # 1.2× sector half-width for a prominent entry gap
# Build wall segments tagged by ring depth for tapered stroke weight
segments = []
# Outer boundary with prominent entry gap — outermost ring tag
n_pts = 300
for i in range(n_pts):
t1 = 2 * np.pi * i / n_pts
t2 = 2 * np.pi * (i + 1) / n_pts
t_mid = (t1 + t2) / 2
if abs(t_mid - entry_angle_0) > gap_half and abs(t_mid - entry_angle_0 - 2 * np.pi) > gap_half:
r = radii[n_rings + 1]
segments.append(
{
"x": r * np.cos(t1),
"y": r * np.sin(t1),
"xend": r * np.cos(t2),
"yend": r * np.sin(t2),
"ring": n_rings + 1,
}
)
# Arc walls between rings
for ring in range(n_rings):
n_sec = sectors_per_ring[min(ring, len(sectors_per_ring) - 1)]
r = radii[ring + 1]
for sec in range(n_sec):
if arc_walls[ring][sec]:
t1 = 2 * np.pi * sec / n_sec
t2 = 2 * np.pi * (sec + 1) / n_sec
n_sub = max(3, int(120 / n_sec))
for j in range(n_sub):
ta = t1 + (t2 - t1) * j / n_sub
tb = t1 + (t2 - t1) * (j + 1) / n_sub
segments.append(
{
"x": r * np.cos(ta),
"y": r * np.sin(ta),
"xend": r * np.cos(tb),
"yend": r * np.sin(tb),
"ring": ring + 1,
}
)
# Radial walls within each ring
for ring in range(n_rings + 1):
n_sec = sectors_per_ring[min(ring, len(sectors_per_ring) - 1)]
r_in, r_out = radii[ring], radii[ring + 1]
for sec in range(n_sec):
if radial_walls[ring][sec]:
t = 2 * np.pi * sec / n_sec
segments.append(
{
"x": r_in * np.cos(t),
"y": r_in * np.sin(t),
"xend": r_out * np.cos(t),
"yend": r_out * np.sin(t),
"ring": ring,
}
)
walls_df = pd.DataFrame(segments)
# Taper stroke weight: outer rings thicker, inner rings thinner — depth illusion
mid_ring = n_rings // 2
walls_outer_df = walls_df[walls_df["ring"] >= mid_ring]
walls_inner_df = walls_df[walls_df["ring"] < mid_ring]
# Entry gate: short highlighted arc inside the outer boundary at the entry gap
entry_gate_segs = []
r_gate = radii[n_rings + 1] * 0.965
gate_span = gap_half
n_gate = 8
for j in range(n_gate):
ta = entry_angle_0 - gate_span + 2 * gate_span * j / n_gate
tb = entry_angle_0 - gate_span + 2 * gate_span * (j + 1) / n_gate
entry_gate_segs.append(
{"x": r_gate * np.cos(ta), "y": r_gate * np.sin(ta), "xend": r_gate * np.cos(tb), "yend": r_gate * np.sin(tb)}
)
entry_gate_df = pd.DataFrame(entry_gate_segs)
# Entry and goal markers
entry_angle_mid = 2 * np.pi * (entry_sector + 0.5) / n_outer
entry_r = radii[n_rings + 1] + ring_width * 0.7
entry_df = pd.DataFrame(
{"x": [entry_r * np.cos(entry_angle_mid)], "y": [entry_r * np.sin(entry_angle_mid)], "label": ["START"]}
)
goal_df = pd.DataFrame({"x": [0.0], "y": [0.0], "label": ["GOAL"]})
# Difficulty caption below the maze
caption_df = pd.DataFrame(
{"x": [0.0], "y": [-(radii[n_rings + 1] + ring_width * 0.95)], "label": [f"{n_rings} rings · {difficulty}"]}
)
# Plot
plot = (
ggplot()
# Outer/mid walls — thicker stroke
+ geom_segment(data=walls_outer_df, mapping=aes(x="x", y="y", xend="xend", yend="yend"), color=INK, size=0.9)
# Inner walls — thinner stroke creates depth illusion drawing eye to center
+ geom_segment(data=walls_inner_df, mapping=aes(x="x", y="y", xend="xend", yend="yend"), color=INK, size=0.45)
# Entry gate marker: subtle arc at the threshold
+ geom_segment(data=entry_gate_df, mapping=aes(x="x", y="y", xend="xend", yend="yend"), color=INK_SOFT, size=1.4)
# GOAL bullseye: soft glow ring behind the solid dot
+ geom_point(data=goal_df, mapping=aes(x="x", y="y"), color=GOAL_COLOR, size=11, alpha=0.18)
+ geom_point(data=goal_df, mapping=aes(x="x", y="y"), color=GOAL_COLOR, size=5)
+ geom_text(
data=goal_df, mapping=aes(x="x", y="y", label="label"), color=GOAL_COLOR, size=9, fontweight="bold", nudge_y=0.6
)
+ geom_text(data=entry_df, mapping=aes(x="x", y="y", label="label"), color=INK_SOFT, size=9, fontweight="bold")
+ geom_text(data=caption_df, mapping=aes(x="x", y="y", label="label"), color=INK_SOFT, size=7)
+ coord_fixed(ratio=1)
+ labs(title="maze-circular · python · plotnine · anyplot.ai")
+ theme_void()
+ theme(
figure_size=(6, 6),
plot_title=element_text(size=12, ha="center", weight="bold", color=INK),
plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
panel_background=element_rect(fill=PAGE_BG),
)
)
# Save
plot.save(f"plot-{THEME}.png", dpi=400, width=6, height=6, units="in")
