Mosaic Plot for Categorical Association Analysis — Seaborn

A mosaic plot visualizes contingency tables by dividing a rectangular area into smaller rectangles whose areas are proportional to cell frequencies. This statistical visualization technique effectively shows relationships and associations between two or more categorical variables, making it easy to identify patterns, dependencies, and deviations from expected frequencies in cross-tabulated data.

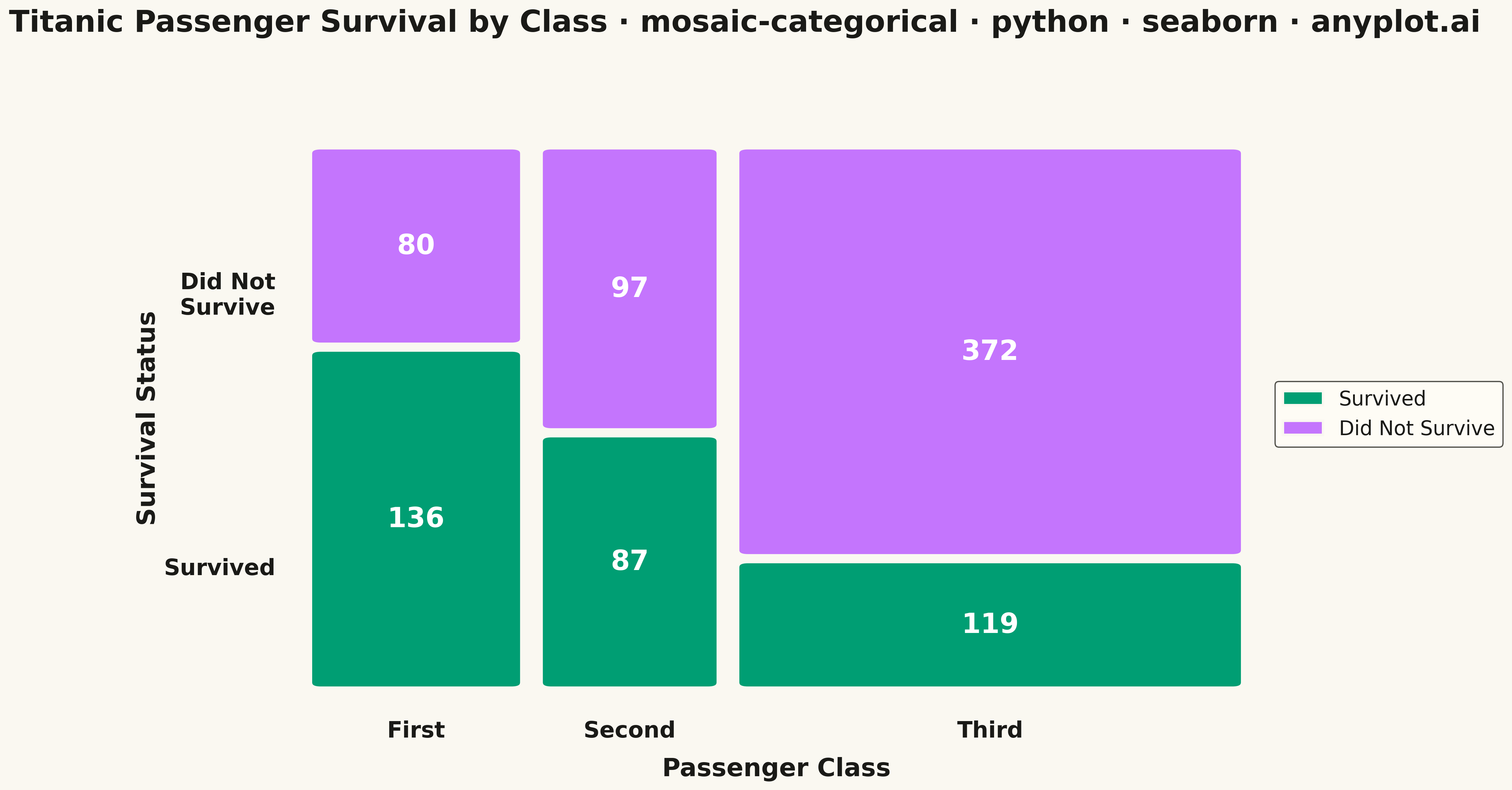

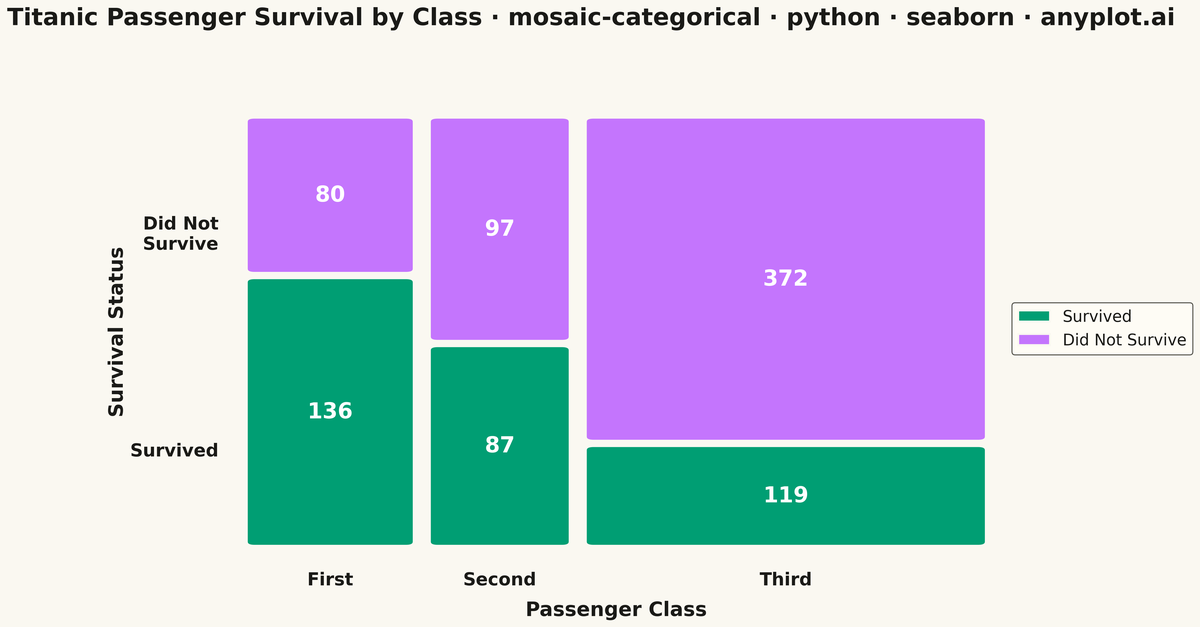

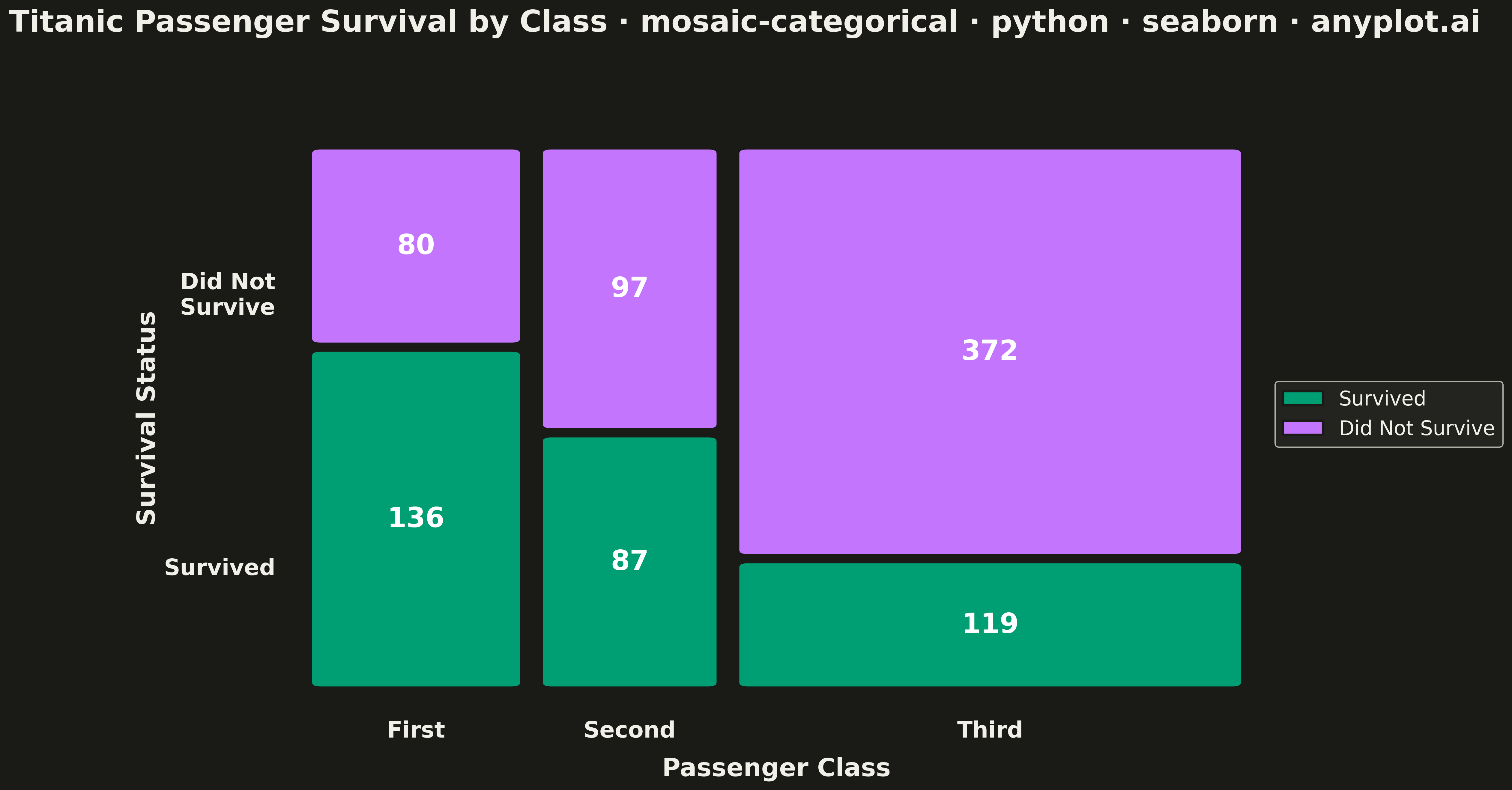

Mosaic Plot for Categorical Association Analysis rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
mosaic-categorical: Mosaic Plot for Categorical Association Analysis
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-19
"""

import os

import matplotlib.patches as mpatches
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette — first series always #009E73
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]
color_survived = IMPRINT[0]  # bluish green
color_not_survived = IMPRINT[1]  # vermillion

sns.set_theme(
    style="white",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

# Data
df = sns.load_dataset("titanic")

# Contingency table: rows = passenger class, columns = [Survived, Did Not Survive]
contingency_df = df.groupby(["class", "survived"], observed=True).size().unstack(fill_value=0)
contingency = contingency_df[[1, 0]].values  # 1=Survived first
categories_1 = ["First", "Second", "Third"]
categories_2 = ["Survived", "Did Not Survive"]

# Calculate proportions
row_totals = contingency.sum(axis=1)
total = contingency.sum()
col_widths = row_totals / total
col_heights = contingency / row_totals[:, np.newaxis]

# Plot
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

gap = 0.015
plot_left = 0.15
plot_bottom = 0.12
plot_width = 0.75
plot_height = 0.75

# Draw mosaic rectangles
x_start = plot_left
for i, cat1 in enumerate(categories_1):
    width = col_widths[i] * plot_width - gap
    y_start = plot_bottom

    for j in range(len(categories_2)):
        height = col_heights[i, j] * plot_height - gap / 2
        color = color_survived if j == 0 else color_not_survived

        rect = mpatches.FancyBboxPatch(
            (x_start + gap / 2, y_start + gap / 4),
            width,
            height,
            boxstyle="round,pad=0,rounding_size=0.008",
            facecolor=color,
            edgecolor=PAGE_BG,
            linewidth=3,
        )
        ax.add_patch(rect)

        freq = contingency[i, j]
        cx = x_start + gap / 2 + width / 2
        cy = y_start + gap / 4 + height / 2
        if height > 0.05:
            ax.text(cx, cy, f"{freq}", ha="center", va="center", fontsize=22, fontweight="bold", color="white")

        y_start += height + gap / 2

    cx = x_start + gap / 2 + width / 2
    ax.text(cx, plot_bottom - 0.04, cat1, ha="center", va="top", fontsize=18, fontweight="bold", color=INK)

    x_start += col_widths[i] * plot_width

# Row labels on the left
avg_survived_h = col_heights[:, 0].mean() * plot_height
avg_not_survived_h = col_heights[:, 1].mean() * plot_height
survived_y = plot_bottom + avg_survived_h / 2
not_survived_y = plot_bottom + avg_survived_h + avg_not_survived_h / 2

ax.text(plot_left - 0.02, survived_y, "Survived", ha="right", va="center", fontsize=18, fontweight="bold", color=INK)
ax.text(
    plot_left - 0.02,
    not_survived_y,
    "Did Not\nSurvive",
    ha="right",
    va="center",
    fontsize=18,
    fontweight="bold",
    color=INK,
)

ax.set_xlim(0, 1)
ax.set_ylim(0, 1)
ax.set_aspect("auto")
ax.axis("off")

# Title
ax.set_title(
    "Titanic Passenger Survival by Class · mosaic-categorical · python · seaborn · anyplot.ai",
    fontsize=24,
    fontweight="bold",
    pad=15,
    loc="center",
    color=INK,
)

# Legend — anchored inside the right margin of the plot area
legend_elements = [
    mpatches.Patch(facecolor=color_survived, edgecolor=PAGE_BG, linewidth=2, label="Survived"),
    mpatches.Patch(facecolor=color_not_survived, edgecolor=PAGE_BG, linewidth=2, label="Did Not Survive"),
]
ax.legend(
    handles=legend_elements,
    loc="center left",
    fontsize=16,
    framealpha=0.95,
    facecolor=ELEVATED_BG,
    edgecolor=INK_SOFT,
    bbox_to_anchor=(0.91, 0.50),
    labelcolor=INK,
)

# Axis labels
ax.text(
    plot_left + plot_width / 2,
    plot_bottom - 0.09,
    "Passenger Class",
    ha="center",
    va="top",
    fontsize=20,
    fontweight="bold",
    color=INK,
)
ax.text(
    0.02,
    plot_bottom + plot_height / 2,
    "Survival Status",
    ha="left",
    va="center",
    fontsize=20,
    fontweight="bold",
    rotation=90,
    color=INK,
)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)
