A weighted network graph displays relationships between entities using edge thickness to represent connection strength or weight. Unlike basic network graphs where edges are uniform, the varying line widths immediately communicate the relative importance of each relationship. This visualization makes it easy to identify strong vs weak connections, central hubs with many heavy links, and structural patterns in weighted relational data.
""" anyplot.ai
network-weighted: Weighted Network Graph with Edge Thickness
Library: altair 6.1.0 | Python 3.13.13
Quality: 95/100 | Updated: 2026-05-17
"""
import os
import altair as alt
import numpy as np
import pandas as pd
# Theme tokens (see prompts/default-style-guide.md "Theme-adaptive Chrome")
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Okabe-Ito palette - first series always #009E73
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]
# Data: Trade network between 15 countries (billions USD)
np.random.seed(42)
nodes = [
{"id": 0, "name": "USA", "group": "Americas"},
{"id": 1, "name": "China", "group": "Asia"},
{"id": 2, "name": "Germany", "group": "Europe"},
{"id": 3, "name": "Japan", "group": "Asia"},
{"id": 4, "name": "UK", "group": "Europe"},
{"id": 5, "name": "France", "group": "Europe"},
{"id": 6, "name": "India", "group": "Asia"},
{"id": 7, "name": "Italy", "group": "Europe"},
{"id": 8, "name": "Brazil", "group": "Americas"},
{"id": 9, "name": "Canada", "group": "Americas"},
{"id": 10, "name": "S. Korea", "group": "Asia"},
{"id": 11, "name": "Australia", "group": "Oceania"},
{"id": 12, "name": "Mexico", "group": "Americas"},
{"id": 13, "name": "Spain", "group": "Europe"},
{"id": 14, "name": "Netherlands", "group": "Europe"},
]
# Trade relationships with weights (billions USD)
edges = [
(0, 1, 560),
(0, 2, 185),
(0, 3, 210),
(0, 4, 140),
(0, 9, 580),
(0, 12, 490),
(1, 3, 320),
(1, 10, 280),
(1, 2, 175),
(1, 11, 145),
(2, 5, 165),
(2, 7, 130),
(2, 14, 195),
(2, 4, 125),
(3, 10, 85),
(3, 11, 75),
(4, 5, 95),
(4, 14, 85),
(5, 7, 80),
(5, 13, 75),
(6, 0, 95),
(6, 1, 110),
(8, 0, 60),
(8, 1, 115),
(9, 4, 25),
(10, 0, 120),
(11, 1, 190),
(12, 1, 45),
(13, 5, 55),
(14, 4, 70),
]
n_nodes = len(nodes)
# Force-directed layout calculation
pos = np.random.rand(n_nodes, 2) * 2 - 1
k = 0.3
for iteration in range(200):
disp = np.zeros((n_nodes, 2))
# Repulsive forces between all node pairs
for i in range(n_nodes):
for j in range(i + 1, n_nodes):
delta = pos[i] - pos[j]
dist = max(np.linalg.norm(delta), 0.01)
force = k * k / dist
disp[i] += (delta / dist) * force
disp[j] -= (delta / dist) * force
# Attractive forces along edges
for src, tgt, _weight in edges:
delta = pos[src] - pos[tgt]
dist = max(np.linalg.norm(delta), 0.01)
force = dist * dist / k
disp[src] -= (delta / dist) * force * 0.5
disp[tgt] += (delta / dist) * force * 0.5
# Apply displacement with cooling
temp = 0.1 * (1 - iteration / 200)
for i in range(n_nodes):
disp_len = max(np.linalg.norm(disp[i]), 0.01)
pos[i] += (disp[i] / disp_len) * min(disp_len, temp)
pos = np.clip(pos, -1, 1)
# Calculate weighted degree for node sizing
weighted_degree = dict.fromkeys(range(n_nodes), 0)
for src, tgt, weight in edges:
weighted_degree[src] += weight
weighted_degree[tgt] += weight
max_degree = max(weighted_degree.values())
min_degree = min(weighted_degree.values())
# Build node dataframe
node_df = pd.DataFrame(nodes)
node_df["x"] = pos[:, 0]
node_df["y"] = pos[:, 1]
node_df["weighted_degree"] = [weighted_degree[i] for i in range(n_nodes)]
# Get weight range for scaling edge thickness
min_weight = min(e[2] for e in edges)
max_weight = max(e[2] for e in edges)
# Build edge dataframe
edge_data = []
for src, tgt, weight in edges:
edge_data.append({"x": pos[src, 0], "y": pos[src, 1], "x2": pos[tgt, 0], "y2": pos[tgt, 1], "weight": weight})
edge_df = pd.DataFrame(edge_data)
# Create edge layer with varying thickness
edge_chart = (
alt.Chart(edge_df)
.mark_rule(opacity=0.4)
.encode(
x=alt.X("x:Q", axis=None, scale=alt.Scale(domain=[-1.2, 1.2])),
y=alt.Y("y:Q", axis=None, scale=alt.Scale(domain=[-1.2, 1.2])),
x2="x2:Q",
y2="y2:Q",
strokeWidth=alt.StrokeWidth(
"weight:Q",
scale=alt.Scale(domain=[min_weight, max_weight], range=[2, 14]),
legend=alt.Legend(title="Trade (B USD)", titleFontSize=18, labelFontSize=16, orient="right", offset=10),
),
color=alt.value(INK_SOFT),
)
)
# Create node layer with size by weighted degree
node_chart = (
alt.Chart(node_df)
.mark_circle(stroke=INK_SOFT, strokeWidth=2)
.encode(
x=alt.X("x:Q", axis=None, scale=alt.Scale(domain=[-1.2, 1.2])),
y=alt.Y("y:Q", axis=None, scale=alt.Scale(domain=[-1.2, 1.2])),
size=alt.Size(
"weighted_degree:Q",
scale=alt.Scale(domain=[min_degree, max_degree], range=[600, 3000]),
legend=alt.Legend(title="Total Trade", titleFontSize=18, labelFontSize=16, orient="right", offset=10),
),
color=alt.Color(
"group:N",
scale=alt.Scale(domain=["Americas", "Europe", "Asia", "Oceania"], range=IMPRINT),
legend=alt.Legend(
title="Region", titleFontSize=18, labelFontSize=16, orient="right", symbolSize=600, offset=10
),
),
tooltip=["name:N", "group:N", "weighted_degree:Q"],
)
)
# Create label layer for node names with adjusted positioning
label_chart = (
alt.Chart(node_df)
.mark_text(fontSize=16, fontWeight="bold", dy=-26, align="center")
.encode(
x=alt.X("x:Q", scale=alt.Scale(domain=[-1.2, 1.2])),
y=alt.Y("y:Q", scale=alt.Scale(domain=[-1.2, 1.2])),
text="name:N",
color=alt.value(INK),
)
)
# Combine all layers with interactivity
chart = (
(edge_chart + node_chart + label_chart)
.interactive()
.properties(
width=1600,
height=900,
title=alt.Title(

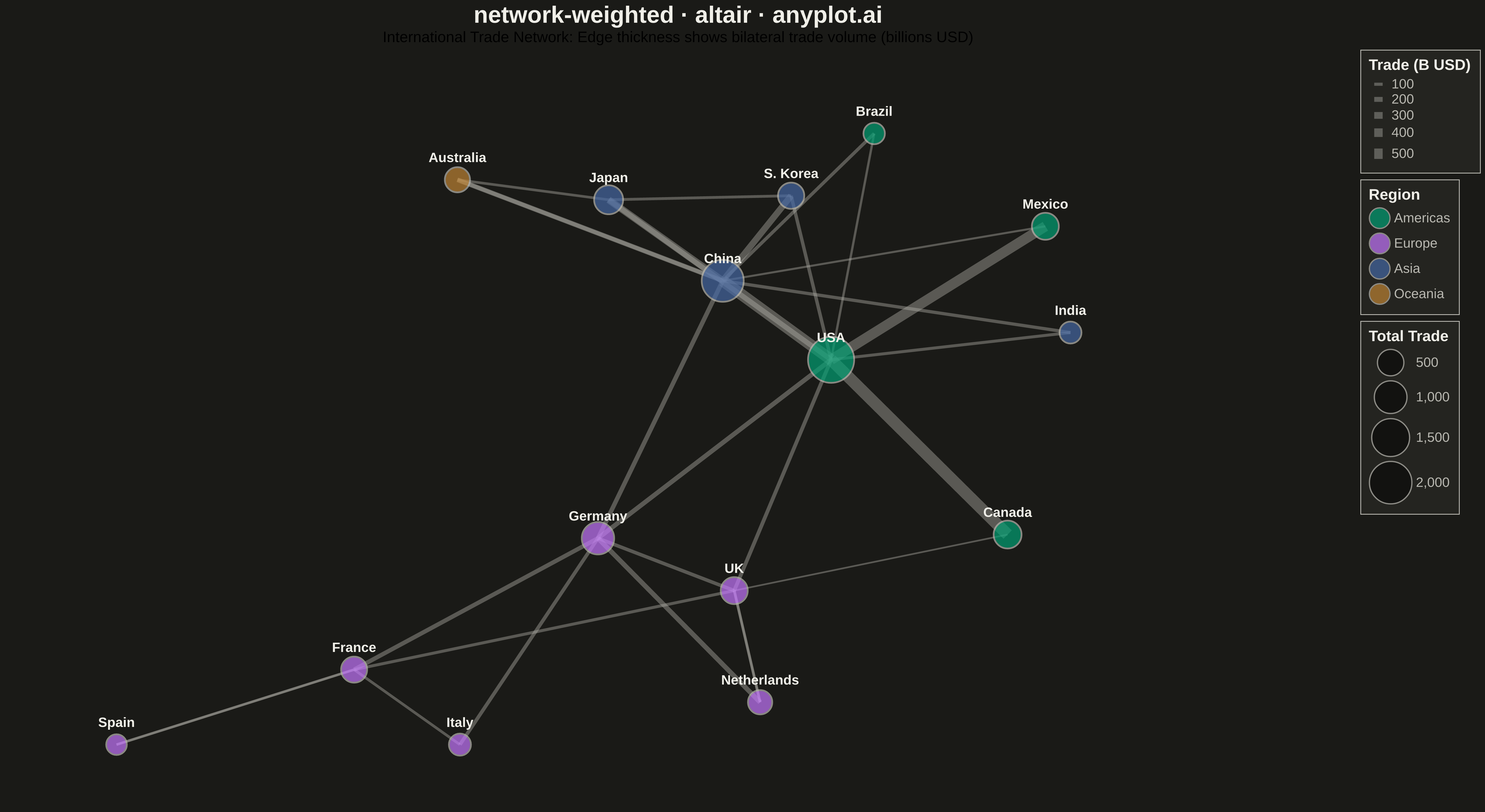

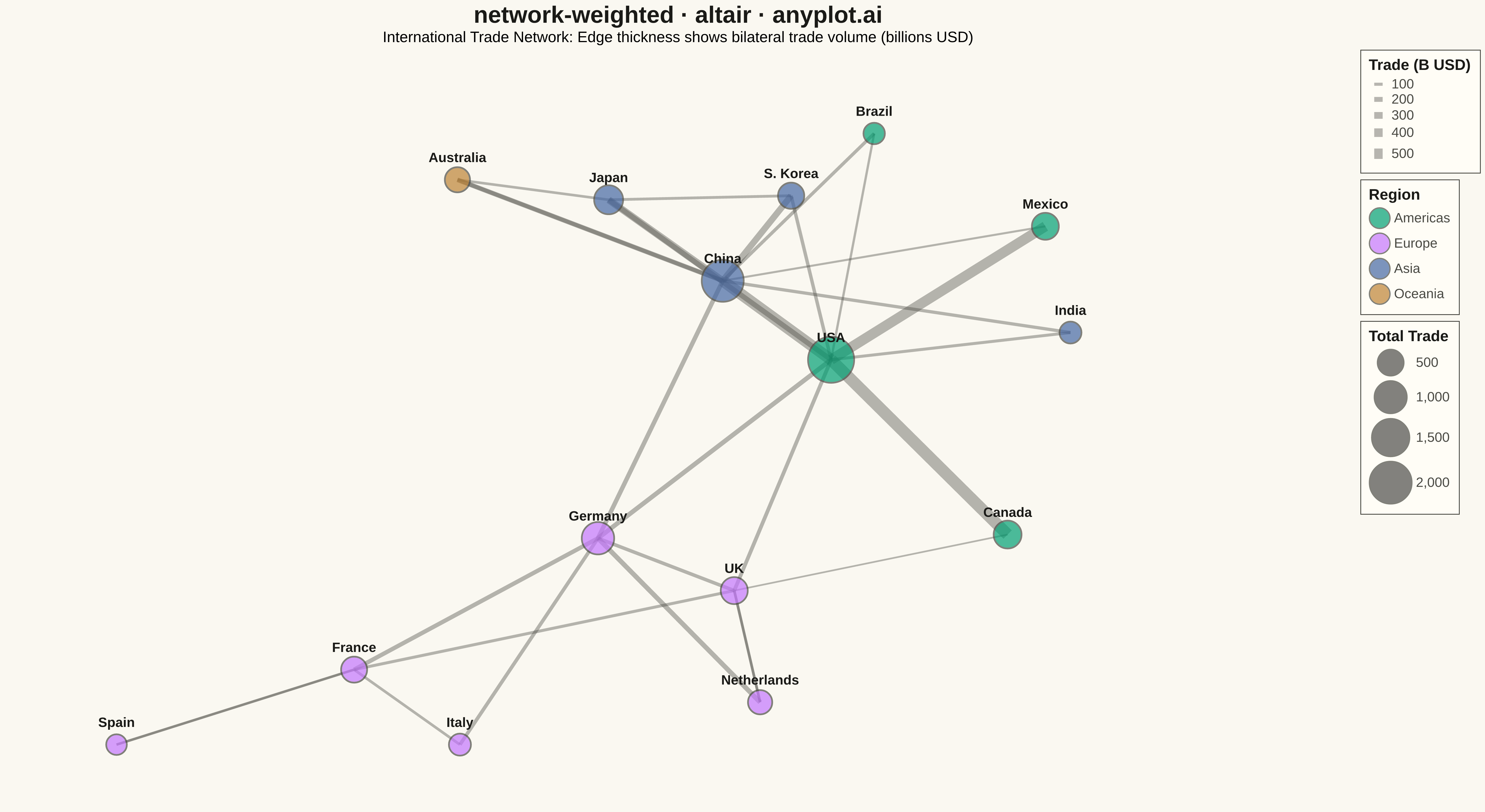

"network-weighted · altair · anyplot.ai",
fontSize=28,
anchor="middle",
color=INK,
subtitle="International Trade Network: Edge thickness shows bilateral trade volume (billions USD)",
subtitleFontSize=18,
),
background=PAGE_BG,
)
.configure_view(strokeWidth=0, fill=PAGE_BG)
.configure_axis(
domainColor=INK_SOFT, tickColor=INK_SOFT, gridColor=INK, gridOpacity=0.10, labelColor=INK_SOFT, titleColor=INK
)
.configure_legend(fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK, padding=10)
)
# Save outputs
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")
Part of Weighted Network Graph with Edge Thickness on anyplot.ai.
