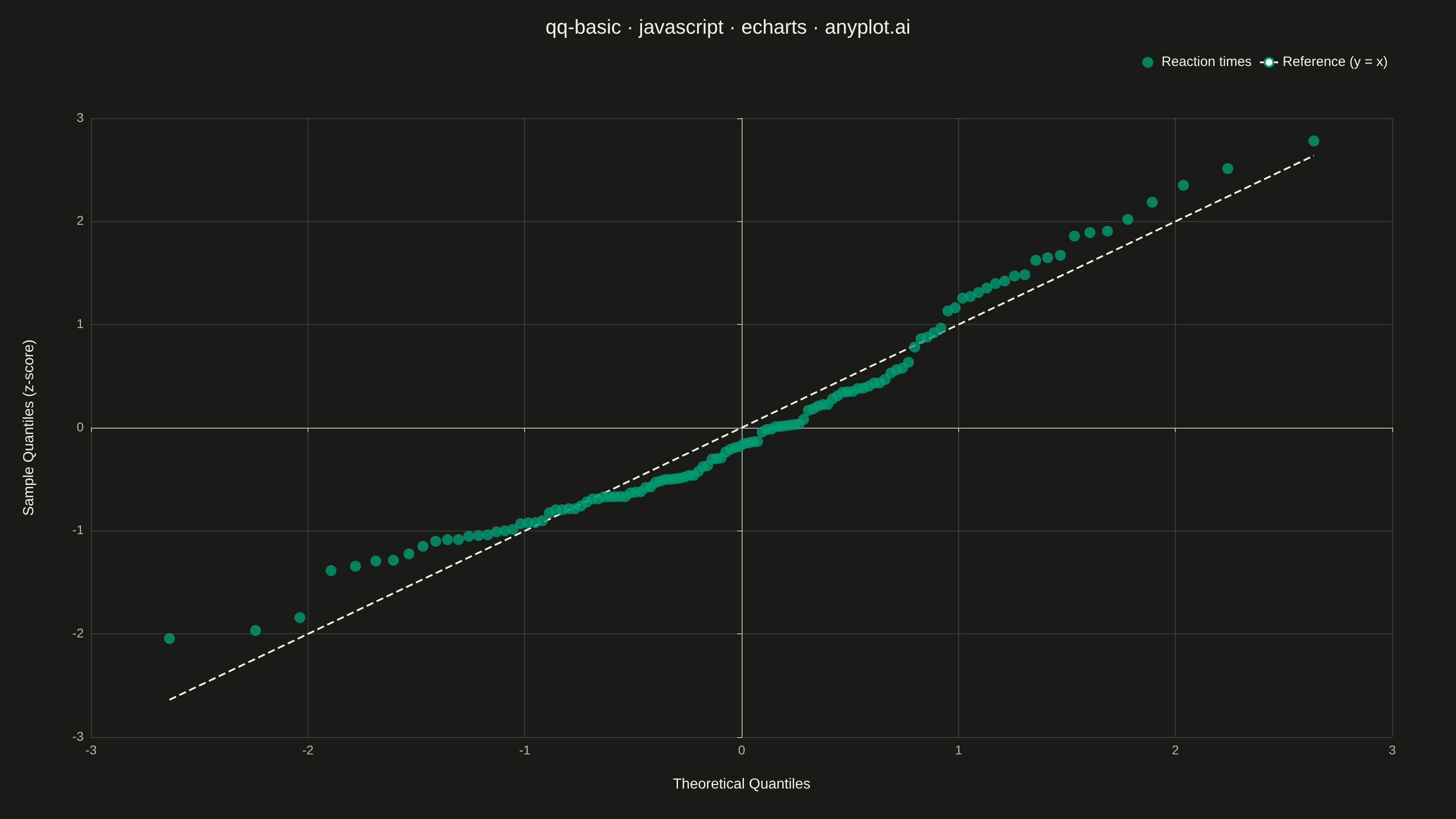

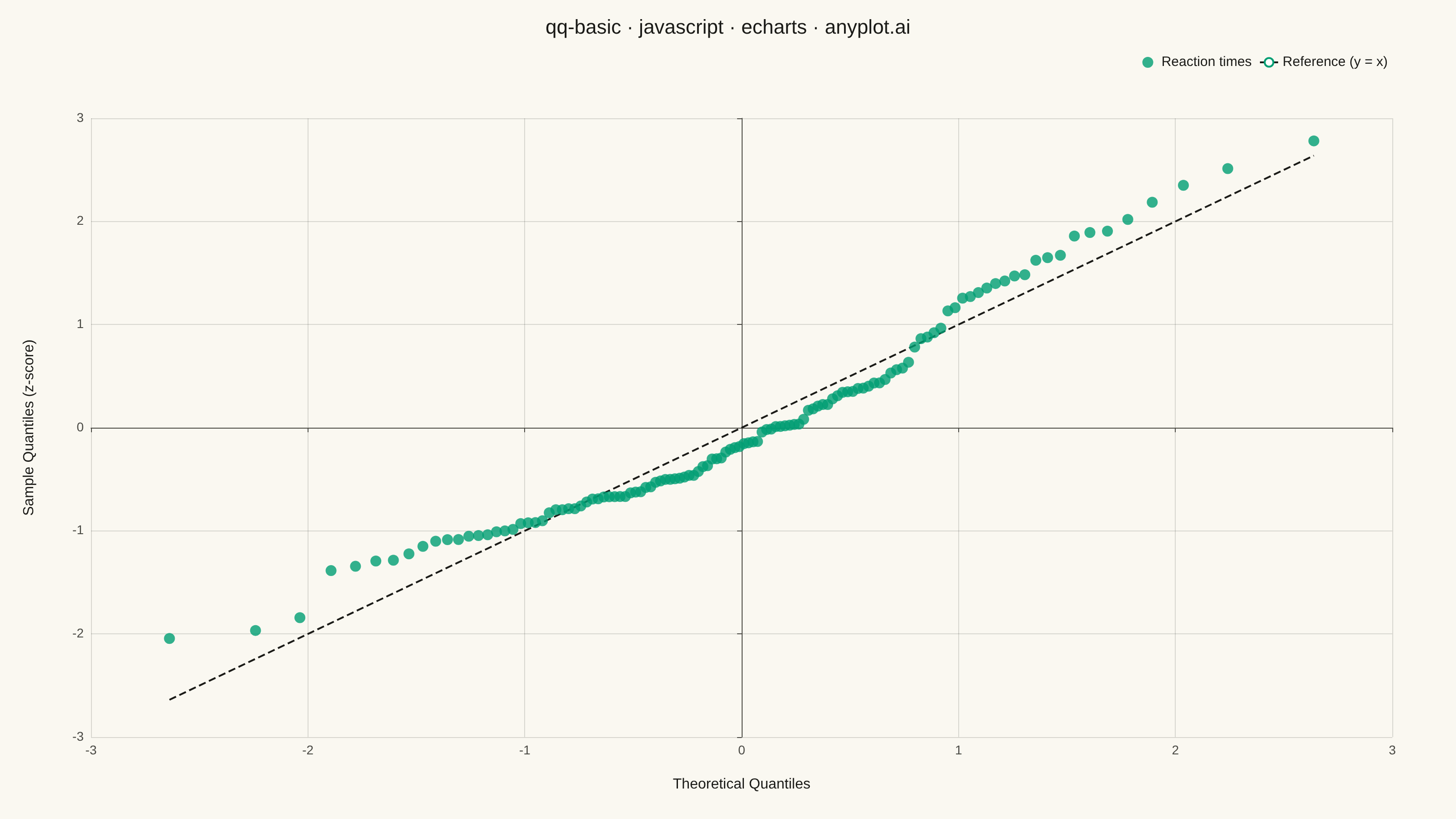

A Q-Q (Quantile-Quantile) plot compares the distribution of a dataset against a theoretical distribution (typically normal) or another dataset. Points are plotted by matching sample quantiles to theoretical quantiles, with a diagonal reference line indicating perfect distribution match. Deviations from the line reveal distribution characteristics such as skewness, heavy tails, and outliers.
// anyplot.ai
// qq-basic: Basic Q-Q Plot
// Library: echarts 6.1.0 | JavaScript 22.23.1
// Quality: 90/100 | Created: 2026-07-24
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Reaction-time trial data (ms), right-skewed like typical human reaction
// times, compared against a standard normal reference distribution.
function makeLcg(seed) {
let state = seed;
return function lcg() {
state = (state * 1103515245 + 12345) & 0x7fffffff;
return state / 0x7fffffff;
};
}
function standardNormal(rand) {
const u1 = Math.max(rand(), 1e-12);
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
// Rational approximation of the inverse standard normal CDF (Acklam's algorithm).
function invNormCdf(p) {
const a = [-3.969683028665376e1, 2.209460984245205e2, -2.759285104469687e2,
1.383577518672690e2, -3.066479806614716e1, 2.506628277459239e0];
const b = [-5.447609879822406e1, 1.615858368580409e2, -1.556989798598866e2,
6.680131188771972e1, -1.328068155288572e1];
const c = [-7.784894002430293e-3, -3.223964580411365e-1, -2.400758277161838e0,
-2.549732539343734e0, 4.374664141464968e0, 2.938163982698783e0];
const d = [7.784695709041462e-3, 3.224671290700398e-1, 2.445134137142996e0,
3.754408661907416e0];
const pLow = 0.02425;
const pHigh = 1 - pLow;
if (p < pLow) {
const q = Math.sqrt(-2 * Math.log(p));
return (((((c[0] * q + c[1]) * q + c[2]) * q + c[3]) * q + c[4]) * q + c[5]) /
((((d[0] * q + d[1]) * q + d[2]) * q + d[3]) * q + 1);
}
if (p <= pHigh) {
const q = p - 0.5;
const r = q * q;
return (((((a[0] * r + a[1]) * r + a[2]) * r + a[3]) * r + a[4]) * r + a[5]) * q /
(((((b[0] * r + b[1]) * r + b[2]) * r + b[3]) * r + b[4]) * r + 1);
}
const q = Math.sqrt(-2 * Math.log(1 - p));
return -(((((c[0] * q + c[1]) * q + c[2]) * q + c[3]) * q + c[4]) * q + c[5]) /
((((d[0] * q + d[1]) * q + d[2]) * q + d[3]) * q + 1);
}
const rand = makeLcg(42);
const n = 120;
const baseMs = 230;
const skewSigma = 0.28;
const reactionTimes = [];
for (let i = 0; i < n; i++) {
const z = standardNormal(rand);
reactionTimes.push(baseMs * Math.exp(skewSigma * z));
}
reactionTimes.sort((a, b) => a - b);
const mean = reactionTimes.reduce((s, v) => s + v, 0) / n;
const variance = reactionTimes.reduce((s, v) => s + (v - mean) ** 2, 0) / (n - 1);
const std = Math.sqrt(variance);
const standardizedSample = reactionTimes.map((v) => (v - mean) / std);
// Blom's plotting positions matched to sorted standardized sample quantiles.
const points = standardizedSample.map((sq, i) => {
const p = (i + 1 - 0.5) / n;
return [invNormCdf(p), sq];
});
const tMin = points[0][0];
const tMax = points[points.length - 1][0];
// --- Init --------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option --------------------------------------------------------------------
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: "qq-basic · javascript · echarts · anyplot.ai",
left: "center",
textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
},
legend: {
top: 56,
right: 70,
textStyle: { color: t.ink, fontSize: 15 },
itemWidth: 20,
itemHeight: 12,
},
grid: { left: 100, right: 70, top: 130, bottom: 90 },
xAxis: {
type: "value",
name: "Theoretical Quantiles",
nameLocation: "middle",
nameGap: 44,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
yAxis: {
type: "value",
name: "Sample Quantiles (z-score)",
nameLocation: "middle",
nameGap: 60,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
series: [
{
name: "Reaction times",
type: "scatter",
data: points,
symbolSize: 12,
itemStyle: { color: t.palette[0], opacity: 0.8 },
},
{
name: "Reference (y = x)",
type: "line",
data: [[tMin, tMin], [tMax, tMax]],
showSymbol: false,
lineStyle: { color: t.ink, width: 2, type: "dashed" },
z: 1,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/qq-basic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "qq-basic",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/qq-basic/javascript/echarts",
"hub": "https://anyplot.ai/qq-basic",
"code_json": "https://api.anyplot.ai/specs/qq-basic/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/qq-basic",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/qq-basic/javascript/echarts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/qq-basic/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/qq-basic/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/qq-basic/javascript/echarts/plot-dark.html",
"quality_score": 90.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Basic Q-Q Plot on anyplot.ai.
