A residual plot displays the difference between observed and predicted values (residuals) against fitted values or an independent variable in regression analysis. This diagnostic visualization helps identify violations of regression assumptions including non-linearity, heteroscedasticity (non-constant variance), and outliers. A well-fitting model shows residuals randomly scattered around zero with no discernible pattern.

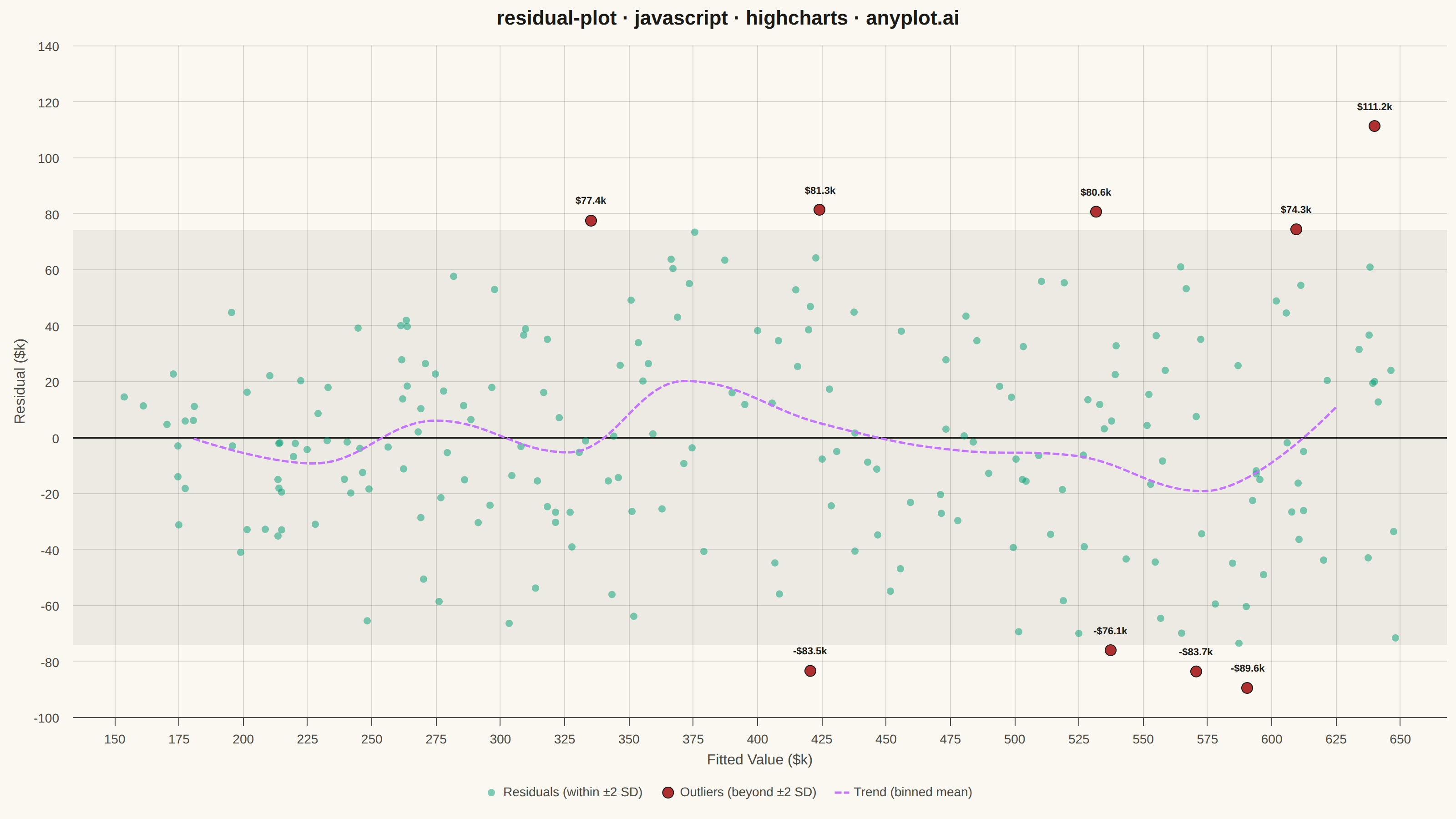

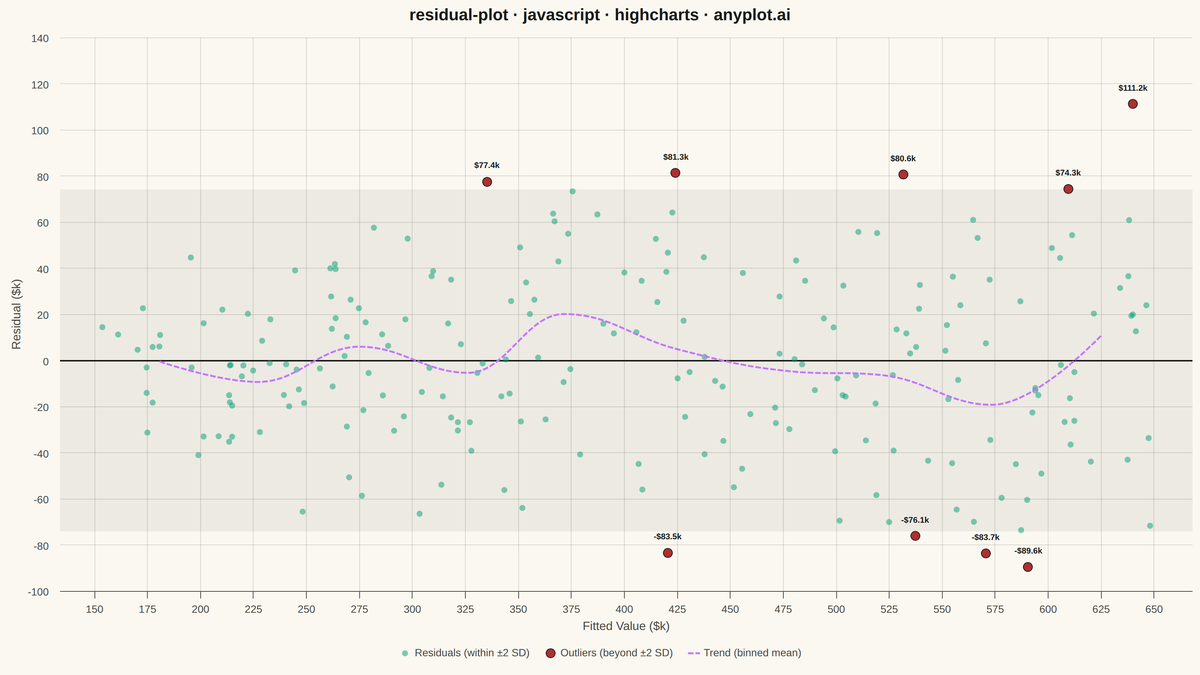

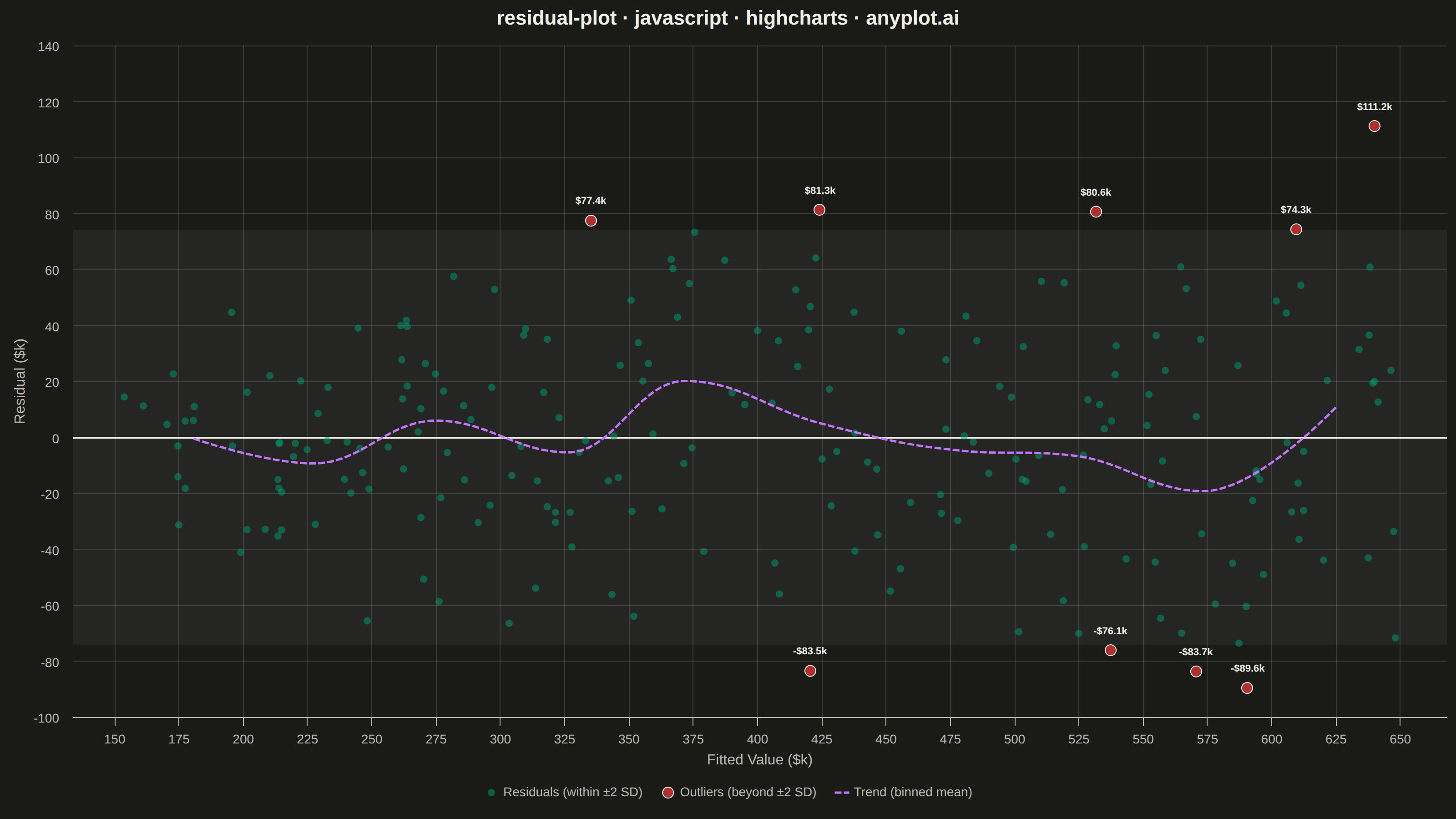

Residual Plot rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// residual-plot: Residual Plot
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-05

//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic LCG) ------------------------------------
// Simulated house-price regression: fitted values (predicted price, $k) vs.
// residuals (observed - predicted), with mild heteroscedasticity so the
// diagnostic value of the plot is visible (funnel-shaped spread).
function lcg(seed) {
  let state = seed;
  return () => {
    state = (state * 1664525 + 1013904223) % 4294967296;
    return state / 4294967296;
  };
}
function gaussian(rand) {
  const u1 = Math.max(rand(), 1e-9);
  const u2 = rand();
  return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}

const rand = lcg(42);
const n = 220;
const fitted = [];
const residuals = [];
for (let i = 0; i < n; i++) {
  const price = 150 + rand() * 500; // fitted house price, $k
  const noiseScale = 8 + price * 0.08; // variance grows with fitted value
  const residual = gaussian(rand) * noiseScale;
  fitted.push(Number(price.toFixed(1)));
  residuals.push(Number(residual.toFixed(1)));
}

const mean = residuals.reduce((a, b) => a + b, 0) / n;
const variance = residuals.reduce((a, b) => a + (b - mean) ** 2, 0) / n;
const sd = Math.sqrt(variance);
const threshold = 2 * sd;

const inlierPoints = [];
const outlierPoints = [];
for (let i = 0; i < n; i++) {
  const point = { x: fitted[i], y: residuals[i] };
  if (Math.abs(residuals[i]) > threshold) {
    outlierPoints.push(point);
  } else {
    inlierPoints.push(point);
  }
}

const xMin = Math.min(...fitted);
const xMax = Math.max(...fitted);

// Binned-mean smoothing line: makes the heteroscedastic (funnel-shaped) trend
// explicit without pulling in a full LOWESS implementation.
const sortedPoints = fitted.map((x, i) => ({ x, y: residuals[i] })).sort((a, b) => a.x - b.x);
const binCount = 10;
const binWidth = (xMax - xMin) / binCount;
const trendPoints = [];
for (let b = 0; b < binCount; b++) {
  const lo = xMin + b * binWidth;
  const hi = lo + binWidth;
  const inBin = sortedPoints.filter((p) => p.x >= lo && (b === binCount - 1 ? p.x <= hi : p.x < hi));
  if (inBin.length === 0) continue;
  const meanX = inBin.reduce((a, p) => a + p.x, 0) / inBin.length;
  const meanY = inBin.reduce((a, p) => a + p.y, 0) / inBin.length;
  trendPoints.push([Number(meanX.toFixed(1)), Number(meanY.toFixed(2))]);
}

// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
  chart: {
    type: "scatter",
    backgroundColor: "transparent",
    animation: false,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "residual-plot · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
  },
  xAxis: {
    title: { text: "Fitted Value ($k)", style: { color: t.inkSoft, fontSize: "16px" } },
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    gridLineColor: t.grid,
    gridLineWidth: 1,
    min: xMin - 20,
    max: xMax + 20,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
  },
  yAxis: {
    title: { text: "Residual ($k)", style: { color: t.inkSoft, fontSize: "16px" } },
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    gridLineColor: t.grid,
    gridLineWidth: 1,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
    plotLines: [
      {
        value: 0,
        color: t.ink,
        width: 2,
        zIndex: 3,
      },
    ],
    plotBands: [
      {
        from: -threshold,
        to: threshold,
        color: Highcharts.color(t.inkSoft).setOpacity(0.08).get("rgba"),
        zIndex: 0,
      },
    ],
  },
  legend: {
    itemStyle: { color: t.inkSoft, fontSize: "14px" },
    itemHoverStyle: { color: t.ink },
  },
  tooltip: {
    formatter: function () {
      return `<b>Fitted:</b> $${this.x}k<br/><b>Residual:</b> $${this.y}k`;
    },
  },
  plotOptions: {
    series: { animation: false },
    scatter: {
      marker: { radius: 4, symbol: "circle" },
    },
  },
  series: [
    {
      name: "Residuals (within ±2 SD)",
      data: inlierPoints,
      color: t.palette[0],
      marker: { fillColor: Highcharts.color(t.palette[0]).setOpacity(0.5).get("rgba"), lineWidth: 0 },
    },
    {
      name: "Outliers (beyond ±2 SD)",
      data: outlierPoints,
      color: t.palette[4],
      marker: { radius: 6, lineColor: t.ink, lineWidth: 1 },
      dataLabels: {
        enabled: true,
        formatter: function () {
          return (this.y < 0 ? "-$" : "$") + Math.abs(this.y).toFixed(1) + "k";
        },
        y: -12,
        style: { color: t.ink, fontSize: "11px", fontWeight: "600", textOutline: "none" },
      },
    },
    {
      name: "Trend (binned mean)",
      type: "spline",
      data: trendPoints,
      color: t.palette[1],
      lineWidth: 2.5,
      dashStyle: "ShortDash",
      marker: { enabled: false },
      enableMouseTracking: false,
      zIndex: 2,
    },
  ],
});
