Residual Plot — ggplot2

A residual plot displays the difference between observed and predicted values (residuals) against fitted values or an independent variable in regression analysis. This diagnostic visualization helps identify violations of regression assumptions including non-linearity, heteroscedasticity (non-constant variance), and outliers. A well-fitting model shows residuals randomly scattered around zero with no discernible pattern.

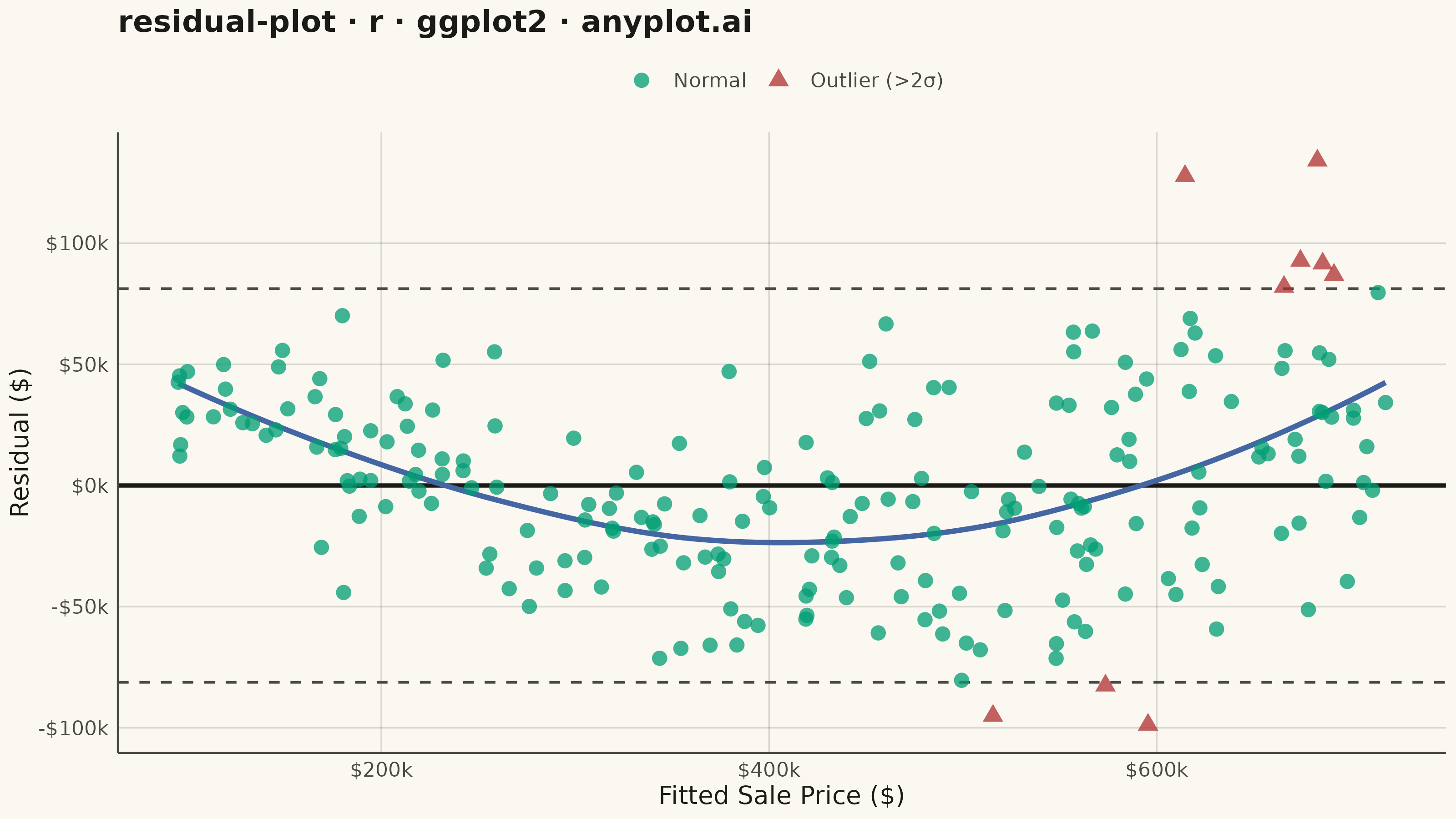

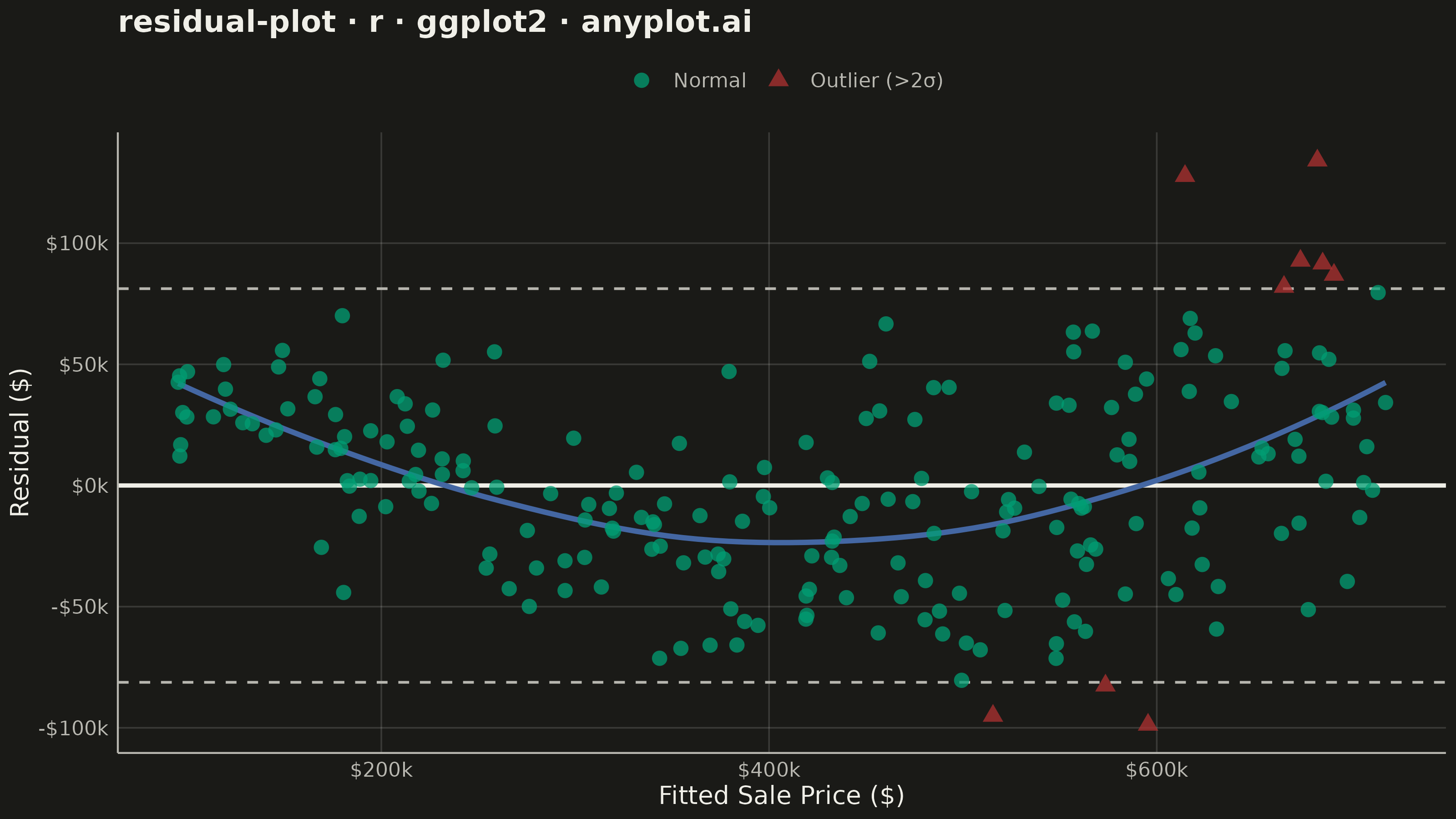

Residual Plot rendered with ggplot2

Renders

R source (ggplot2)

#' anyplot.ai
#' residual-plot: Residual Plot
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 91/100 | Created: 2026-09-05

library(ggplot2)
library(dplyr)
library(ragg)

set.seed(42)

# --- Theme tokens -----------------------------------------------------------
THEME       <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG     <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
INK         <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT    <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
RULE        <- scales::alpha(INK, 0.15)
IMPRINT_PALETTE <- c("#009E73", "#C475FD", "#4467A3", "#BD8233",
                     "#AE3030", "#2ABCCD", "#954477", "#99B314")

# --- Data --------------------------------------------------------------------
# House price prediction: a simple linear model fit to a mildly non-linear,
# heteroscedastic relationship between square footage and sale price. The
# residual plot exposes both the curvature the linear fit misses and the
# fanning variance that grows with home size.
n <- 220
square_footage <- runif(n, 800, 4200)
noise_scale <- 6000 + square_footage * 12
sale_price <- 45000 + 95 * square_footage + 0.018 * square_footage^2 +
  rnorm(n, mean = 0, sd = noise_scale)

homes <- tibble::tibble(square_footage, sale_price)
model <- lm(sale_price ~ square_footage, data = homes)

homes <- homes %>%
  mutate(
    fitted    = fitted(model),
    residual  = resid(model),
    band      = 2 * sd(residual),
    is_outlier = abs(residual) > band,
    status    = factor(if_else(is_outlier, "Outlier (>2σ)", "Normal"),
                        levels = c("Normal", "Outlier (>2σ)"))
  )

band_width <- unique(homes$band)

# --- Plot ---------------------------------------------------------------
p <- ggplot(homes, aes(x = fitted, y = residual)) +
  geom_hline(yintercept = c(-band_width, band_width),
             linetype = "dashed", linewidth = 0.5, color = INK_SOFT) +
  geom_hline(yintercept = 0, linewidth = 0.8, color = INK) +
  geom_smooth(method = "loess", formula = y ~ x, se = FALSE,
              color = IMPRINT_PALETTE[3], linewidth = 1.0) +
  geom_point(aes(color = status, shape = status), size = 2.5, alpha = 0.75) +
  scale_color_manual(values = c("Normal" = IMPRINT_PALETTE[1],
                                "Outlier (>2σ)" = IMPRINT_PALETTE[5])) +
  scale_shape_manual(values = c("Normal" = 16, "Outlier (>2σ)" = 17)) +
  labs(
    title  = "residual-plot · r · ggplot2 · anyplot.ai",
    x      = "Fitted Sale Price ($)",
    y      = "Residual ($)",
    color  = NULL,
    shape  = NULL
  ) +
  scale_x_continuous(labels = scales::dollar_format(scale = 1e-3, suffix = "k")) +
  scale_y_continuous(labels = scales::dollar_format(scale = 1e-3, suffix = "k")) +
  theme_minimal(base_size = 8) +
  theme(
    plot.background   = element_rect(fill = PAGE_BG, color = PAGE_BG),
    panel.background  = element_rect(fill = PAGE_BG, color = NA),
    panel.grid.major  = element_line(color = RULE, linewidth = 0.3),
    panel.grid.minor  = element_blank(),
    axis.title        = element_text(color = INK, size = 10),
    axis.text         = element_text(color = INK_SOFT, size = 8),
    axis.line         = element_line(color = INK_SOFT),
    plot.title        = element_text(color = INK, size = 12, face = "bold"),
    legend.position   = "top",
    legend.text       = element_text(color = INK_SOFT, size = 8),
    legend.key        = element_blank()
  )

# --- Save -----------------------------------------------------------------
ggsave(
  filename = sprintf("plot-%s.png", THEME),
  plot     = p,
  device   = ragg::agg_png,
  width    = 8,
  height   = 4.5,
  units    = "in",
  dpi      = 400
)

Retrieve this implementation
