Scatter Plot with Marginal Distributions — Altair

A scatter plot enhanced with marginal distribution plots (histograms or kernel density estimates) on the top and right axes. This composite visualization simultaneously shows the bivariate relationship between two variables in the central scatter plot while displaying each variable's univariate distribution along its respective axis. It provides a comprehensive view of both the joint and marginal distributions in a single figure.

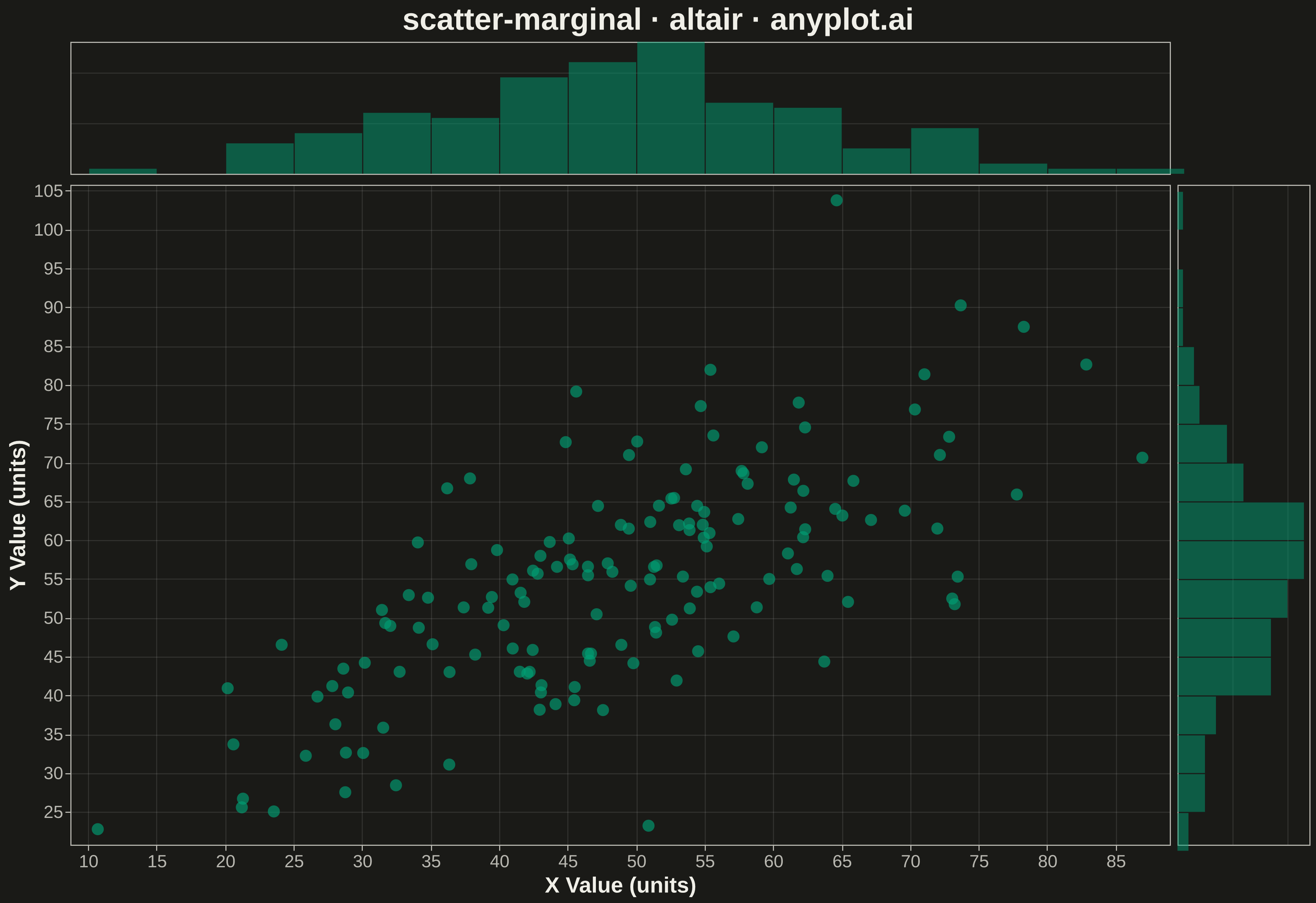

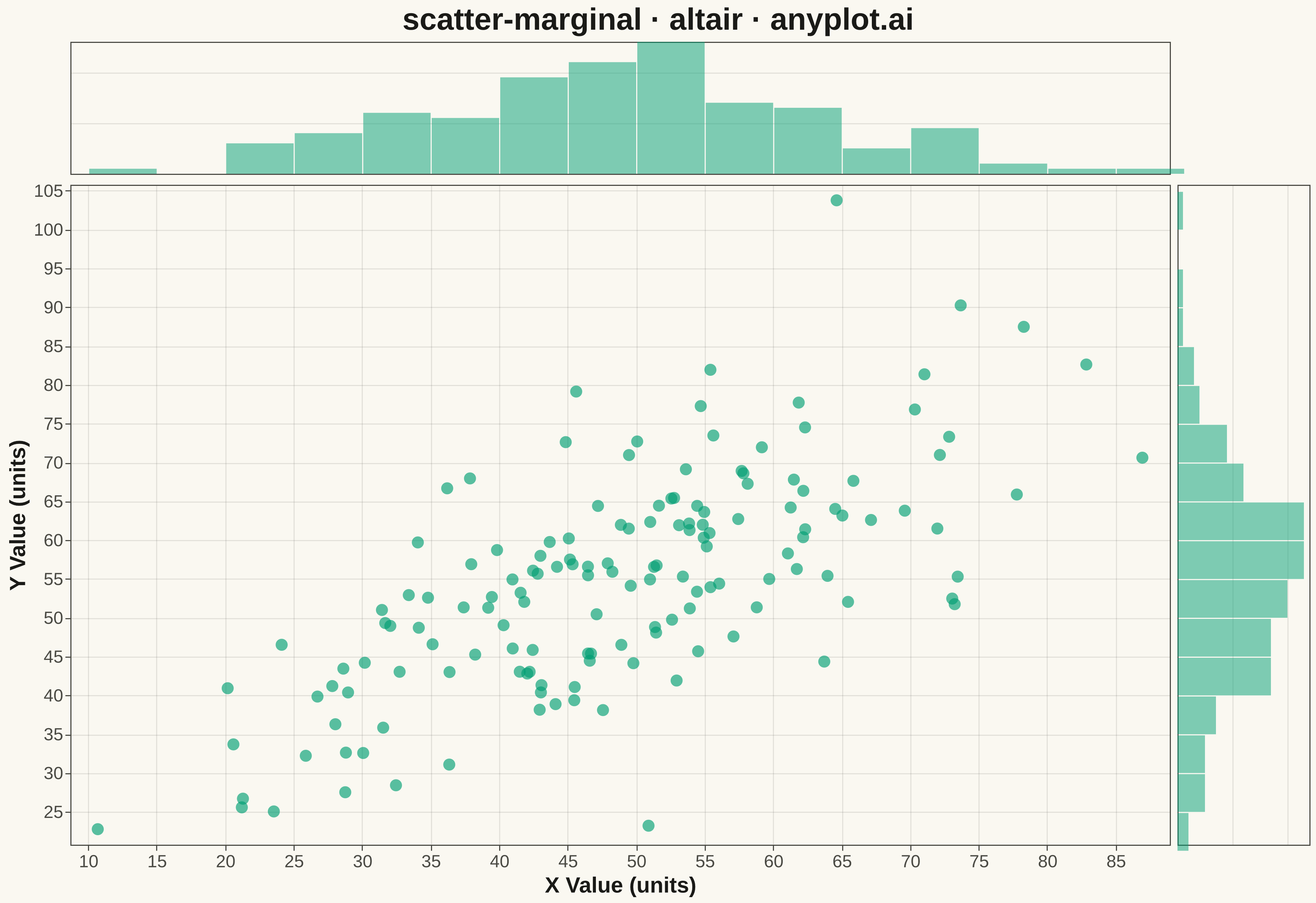

Scatter Plot with Marginal Distributions rendered with Altair

Python source (Altair)

""" anyplot.ai
scatter-marginal: Scatter Plot with Marginal Distributions
Library: altair 6.1.0 | Python 3.13.13
Quality: 94/100 | Updated: 2026-05-09
"""

import os
import sys
from pathlib import Path


current_dir = Path(__file__).parent
sys.path = [p for p in sys.path if p != str(current_dir)]

import altair as alt
import numpy as np
import pandas as pd


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
BRAND = "#009E73"

# Data - bivariate distribution with correlation
np.random.seed(42)
n = 150
x = np.random.randn(n) * 15 + 50
y = 0.7 * x + np.random.randn(n) * 10 + 20

df = pd.DataFrame({"X Value": x, "Y Value": y})

# Shared axis domains for proper alignment
x_domain = [df["X Value"].min() - 2, df["X Value"].max() + 2]
y_domain = [df["Y Value"].min() - 2, df["Y Value"].max() + 2]

# Base chart
base = alt.Chart(df)

# Main scatter plot with grid
scatter = (
    base.mark_circle(size=120, opacity=0.65, color=BRAND)
    .encode(
        x=alt.X("X Value:Q", title="X Value (units)", scale=alt.Scale(domain=x_domain)),
        y=alt.Y("Y Value:Q", title="Y Value (units)", scale=alt.Scale(domain=y_domain)),
        tooltip=["X Value:Q", "Y Value:Q"],
    )
    .properties(width=1000, height=600)
)

# Top marginal histogram with matching X scale
top_hist = (
    base.mark_bar(color=BRAND, opacity=0.5)
    .encode(
        x=alt.X(
            "X Value:Q",
            bin=alt.Bin(maxbins=25),
            title=None,
            scale=alt.Scale(domain=x_domain),
            axis=alt.Axis(labels=False, ticks=False),
        ),
        y=alt.Y("count()", title=None, axis=alt.Axis(labels=False, ticks=False)),
    )
    .properties(width=1000, height=120)
)

# Right marginal histogram with matching Y scale
right_hist = (
    base.mark_bar(color=BRAND, opacity=0.5)
    .encode(
        y=alt.Y(
            "Y Value:Q",
            bin=alt.Bin(maxbins=25),
            title=None,
            scale=alt.Scale(domain=y_domain),
            axis=alt.Axis(labels=False, ticks=False),
        ),
        x=alt.X("count()", title=None, axis=alt.Axis(labels=False, ticks=False)),
    )
    .properties(width=120, height=600)
)

# Combine: top histogram above, scatter with right histogram below
combined = (
    alt.vconcat(top_hist, alt.hconcat(scatter, right_hist, spacing=5), spacing=5)
    .properties(
        background=PAGE_BG,
        title=alt.Title(text="scatter-marginal · altair · anyplot.ai", fontSize=28, anchor="middle", color=INK),
    )
    .configure_axis(
        domainColor=INK_SOFT,
        tickColor=INK_SOFT,
        gridColor=INK,
        gridOpacity=0.10,
        labelColor=INK_SOFT,
        labelFontSize=16,
        titleColor=INK,
        titleFontSize=20,
    )
    .configure_view(fill=PAGE_BG, stroke=INK_SOFT, strokeWidth=1)
    .configure_concat(spacing=5)
)

# Save outputs
combined.save(f"plot-{THEME}.png", scale_factor=3.0)
combined.save(f"plot-{THEME}.html")

Part of Scatter Plot with Marginal Distributions on anyplot.ai.
