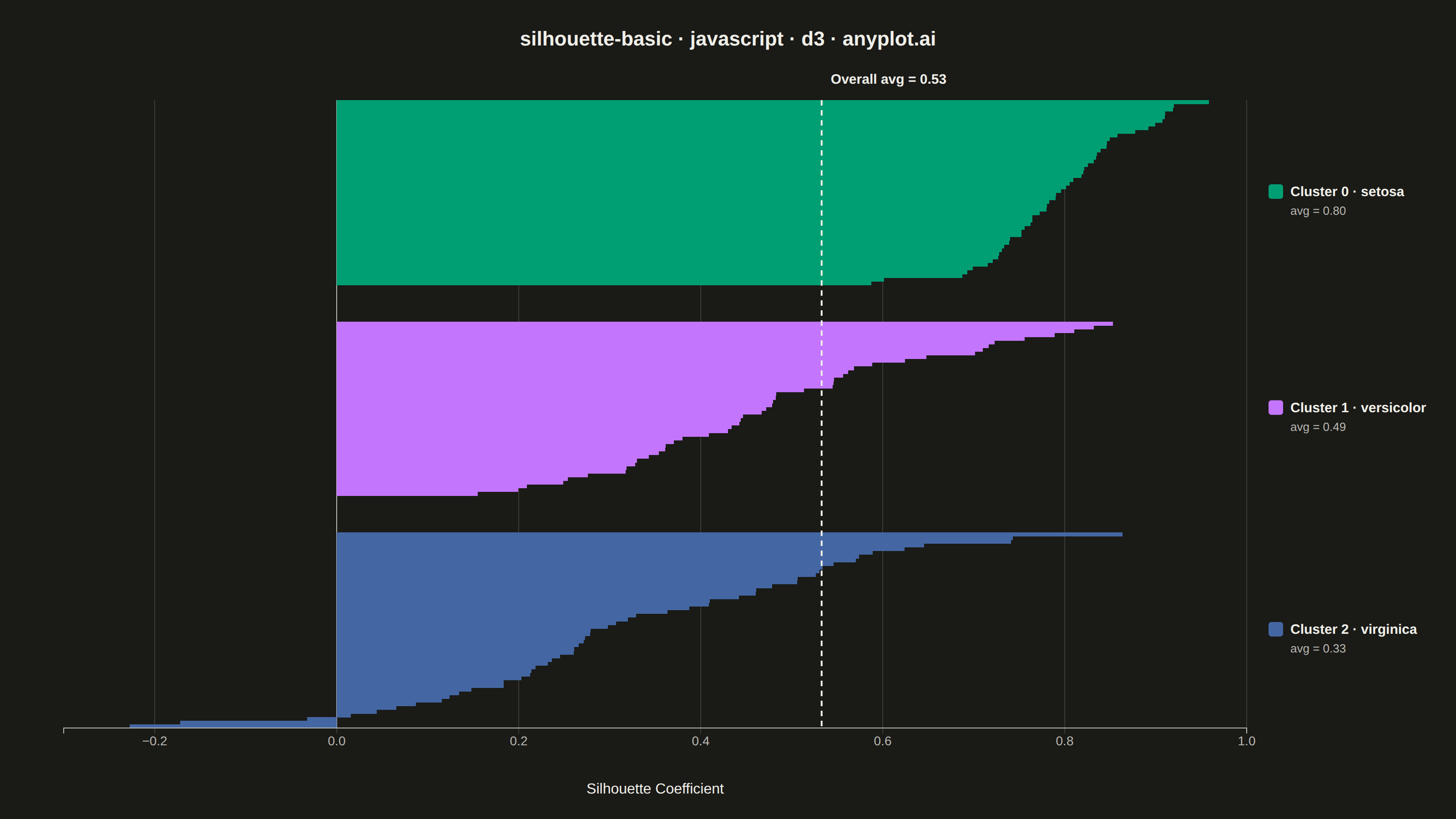

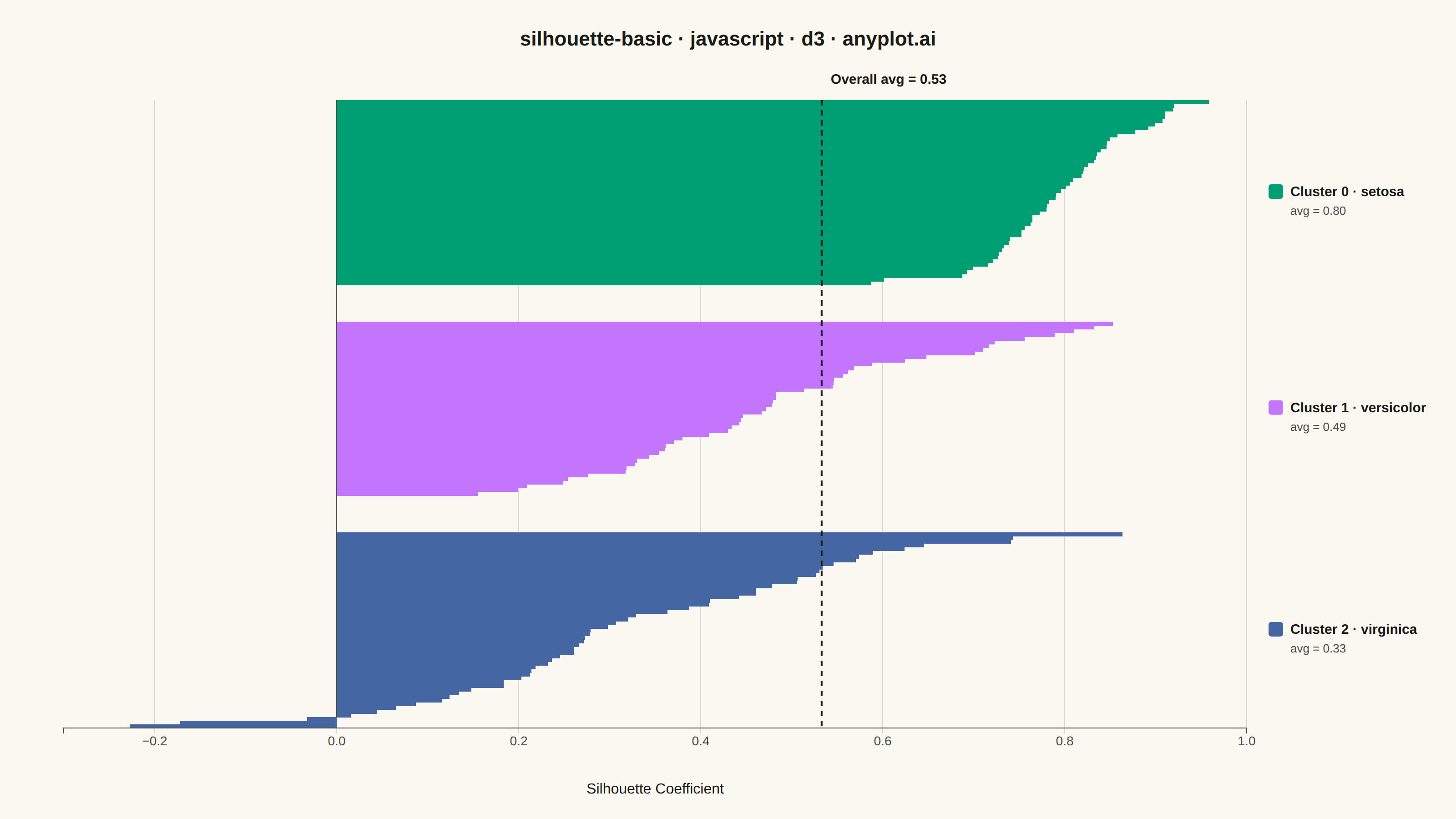

A silhouette plot visualizes the quality of clustering results by showing the silhouette coefficient for each sample, grouped by cluster assignment. Each horizontal bar represents a sample's silhouette score (-1 to 1), where positive values indicate good cluster membership and negative values suggest potential misclassification. This visualization helps evaluate cluster cohesion (how similar samples are to their own cluster) and separation (how distinct they are from neighboring clusters).
// anyplot.ai
// silhouette-basic: Silhouette Plot
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-09
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 110, right: 230, bottom: 100, left: 70 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data: silhouette scores for a k-means clustering of the iris dataset --
// (fixed-seed LCG in place of a seeded RNG, which the browser lacks)
let seed = 42;
function rand() {
seed = (seed * 1103515245 + 12345) & 0x7fffffff;
return seed / 0x7fffffff;
}
function randNormal(mean, std) {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
return mean + z * std;
}
function clip(v, lo, hi) {
return Math.max(lo, Math.min(hi, v));
}
const clusterSpecs = [
{ label: "Cluster 0 · setosa", count: 50, mean: 0.8, std: 0.07 },
{ label: "Cluster 1 · versicolor", count: 47, mean: 0.42, std: 0.2 },
{ label: "Cluster 2 · virginica", count: 53, mean: 0.33, std: 0.22 },
];
const clusters = clusterSpecs.map((spec, i) => {
const values = Array.from({ length: spec.count }, () =>
clip(randNormal(spec.mean, spec.std), -1, 1),
);
values.sort((a, b) => b - a);
return { ...spec, index: i, values, avg: d3.mean(values) };
});
const allValues = clusters.flatMap((c) => c.values);
const overallAvg = d3.mean(allValues);
// --- Sample-space row layout (one thin bar per sample, gap between clusters)
const GAP = 10;
let cursor = 0;
const rows = [];
for (const cluster of clusters) {
const start = cursor;
cluster.values.forEach((val, i) =>
rows.push({ y0: cursor + i, y1: cursor + i + 1, val, cluster }),
);
cursor += cluster.values.length;
cluster.mid = (start + cursor) / 2;
cursor += GAP;
}
const ySpaceMax = cursor - GAP;
// --- Scales -------------------------------------------------------------
const xMin = Math.min(-0.1, d3.min(allValues) - 0.02);
const x = d3.scaleLinear().domain([xMin, 1]).nice().range([0, iw]);
const y = d3.scaleLinear().domain([0, ySpaceMax]).range([0, ih]);
// --- SVG mount ------------------------------------------------------------
const svg = d3
.select("#container")
.append("svg")
.attr("width", width)
.attr("height", height);
const g = svg
.append("g")
.attr("transform", `translate(${margin.left},${margin.top})`);
// --- Gridlines (value axis) -------------------------------------------------
g.selectAll(".grid-line")
.data(x.ticks(6))
.join("line")
.attr("class", "grid-line")
.attr("x1", (d) => x(d))
.attr("x2", (d) => x(d))
.attr("y1", 0)
.attr("y2", ih)
.attr("stroke", t.grid);
// --- Zero-reference line -----------------------------------------------------
g.append("line")
.attr("x1", x(0))
.attr("x2", x(0))
.attr("y1", 0)
.attr("y2", ih)
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1);
// --- Per-sample silhouette bars ---------------------------------------------
g.selectAll("rect")
.data(rows)
.join("rect")
.attr("x", (d) => x(Math.min(0, d.val)))
.attr("width", (d) => Math.abs(x(d.val) - x(0)))
.attr("y", (d) => y(d.y0))
.attr("height", (d) => y(d.y1) - y(d.y0) + 0.5)
.attr("shape-rendering", "crispEdges")
.attr("fill", (d) => t.palette[d.cluster.index]);
// --- Overall average reference line -----------------------------------------
g.append("line")
.attr("x1", x(overallAvg))
.attr("x2", x(overallAvg))
.attr("y1", 0)
.attr("y2", ih)
.attr("stroke", t.ink)
.attr("stroke-width", 2)
.attr("stroke-dasharray", "6,5");
g.append("text")
.attr("x", x(overallAvg) + 10)
.attr("y", -18)
.attr("fill", t.ink)
.style("font-size", "15px")
.style("font-weight", "600")
.text(`Overall avg = ${overallAvg.toFixed(2)}`);
// --- X axis -------------------------------------------------------------
const xAxis = g
.append("g")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(x).ticks(6));
xAxis.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
xAxis.selectAll("line").attr("stroke", t.grid);
xAxis.select(".domain").attr("stroke", t.inkSoft);
svg
.append("text")
.attr("x", margin.left + iw / 2)
.attr("y", height - 28)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Silhouette Coefficient");
// --- Cluster legend + per-cluster average annotation ------------------------
const clusterLabel = g
.selectAll(".cluster-label")
.data(clusters)
.join("g")
.attr("class", "cluster-label")
.attr("transform", (d) => `translate(${iw + 24},${y(d.mid)})`);
clusterLabel
.append("rect")
.attr("x", 0)
.attr("y", -9)
.attr("width", 16)
.attr("height", 16)
.attr("rx", 3)
.attr("fill", (d) => t.palette[d.index]);
clusterLabel
.append("text")
.attr("x", 24)
.attr("y", -1)
.attr("dy", "0.35em")
.attr("fill", t.ink)
.style("font-size", "15px")
.style("font-weight", "600")
.text((d) => d.label);
clusterLabel
.append("text")
.attr("x", 24)
.attr("y", 20)
.attr("dy", "0.35em")
.attr("fill", t.inkSoft)
.style("font-size", "13px")
.text((d) => `avg = ${d.avg.toFixed(2)}`);
// --- Title --------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 50)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("silhouette-basic · javascript · d3 · anyplot.ai");
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/silhouette-basic/d3/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
