Silhouette Plot — lets-plot

A silhouette plot visualizes the quality of clustering results by showing the silhouette coefficient for each sample, grouped by cluster assignment. Each horizontal bar represents a sample's silhouette score (-1 to 1), where positive values indicate good cluster membership and negative values suggest potential misclassification. This visualization helps evaluate cluster cohesion (how similar samples are to their own cluster) and separation (how distinct they are from neighboring clusters).

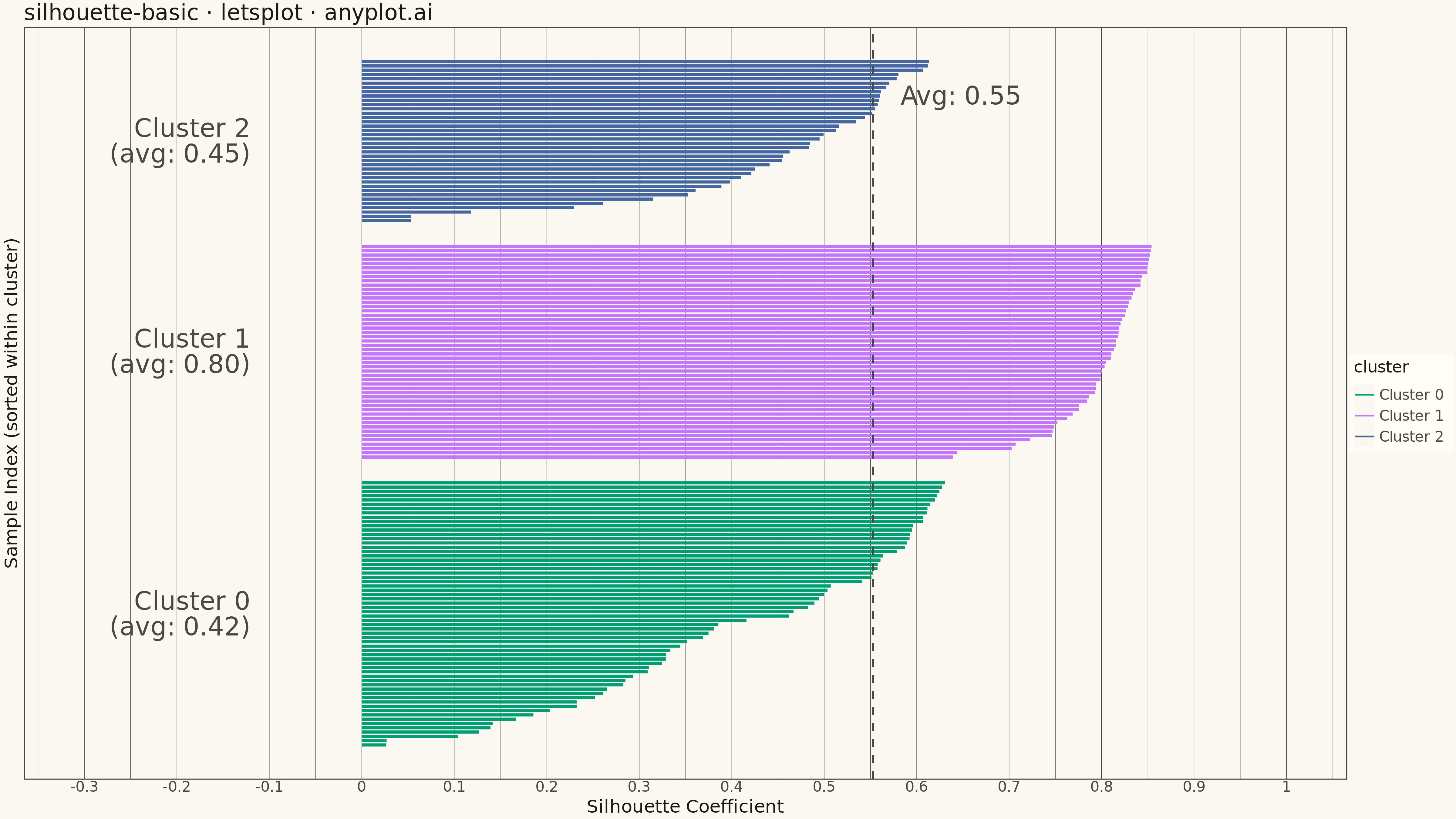

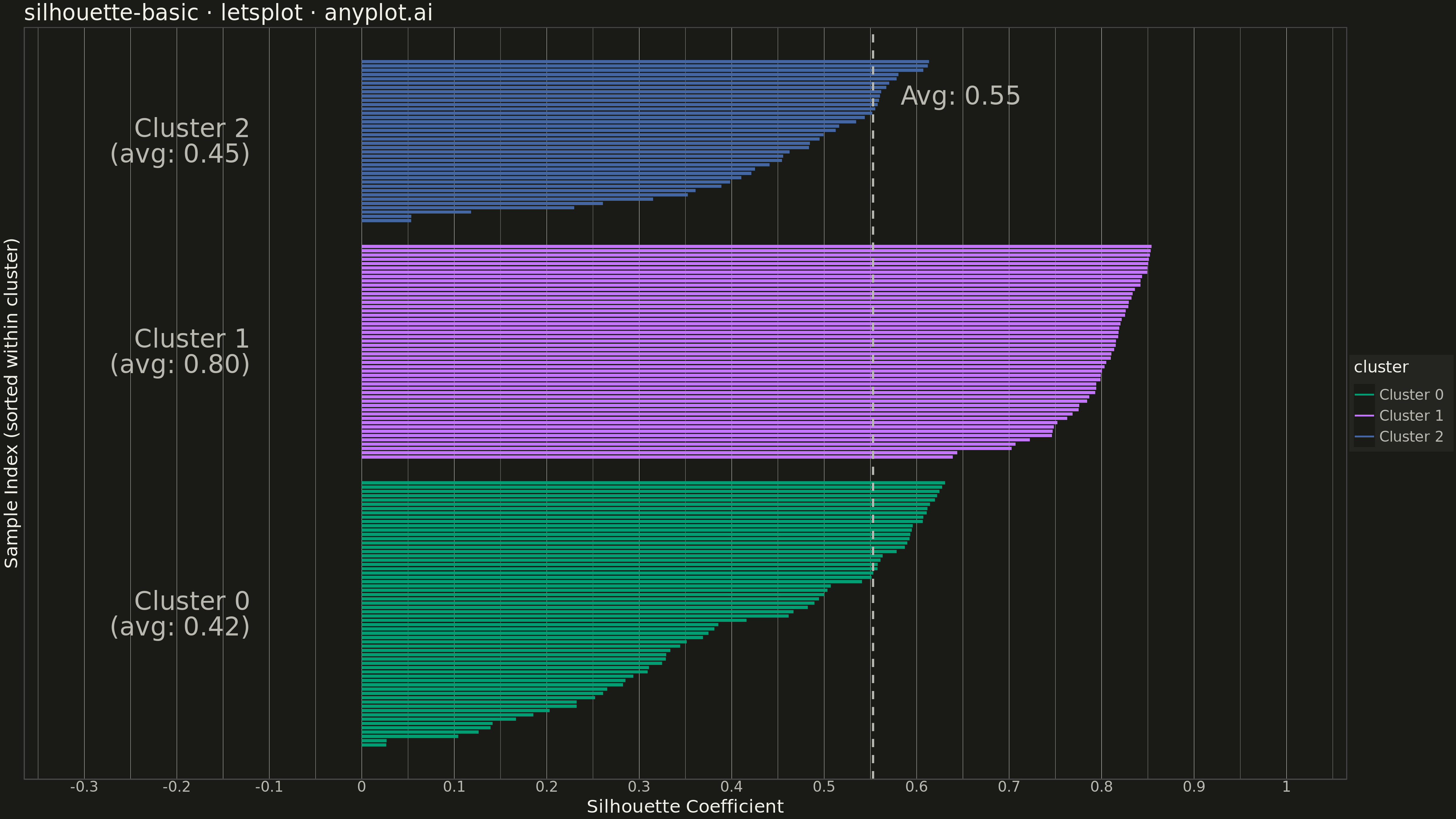

Silhouette Plot rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
silhouette-basic: Silhouette Plot
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-10
"""

import os

import numpy as np
import pandas as pd
from lets_plot import *
from sklearn.cluster import KMeans
from sklearn.datasets import load_iris
from sklearn.metrics import silhouette_samples, silhouette_score


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette - first series is always #009E73 (brand green)
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]

# Data - Clustering iris dataset into 3 groups
np.random.seed(42)
iris = load_iris()
X = iris.data
n_clusters = 3

# Perform K-means clustering
kmeans = KMeans(n_clusters=n_clusters, random_state=42, n_init=10)
cluster_labels = kmeans.fit_predict(X)

# Calculate silhouette scores
silhouette_vals = silhouette_samples(X, cluster_labels)
avg_silhouette = silhouette_score(X, cluster_labels)

# Build dataframe for plotting - sort samples within each cluster by silhouette score
data_rows = []
y_position = 0
cluster_centers = []
cluster_avg_scores = []

for cluster_idx in range(n_clusters):
    # Get samples in this cluster
    mask = cluster_labels == cluster_idx
    cluster_silhouettes = silhouette_vals[mask]
    cluster_silhouettes_sorted = np.sort(cluster_silhouettes)

    # Calculate cluster average
    cluster_avg = cluster_silhouettes.mean()
    cluster_avg_scores.append(cluster_avg)

    # Track the center position for annotation
    cluster_start = y_position

    # Add each sample as a row
    for sil_val in cluster_silhouettes_sorted:
        data_rows.append(
            {"y": y_position, "silhouette": sil_val, "cluster": f"Cluster {cluster_idx}", "cluster_idx": cluster_idx}
        )
        y_position += 1

    cluster_end = y_position - 1
    cluster_centers.append((cluster_start + cluster_end) / 2)

    # Add small gap between clusters
    y_position += 5

df = pd.DataFrame(data_rows)
df["x_start"] = 0  # Starting x position for horizontal bars

# Map cluster indices to Okabe-Ito colors
df["cluster_color"] = df["cluster_idx"].map({i: IMPRINT[i % len(IMPRINT)] for i in range(n_clusters)})

# Create annotation dataframe for cluster labels
annotation_df = pd.DataFrame(
    {
        "y": cluster_centers,
        "x": [-0.12] * n_clusters,
        "label": [f"Cluster {i}\n(avg: {cluster_avg_scores[i]:.2f})" for i in range(n_clusters)],
    }
)

# Theme-adaptive theme
anyplot_theme = theme(
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG),
    panel_grid_major_x=element_line(color=INK, size=0.3),
    panel_grid_minor_x=element_line(color=INK, size=0.2),
    axis_title=element_text(size=20, color=INK),
    axis_text_x=element_text(size=16, color=INK_SOFT),
    axis_text_y=element_blank(),
    axis_ticks_y=element_blank(),
    panel_grid_major_y=element_blank(),
    panel_grid_minor_y=element_blank(),
    axis_line=element_line(color=INK_SOFT),
    plot_title=element_text(size=24, color=INK),
    legend_position="right",
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_text=element_text(size=16, color=INK_SOFT),
    legend_title=element_text(size=18, color=INK),
)

# Create the silhouette plot using horizontal bars
plot = (
    ggplot(df, aes(x="silhouette", y="y", color="cluster"))
    + geom_segment(aes(xend="silhouette", yend="y"), x=0, size=1.5)
    + geom_vline(xintercept=avg_silhouette, color=INK_SOFT, linetype="dashed", size=1)
    + geom_text(aes(x="x", y="y", label="label"), data=annotation_df, size=14, hjust=1, color=INK_SOFT)
    + scale_color_manual(values=IMPRINT[:n_clusters])
    + labs(
        x="Silhouette Coefficient",
        y="Sample Index (sorted within cluster)",
        title="silhouette-basic · letsplot · anyplot.ai",
    )
    + xlim(-0.3, 1.0)
    + theme_minimal()
    + anyplot_theme
    + ggsize(1600, 900)
)

# Add annotation for average silhouette line
avg_label_df = pd.DataFrame(
    {"x": [avg_silhouette + 0.03], "y": [max(df["y"]) * 0.95], "label": [f"Avg: {avg_silhouette:.2f}"]}
)
plot = plot + geom_text(aes(x="x", y="y", label="label"), data=avg_label_df, size=14, hjust=0, color=INK_SOFT)

# Save as PNG (scale 3x to get 4800 x 2700 px)
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)

# Save as HTML for interactive version
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Silhouette Plot on anyplot.ai.
