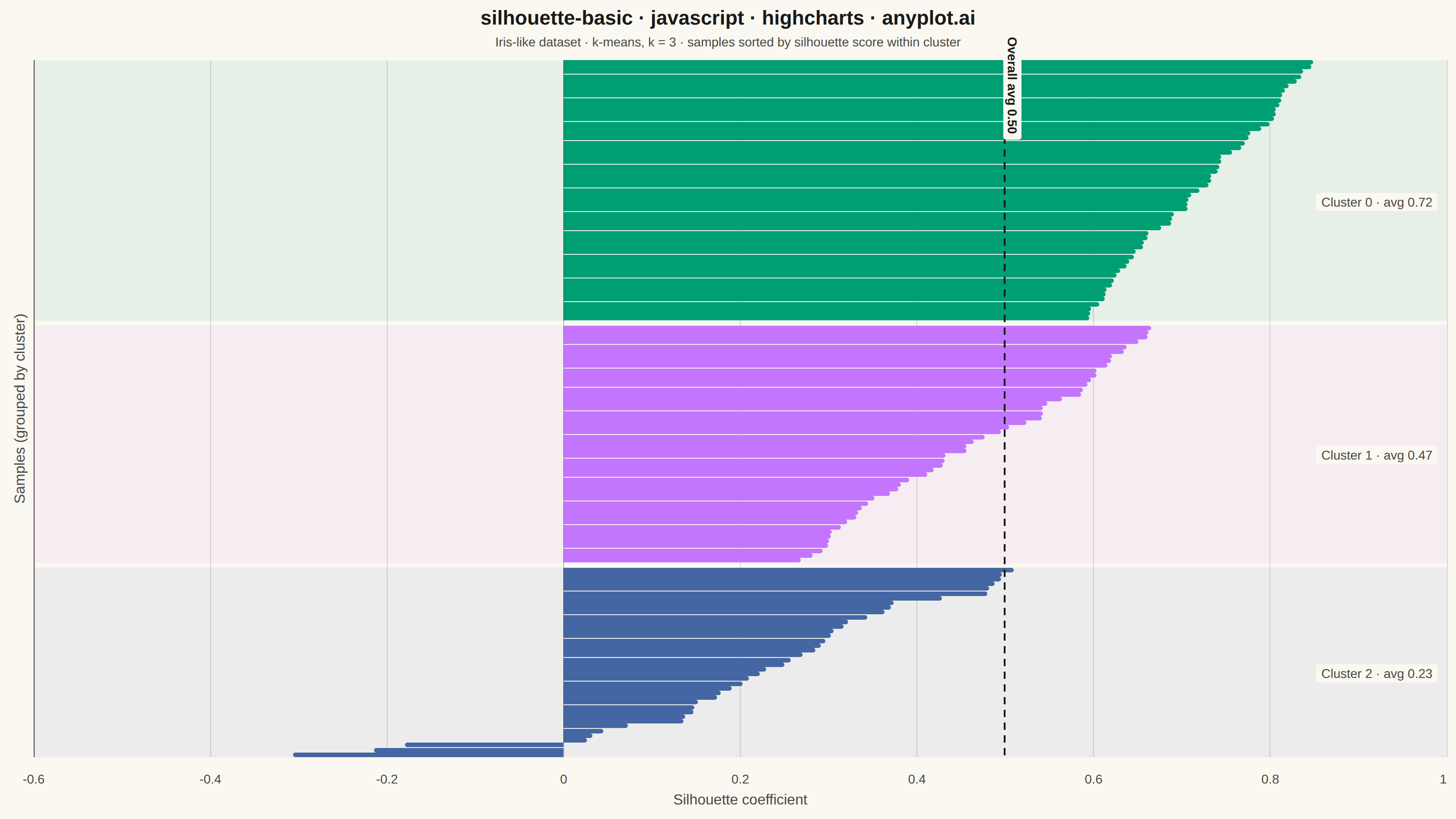

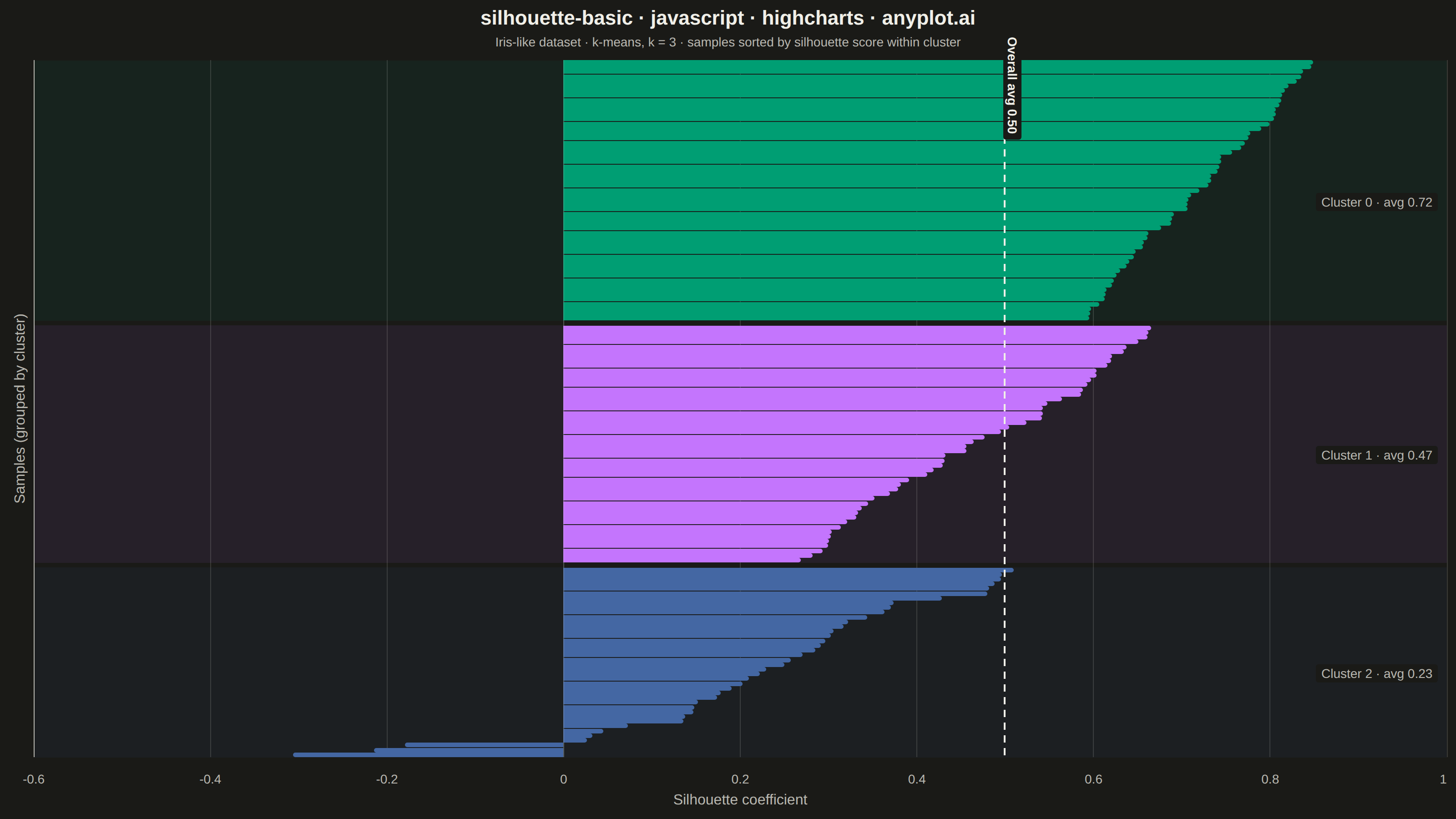

A silhouette plot visualizes the quality of clustering results by showing the silhouette coefficient for each sample, grouped by cluster assignment. Each horizontal bar represents a sample's silhouette score (-1 to 1), where positive values indicate good cluster membership and negative values suggest potential misclassification. This visualization helps evaluate cluster cohesion (how similar samples are to their own cluster) and separation (how distinct they are from neighboring clusters).
// anyplot.ai
// silhouette-basic: Silhouette Plot
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-09
const t = window.ANYPLOT_TOKENS;
// --- Helpers -----------------------------------------------------------------
let seed = 42;
function nextRandom() {
seed = (seed * 1664525 + 1013904223) >>> 0;
return seed / 4294967296;
}
function clusterSamples(count, meanScore, spread, misclassifiedTail) {
const scores = [];
for (let i = 0; i < count; i++) {
let score = meanScore + (nextRandom() - 0.5) * spread;
if (misclassifiedTail && i >= count - Math.round(count * 0.1)) {
score -= nextRandom() * 0.6;
}
scores.push(Math.max(-1, Math.min(1, score)));
}
scores.sort((a, b) => b - a);
return scores;
}
function hexToRgba(hex, alpha) {
const r = parseInt(hex.slice(1, 3), 16);
const g = parseInt(hex.slice(3, 5), 16);
const b = parseInt(hex.slice(5, 7), 16);
return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}
// --- Data (in-memory, deterministic) ------------------------------------------
// Silhouette coefficients for a k=3 clustering of an iris-like dataset. Within
// each cluster, samples are sorted descending by score — the classic layout
// popularised by sklearn.metrics.silhouette_samples plots.
const clusterDefs = [
{ name: "Cluster 0", count: 55, meanScore: 0.72, spread: 0.26, misclassifiedTail: false },
{ name: "Cluster 1", count: 50, meanScore: 0.46, spread: 0.42, misclassifiedTail: false },
{ name: "Cluster 2", count: 40, meanScore: 0.27, spread: 0.5, misclassifiedTail: true },
];
const data = [];
const categories = [];
const plotBands = [];
let allScores = [];
let cursor = 0;
clusterDefs.forEach((cluster, clusterIndex) => {
const scores = clusterSamples(cluster.count, cluster.meanScore, cluster.spread, cluster.misclassifiedTail);
const color = t.palette[clusterIndex];
const startIndex = cursor;
scores.forEach((score) => {
data.push({ y: Math.round(score * 1000) / 1000, color });
categories.push("");
cursor += 1;
});
allScores = allScores.concat(scores);
const clusterAvg = scores.reduce((sum, v) => sum + v, 0) / scores.length;
plotBands.push({
from: startIndex - 0.5,
to: cursor - 0.5,
color: hexToRgba(color, 0.08),
label: {
text: `${cluster.name} · avg ${clusterAvg.toFixed(2)}`,
align: "right",
x: -10,
y: 16,
useHTML: true,
style: {
color: t.inkSoft,
fontSize: "14px",
background: t.pageBg,
padding: "2px 6px",
borderRadius: "3px",
},
},
});
// Gap between clusters for visual separation
if (clusterIndex < clusterDefs.length - 1) {
data.push(null);
categories.push("");
cursor += 1;
}
});
const overallAverage = allScores.reduce((sum, v) => sum + v, 0) / allScores.length;
const axisMin = Math.floor(Math.min(...allScores, 0) * 10) / 10 - 0.05;
// --- Chart --------------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "bar",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
title: {
text: "silhouette-basic · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
subtitle: {
text: "Iris-like dataset · k-means, k = 3 · samples sorted by silhouette score within cluster",
style: { color: t.inkSoft, fontSize: "14px" },
},
xAxis: {
categories,
labels: { enabled: false },
lineColor: t.inkSoft,
tickLength: 0,
title: { text: "Samples (grouped by cluster)", style: { color: t.inkSoft, fontSize: "16px" } },
plotBands,
},
yAxis: {
min: axisMin,
max: 1,
tickInterval: 0.2,
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
title: { text: "Silhouette coefficient", style: { color: t.inkSoft, fontSize: "16px" } },
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
plotLines: [
{
value: 0,
color: t.grid,
width: 1,
zIndex: 4,
},
{
value: overallAverage,
color: t.ink,
dashStyle: "Dash",
width: 2,
zIndex: 5,
label: {
text: `Overall avg ${overallAverage.toFixed(2)}`,
align: "center",
verticalAlign: "top",
y: 28,
useHTML: true,
style: {
color: t.ink,
fontSize: "14px",
fontWeight: "600",
background: t.pageBg,
padding: "2px 6px",
borderRadius: "3px",
},
},
},
],
},
legend: { enabled: false },
plotOptions: {
series: { animation: false, pointPadding: 0.05, groupPadding: 0 },
bar: { borderWidth: 0 },
},
tooltip: {
pointFormat: "Silhouette score: <b>{point.y:.2f}</b>",
},
series: [
{
name: "Silhouette score",
data,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/silhouette-basic/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "silhouette-basic",
"language": "javascript",
"library": "highcharts",
"page": "https://anyplot.ai/silhouette-basic/javascript/highcharts",
"hub": "https://anyplot.ai/silhouette-basic",
"code_json": "https://api.anyplot.ai/specs/silhouette-basic/highcharts/code",
"spec_json": "https://api.anyplot.ai/specs/silhouette-basic",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/silhouette-basic/javascript/highcharts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/silhouette-basic/javascript/highcharts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/silhouette-basic/javascript/highcharts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/silhouette-basic/javascript/highcharts/plot-dark.html",
"quality_score": 91.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Silhouette Plot on anyplot.ai.
