Frequency Spectrum Plot — Highcharts

A frequency spectrum plot displays signal amplitude or power across a range of frequencies, showing the frequency domain representation of time-series data. This visualization reveals the frequency components present in a signal, making it essential for identifying dominant frequencies, harmonics, and noise characteristics. It is fundamental in signal processing, audio engineering, and vibration analysis.

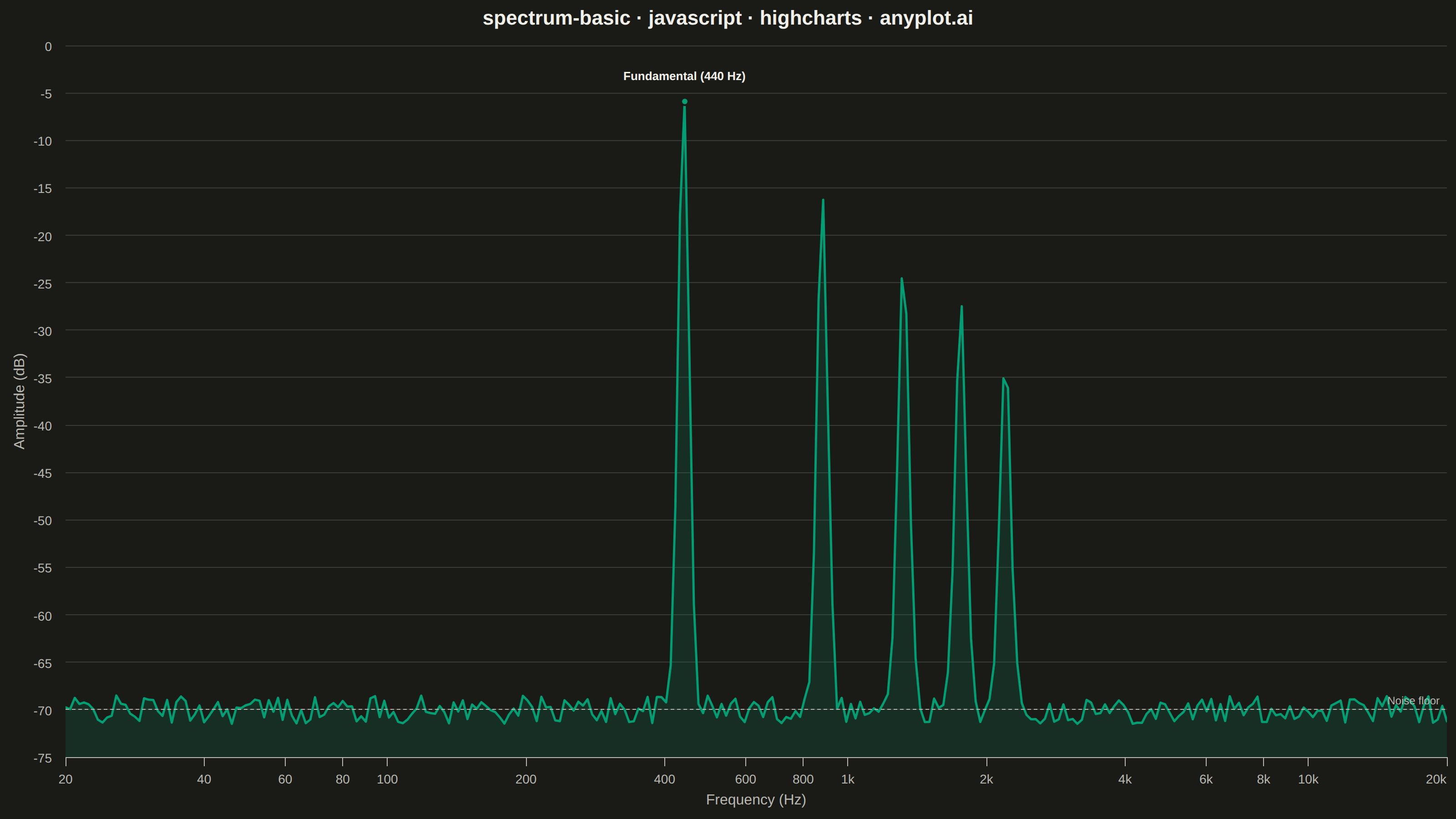

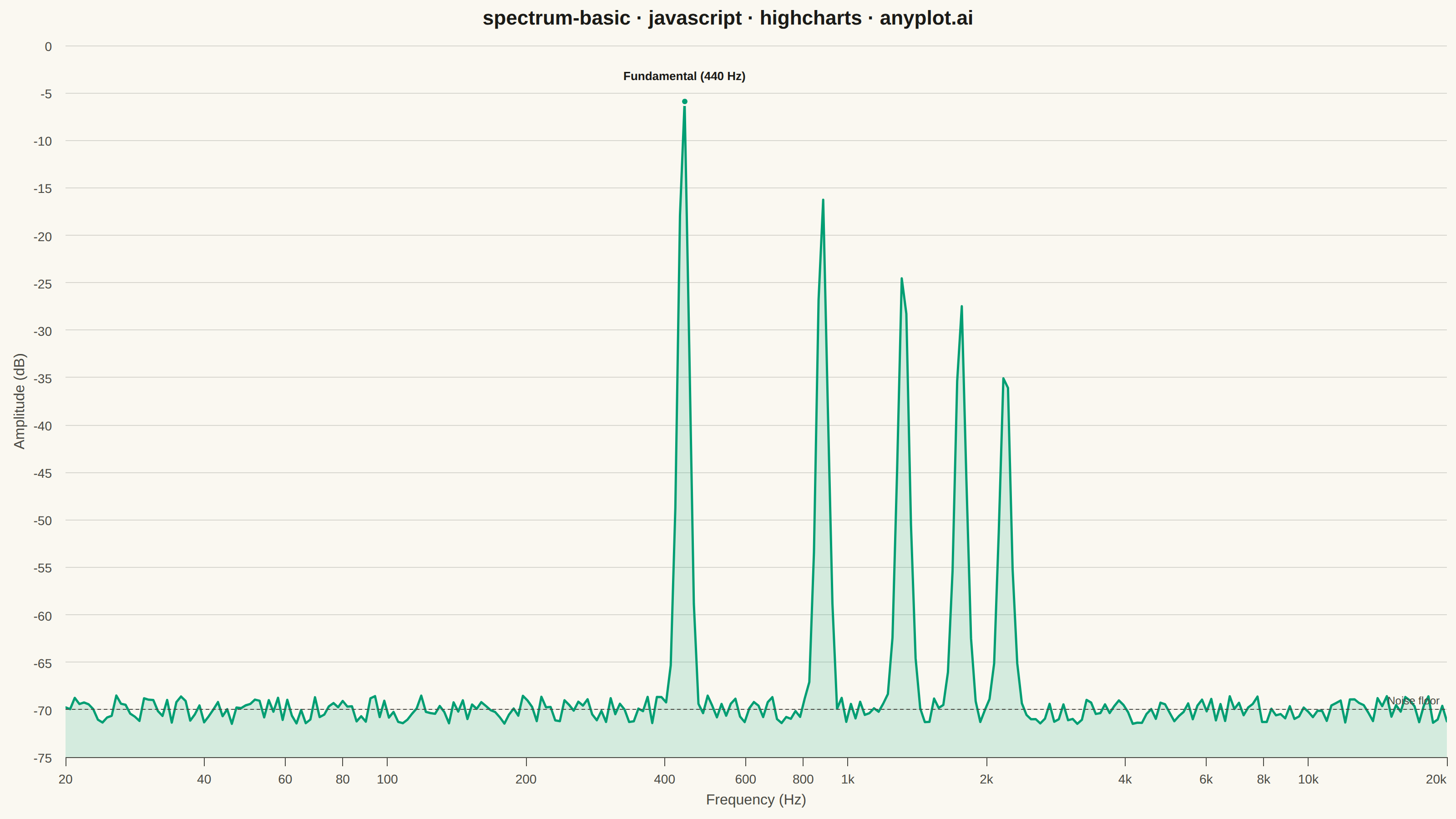

Frequency Spectrum Plot rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// spectrum-basic: Frequency Spectrum Plot
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-09

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Simulated FFT magnitude spectrum of a sustained musical note (A4 = 440 Hz)
// with decaying harmonics riding on a noisy broadband noise floor.
let seed = 42;
function nextRandom() {
  seed = (seed * 1103515245 + 12345) & 0x7fffffff;
  return seed / 0x7fffffff;
}

const fundamentalHz = 440;
const harmonics = [
  { freq: fundamentalHz * 1, peakDb: -5 },
  { freq: fundamentalHz * 2, peakDb: -15 },
  { freq: fundamentalHz * 3, peakDb: -22 },
  { freq: fundamentalHz * 4, peakDb: -28 },
  { freq: fundamentalHz * 5, peakDb: -33 },
];
const noiseFloorDb = -70;
const peakWidthOctaves = 0.04;

const nPoints = 300;
const freqMin = 20;
const freqMax = 20000;
const spectrum = Array.from({ length: nPoints }, (_, i) => {
  const frequency = freqMin * Math.pow(freqMax / freqMin, i / (nPoints - 1));
  let amplitudeDb = noiseFloorDb + (nextRandom() - 0.5) * 3;
  for (const h of harmonics) {
    const octaveDist = Math.log2(frequency / h.freq);
    const bumpDb = h.peakDb - noiseFloorDb;
    amplitudeDb +=
      bumpDb *
      Math.exp(-(octaveDist * octaveDist) / (2 * peakWidthOctaves * peakWidthOctaves));
  }
  return [frequency, amplitudeDb];
});

// Mark the fundamental's apex point with a dataLabel + halo marker so the
// viewer doesn't have to infer which peak is the fundamental from position alone.
let fundamentalIndex = 0;
let fundamentalPeakDb = -Infinity;
spectrum.forEach(([frequency, amplitudeDb], i) => {
  if (frequency >= fundamentalHz * 0.9 && frequency <= fundamentalHz * 1.1 && amplitudeDb > fundamentalPeakDb) {
    fundamentalPeakDb = amplitudeDb;
    fundamentalIndex = i;
  }
});
spectrum[fundamentalIndex] = {
  x: spectrum[fundamentalIndex][0],
  y: spectrum[fundamentalIndex][1],
  marker: { enabled: true, radius: 4, fillColor: t.palette[0], lineColor: t.pageBg, lineWidth: 2 },
  dataLabels: {
    enabled: true,
    format: "Fundamental (440 Hz)",
    y: -16,
    style: { color: t.ink, fontSize: "13px", fontWeight: "600", textOutline: "none" },
  },
};

// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
  chart: {
    type: "area",
    backgroundColor: "transparent",
    animation: false,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "spectrum-basic · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
  },
  xAxis: {
    type: "logarithmic",
    min: freqMin,
    max: freqMax,
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    gridLineColor: t.grid,
    labels: {
      style: { color: t.inkSoft, fontSize: "14px" },
    },
    title: { text: "Frequency (Hz)", style: { color: t.inkSoft, fontSize: "16px" } },
  },
  yAxis: {
    min: -75,
    max: 0,
    gridLineColor: t.grid,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
    title: { text: "Amplitude (dB)", style: { color: t.inkSoft, fontSize: "16px" } },
    plotLines: [
      {
        value: noiseFloorDb,
        color: t.inkSoft,
        dashStyle: "Dash",
        width: 1,
        zIndex: 5,
        label: {
          text: "Noise floor",
          align: "right",
          x: -8,
          y: -6,
          style: { color: t.inkSoft, fontSize: "12px" },
        },
      },
    ],
  },
  legend: { enabled: false },
  plotOptions: {
    series: { animation: false, marker: { enabled: false }, dataLabels: { enabled: false } },
    area: {
      threshold: -75,
      fillOpacity: 0.15,
      lineWidth: 2.5,
    },
  },
  series: [{ name: "Amplitude", data: spectrum }],
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/spectrum-basic/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "spectrum-basic",
  "language": "javascript",
  "library": "highcharts",
  "page": "https://anyplot.ai/spectrum-basic/javascript/highcharts",
  "hub": "https://anyplot.ai/spectrum-basic",
  "code_json": "https://api.anyplot.ai/specs/spectrum-basic/highcharts/code",
  "spec_json": "https://api.anyplot.ai/specs/spectrum-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/spectrum-basic/javascript/highcharts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/spectrum-basic/javascript/highcharts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/spectrum-basic/javascript/highcharts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/spectrum-basic/javascript/highcharts/plot-dark.html",
  "quality_score": 90.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Frequency Spectrum Plot on anyplot.ai.
