Frequency Spectrum Plot — plotnine

A frequency spectrum plot displays signal amplitude or power across a range of frequencies, showing the frequency domain representation of time-series data. This visualization reveals the frequency components present in a signal, making it essential for identifying dominant frequencies, harmonics, and noise characteristics. It is fundamental in signal processing, audio engineering, and vibration analysis.

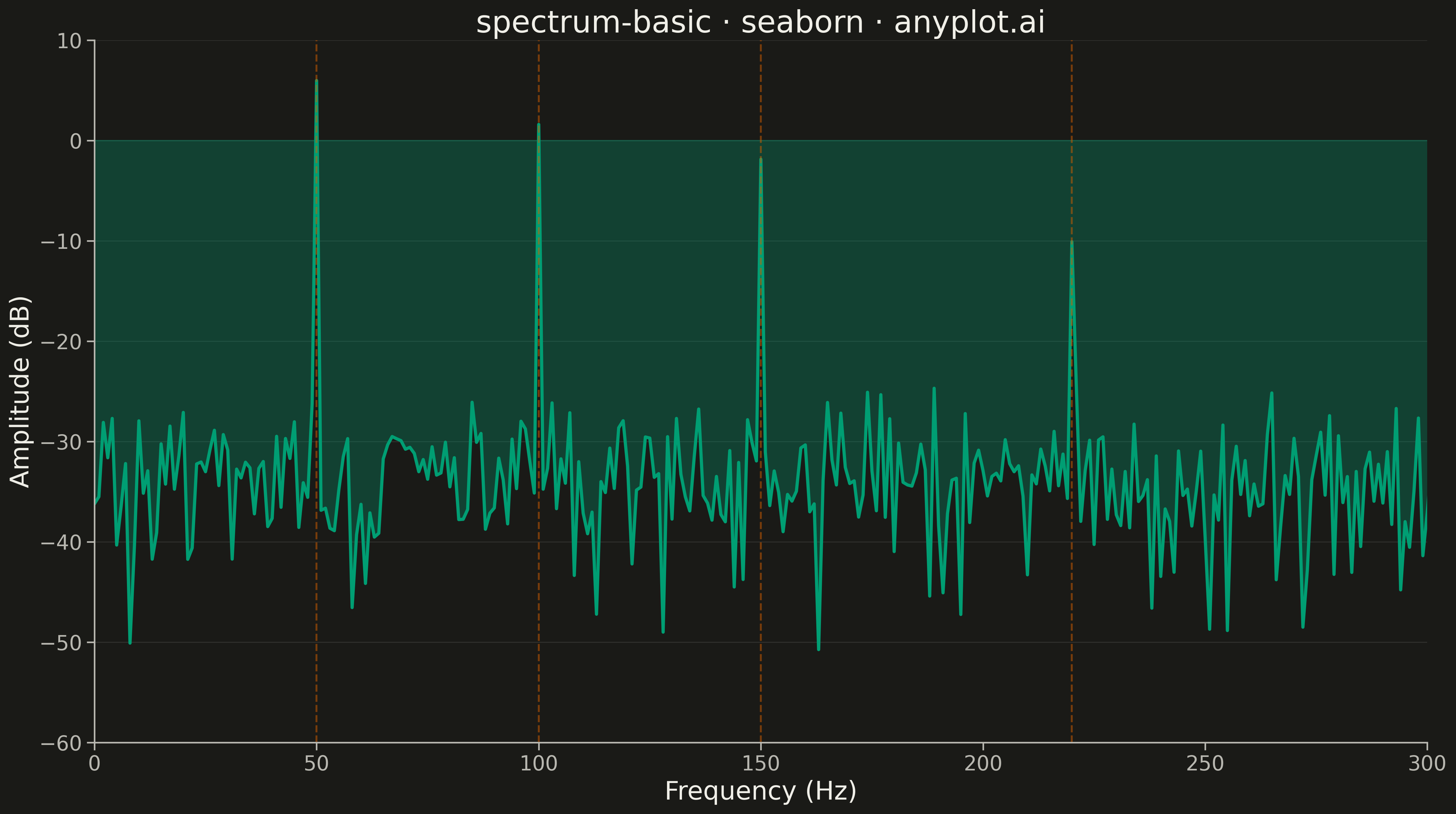

Frequency Spectrum Plot rendered with plotnine

Python source (plotnine)

""" anyplot.ai
spectrum-basic: Frequency Spectrum Plot
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 82/100 | Updated: 2026-05-14
"""

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    annotation_logticks,
    element_text,
    geom_line,
    ggplot,
    labs,
    scale_x_log10,
    theme,
    theme_minimal,
)


# Data: Create a synthetic signal with multiple frequency components
np.random.seed(42)

# Sampling parameters
sample_rate = 4096  # Hz
duration = 1.0  # seconds
n_samples = int(sample_rate * duration)
t = np.linspace(0, duration, n_samples, endpoint=False)

# Create signal with multiple frequency components
# Simulating a mechanical vibration signal with fundamental and harmonics
fundamental_freq = 50  # Hz (e.g., motor rotation)
signal = (
    1.0 * np.sin(2 * np.pi * fundamental_freq * t)  # Fundamental
    + 0.5 * np.sin(2 * np.pi * 2 * fundamental_freq * t)  # 2nd harmonic
    + 0.25 * np.sin(2 * np.pi * 3 * fundamental_freq * t)  # 3rd harmonic
    + 0.15 * np.sin(2 * np.pi * 500 * t)  # High frequency component
    + 0.1 * np.random.randn(n_samples)  # Noise
)

# Compute FFT
fft_result = np.fft.fft(signal)
frequencies = np.fft.fftfreq(n_samples, 1 / sample_rate)

# Take positive frequencies only
positive_mask = frequencies > 0
frequencies = frequencies[positive_mask]
amplitudes = np.abs(fft_result[positive_mask]) * 2 / n_samples

# Convert to dB scale for better visualization
amplitudes_db = 20 * np.log10(amplitudes + 1e-10)

# Create DataFrame for plotnine
df = pd.DataFrame({"frequency": frequencies, "amplitude": amplitudes_db})

# Filter to relevant frequency range (10 Hz to 1000 Hz)
df = df[(df["frequency"] >= 10) & (df["frequency"] <= 1000)]

# Create plot
plot = (
    ggplot(df, aes(x="frequency", y="amplitude"))
    + geom_line(color="#306998", size=1.2, alpha=0.9)
    + scale_x_log10()
    + annotation_logticks(sides="b")
    + labs(x="Frequency (Hz)", y="Amplitude (dB)", title="spectrum-basic · plotnine · pyplots.ai")
    + theme_minimal()
    + theme(
        figure_size=(16, 9),
        plot_title=element_text(size=24, face="bold"),
        axis_title=element_text(size=20),
        axis_text=element_text(size=16),
        panel_grid_major=element_text(alpha=0.3),
    )
)

# Save
plot.save("plot.png", dpi=300, verbose=False)
