A frequency spectrum plot displays signal amplitude or power across a range of frequencies, showing the frequency domain representation of time-series data. This visualization reveals the frequency components present in a signal, making it essential for identifying dominant frequencies, harmonics, and noise characteristics. It is fundamental in signal processing, audio engineering, and vibration analysis.

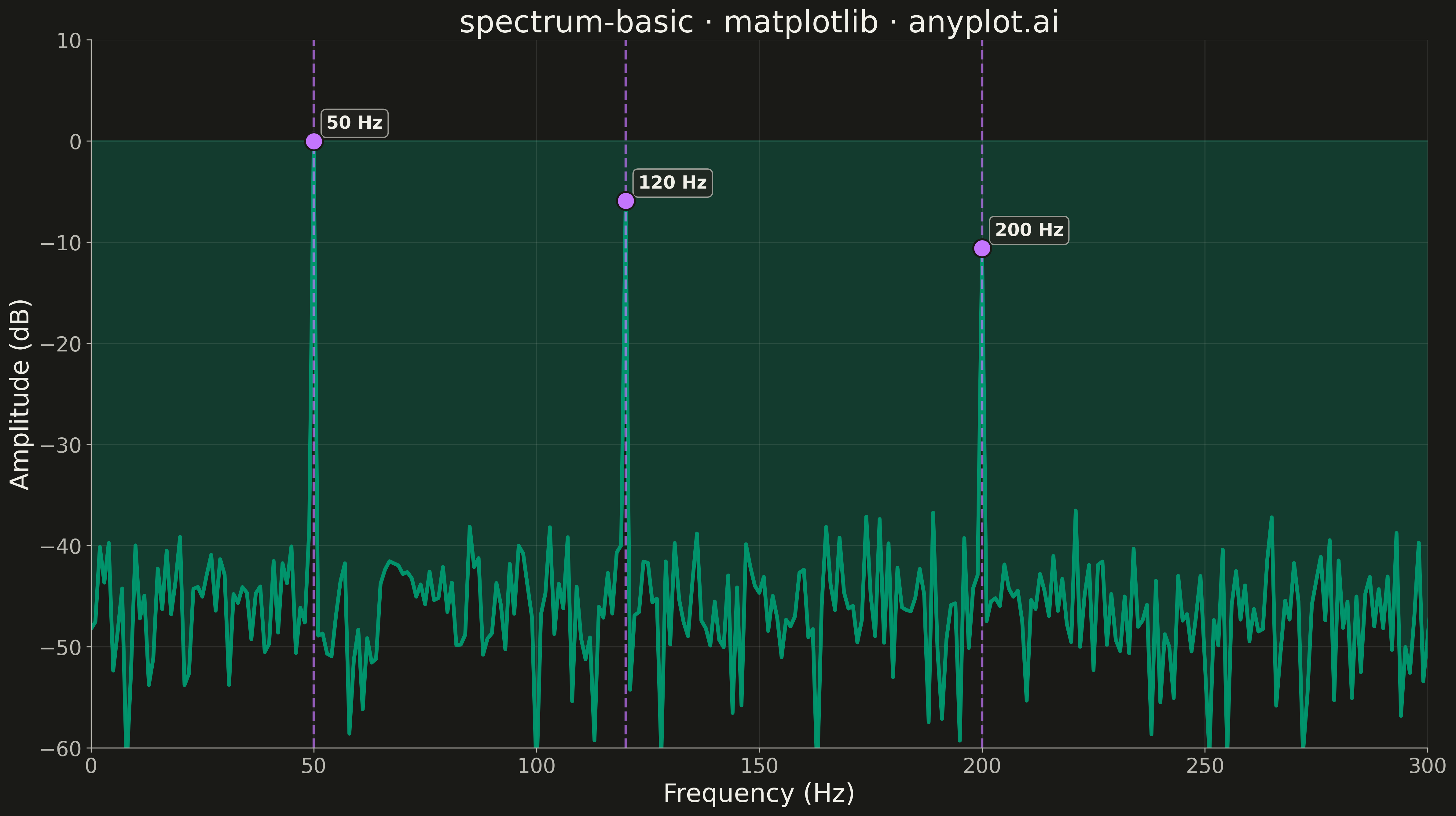

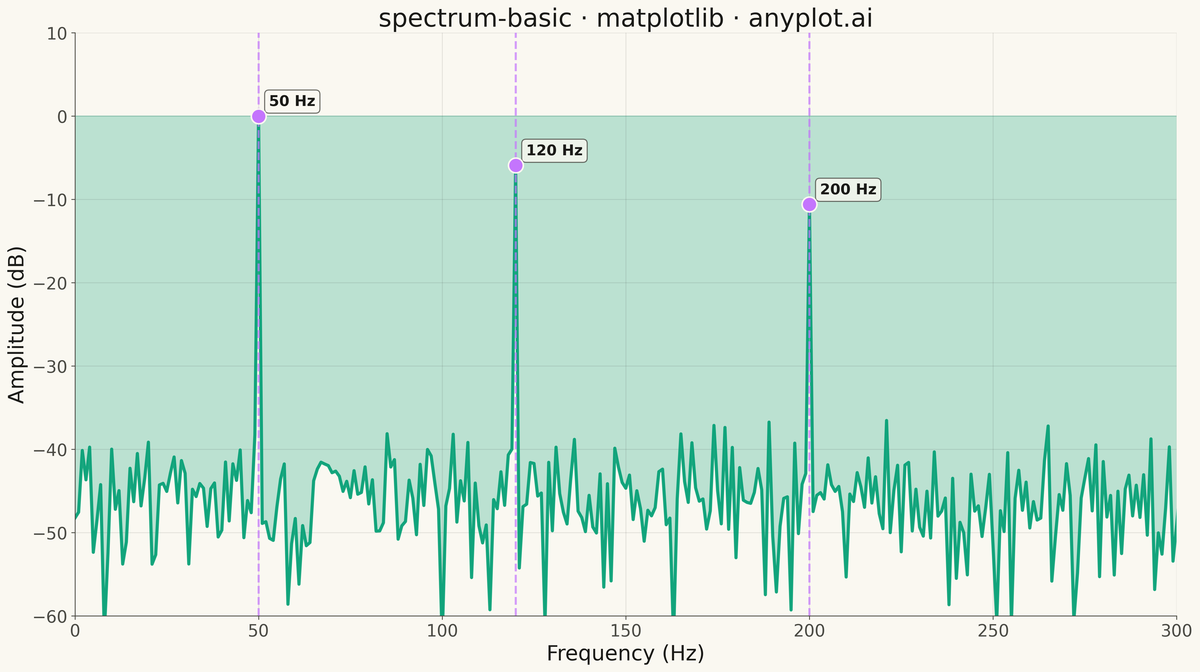

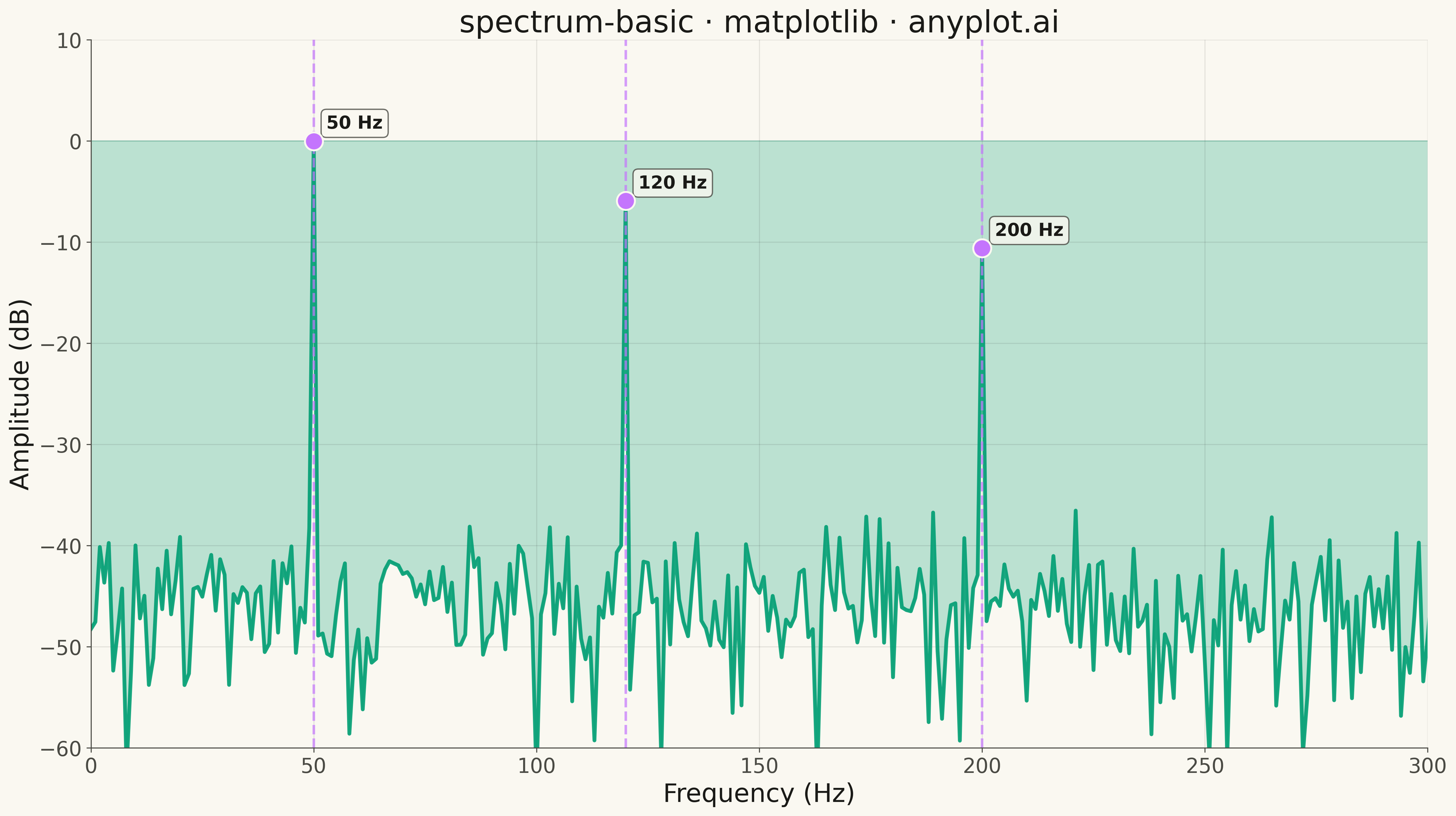

Frequency Spectrum Plot rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
spectrum-basic: Frequency Spectrum Plot
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 93/100 | Updated: 2026-05-14
"""

import os

import matplotlib.pyplot as plt
import numpy as np


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73"  # Okabe-Ito position 1
ACCENT = "#C475FD"  # Okabe-Ito position 2 for annotations

# Generate synthetic signal with multiple frequency components
np.random.seed(42)

# Sampling parameters
sample_rate = 1000  # Hz
duration = 1.0  # seconds
n_samples = int(sample_rate * duration)
t = np.linspace(0, duration, n_samples, endpoint=False)

# Create signal with multiple frequency components
signal = (
    1.0 * np.sin(2 * np.pi * 50 * t)  # 50 Hz fundamental
    + 0.5 * np.sin(2 * np.pi * 120 * t)  # 120 Hz harmonic
    + 0.3 * np.sin(2 * np.pi * 200 * t)  # 200 Hz component
    + 0.1 * np.random.randn(n_samples)  # Noise
)

# Compute FFT
fft_result = np.fft.fft(signal)
frequencies = np.fft.fftfreq(n_samples, 1 / sample_rate)

# Take only positive frequencies
positive_mask = frequencies >= 0
frequencies = frequencies[positive_mask]
amplitude = np.abs(fft_result[positive_mask]) * 2 / n_samples

# Convert to dB scale
amplitude_db = 20 * np.log10(amplitude + 1e-10)

# Plot
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Plot spectrum line
ax.plot(frequencies, amplitude_db, linewidth=3, color=BRAND, alpha=0.9)

# Fill under the curve
ax.fill_between(frequencies, amplitude_db, alpha=0.25, color=BRAND)

# Mark peak frequencies
peaks = [50, 120, 200]
for peak_freq in peaks:
    idx = np.argmin(np.abs(frequencies - peak_freq))
    ax.axvline(x=peak_freq, color=ACCENT, linestyle="--", linewidth=2, alpha=0.7)
    ax.scatter(
        [frequencies[idx]], [amplitude_db[idx]], s=200, color=ACCENT, zorder=5, edgecolors=PAGE_BG, linewidth=1.5
    )
    ax.annotate(
        f"{peak_freq} Hz",
        xy=(frequencies[idx], amplitude_db[idx]),
        xytext=(10, 10),
        textcoords="offset points",
        fontsize=14,
        fontweight="bold",
        color=INK,
        bbox={
            "facecolor": PAGE_BG if THEME == "light" else "#242420",
            "edgecolor": INK_SOFT,
            "alpha": 0.8,
            "boxstyle": "round,pad=0.3",
        },
    )

# Style
ax.set_xlabel("Frequency (Hz)", fontsize=20, color=INK)
ax.set_ylabel("Amplitude (dB)", fontsize=20, color=INK)
ax.set_title("spectrum-basic · matplotlib · anyplot.ai", fontsize=24, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

# Spine styling
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
for s in ("left", "bottom"):
    ax.spines[s].set_color(INK_SOFT)

# Grid
ax.grid(True, alpha=0.1, linewidth=0.8, color=INK)

# Axis limits
ax.set_xlim(0, 300)
ax.set_ylim(-60, 10)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)
