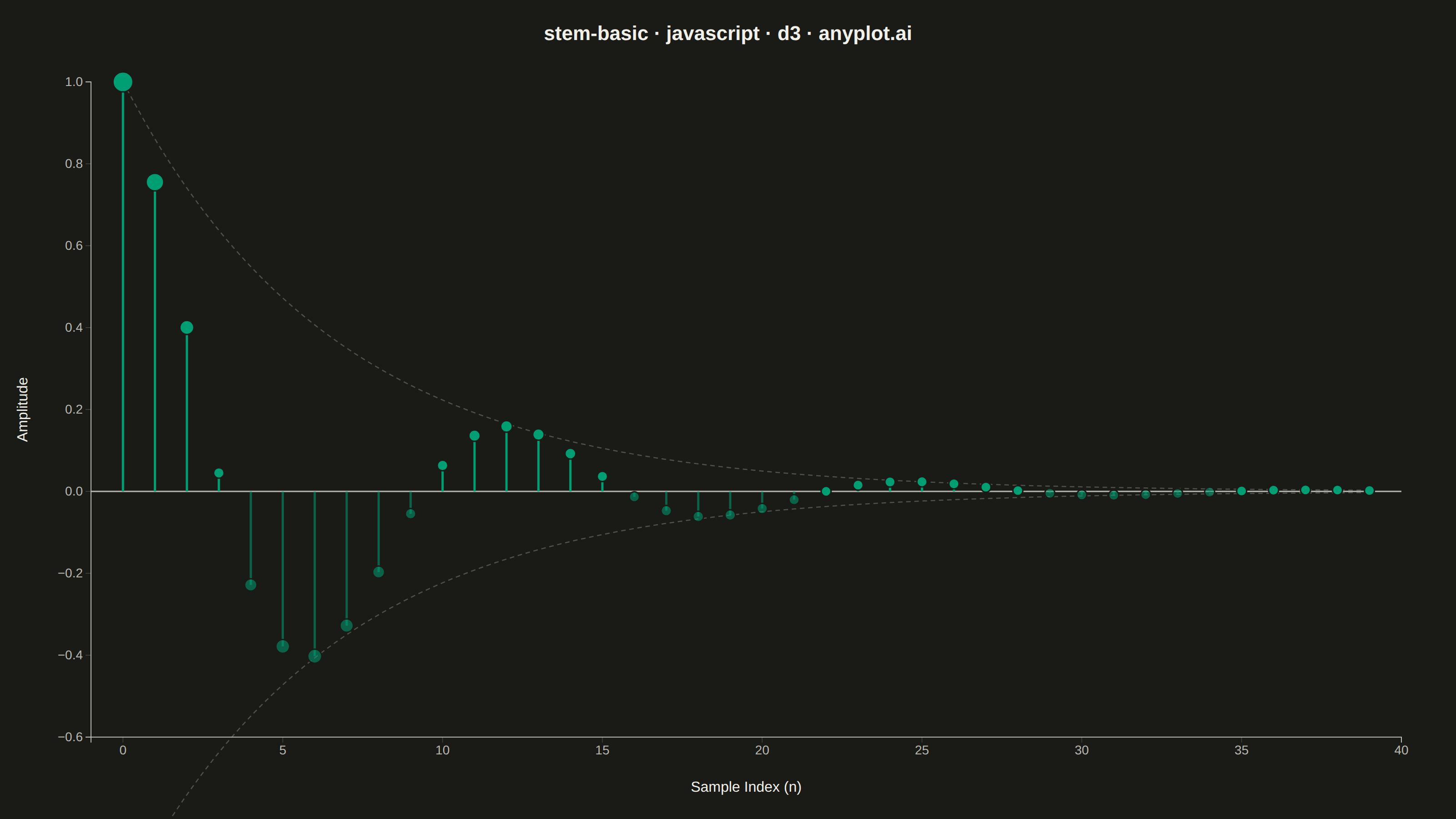

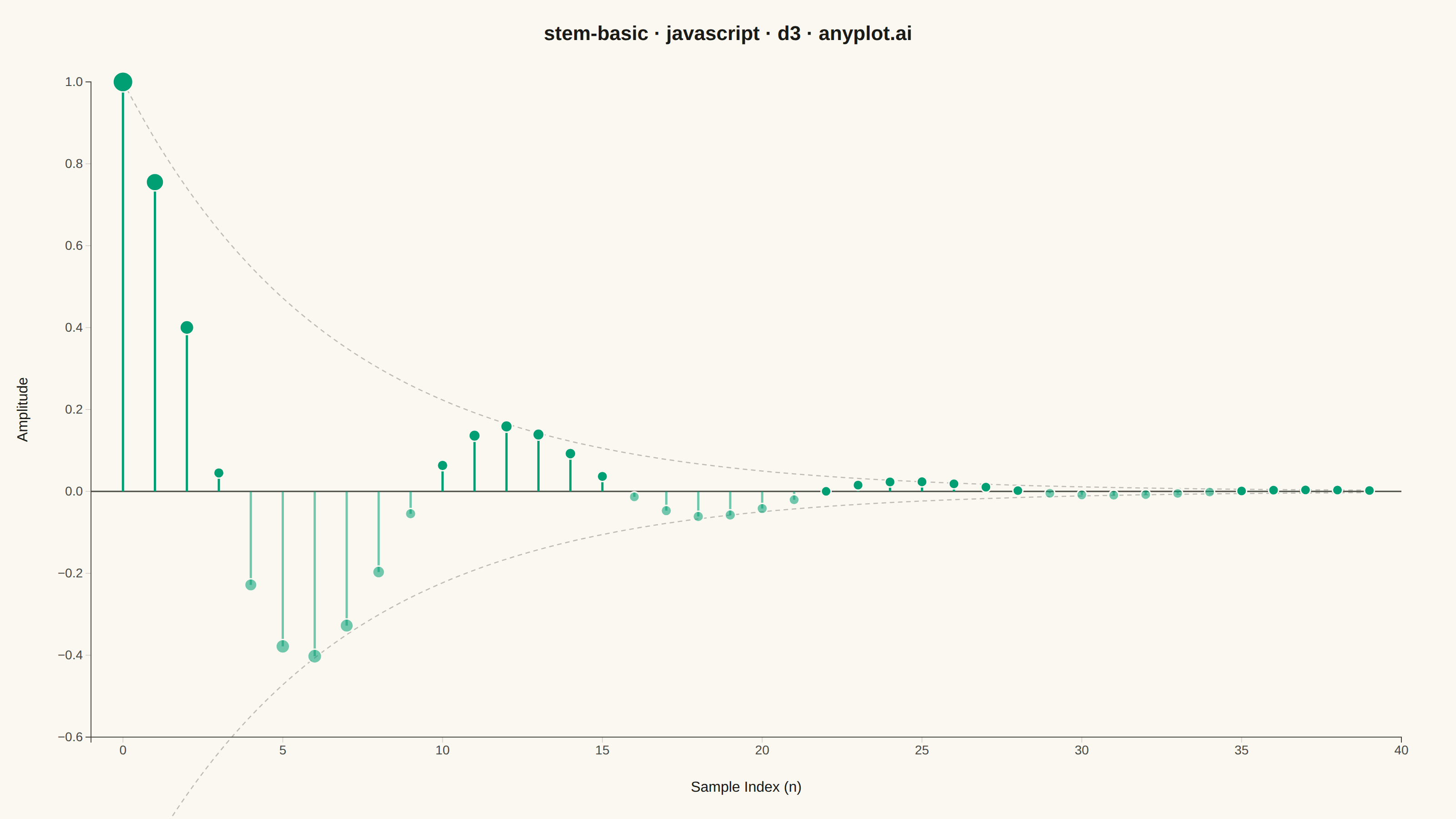

A stem plot displays data points as markers connected to a baseline by vertical lines (stems). Each data point is represented by a marker at the data value with a thin line extending down to a baseline, making it ideal for visualizing discrete or sequential data where individual values matter. This plot type is particularly useful in signal processing and scientific applications where the discrete nature of measurements needs emphasis.
// anyplot.ai
// stem-basic: Basic Stem Plot
// Library: d3 7.9.0 | JavaScript 22.23.1
// Quality: 90/100 | Created: 2026-07-25
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 90, right: 60, bottom: 90, left: 100 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data (in-memory, deterministic) ----------------------------------------
// Discrete-time impulse response of a damped oscillator: h[n] = e^(-0.15n) * cos(0.5n)
const sampleCount = 40;
const envelope = (n) => Math.exp(-0.15 * n);
const data = Array.from({ length: sampleCount }, (_, n) => ({
n,
amplitude: envelope(n) * Math.cos(0.5 * n),
}));
// --- SVG mount ----------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// --- Scales -------------------------------------------------------------------
const x = d3
.scaleLinear()
.domain([d3.min(data, (d) => d.n) - 1, d3.max(data, (d) => d.n) + 1])
.range([0, iw]);
const y = d3
.scaleLinear()
.domain(d3.extent(data, (d) => d.amplitude))
.nice()
.range([ih, 0]);
// Marker radius tied to |amplitude|: the decaying envelope reads directly
// through marker prominence, not just vertical position.
const r = d3.scaleLinear().domain([0, 1]).range([5.5, 11]).clamp(true);
// --- Decay-envelope guide (d3-shape line generator) -----------------------------
// A thin dashed guide along +/- e^(-0.15n) gives the reader an immediate read
// on the envelope the stems are riding, rather than leaving it implicit.
const envelopeLine = d3
.line()
.curve(d3.curveMonotoneX)
.x((d) => x(d.n))
.y((d) => y(d.value));
const upperEnvelope = data.map((d) => ({ n: d.n, value: envelope(d.n) }));
const lowerEnvelope = data.map((d) => ({ n: d.n, value: -envelope(d.n) }));
for (const env of [upperEnvelope, lowerEnvelope]) {
g.append("path")
.datum(env)
.attr("fill", "none")
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.25)
.attr("stroke-dasharray", "5,4")
.attr("stroke-opacity", 0.35)
.attr("d", envelopeLine);
}
// --- Baseline (y = 0) ----------------------------------------------------------
g.append("line")
.attr("x1", 0)
.attr("x2", iw)
.attr("y1", y(0))
.attr("y2", y(0))
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.5);
// --- Stems ----------------------------------------------------------------------
// Positive samples render at full opacity; negative samples are slightly
// dimmed, so the sign transition of the oscillation is visible at a glance.
g.selectAll(".stem")
.data(data)
.join("line")
.attr("class", "stem")
.attr("x1", (d) => x(d.n))
.attr("x2", (d) => x(d.n))
.attr("y1", y(0))
.attr("y2", (d) => y(d.amplitude))
.attr("stroke", t.palette[0])
.attr("stroke-width", 2.5)
.attr("stroke-opacity", (d) => (d.amplitude >= 0 ? 1 : 0.55));
// --- Markers ----------------------------------------------------------------------
g.selectAll(".marker")
.data(data)
.join("circle")
.attr("class", "marker")
.attr("cx", (d) => x(d.n))
.attr("cy", (d) => y(d.amplitude))
.attr("r", (d) => r(Math.abs(d.amplitude)))
.attr("fill", t.palette[0])
.attr("fill-opacity", (d) => (d.amplitude >= 0 ? 1 : 0.55))
.attr("stroke", t.pageBg)
.attr("stroke-width", 1.5);
// --- Axes -------------------------------------------------------------------
const xAxis = g
.append("g")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(x).ticks(10).tickFormat(d3.format("d")));
const yAxis = g.append("g").call(d3.axisLeft(y).ticks(8));
for (const ax of [xAxis, yAxis]) {
ax.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
ax.selectAll("line").attr("stroke", t.grid);
ax.select(".domain").attr("stroke", t.inkSoft);
}
// --- Axis labels --------------------------------------------------------------
g.append("text")
.attr("x", iw / 2)
.attr("y", ih + 60)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Sample Index (n)");
g.append("text")
.attr("transform", "rotate(-90)")
.attr("x", -ih / 2)
.attr("y", -70)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Amplitude");
// --- Title --------------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 44)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("stem-basic · javascript · d3 · anyplot.ai");
