Basic Stem Plot — plotnine

A stem plot displays data points as markers connected to a baseline by vertical lines (stems). Each data point is represented by a marker at the data value with a thin line extending down to a baseline, making it ideal for visualizing discrete or sequential data where individual values matter. This plot type is particularly useful in signal processing and scientific applications where the discrete nature of measurements needs emphasis.

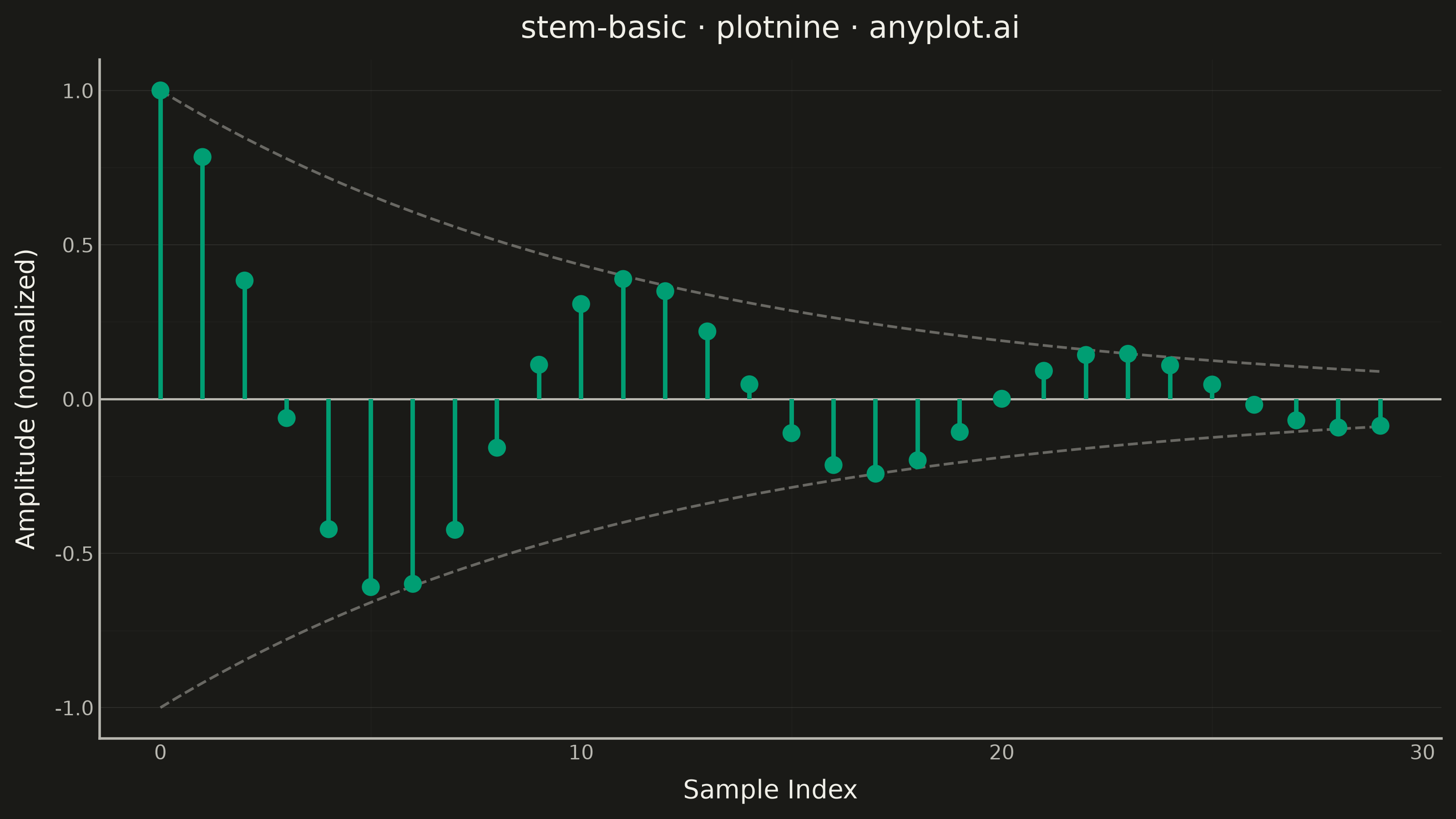

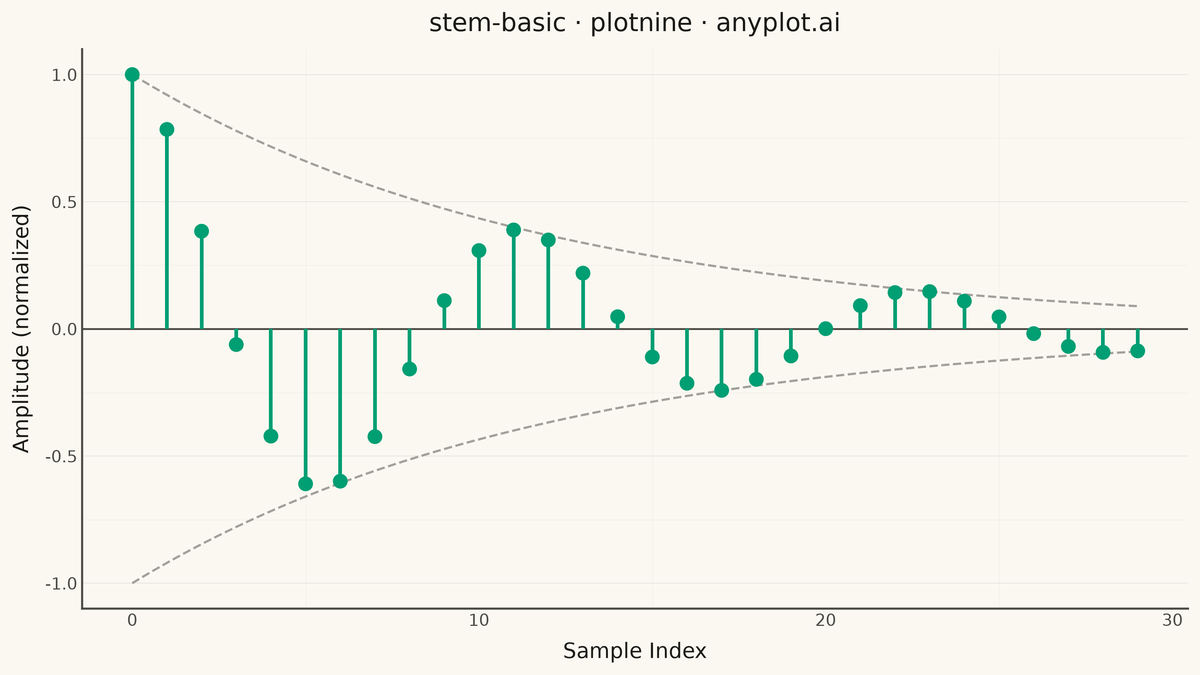

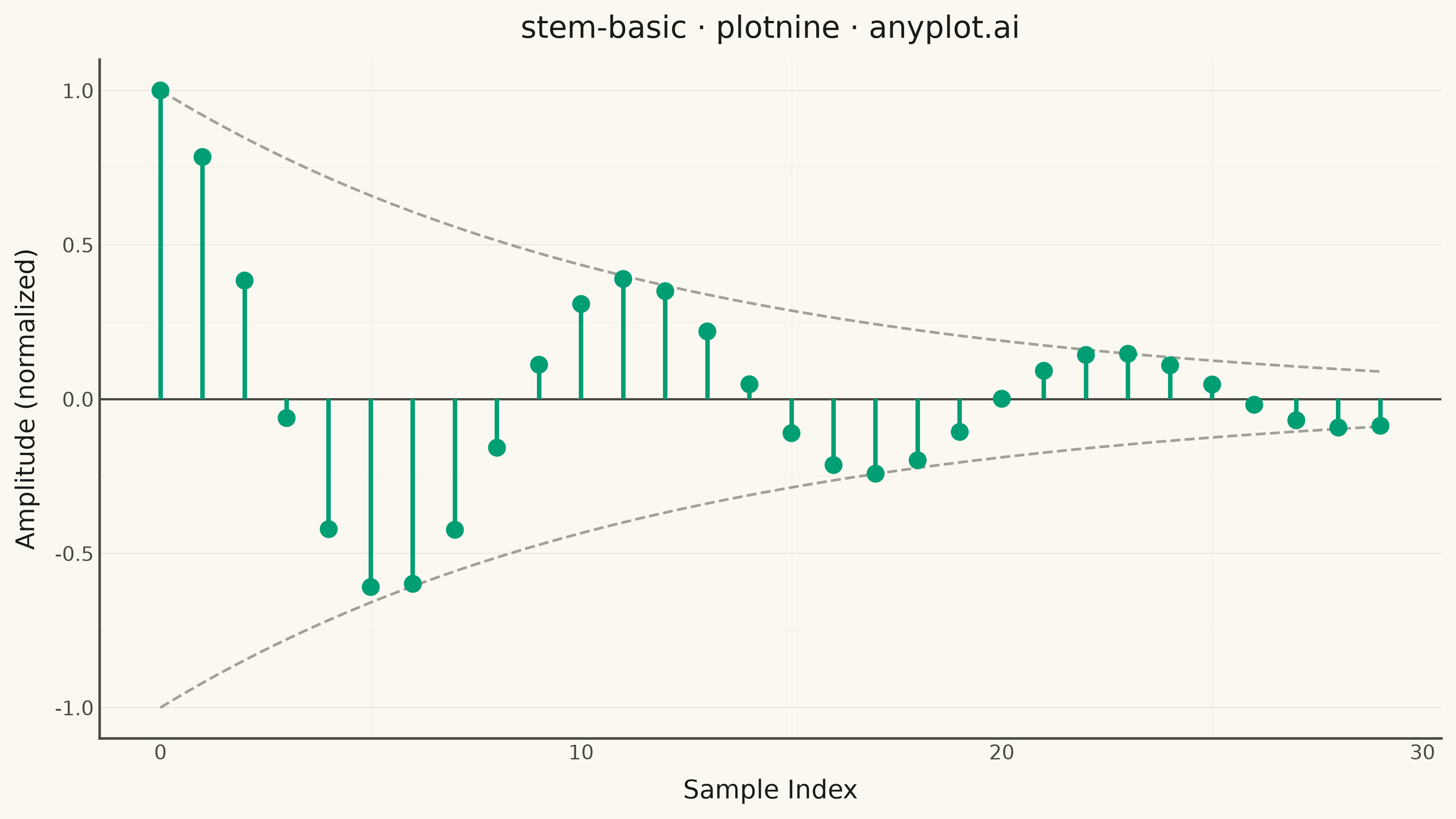

Basic Stem Plot rendered with plotnine

Python source (plotnine)

""" anyplot.ai
stem-basic: Basic Stem Plot
Library: plotnine 0.15.7 | Python 3.13.14
Quality: 90/100 | Updated: 2026-07-25
"""

import os

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    element_line,
    element_rect,
    element_text,
    geom_hline,
    geom_line,
    geom_point,
    geom_segment,
    ggplot,
    labs,
    theme,
    theme_minimal,
)


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

BRAND = "#009E73"

# Data - Damped sinusoidal discrete signal (signal processing example)
np.random.seed(42)
n = 30
t = np.arange(n)
decay = np.exp(-t / 12.0)
signal = decay * np.cos(0.55 * t)

df = pd.DataFrame({"t": t, "signal": signal, "zero": 0.0})

# Fine-resolution decay envelope, plotted as a reference curve so the
# amplitude decay is visually explicit rather than only implied by the stems.
t_env = np.linspace(0, n - 1, 200)
envelope = pd.DataFrame({"t": t_env, "upper": np.exp(-t_env / 12.0), "lower": -np.exp(-t_env / 12.0)})

# Plot
plot = (
    ggplot(df, aes(x="t"))
    + geom_line(envelope, aes(x="t", y="upper"), color=INK_SOFT, alpha=0.5, linetype="dashed", size=0.6)
    + geom_line(envelope, aes(x="t", y="lower"), color=INK_SOFT, alpha=0.5, linetype="dashed", size=0.6)
    + geom_hline(yintercept=0, color=INK_SOFT, size=0.5)
    + geom_segment(aes(x="t", xend="t", y="zero", yend="signal"), color=BRAND, size=1.0)
    + geom_point(aes(y="signal"), color=BRAND, size=3.0, stroke=0.5)
    + labs(x="Sample Index", y="Amplitude (normalized)", title="stem-basic · python · plotnine · anyplot.ai")
    + theme_minimal()
    + theme(
        figure_size=(8, 4.5),
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        text=element_text(size=7, color=INK),
        axis_title=element_text(size=10, color=INK),
        axis_text=element_text(size=8, color=INK_SOFT),
        plot_title=element_text(size=12, color=INK),
        panel_grid_major_y=element_line(color=INK, size=0.3, alpha=0.10),
        panel_grid_major_x=element_line(color=INK, size=0.0, alpha=0.0),
        panel_grid_minor=element_line(color=INK, size=0.2, alpha=0.05),
    )
)

# Save
plot.save(f"plot-{THEME}.png", dpi=400, width=8, height=4.5, units="in", verbose=False)

Part of Basic Stem Plot on anyplot.ai.
