Basic Stem Plot — Seaborn

A stem plot displays data points as markers connected to a baseline by vertical lines (stems). Each data point is represented by a marker at the data value with a thin line extending down to a baseline, making it ideal for visualizing discrete or sequential data where individual values matter. This plot type is particularly useful in signal processing and scientific applications where the discrete nature of measurements needs emphasis.

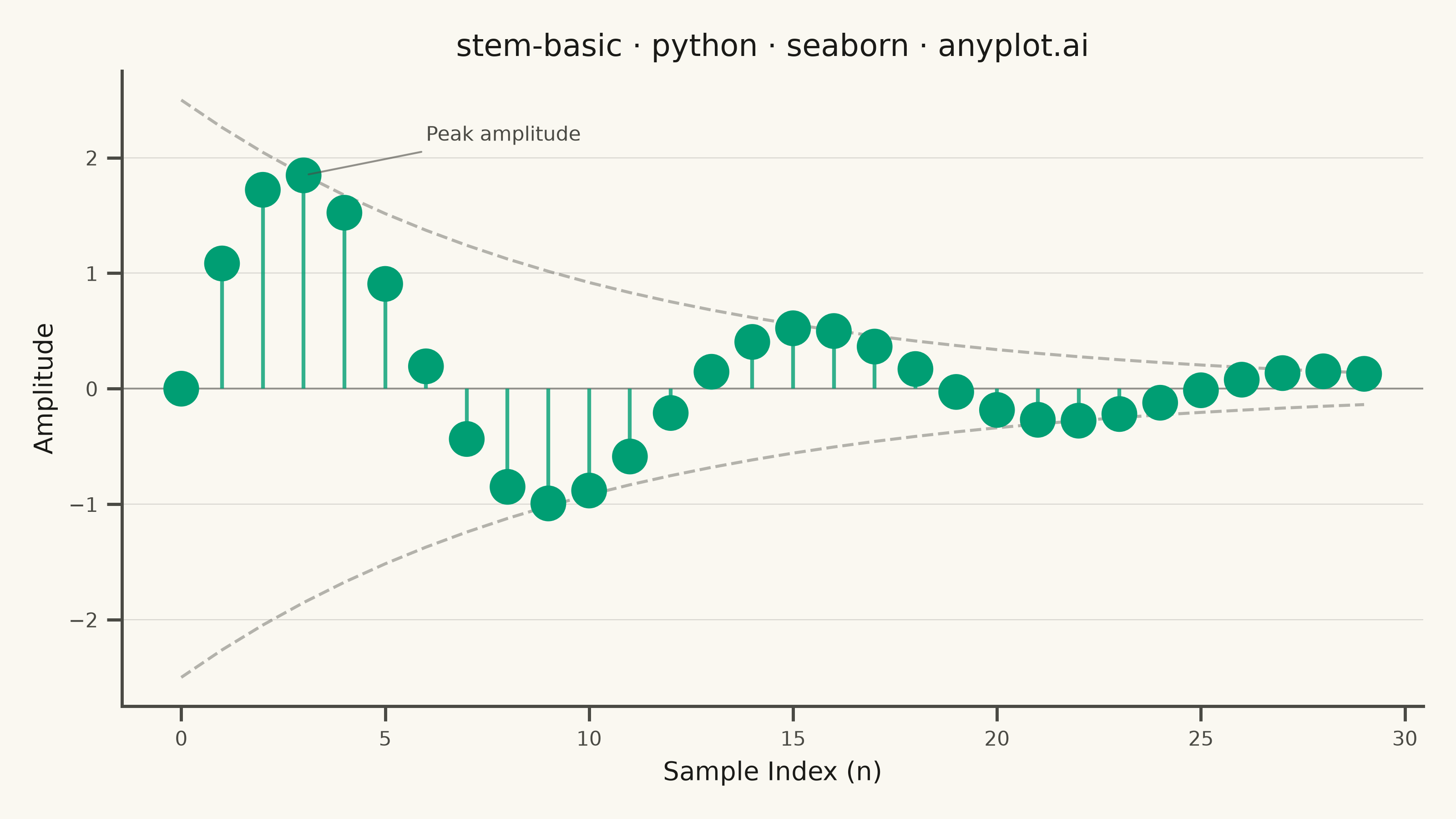

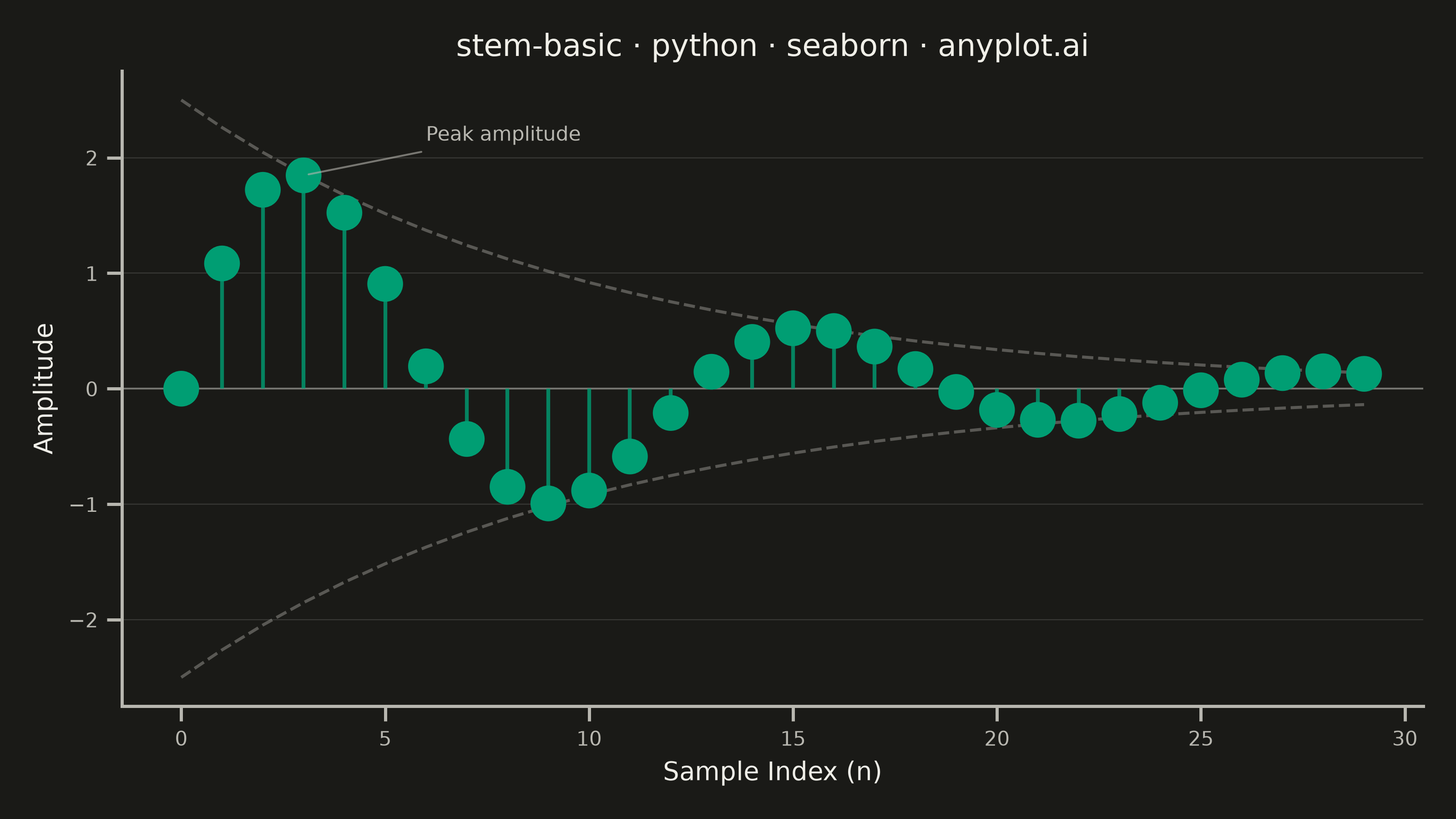

Basic Stem Plot rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
stem-basic: Basic Stem Plot
Library: seaborn 0.13.2 | Python 3.13.14
Quality: 91/100 | Updated: 2026-07-25
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

BRAND = "#009E73"  # Imprint palette position 1

sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

# Data - Discrete signal samples (damped sinusoidal impulse response)
np.random.seed(42)
n_samples = 30
x = np.arange(n_samples)
y = np.exp(-0.1 * x) * np.sin(0.5 * x) * 2.5
envelope = np.exp(-0.1 * x) * 2.5

df = pd.DataFrame({"Sample Index": x, "Amplitude": y, "Magnitude": np.abs(y)})
peak_idx = df["Magnitude"].idxmax()

fig, ax = plt.subplots(figsize=(8, 4.5), dpi=400)

# Decay envelope - traces the impulse-response narrative behind the samples
sns.lineplot(x=x, y=envelope, ax=ax, color=INK_SOFT, linewidth=1.2, linestyle="--", alpha=0.4, zorder=1)
sns.lineplot(x=x, y=-envelope, ax=ax, color=INK_SOFT, linewidth=1.2, linestyle="--", alpha=0.4, zorder=1)

# Stems (thin vertical lines from baseline y=0 to data values)
ax.vlines(x=df["Sample Index"], ymin=0, ymax=df["Amplitude"], color=BRAND, linewidth=1.5, alpha=0.8, zorder=2)

# Markers - uniform size per the spec's "consistent marker size" requirement;
# plain dots with no background-colored edge.
sns.scatterplot(
    data=df, x="Sample Index", y="Amplitude", s=200, color=BRAND, edgecolor="none", legend=False, ax=ax, zorder=3
)

# Baseline at y=0
ax.axhline(y=0, color=INK_SOFT, linewidth=0.75, alpha=0.5, zorder=1)

# Annotate the peak sample to guide the viewer through the decay narrative
ax.annotate(
    "Peak amplitude",
    xy=(df["Sample Index"][peak_idx], df["Amplitude"][peak_idx]),
    xytext=(df["Sample Index"][peak_idx] + 3, df["Amplitude"][peak_idx] + 0.3),
    fontsize=8,
    color=INK_SOFT,
    arrowprops={"arrowstyle": "-", "color": INK_SOFT, "alpha": 0.6, "linewidth": 0.75},
)

ax.set_xlabel("Sample Index (n)", fontsize=10)
ax.set_ylabel("Amplitude", fontsize=10)
ax.set_title("stem-basic · python · seaborn · anyplot.ai", fontsize=12)
ax.tick_params(axis="both", labelsize=8)

ax.yaxis.grid(True, linestyle="-", linewidth=0.4, alpha=0.15)
ax.set_axisbelow(True)

sns.despine(ax=ax)

fig.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)

Part of Basic Stem Plot on anyplot.ai.
