Basic Stem Plot — Apache ECharts

A stem plot displays data points as markers connected to a baseline by vertical lines (stems). Each data point is represented by a marker at the data value with a thin line extending down to a baseline, making it ideal for visualizing discrete or sequential data where individual values matter. This plot type is particularly useful in signal processing and scientific applications where the discrete nature of measurements needs emphasis.

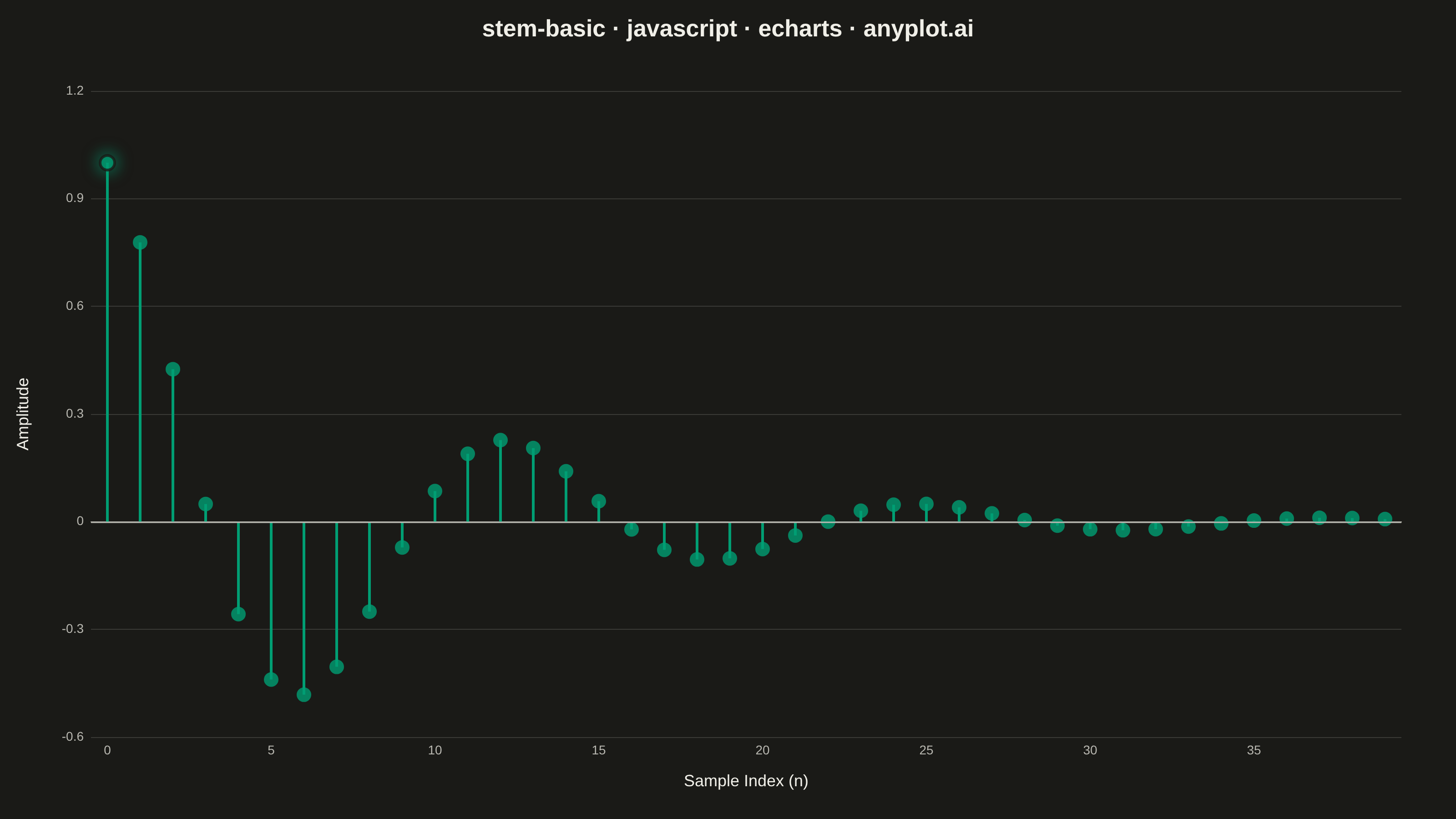

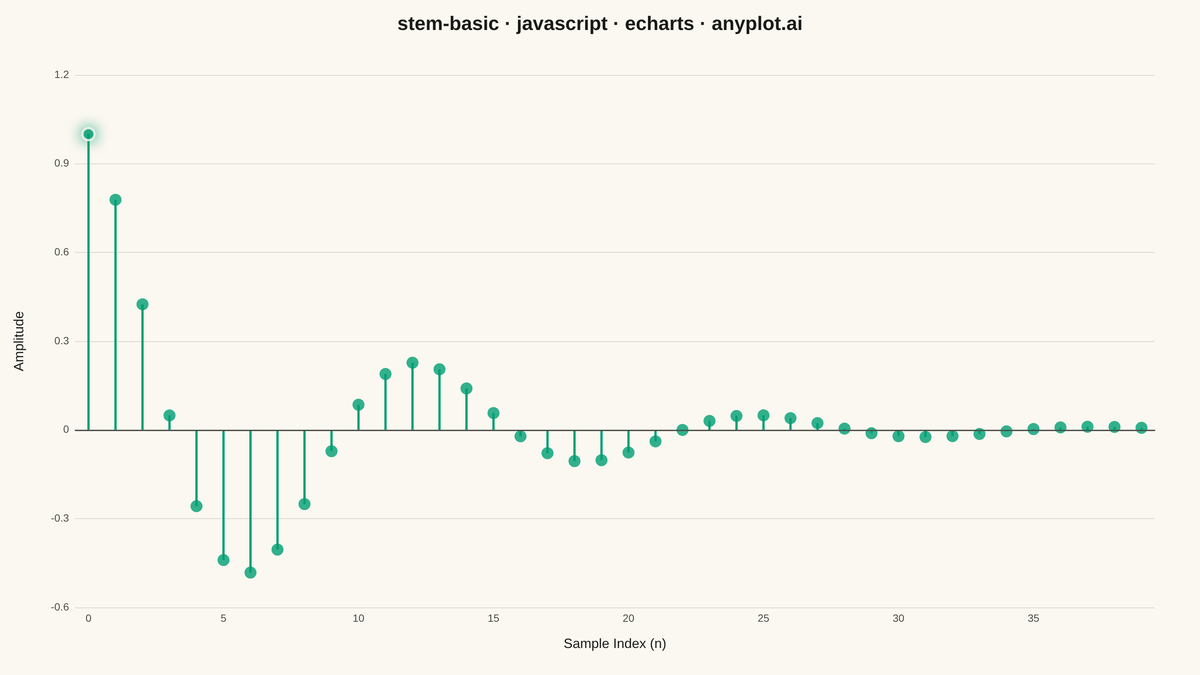

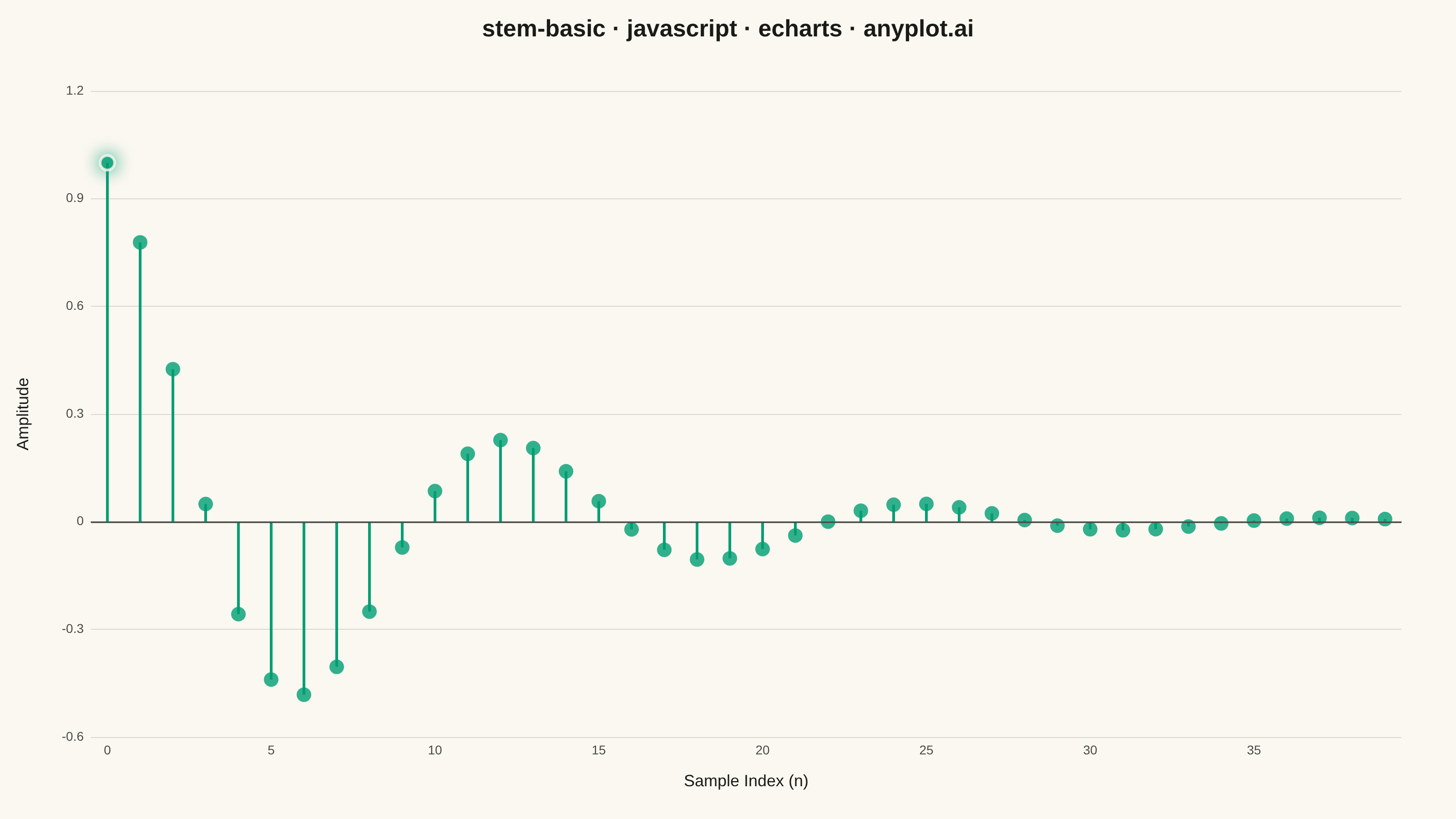

Basic Stem Plot rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// stem-basic: Basic Stem Plot
// Library: echarts 6.1.0 | JavaScript 22.23.1
// Quality: 91/100 | Created: 2026-07-25

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ---------------------------------------
// Impulse response of a damped second-order system: y[n] = exp(-decay*n) * cos(omega*n)
const N = 40;
const decay = 0.12;
const omega = 0.5;
const indices = [];
const values = [];
for (let n = 0; n < N; n++) {
  indices.push(String(n));
  values.push(Number((Math.exp(-decay * n) * Math.cos(omega * n)).toFixed(4)));
}
const peakIndex = values.indexOf(Math.max(...values));

// Peak marker keeps the same 16px size (spec requires consistent marker size)
// but gets a soft halo + glow so the eye lands on the dominant sample first.
const scatterData = values.map((v, i) =>
  i === peakIndex
    ? {
        value: v,
        itemStyle: {
          color: t.palette[0],
          borderColor: t.pageBg,
          borderWidth: 3,
          shadowBlur: 18,
          shadowColor: t.palette[0],
        },
      }
    : v,
);

// --- Init --------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option ------------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: "stem-basic · javascript · echarts · anyplot.ai",
    left: "center",
    textStyle: { color: t.ink, fontSize: 26 },
  },
  tooltip: {
    trigger: "axis",
    axisPointer: { type: "line" },
    formatter: (params) => {
      const p = params.find((d) => d.seriesType === "scatter") ?? params[0];
      return `Sample n = ${p.axisValueLabel}<br/>Amplitude = ${p.value.toFixed(4)}`;
    },
  },
  grid: { left: 100, right: 60, top: 100, bottom: 90 },
  xAxis: {
    type: "category",
    data: indices,
    name: "Sample Index (n)",
    nameLocation: "middle",
    nameGap: 40,
    nameTextStyle: { color: t.ink, fontSize: 18 },
    axisLabel: { color: t.inkSoft, fontSize: 14, interval: 4 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { show: false },
    splitLine: { show: false },
  },
  yAxis: {
    type: "value",
    name: "Amplitude",
    nameLocation: "middle",
    nameGap: 65,
    nameTextStyle: { color: t.ink, fontSize: 18 },
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    splitLine: { lineStyle: { color: t.grid } },
  },
  series: [
    {
      name: "stem",
      type: "bar",
      data: values,
      barWidth: 3,
      barGap: "-100%",
      itemStyle: { color: t.palette[0] },
      silent: true,
      markLine: {
        silent: true,
        symbol: "none",
        lineStyle: { color: t.inkSoft, width: 1.5, type: "solid" },
        label: { show: false },
        data: [{ yAxis: 0 }],
      },
      z: 2,
    },
    {
      name: "sample value",
      type: "scatter",
      data: scatterData,
      symbolSize: 16,
      itemStyle: { color: t.palette[0] },
      z: 3,
    },
  ],
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/stem-basic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "stem-basic",
  "language": "javascript",
  "library": "echarts",
  "page": "https://anyplot.ai/stem-basic/javascript/echarts",
  "hub": "https://anyplot.ai/stem-basic",
  "code_json": "https://api.anyplot.ai/specs/stem-basic/echarts/code",
  "spec_json": "https://api.anyplot.ai/specs/stem-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/stem-basic/javascript/echarts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/stem-basic/javascript/echarts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/stem-basic/javascript/echarts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/stem-basic/javascript/echarts/plot-dark.html",
  "quality_score": 91.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Basic Stem Plot on anyplot.ai.
