Basic Sudoku Grid — D3.js

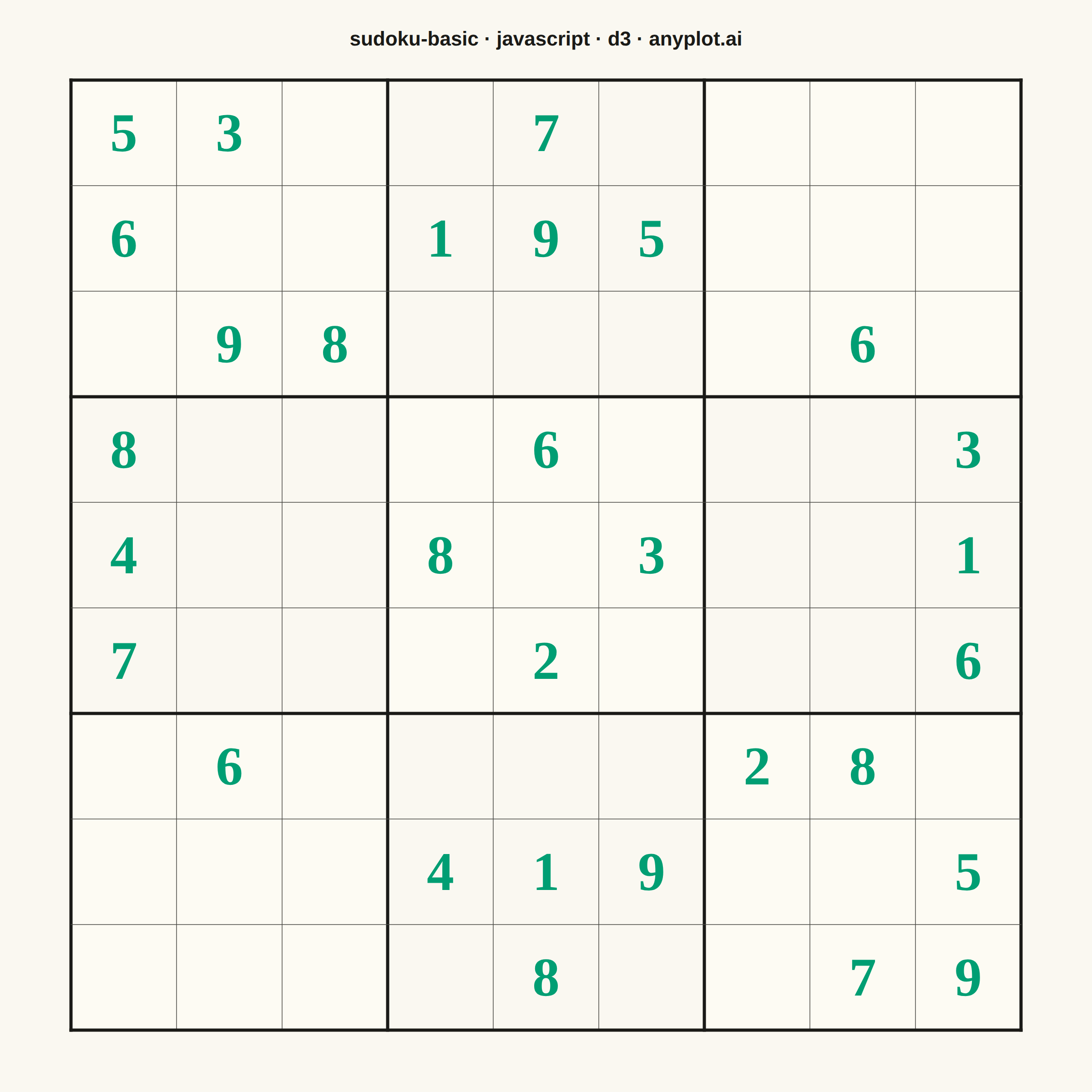

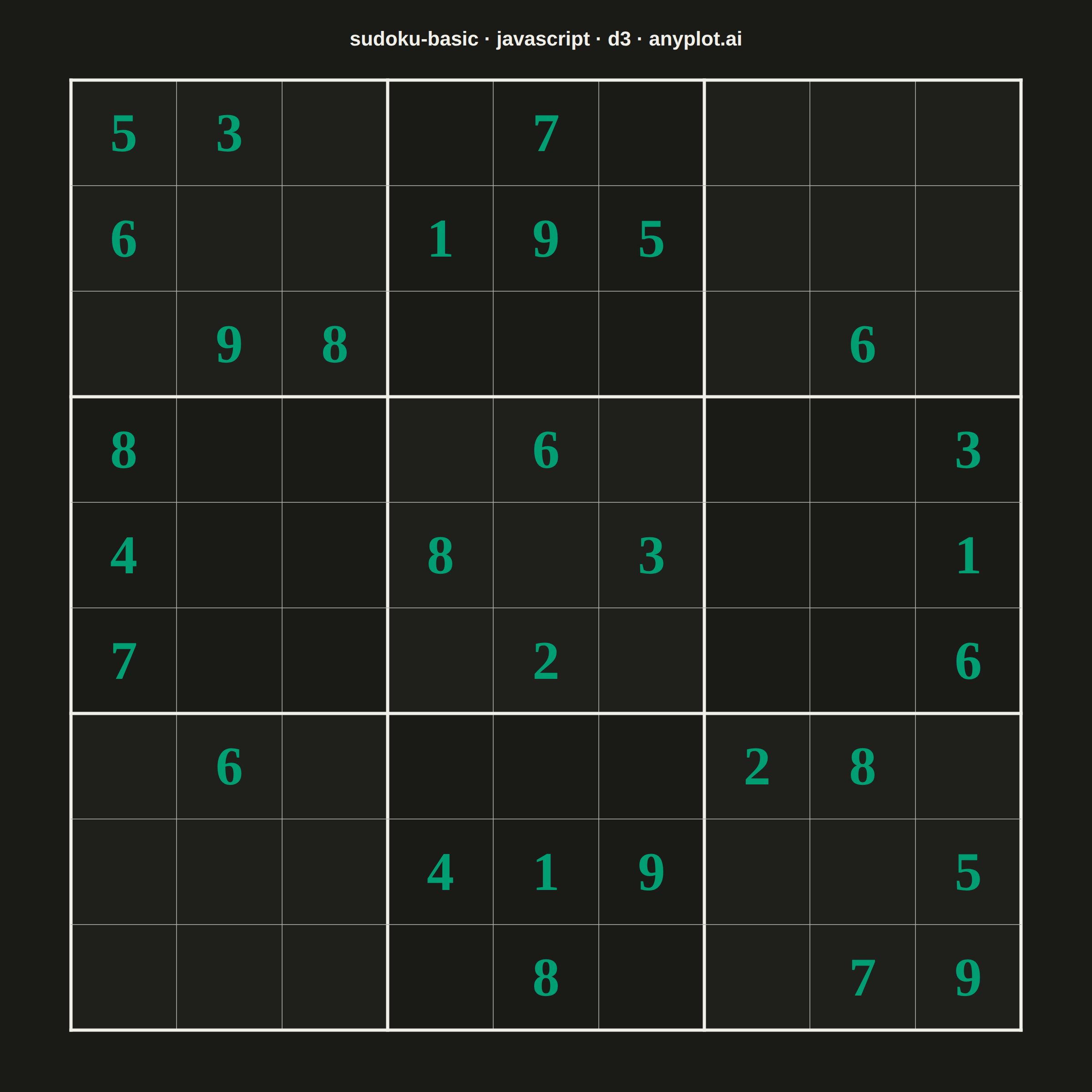

A standard 9×9 Sudoku grid with proper visual hierarchy showing 3×3 box regions. Thick lines separate the nine boxes while thin lines divide individual cells. The clean black-and-white design is optimized for printing and solving puzzles.

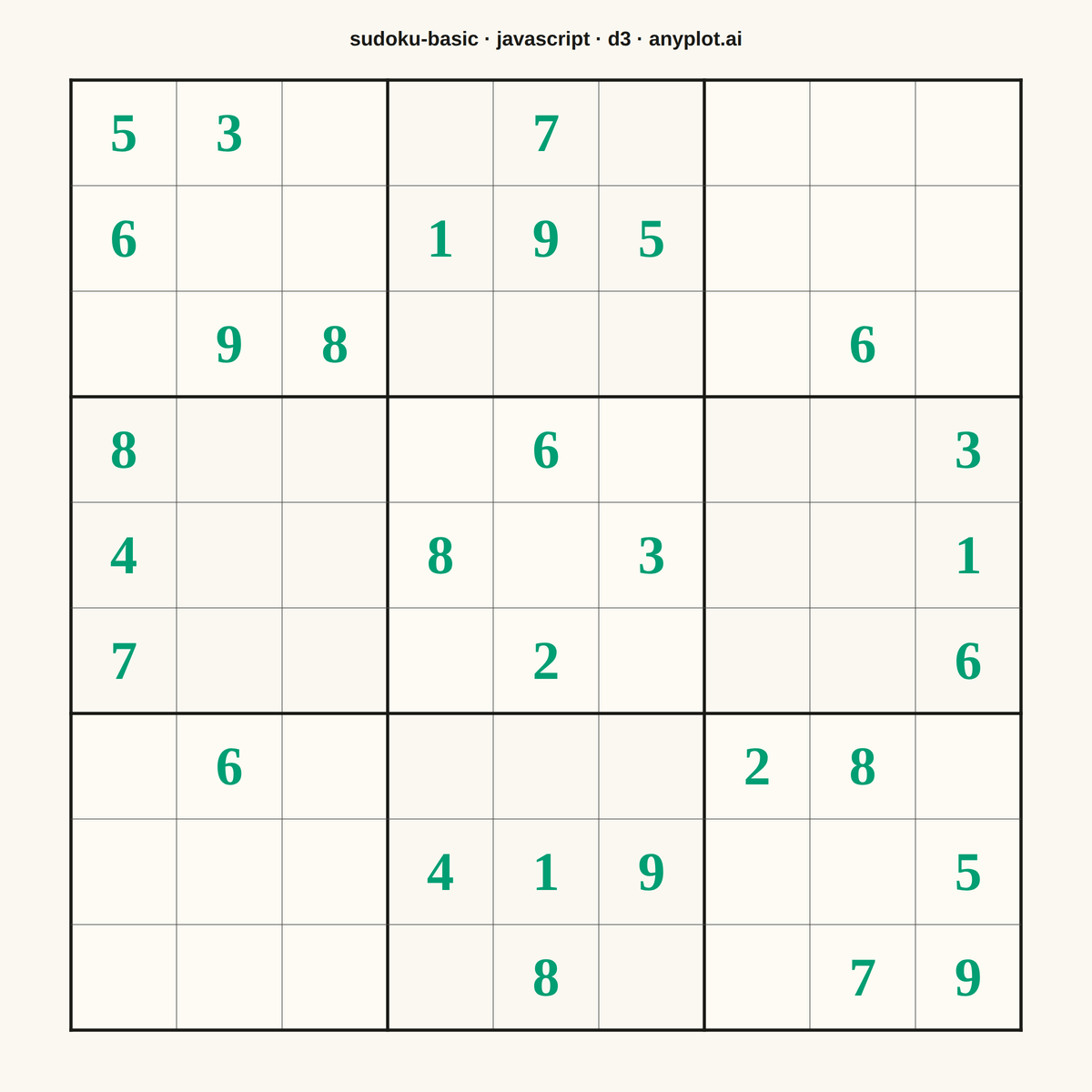

Basic Sudoku Grid rendered with D3.js

Renders

JavaScript source (D3.js)

// anyplot.ai
// sudoku-basic: Basic Sudoku Grid
// Library: d3 7.9.0 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-25

//# anyplot-orientation: square

const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;

// Classic sudoku puzzle
const grid = [
  [5, 3, 0, 0, 7, 0, 0, 0, 0],
  [6, 0, 0, 1, 9, 5, 0, 0, 0],
  [0, 9, 8, 0, 0, 0, 0, 6, 0],
  [8, 0, 0, 0, 6, 0, 0, 0, 3],
  [4, 0, 0, 8, 0, 3, 0, 0, 1],
  [7, 0, 0, 0, 2, 0, 0, 0, 6],
  [0, 6, 0, 0, 0, 0, 2, 8, 0],
  [0, 0, 0, 4, 1, 9, 0, 0, 5],
  [0, 0, 0, 0, 8, 0, 0, 7, 9],
];

// Layout: title area at top, centered grid below
const titleAreaH = 80;
const padSide = 75;
const padBottom = 60;
const availW = width - 2 * padSide;
const availH = height - titleAreaH - padBottom;
const cellSize = Math.floor(Math.min(availW, availH) / 9);
const gridSize = cellSize * 9;
const gridLeft = (width - gridSize) / 2;
const gridTop = titleAreaH + (availH - gridSize) / 2;

// SVG mount
const svg = d3.select("#container").append("svg")
  .attr("width", width).attr("height", height);

const g = svg.append("g").attr("transform", `translate(${gridLeft},${gridTop})`);

// Grid background
g.append("rect")
  .attr("width", gridSize).attr("height", gridSize)
  .attr("fill", t.pageBg);

// Alternating 3×3 box region fills — checkerboard subtle elevation
g.selectAll("rect.box")
  .data(d3.range(9).filter(i => ((i % 3) + Math.floor(i / 3)) % 2 === 0))
  .join("rect")
  .attr("class", "box")
  .attr("x", i => (i % 3) * cellSize * 3)
  .attr("y", i => Math.floor(i / 3) * cellSize * 3)
  .attr("width", cellSize * 3)
  .attr("height", cellSize * 3)
  .attr("fill", t.elevatedBg)
  .attr("opacity", 0.5);

// Vertical grid lines — D3 data-join over line indices
g.selectAll("line.v-line")
  .data(d3.range(10))
  .join("line")
  .attr("class", "v-line")
  .attr("x1", i => i * cellSize).attr("y1", 0)
  .attr("x2", i => i * cellSize).attr("y2", gridSize)
  .attr("stroke", i => i % 3 === 0 ? t.ink : t.inkSoft)
  .attr("stroke-width", i => i % 3 === 0 ? 3.5 : 0.75)
  .attr("stroke-linecap", "square");

// Horizontal grid lines — D3 data-join over line indices
g.selectAll("line.h-line")
  .data(d3.range(10))
  .join("line")
  .attr("class", "h-line")
  .attr("x1", 0).attr("y1", i => i * cellSize)
  .attr("x2", gridSize).attr("y2", i => i * cellSize)
  .attr("stroke", i => i % 3 === 0 ? t.ink : t.inkSoft)
  .attr("stroke-width", i => i % 3 === 0 ? 3.5 : 0.75)
  .attr("stroke-linecap", "square");

// Given numbers (clues) — D3 data-join over flat non-zero cells
const cells = grid.flatMap((row, ri) =>
  row.map((v, ci) => ({ v, ri, ci }))
).filter(d => d.v !== 0);

const fs = Math.round(cellSize * 0.52);
g.selectAll("text.cell-num")
  .data(cells)
  .join("text")
  .attr("class", "cell-num")
  .attr("x", d => d.ci * cellSize + cellSize / 2)
  .attr("y", d => d.ri * cellSize + cellSize / 2)
  .attr("text-anchor", "middle")
  .attr("dominant-baseline", "central")
  .attr("fill", t.palette[0])
  .style("font-size", `${fs}px`)
  .style("font-weight", "700")
  .style("font-family", "Georgia, 'Times New Roman', serif")
  .text(d => d.v);

// Title
const titleText = "sudoku-basic · javascript · d3 · anyplot.ai";
const n = titleText.length;
const titleSize = n > 67 ? Math.max(Math.round(22 * 67 / n), 14) : 22;

svg.append("text")
  .attr("x", width / 2).attr("y", titleAreaH * 0.55)
  .attr("text-anchor", "middle")
  .attr("dominant-baseline", "middle")
  .attr("fill", t.ink)
  .style("font-size", `${titleSize}px`)
  .style("font-weight", "600")
  .text(titleText);

Part of Basic Sudoku Grid on anyplot.ai.
