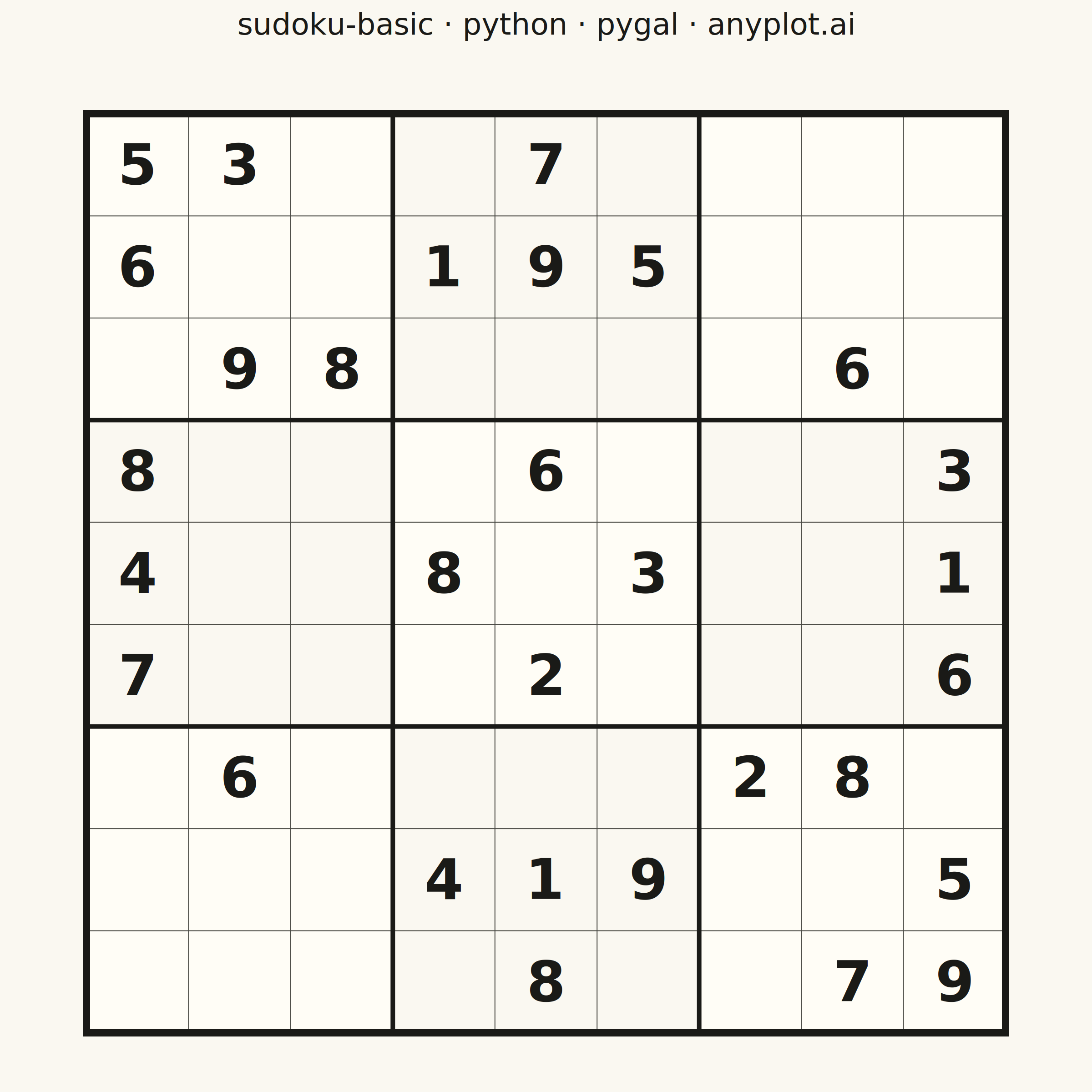

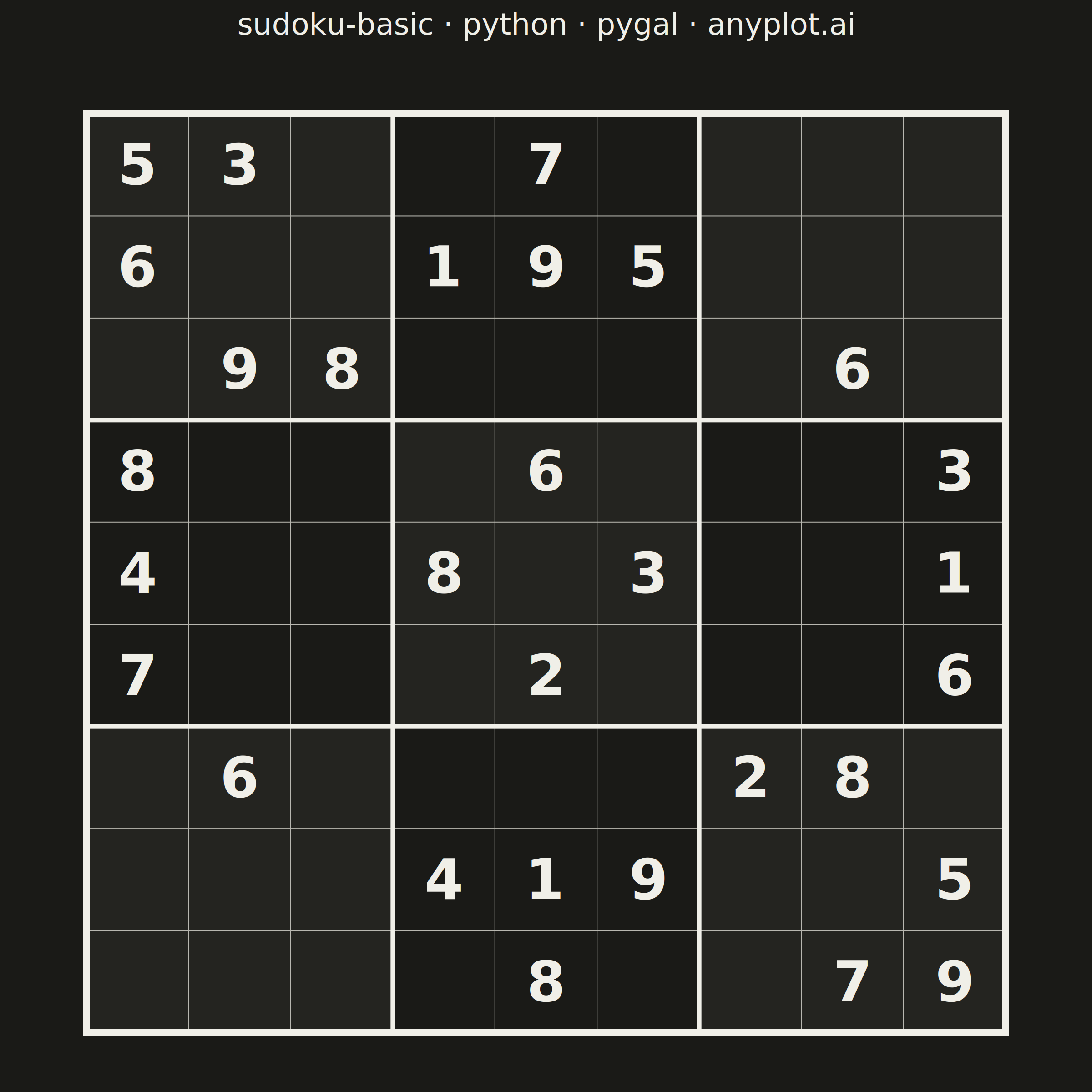

A standard 9×9 Sudoku grid with proper visual hierarchy showing 3×3 box regions. Thick lines separate the nine boxes while thin lines divide individual cells. The clean black-and-white design is optimized for printing and solving puzzles.
""" anyplot.ai
sudoku-basic: Basic Sudoku Grid
Library: pygal 3.1.3 | Python 3.13.14
Quality: 88/100 | Updated: 2026-06-25
"""
import os
import sys
import xml.etree.ElementTree as ET
# Drop script dir from sys.path so `import pygal` resolves to the library, not this file
sys.path[:] = [p for p in sys.path if p not in ("", ".", os.path.dirname(os.path.abspath(__file__)))]
import cairosvg
import pygal
from pygal.style import Style
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
# Data: classic Sudoku puzzle (0 = empty cell)
grid = [
[5, 3, 0, 0, 7, 0, 0, 0, 0],
[6, 0, 0, 1, 9, 5, 0, 0, 0],
[0, 9, 8, 0, 0, 0, 0, 6, 0],
[8, 0, 0, 0, 6, 0, 0, 0, 3],
[4, 0, 0, 8, 0, 3, 0, 0, 1],
[7, 0, 0, 0, 2, 0, 0, 0, 6],
[0, 6, 0, 0, 0, 0, 2, 8, 0],
[0, 0, 0, 4, 1, 9, 0, 0, 5],
[0, 0, 0, 0, 8, 0, 0, 7, 9],
]
# Title with required language token; 42 chars < 67-char baseline → font stays at default 66
title = "sudoku-basic · python · pygal · anyplot.ai"
title_font_size = 66
custom_style = Style(
background=PAGE_BG,
plot_background=PAGE_BG,
foreground=INK,
foreground_strong=INK,
foreground_subtle=INK_MUTED,
colors=(INK,), # monochrome — spec requires clean black-and-white design
title_font_size=title_font_size,
label_font_size=56,
major_label_font_size=44,
legend_font_size=44,
value_font_size=36,
font_family="DejaVu Sans, Arial, sans-serif",
)
# Square canvas — canonical 2400×2400 for symmetric grid layouts
CANVAS = 2400
chart = pygal.Bar(
width=CANVAS,
height=CANVAS,
style=custom_style,
title=title,
show_legend=False,
show_x_labels=False,
show_y_labels=False,
show_x_guides=False,
show_y_guides=False,
margin=50,
margin_top=150,
no_data_text="",
)
# No data added — pygal renders title + background; render_tree() gives us the SVG to extend
svg_root = chart.render_tree()
# Clear any pygal plot/overlay groups (no-data placeholder, empty chart frame)
SVG_NS = "{http://www.w3.org/2000/svg}"
for plot_group in list(svg_root.iter(f"{SVG_NS}g")):
cls = plot_group.attrib.get("class", "")
if cls.startswith("plot"):
plot_group.clear()
plot_group.set("class", cls)
# Sudoku geometry — centered below the title with generous margins
TOP = 230
BOTTOM = 110
SIDE = 190
GRID_SIZE = min(CANVAS - 2 * SIDE, CANVAS - TOP - BOTTOM)
CELL = GRID_SIZE / 9
GRID_X = (CANVAS - GRID_SIZE) / 2
GRID_Y = TOP + (CANVAS - TOP - BOTTOM - GRID_SIZE) / 2
sudoku = ET.SubElement(svg_root, "g", {"class": "sudoku"})
# Base grid background
ET.SubElement(
sudoku,
"rect",
{"x": str(GRID_X), "y": str(GRID_Y), "width": str(GRID_SIZE), "height": str(GRID_SIZE), "fill": PAGE_BG},
)
# Alternating 3×3 box fills — checkerboard elevation reinforces regional grouping (DE-03)
for box_row in range(3):
for box_col in range(3):
if (box_row + box_col) % 2 == 0:
bx = GRID_X + box_col * CELL * 3
by = GRID_Y + box_row * CELL * 3
ET.SubElement(
sudoku,
"rect",
{"x": str(bx), "y": str(by), "width": str(CELL * 3), "height": str(CELL * 3), "fill": ELEVATED_BG},
)
# Thin lines — individual cell boundaries (skip 3×3 box positions)
for i in range(1, 9):
if i % 3 == 0:
continue
x = GRID_X + i * CELL
y = GRID_Y + i * CELL
ET.SubElement(
sudoku,
"line",
{
"x1": str(x),
"y1": str(GRID_Y),
"x2": str(x),
"y2": str(GRID_Y + GRID_SIZE),
"stroke": INK_SOFT,
"stroke-width": "2",
},
)
ET.SubElement(
sudoku,
"line",
{
"x1": str(GRID_X),
"y1": str(y),
"x2": str(GRID_X + GRID_SIZE),
"y2": str(y),
"stroke": INK_SOFT,
"stroke-width": "2",
},
)
# Medium lines — internal 3×3 box dividers (10px)
for i in [3, 6]:
x = GRID_X + i * CELL
y = GRID_Y + i * CELL
ET.SubElement(
sudoku,
"line",
{
"x1": str(x),
"y1": str(GRID_Y),
"x2": str(x),
"y2": str(GRID_Y + GRID_SIZE),
"stroke": INK,
"stroke-width": "10",
"stroke-linecap": "square",
},
)
ET.SubElement(
sudoku,
"line",
{
"x1": str(GRID_X),
"y1": str(y),
"x2": str(GRID_X + GRID_SIZE),
"y2": str(y),
"stroke": INK,
"stroke-width": "10",
"stroke-linecap": "square",
},
)
# Heavy outer border (16px) — three-level weight hierarchy: cell(2) / box(10) / border(16)
ET.SubElement(
sudoku,
"rect",
{
"x": str(GRID_X),
"y": str(GRID_Y),
"width": str(GRID_SIZE),
"height": str(GRID_SIZE),
"fill": "none",
"stroke": INK,
"stroke-width": "16",
},
)
# Numbers — monochrome ink, bold, centered within cells (dominant-baseline for precise alignment)
font_size = int(CELL * 0.55)
for row in range(9):
for col in range(9):
value = grid[row][col]
if value == 0:
continue
cx = GRID_X + col * CELL + CELL / 2
cy = GRID_Y + row * CELL + CELL / 2
text_node = ET.SubElement(
sudoku,
"text",
{
"x": str(cx),
"y": str(cy),
"text-anchor": "middle",
"dominant-baseline": "central",
"fill": INK,
"style": f"font-size:{font_size}px;font-weight:bold;font-family:DejaVu Sans,Arial,sans-serif;",
},
)
text_node.text = str(value)
# Save
svg_bytes = ET.tostring(svg_root, xml_declaration=True, encoding="utf-8")
cairosvg.svg2png(bytestring=svg_bytes, write_to=f"plot-{THEME}.png", output_width=CANVAS, output_height=CANVAS)
html_page = (
f'<!DOCTYPE html><html><head><meta charset="utf-8">'
f"<title>sudoku-basic · python · pygal · anyplot.ai</title></head>"
f'<body style="margin:0;background:{PAGE_BG};display:flex;'
f'justify-content:center;align-items:center;min-height:100vh;">'
f"{svg_bytes.decode('utf-8')}"
f"</body></html>"
)
with open(f"plot-{THEME}.html", "w", encoding="utf-8") as f:
f.write(html_page)
Part of Basic Sudoku Grid on anyplot.ai.
