A time series decomposition plot displays a time series broken down into its constituent components: the original series, trend, seasonal pattern, and residual noise. Each component is shown as a separate subplot stacked vertically, sharing a common time axis. This visualization is essential for understanding the underlying structure of time series data and identifying patterns that may not be visible in the raw series.

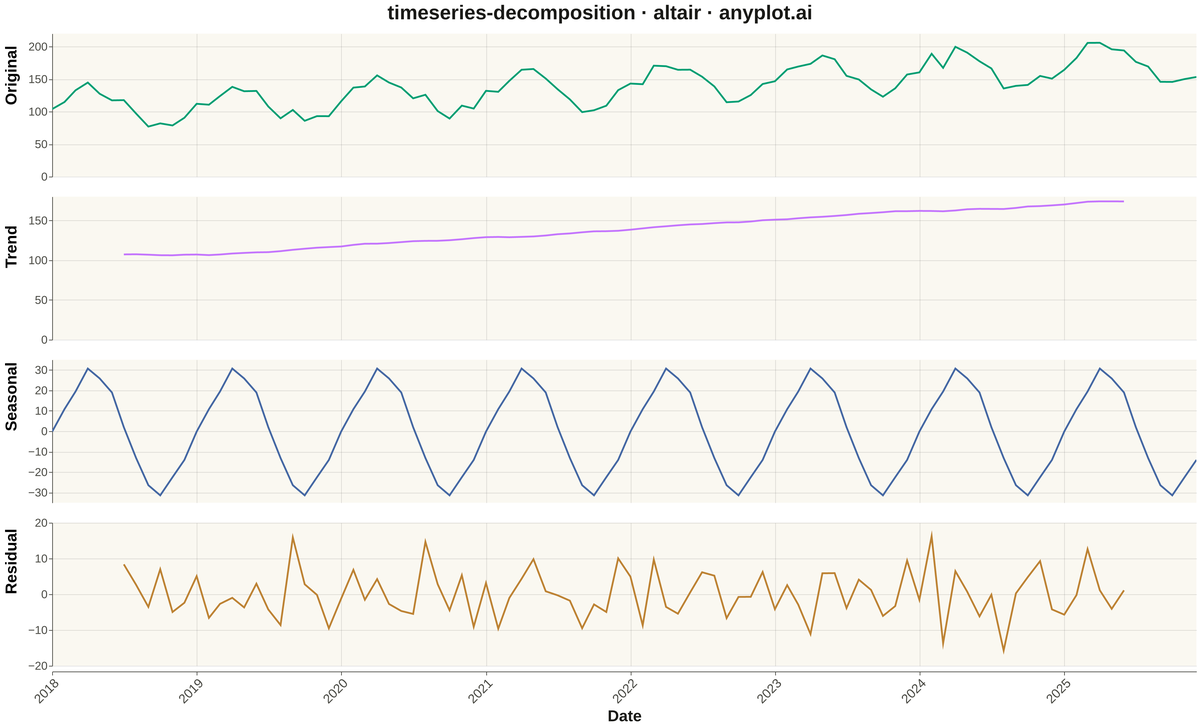

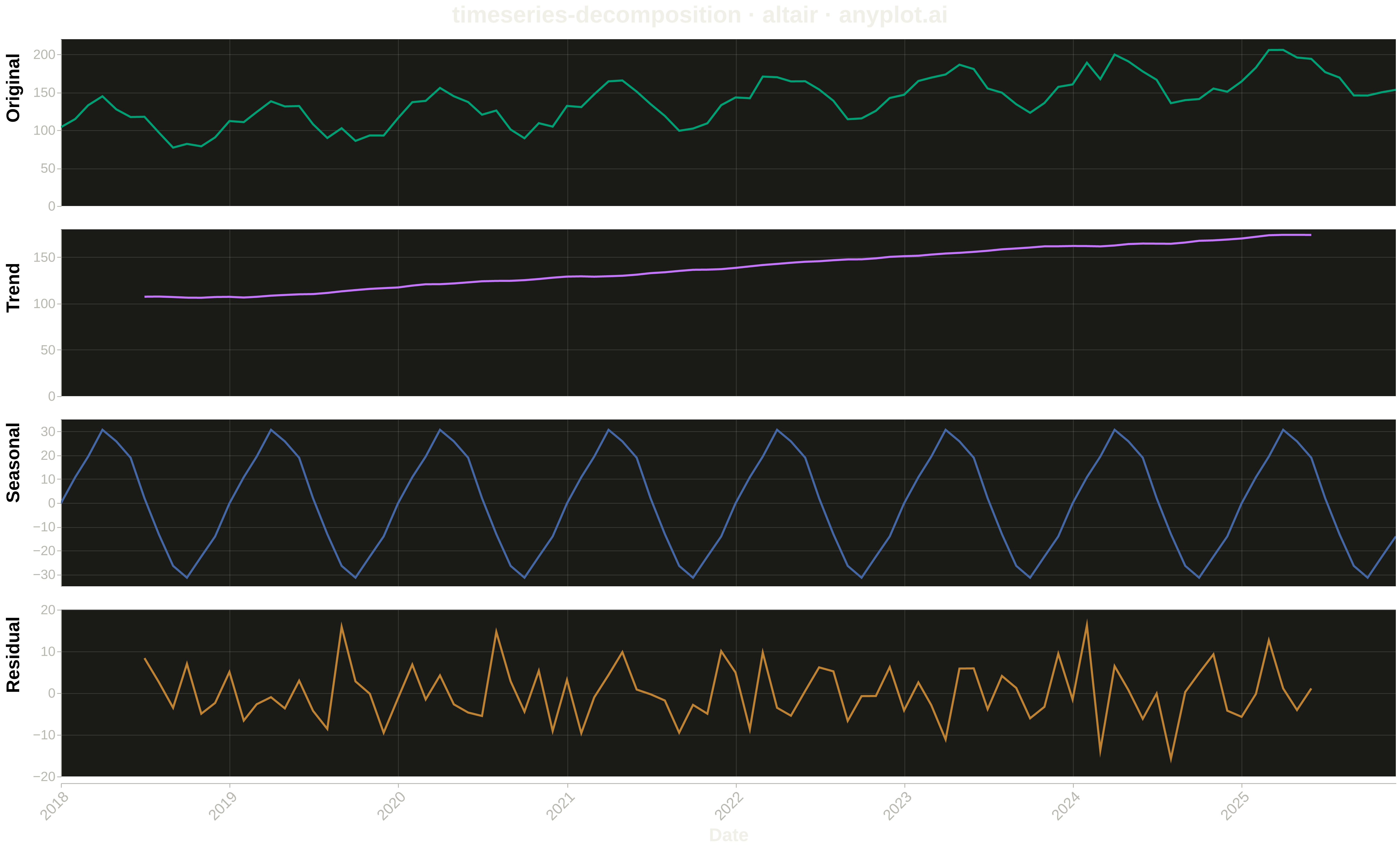

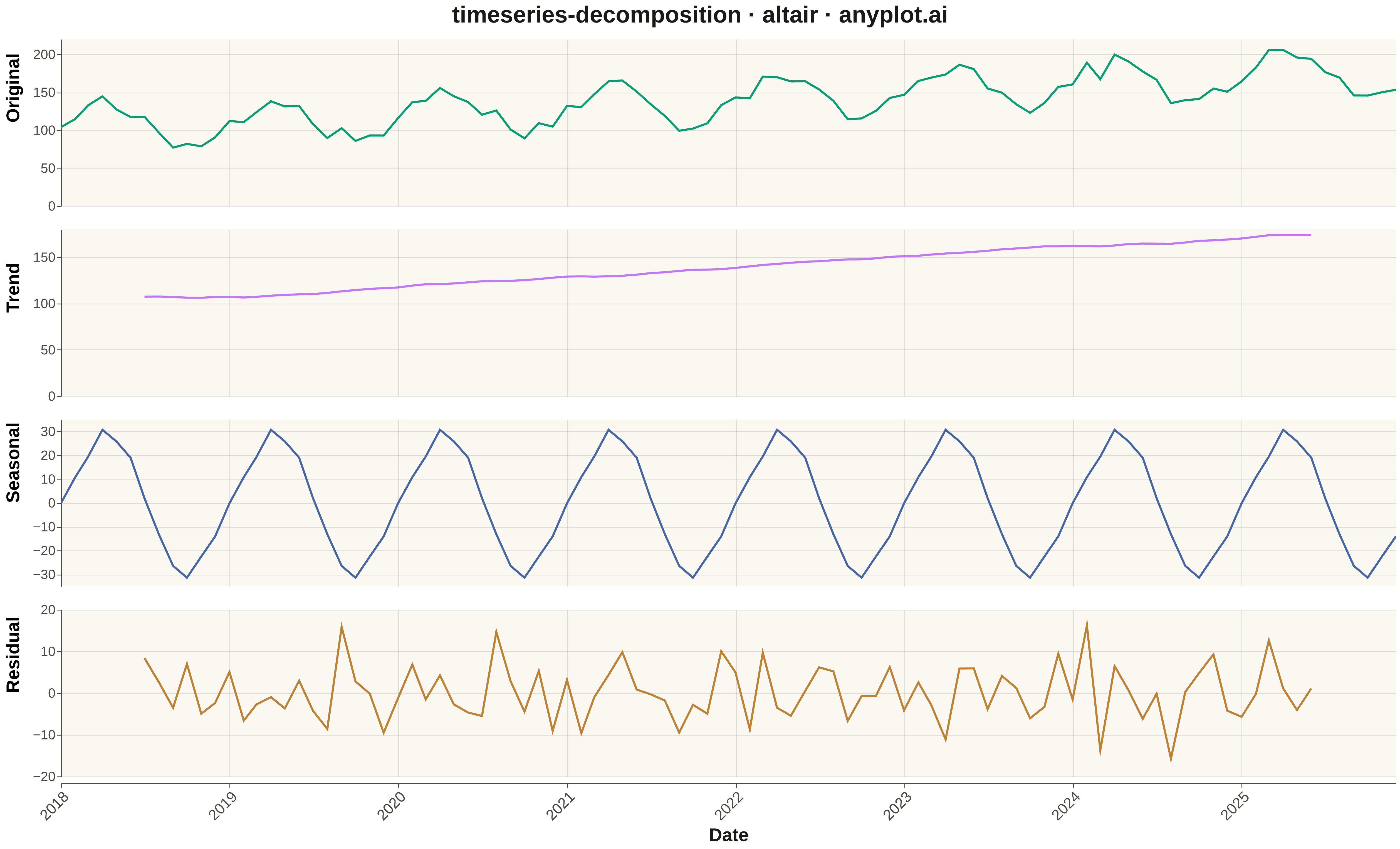

Time Series Decomposition Plot rendered with Altair

Python source (Altair)

""" anyplot.ai
timeseries-decomposition: Time Series Decomposition Plot
Library: altair 6.1.0 | Python 3.13.13
Quality: 89/100 | Updated: 2026-05-14
"""

import os
import sys


# Fix sys.path to avoid circular import: remove current dir and script location
_script_dir = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if os.path.abspath(p) != _script_dir and os.path.abspath(p) != os.getcwd()]
sys.path.insert(0, "/usr/lib/python3.13")
sys.path.insert(0, "/usr/local/lib/python3.13/dist-packages")

import altair as alt
import numpy as np
import pandas as pd
from statsmodels.tsa.seasonal import seasonal_decompose


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (component colors)
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

# Data - Monthly airline passengers
np.random.seed(42)
dates = pd.date_range("2018-01-01", periods=96, freq="MS")
trend = np.linspace(100, 180, 96)
seasonal = 30 * np.sin(2 * np.pi * np.arange(96) / 12)
noise = np.random.normal(0, 8, 96)
values = trend + seasonal + noise

# Decompose time series
series = pd.Series(values, index=dates)
decomposition = seasonal_decompose(series, model="additive", period=12)

# Create dataframe with all components
df_decomp = pd.DataFrame(
    {
        "date": dates,
        "Original": values,
        "Trend": decomposition.trend,
        "Seasonal": decomposition.seasonal,
        "Residual": decomposition.resid,
    }
)

# Melt for faceted plotting
df_long = df_decomp.melt(id_vars=["date"], var_name="component", value_name="value")

# Component order
component_order = ["Original", "Trend", "Seasonal", "Residual"]

# Color mapping using Okabe-Ito palette
color_map = {component: IMPRINT[i] for i, component in enumerate(component_order)}

# Base chart with encoding
base_chart = (
    alt.Chart(df_long)
    .mark_line(strokeWidth=2.5)
    .encode(
        x=alt.X(
            "date:T", title="Date", axis=alt.Axis(labelFontSize=18, titleFontSize=22, labelAngle=-45, tickCount=12)
        ),
        y=alt.Y("value:Q", title="", axis=alt.Axis(labelFontSize=16, titleFontSize=18)),
        color=alt.Color(
            "component:N", scale=alt.Scale(domain=component_order, range=list(color_map.values())), legend=None
        ),
        tooltip=["date:T", "value:Q", "component:N"],
    )
)

# Create faceted chart with grid lines
chart = (
    base_chart.properties(width=1600, height=200)
    .facet(
        row=alt.Row(
            "component:N",
            sort=component_order,
            title=None,
            header=alt.Header(
                labelFontSize=22, labelFontWeight="bold", labelOrient="left", labelAlign="left", labelPadding=10
            ),
        )
    )
    .properties(title=alt.Title("timeseries-decomposition · altair · anyplot.ai", fontSize=28, anchor="middle", dy=-10))
    .configure_view(strokeWidth=0, fill=PAGE_BG)
    .configure_facet(spacing=20)
    .configure_axis(
        domainColor=INK_SOFT, tickColor=INK_SOFT, gridColor=INK, gridOpacity=0.12, labelColor=INK_SOFT, titleColor=INK
    )
    .configure_title(color=INK, fontSize=28)
    .configure_legend(fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK)
    .resolve_scale(y="independent")
    .interactive()
)

# Save
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")
