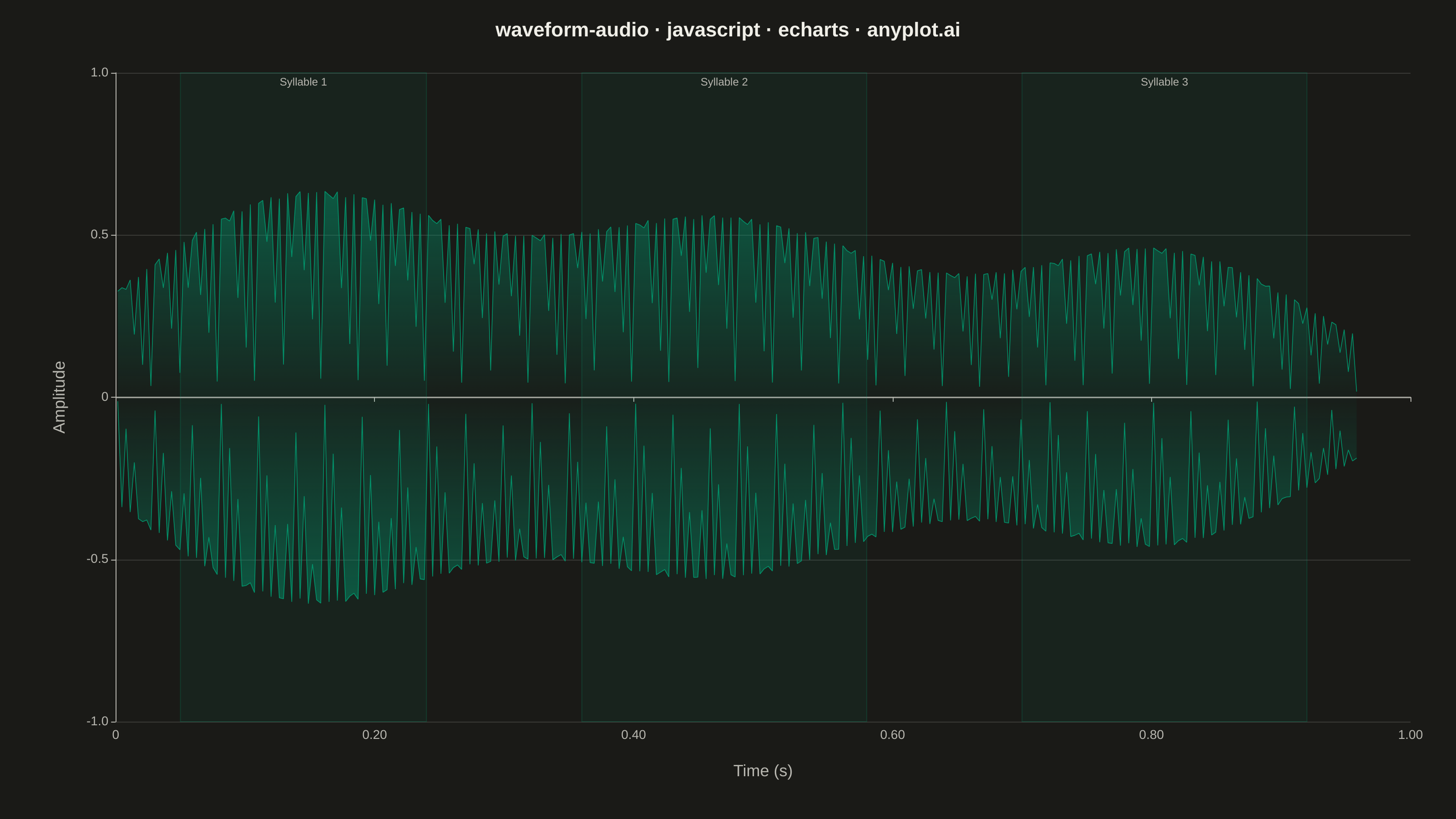

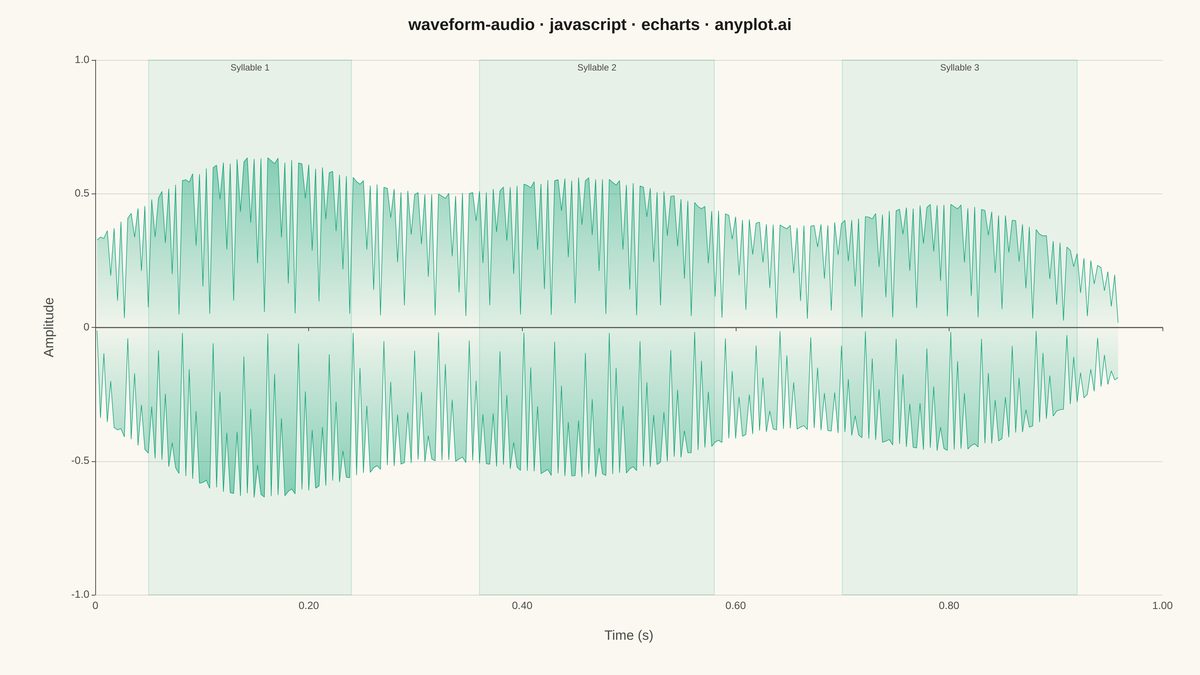

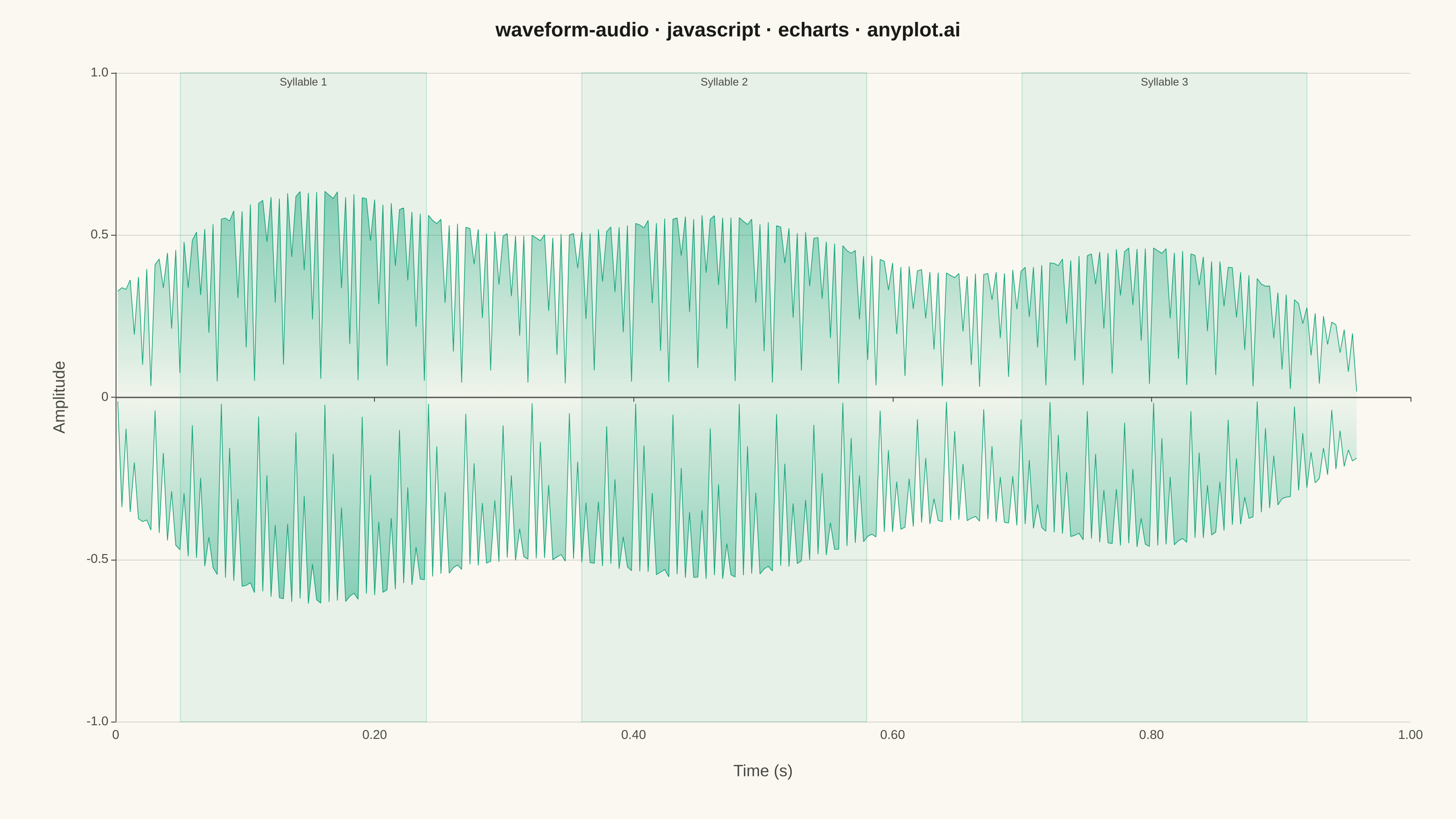

A time-domain visualization of audio amplitude that displays the raw waveform shape as seen in digital audio workstations (DAWs). The plot shows positive and negative amplitude symmetrically around a zero baseline, with time on the x-axis and normalized amplitude (-1 to +1) on the y-axis. This is the fundamental representation for inspecting audio signals, revealing dynamics, clipping, silence, and transient characteristics at a glance.
// anyplot.ai
// waveform-audio: Audio Waveform Plot
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 92/100 | Created: 2026-06-03
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// Inline RGB components for gradient stops (palette[0] = #009E73)
const waveColor = t.palette[0];
const wR = parseInt(waveColor.slice(1, 3), 16);
const wG = parseInt(waveColor.slice(3, 5), 16);
const wB = parseInt(waveColor.slice(5, 7), 16);
// Synthetic speech-like waveform: 5000 samples over 1 second
const N = 5000;
const duration = 1.0;
const rawData = [];
for (let i = 0; i < N; i++) {
const time = (i / N) * duration;
// Three Gaussian syllabic envelopes at 0.14 s, 0.47 s, 0.81 s
const env1 = Math.exp(-32 * Math.pow(time - 0.14, 2));
const env2 = Math.exp(-28 * Math.pow(time - 0.47, 2));
const env3 = Math.exp(-38 * Math.pow(time - 0.81, 2));
const envelope = (env1 + 0.88 * env2 + 0.72 * env3) * 0.85;
// 175 Hz fundamental with four harmonics
const f0 = 175;
const carrier =
0.48 * Math.sin(2 * Math.PI * f0 * time) +
0.26 * Math.sin(2 * Math.PI * 2 * f0 * time) +
0.14 * Math.sin(2 * Math.PI * 3 * f0 * time) +
0.09 * Math.sin(2 * Math.PI * 4 * f0 * time) +
0.03 * Math.sin(2 * Math.PI * 5 * f0 * time);
rawData.push(Math.max(-1, Math.min(1, carrier * envelope)));
}
// Downsample to 300-bin min/max envelope to avoid aliasing
const BINS = 300;
const binSize = Math.floor(N / BINS);
const maxEnv = [], minEnv = [];
for (let b = 0; b < BINS; b++) {
const start = b * binSize;
const end = Math.min(start + binSize, N);
const tCenter = ((start + end) / 2 / N) * duration;
let bMax = -Infinity, bMin = Infinity;
for (let k = start; k < end; k++) {
if (rawData[k] > bMax) bMax = rawData[k];
if (rawData[k] < bMin) bMin = rawData[k];
}
maxEnv.push([tCenter, bMax]);
minEnv.push([tCenter, bMin]);
}
const chart = echarts.init(document.getElementById("container"));
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: "waveform-audio · javascript · echarts · anyplot.ai",
left: "center",
top: 18,
textStyle: { color: t.ink, fontSize: 22, fontWeight: "bold" }
},
grid: { left: 95, right: 50, top: 80, bottom: 85, containLabel: true },
xAxis: {
type: "value",
name: "Time (s)",
nameLocation: "middle",
nameGap: 46,
nameTextStyle: { color: t.inkSoft, fontSize: 18 },
axisLabel: {
color: t.inkSoft,
fontSize: 14,
formatter: (v) => (v === 0 ? "0" : v.toFixed(2))
},
axisLine: { show: true, lineStyle: { color: t.inkSoft } },
axisTick: { lineStyle: { color: t.inkSoft } },
splitLine: { show: false },
min: 0,
max: 1.0
},
yAxis: {
type: "value",
name: "Amplitude",
nameLocation: "middle",
nameGap: 52,
nameTextStyle: { color: t.inkSoft, fontSize: 18 },
axisLabel: {
color: t.inkSoft,
fontSize: 14,
formatter: (v) => (v === 0 ? "0" : v.toFixed(1))
},
axisLine: { show: true, lineStyle: { color: t.inkSoft } },
axisTick: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
min: -1.0,
max: 1.0
},
series: [
{
// Upper envelope: max amplitude per bin
type: "line",
data: maxEnv,
symbol: "none",
smooth: false,
lineStyle: { color: waveColor, width: 0.8, opacity: 0.9 },
areaStyle: {
origin: 0,
color: {
type: "linear",
x: 0, y: 0, x2: 0, y2: 1,
colorStops: [
{ offset: 0, color: `rgba(${wR},${wG},${wB},0.62)` },
{ offset: 1, color: `rgba(${wR},${wG},${wB},0.05)` }
]
}
},
markLine: {
silent: true,
data: [{ yAxis: 0 }],
lineStyle: { color: t.inkSoft, width: 1.5, type: "solid", opacity: 0.5 },
label: { show: false },
symbol: ["none", "none"]
},
markArea: {
silent: true,
label: {
show: true,
position: "insideTop",
color: t.inkSoft,
fontSize: 12
},
itemStyle: {
color: `rgba(${wR},${wG},${wB},0.07)`,
borderColor: `rgba(${wR},${wG},${wB},0.22)`,
borderWidth: 1
},
data: [
[{ name: "Syllable 1", xAxis: 0.05 }, { xAxis: 0.24 }],
[{ name: "Syllable 2", xAxis: 0.36 }, { xAxis: 0.58 }],
[{ name: "Syllable 3", xAxis: 0.70 }, { xAxis: 0.92 }]
]
}
},
{
// Lower envelope: min amplitude per bin
type: "line",
data: minEnv,
symbol: "none",
smooth: false,
lineStyle: { color: waveColor, width: 0.8, opacity: 0.9 },
areaStyle: {
origin: 0,
color: {
type: "linear",
x: 0, y: 0, x2: 0, y2: 1,
colorStops: [
{ offset: 0, color: `rgba(${wR},${wG},${wB},0.05)` },
{ offset: 1, color: `rgba(${wR},${wG},${wB},0.62)` }
]
}
}
}
]
});
