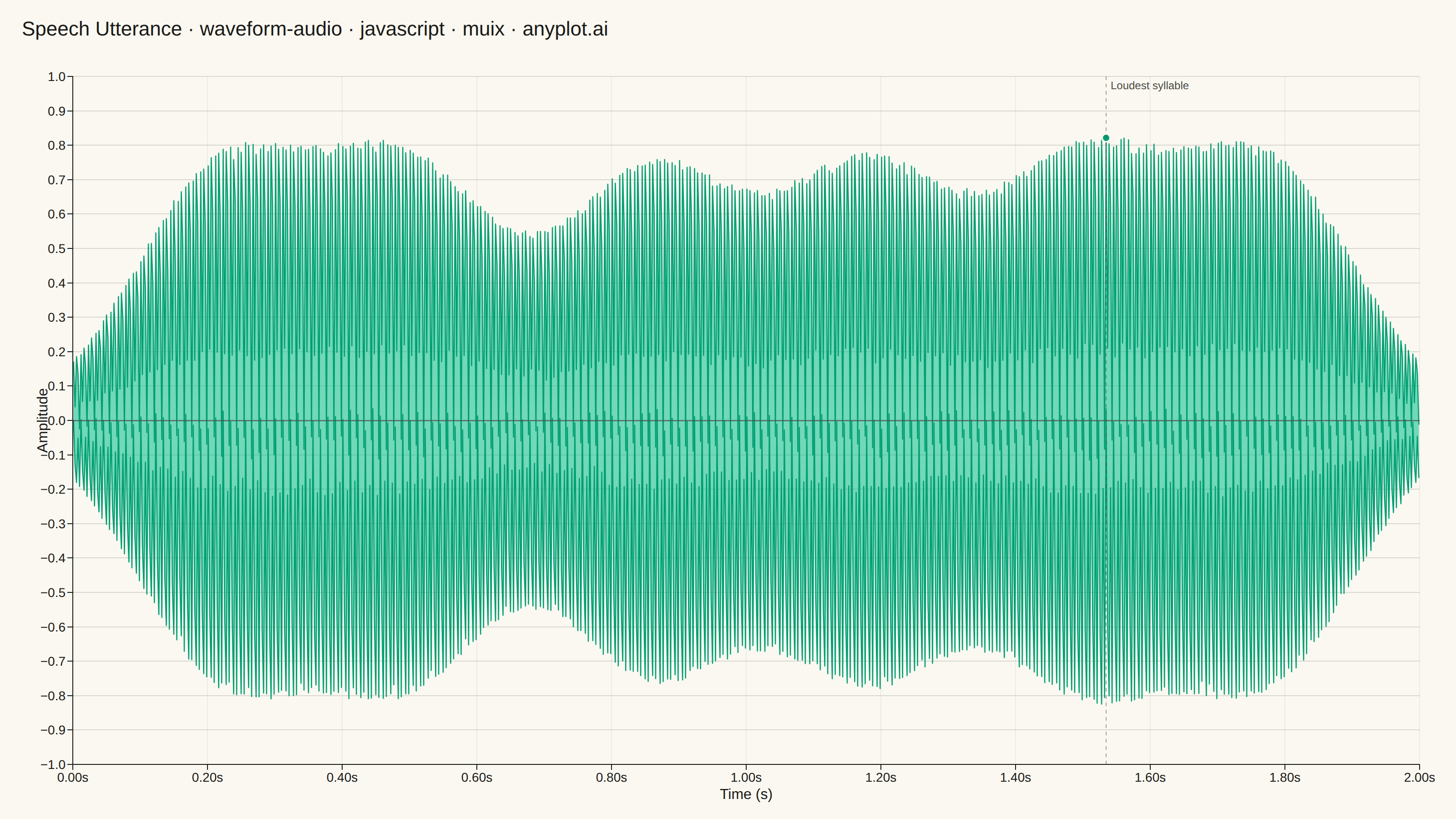

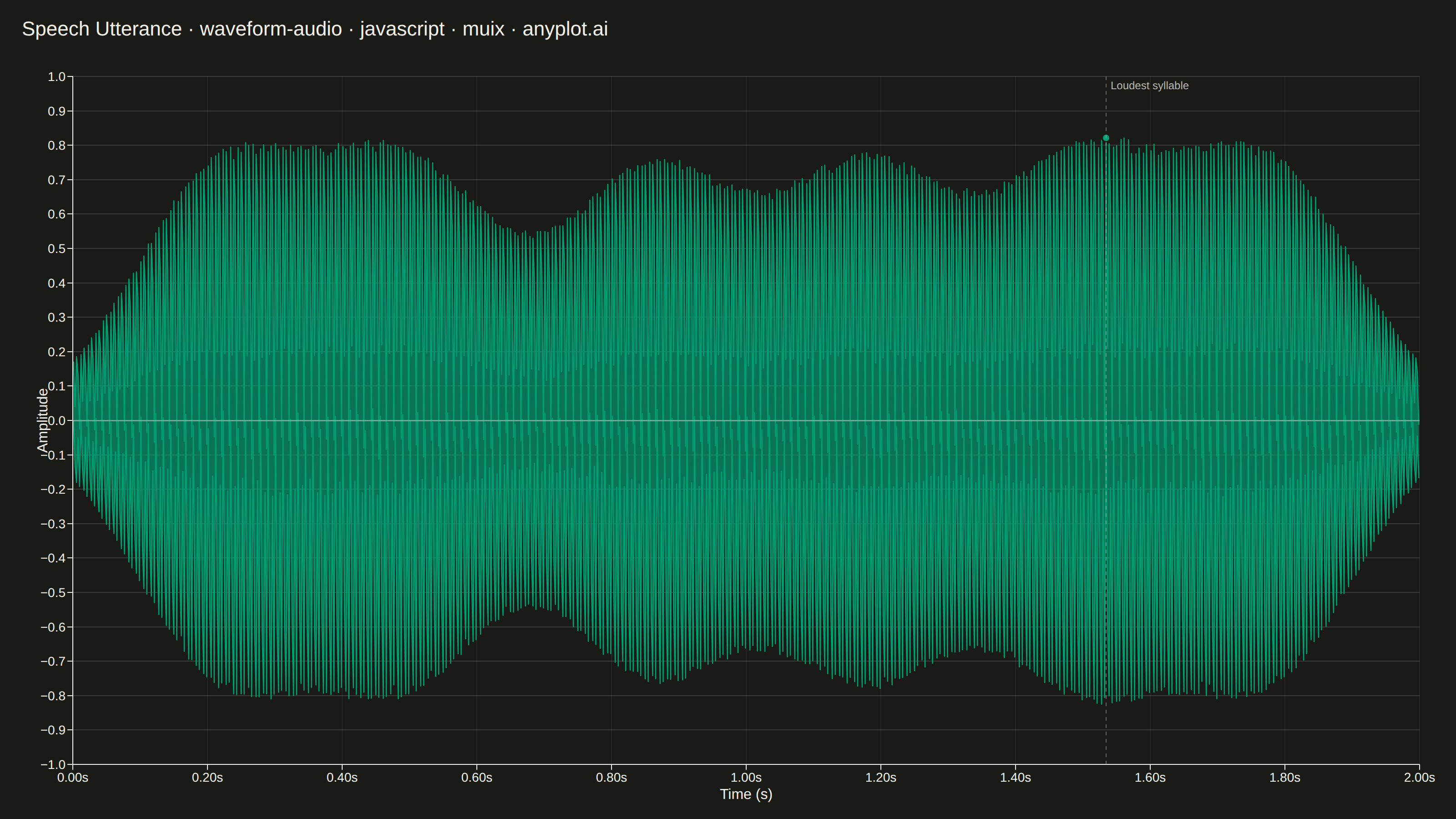

A time-domain visualization of audio amplitude that displays the raw waveform shape as seen in digital audio workstations (DAWs). The plot shows positive and negative amplitude symmetrically around a zero baseline, with time on the x-axis and normalized amplitude (-1 to +1) on the y-axis. This is the fundamental representation for inspecting audio signals, revealing dynamics, clipping, silence, and transient characteristics at a glance.
// anyplot.ai
// waveform-audio: Audio Waveform Plot
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-08-24
import { LineChart } from "@mui/x-charts/LineChart";
import { ChartsReferenceLine } from "@mui/x-charts/ChartsReferenceLine";
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Simulated spoken utterance: a fundamental tone plus two harmonics, shaped by
// a handful of overlapping syllable envelopes and a touch of breath noise.
let lcgState = 42;
const nextRandom = () => {
lcgState = (lcgState * 1103515245 + 12345) % 2147483648;
return lcgState / 2147483648;
};
const sampleRateHz = 22050;
const durationSeconds = 2.0;
const sampleCount = Math.round(sampleRateHz * durationSeconds);
const fundamentalHz = 180;
const syllableCenters = [0.22, 0.5, 0.86, 1.18, 1.5, 1.78];
const syllableWidth = 0.13;
const envelopeAt = (time) =>
syllableCenters.reduce((sum, center) => {
const offset = (time - center) / syllableWidth;
return sum + Math.exp(-0.5 * offset * offset);
}, 0);
let peakEnvelope = 0;
for (let i = 0; i < sampleCount; i += 1) {
peakEnvelope = Math.max(peakEnvelope, envelopeAt(i / sampleRateHz));
}
const rawSamples = new Float64Array(sampleCount);
for (let i = 0; i < sampleCount; i += 1) {
const time = i / sampleRateHz;
const envelope = envelopeAt(time) / peakEnvelope;
const tone =
Math.sin(2 * Math.PI * fundamentalHz * time) +
0.5 * Math.sin(2 * Math.PI * fundamentalHz * 2 * time) +
0.25 * Math.sin(2 * Math.PI * fundamentalHz * 3 * time);
const breath = (nextRandom() - 0.5) * 0.07 * envelope;
rawSamples[i] = envelope * (tone / 1.75) + breath;
}
// Min/max envelope downsampling — the standard DAW technique for rendering
// tens of thousands of samples without aliasing at a fixed pixel width.
const bucketCount = 900;
const bucketSize = Math.ceil(sampleCount / bucketCount);
const bucketTimes = [];
const upperEnvelope = [];
const lowerEnvelope = [];
for (let start = 0; start < sampleCount; start += bucketSize) {
const end = Math.min(start + bucketSize, sampleCount);
let bucketMax = -1;
let bucketMin = 1;
for (let i = start; i < end; i += 1) {
const value = rawSamples[i];
if (value > bucketMax) bucketMax = value;
if (value < bucketMin) bucketMin = value;
}
bucketTimes.push((start + end) / 2 / sampleRateHz);
upperEnvelope.push(bucketMax);
lowerEnvelope.push(bucketMin);
}
// Locate the loudest syllable (tallest envelope bucket) to call it out visually.
let peakIndex = 0;
for (let i = 1; i < upperEnvelope.length; i += 1) {
if (upperEnvelope[i] > upperEnvelope[peakIndex]) peakIndex = i;
}
const peakTime = bucketTimes[peakIndex];
const title = "Speech Utterance · waveform-audio · javascript · muix · anyplot.ai";
const titleHeight = 64;
// --- Chart (default-exported component — the harness mounts it) -----------
export default function Chart() {
return (
<div
style={{
width: window.ANYPLOT_SIZE.width,
height: window.ANYPLOT_SIZE.height,
display: "flex",
flexDirection: "column",
}}
>
<div
style={{
height: titleHeight,
display: "flex",
alignItems: "center",
paddingLeft: 24,
fontSize: 22,
fontWeight: 500,
color: t.ink,
fontFamily: "Roboto, Helvetica, Arial, sans-serif",
}}
>
{title}
</div>
<LineChart
width={window.ANYPLOT_SIZE.width}
height={window.ANYPLOT_SIZE.height - titleHeight}
skipAnimation
margin={{ top: 20, right: 40, bottom: 60, left: 80 }}
grid={{ horizontal: true, vertical: true }}
xAxis={[
{
data: bucketTimes,
scaleType: "linear",
label: "Time (s)",
valueFormatter: (value) => `${value.toFixed(2)}s`,
tickNumber: 10,
tickLabelStyle: { fontSize: 14 },
labelStyle: { fontSize: 16 },
},
]}
yAxis={[
{
min: -1,
max: 1,
label: "Amplitude",
tickLabelStyle: { fontSize: 14 },
labelStyle: { fontSize: 16 },
},
]}
series={[
{
id: "upper-envelope",
data: upperEnvelope,
area: true,
showMark: ({ index }) => index === peakIndex,
curve: "linear",
color: t.palette[0],
label: "Amplitude",
},
{
id: "lower-envelope",
data: lowerEnvelope,
area: true,
showMark: false,
curve: "linear",
color: t.palette[0],
},
]}
slotProps={{ legend: { hidden: true } }}
sx={{
"& .MuiAreaElement-root": { fillOpacity: 0.55 },
"& .MuiLineElement-root": { strokeWidth: 1.25 },
"& .MuiChartsGrid-horizontalLine": { stroke: t.grid },
"& .MuiChartsGrid-verticalLine": { stroke: t.grid, opacity: 0.4 },
"& .MuiMarkElement-root": {
fill: t.palette[0],
stroke: t.pageBg,
strokeWidth: 2,
},
}}
>
<ChartsReferenceLine
y={0}
lineStyle={{ stroke: t.inkSoft, strokeWidth: 1.5, opacity: 0.6 }}
/>
<ChartsReferenceLine
x={peakTime}
label="Loudest syllable"
labelAlign="start"
labelStyle={{ fontSize: 12, fill: t.inkSoft }}
lineStyle={{ stroke: t.inkSoft, strokeWidth: 1, strokeDasharray: "4 4", opacity: 0.5 }}
/>
</LineChart>
</div>
);
}
Part of Audio Waveform Plot on anyplot.ai.
