Basic Arc Diagram — Makie.jl

An arc diagram arranges nodes along a single horizontal line and draws connections between them as curved arcs above the line. This layout excels at revealing patterns in sequential or ordered data while minimizing visual clutter compared to force-directed layouts. Arc height typically indicates the distance between connected nodes, making it easy to spot long-range versus short-range connections.

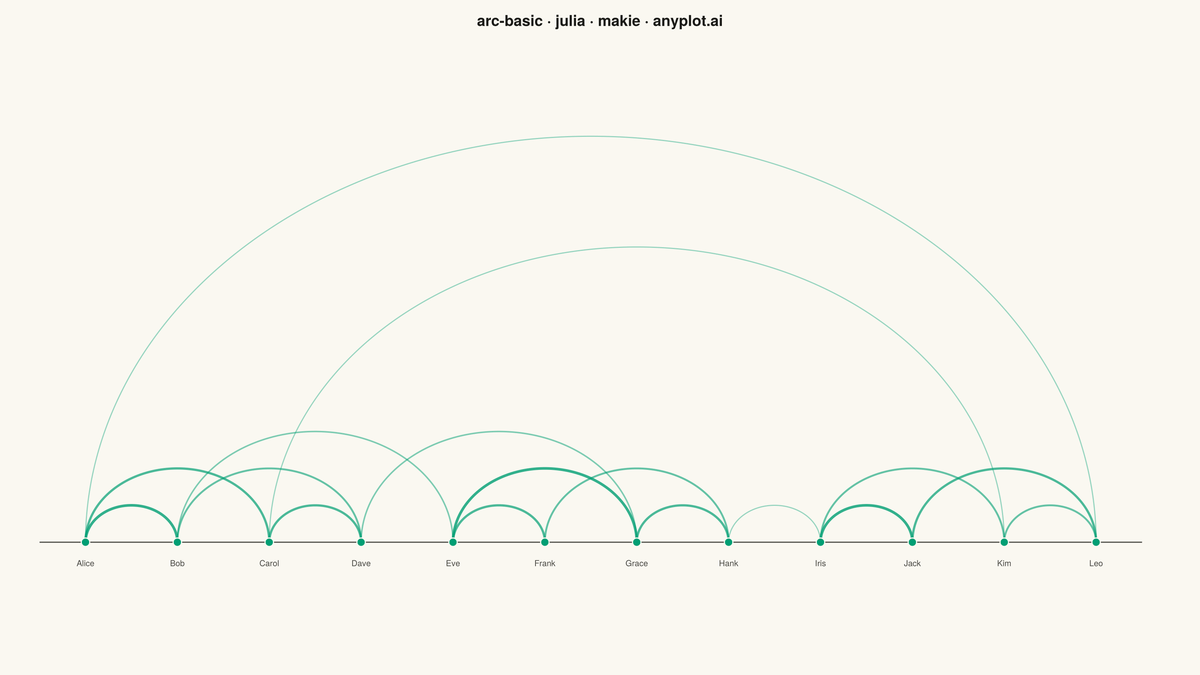

Basic Arc Diagram rendered with Makie.jl

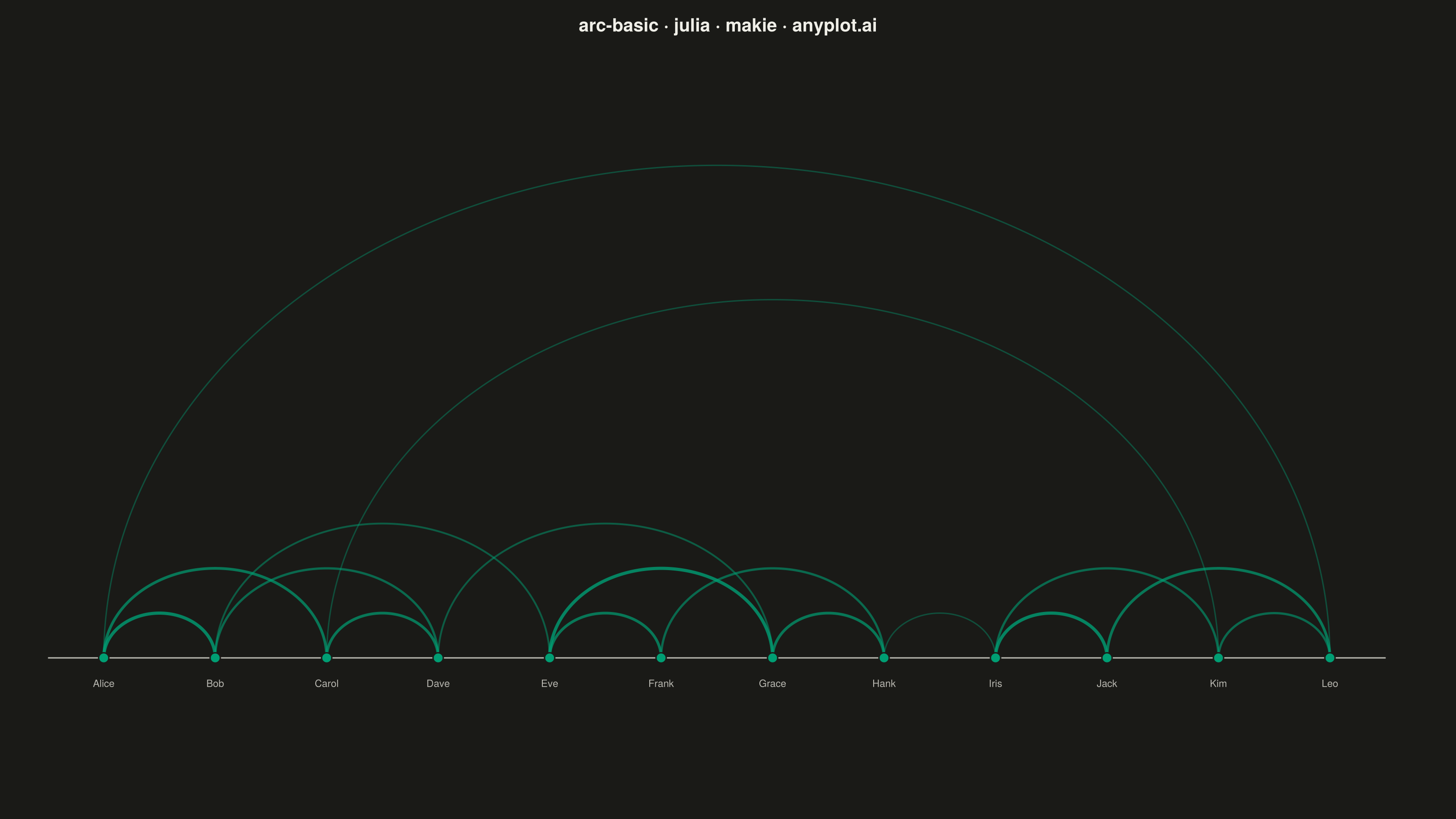

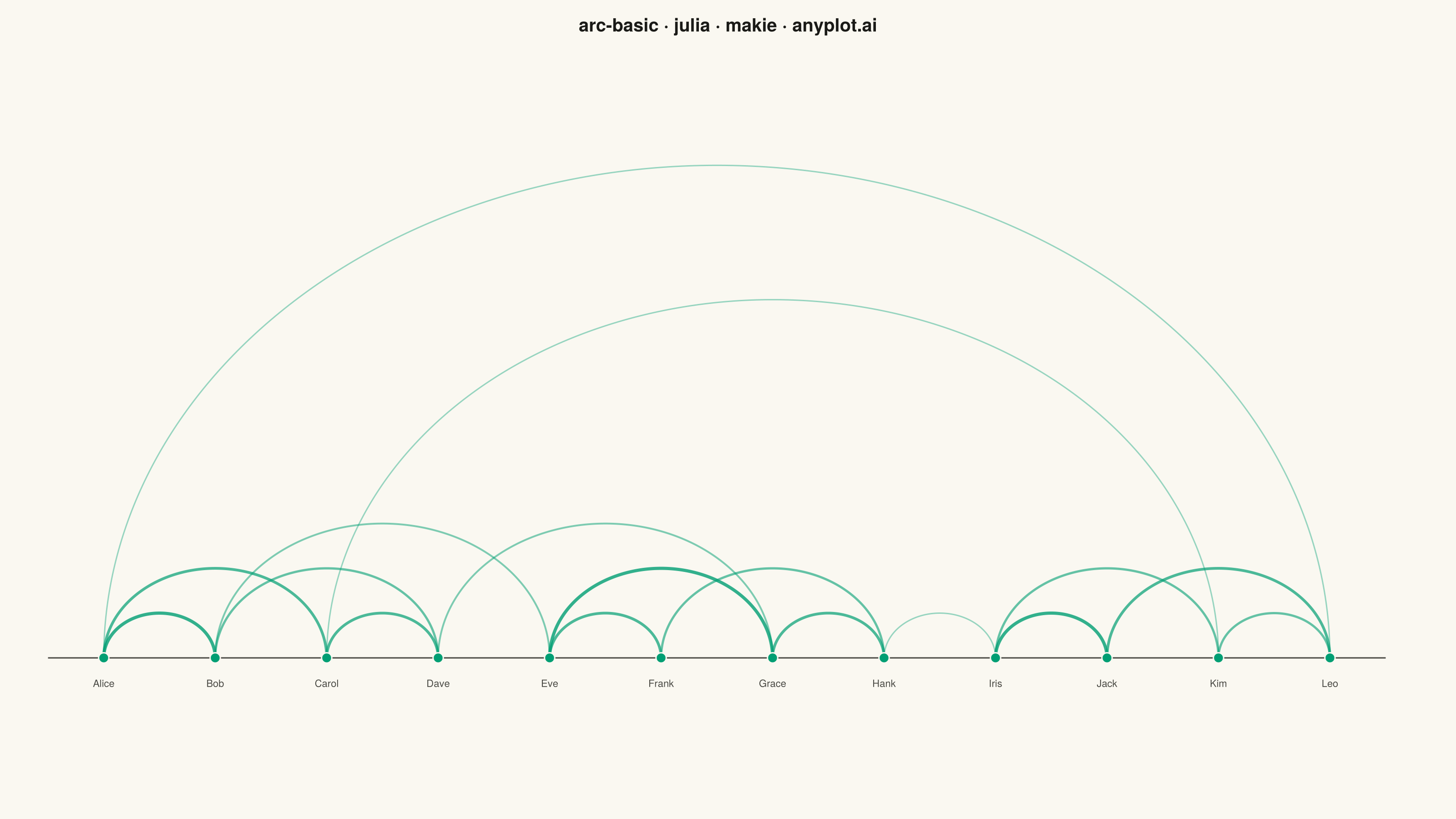

Renders

Julia source (Makie.jl)

# anyplot.ai
# arc-basic: Basic Arc Diagram
# Library: makie 0.22.10 | Julia 1.11.9
# Quality: 87/100 | Created: 2026-05-30

using CairoMakie
using Colors

# Theme tokens — Imprint palette
const THEME    = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG  = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK      = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"

const BRAND  = colorant"#009E73"  # Imprint position 1 — within-group edges
const ACCENT = colorant"#C475FD"  # Imprint position 2 — cross-group edges

# Data — research collaboration network (12 researchers, 17 co-authorship links)
const node_names = [
    "Alice", "Bob", "Carol", "Dave",
    "Eve", "Frank", "Grace", "Hank",
    "Iris", "Jack", "Kim", "Leo",
]
const n_nodes = length(node_names)

# Groups: A = 1–4, B = 5–8, C = 9–12
# (src, tgt, weight, cross_group)
const edges = [
    (1, 2, 5, false), (1, 3, 4, false), (2, 4, 3, false), (3, 4, 4, false),
    (5, 6, 4, false), (5, 7, 5, false), (6, 8, 3, false), (7, 8, 4, false),
    (9, 10, 5, false), (9, 11, 3, false), (10, 12, 4, false), (11, 12, 3, false),
    (2, 5, 2, true), (4, 7, 2, true), (8, 9, 1, true), (3, 11, 1, true), (1, 12, 1, true),
]

const node_x     = Float64.(0:(n_nodes - 1))
const max_weight = maximum(w for (_, _, w, _) in edges)

# Figure
fig = Figure(
    size            = (1600, 900),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = Axis(
    fig[1, 1];
    backgroundcolor    = PAGE_BG,
    title              = "arc-basic · julia · makie · anyplot.ai",
    titlesize          = 20,
    titlecolor         = INK,
    topspinevisible    = false,
    rightspinevisible  = false,
    leftspinevisible   = false,
    bottomspinevisible = false,
    xgridvisible       = false,
    ygridvisible       = false,
    xticksvisible      = false,
    yticksvisible      = false,
    xticklabelsvisible = false,
    yticklabelsvisible = false,
)

# Arcs — color-coded by edge type; weight encodes opacity and linewidth
for (src, tgt, weight, is_cross) in edges
    xi, xj = node_x[src], node_x[tgt]
    cx = (xi + xj) / 2.0
    r  = abs(xj - xi) / 2.0
    h  = r * 0.55

    t     = range(0.0, π; length = 300)
    arc_x = cx .+ r .* cos.(t)
    arc_y = h .* sin.(t)

    alpha = 0.3 + 0.5 * (weight / max_weight)
    lw    = 1.0 + 2.5 * (weight / max_weight)
    col   = is_cross ? ACCENT : BRAND

    lines!(ax, arc_x, arc_y; color = (col, alpha), linewidth = lw)
end

# Horizontal baseline
lines!(ax, [node_x[1] - 0.5, node_x[end] + 0.5], [0.0, 0.0];
       color = INK_SOFT, linewidth = 1.5)

# Node dots
scatter!(ax, node_x, zeros(n_nodes);
         color       = BRAND,
         markersize  = 16,
         strokewidth = 1.5,
         strokecolor = PAGE_BG)

# Node labels
for (i, name) in enumerate(node_names)
    text!(ax, node_x[i], -0.12;
          text     = name,
          fontsize = Float32(13),
          color    = INK_SOFT,
          align    = (:center, :top))
end

ylims!(ax, -0.65, 3.8)
xlims!(ax, -0.8, 12.0)

# Makie Legend with LineElement + MarkerElement — Makie-idiomatic typed legend entries
leg_elements = [
    [LineElement(color = (BRAND, 0.8), linewidth = 3.5)],
    [LineElement(color = (ACCENT, 0.8), linewidth = 2.0)],
    [MarkerElement(color = BRAND, marker = :circle, markersize = 14,
                   strokewidth = 1.5, strokecolor = PAGE_BG)],
]
leg_labels = ["Within-group (weight 3–5)", "Cross-group (weight 1–2)", "Researcher"]

Legend(
    fig[1, 2],
    leg_elements,
    leg_labels;
    title           = "Connection type",
    titlesize       = 13,
    labelsize       = 12,
    titlecolor      = INK,
    labelcolor      = INK_SOFT,
    framevisible    = false,
    backgroundcolor = PAGE_BG,
    tellheight      = false,
    patchsize       = (24, 10),
    padding         = (8, 8, 8, 8),
    rowgap          = 6,
)

colsize!(fig.layout, 1, Relative(0.80))

save("plot-$(THEME).png", fig; px_per_unit = 2)
