PCA Biplot with Scores and Loading Vectors — Altair

A PCA biplot simultaneously displays both observation scores (as points) and variable loadings (as arrows) in the principal component space. This dual representation is essential for interpreting PCA results, revealing how observations relate to each other and which original variables drive the separation along each principal component. The length and direction of loading arrows indicate variable importance and correlation with the components.

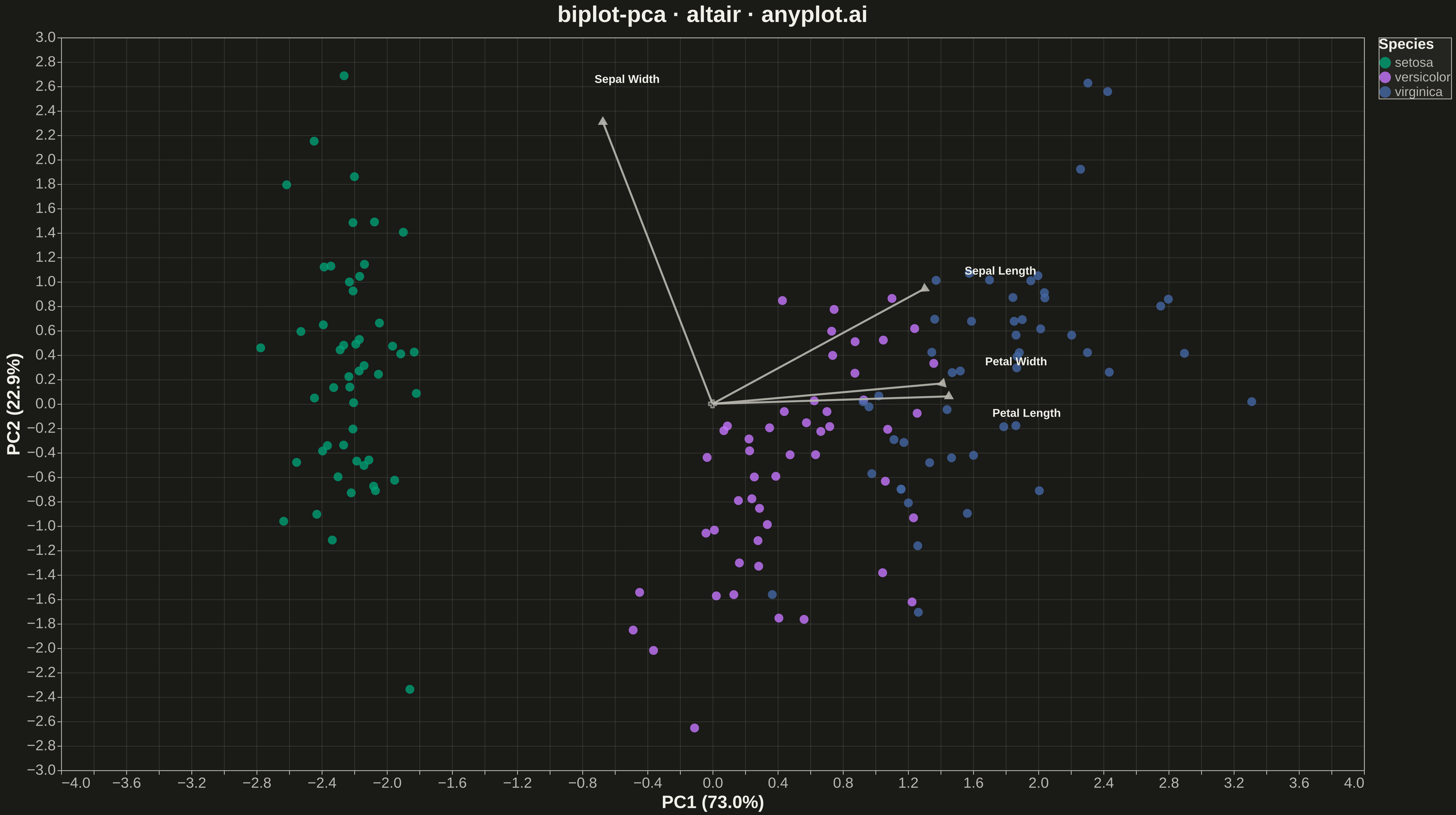

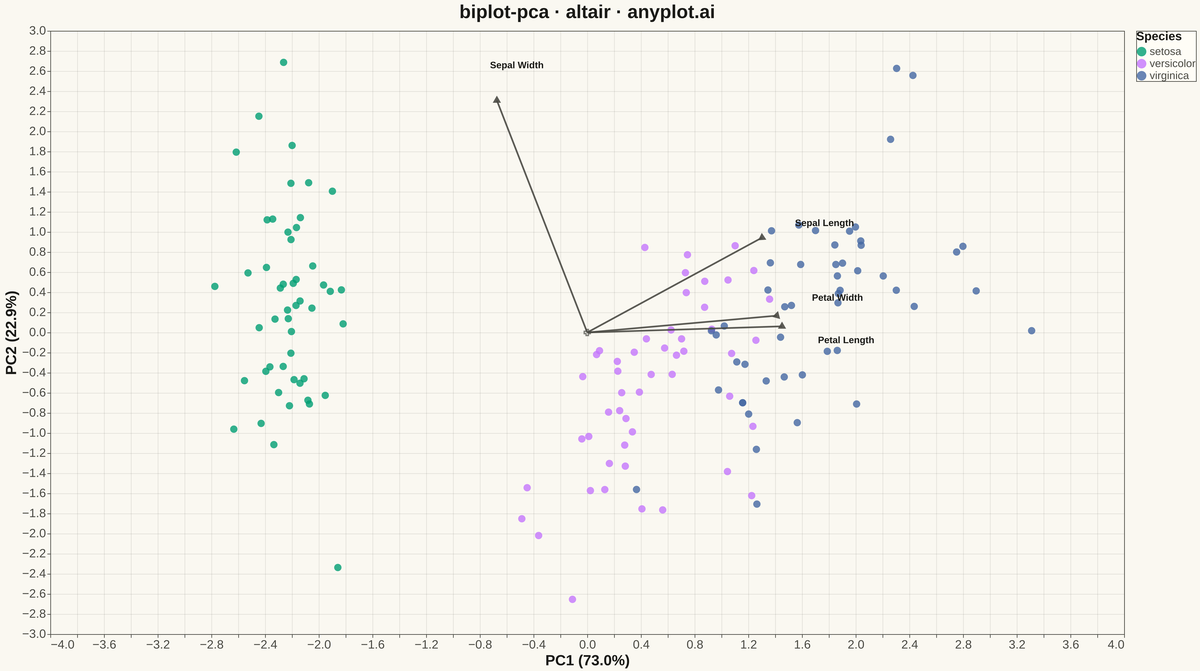

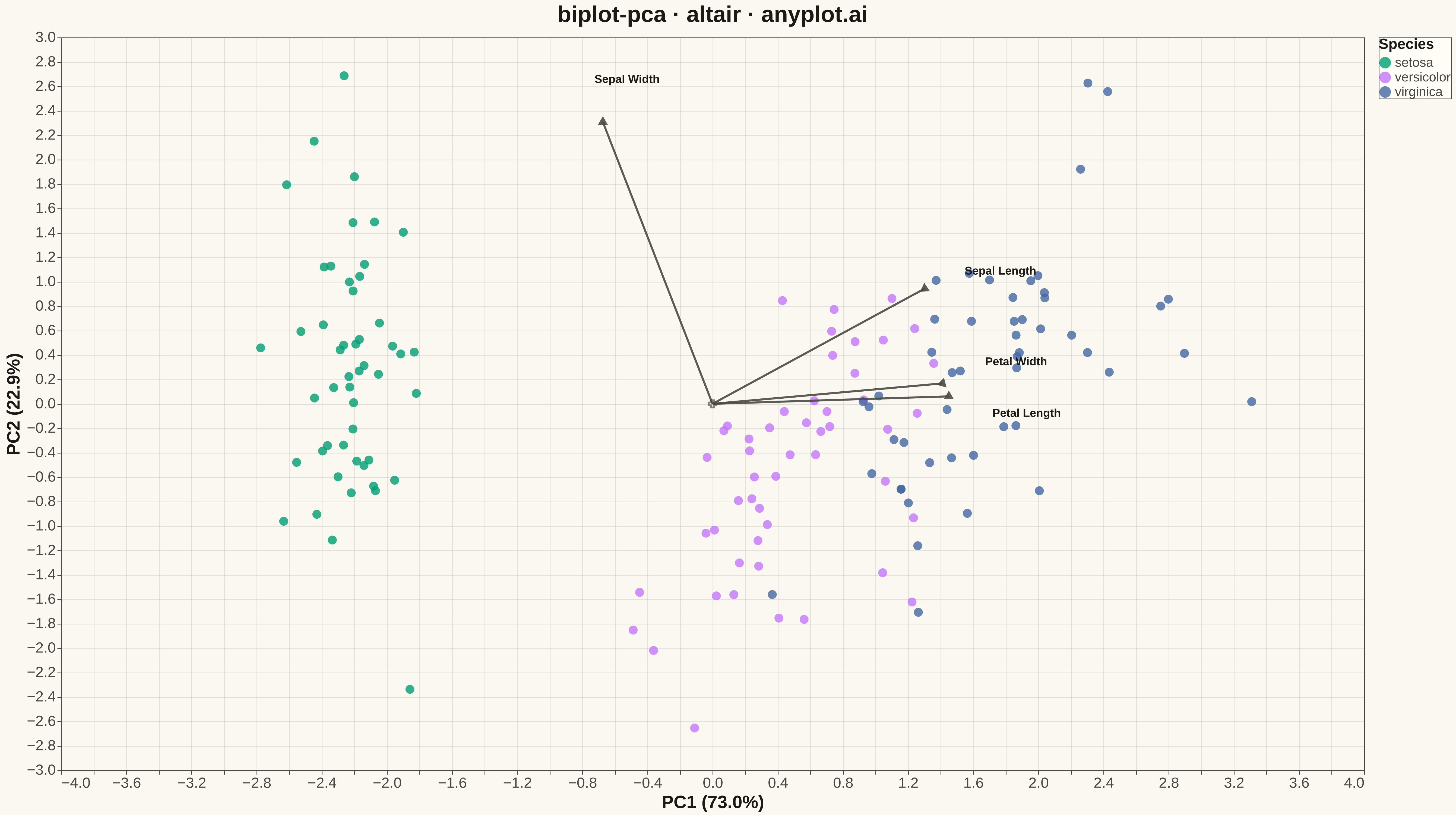

PCA Biplot with Scores and Loading Vectors rendered with Altair

Python source (Altair)

""" anyplot.ai
biplot-pca: PCA Biplot with Scores and Loading Vectors
Library: altair 6.1.0 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-17
"""

import os
import sys


# Remove the script directory from sys.path to avoid importing this file as the altair module
script_dir = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if os.path.abspath(p) != script_dir]

import altair as alt
import pandas as pd
from sklearn.datasets import load_iris
from sklearn.decomposition import PCA
from sklearn.preprocessing import StandardScaler


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD", "#4467A3"]

# Data - using Iris dataset for multivariate analysis
iris = load_iris()
X = iris.data
y = iris.target
feature_names = ["Sepal Length", "Sepal Width", "Petal Length", "Petal Width"]
target_names = iris.target_names

# Standardize features for PCA
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)

# Perform PCA with random_state for reproducibility
pca = PCA(n_components=2, random_state=42)
scores = pca.fit_transform(X_scaled)
loadings = pca.components_.T

# Variance explained
var_explained = pca.explained_variance_ratio_ * 100

# Create DataFrame for observation scores
scores_df = pd.DataFrame({"PC1": scores[:, 0], "PC2": scores[:, 1], "Species": [target_names[i] for i in y]})

# Create DataFrame for loading arrows
loading_scale = 2.5
loadings_df = pd.DataFrame(
    {"feature": feature_names, "PC1": loadings[:, 0] * loading_scale, "PC2": loadings[:, 1] * loading_scale}
)

# Prepare arrow line data (from origin to loading point)
arrow_lines = []
for _, row in loadings_df.iterrows():
    arrow_lines.append({"x": 0, "y": 0, "feature": row["feature"], "order": 0})
    arrow_lines.append({"x": row["PC1"], "y": row["PC2"], "feature": row["feature"], "order": 1})
arrow_df = pd.DataFrame(arrow_lines)

# Create scatter plot for observation scores
scatter = (
    alt.Chart(scores_df)
    .mark_point(size=120, opacity=0.8, filled=True)
    .encode(
        x=alt.X("PC1:Q", title=f"PC1 ({var_explained[0]:.1f}%)", scale=alt.Scale(domain=[-4, 4])),
        y=alt.Y("PC2:Q", title=f"PC2 ({var_explained[1]:.1f}%)", scale=alt.Scale(domain=[-3, 3])),
        color=alt.Color(
            "Species:N",
            scale=alt.Scale(range=IMPRINT),
            legend=alt.Legend(title="Species", titleFontSize=18, labelFontSize=16, symbolSize=200, orient="right"),
        ),
        tooltip=["Species:N", alt.Tooltip("PC1:Q", format=".2f"), alt.Tooltip("PC2:Q", format=".2f")],
    )
)

# Create loading arrows as lines
arrows = (
    alt.Chart(arrow_df)
    .mark_line(color=INK_SOFT, strokeWidth=2.5, opacity=0.9)
    .encode(x=alt.X("x:Q"), y=alt.Y("y:Q"), detail="feature:N", order="order:O")
)

# Create arrowheads at the end of loading vectors
arrowheads = (
    alt.Chart(loadings_df)
    .mark_point(shape="triangle", size=150, color=INK_SOFT, opacity=0.9, filled=True)
    .encode(x=alt.X("PC1:Q"), y=alt.Y("PC2:Q"))
    .transform_calculate(angle="atan2(datum.PC2, datum.PC1) * 180 / PI + 90")
    .encode(angle="angle:Q")
)

# Create labels for loading vectors
label_offset = 1.15
loading_labels_df = loadings_df.copy()
loading_labels_df["label_x"] = loading_labels_df["PC1"] * label_offset
loading_labels_df["label_y"] = loading_labels_df["PC2"] * label_offset

# Add manual y-offsets to separate "Petal Length" and "Petal Width" labels
y_adjustments = [0, 0, -0.15, 0.15]
loading_labels_df["label_y"] = loading_labels_df["label_y"] + y_adjustments

loading_labels = (
    alt.Chart(loading_labels_df)
    .mark_text(fontSize=14, fontWeight="bold", color=INK, align="left", dx=10)
    .encode(x=alt.X("label_x:Q"), y=alt.Y("label_y:Q"), text="feature:N")
)

# Create origin marker
origin_df = pd.DataFrame({"x": [0], "y": [0]})
origin = alt.Chart(origin_df).mark_point(size=80, color=INK_SOFT, shape="cross", strokeWidth=2).encode(x="x:Q", y="y:Q")

# Combine all layers with theme-adaptive configuration
chart = (
    alt.layer(scatter, arrows, arrowheads, loading_labels, origin)
    .properties(
        width=1600,
        height=900,
        background=PAGE_BG,
        title=alt.Title(text="biplot-pca · altair · anyplot.ai", fontSize=28, anchor="middle", color=INK),
    )
    .configure_view(fill=PAGE_BG, stroke=INK_SOFT)
    .configure_axis(
        domainColor=INK_SOFT,
        tickColor=INK_SOFT,
        gridColor=INK,
        gridOpacity=0.10,
        labelColor=INK_SOFT,
        titleColor=INK,
        labelFontSize=18,
        titleFontSize=22,
    )
    .configure_legend(
        fillColor=ELEVATED_BG,
        strokeColor=INK_SOFT,
        labelColor=INK_SOFT,
        titleColor=INK,
        titleFontSize=18,
        labelFontSize=16,
    )
    .interactive()
)

# Save outputs
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")

Part of PCA Biplot with Scores and Loading Vectors on anyplot.ai.
