PCA Biplot with Scores and Loading Vectors — Bokeh

A PCA biplot simultaneously displays both observation scores (as points) and variable loadings (as arrows) in the principal component space. This dual representation is essential for interpreting PCA results, revealing how observations relate to each other and which original variables drive the separation along each principal component. The length and direction of loading arrows indicate variable importance and correlation with the components.

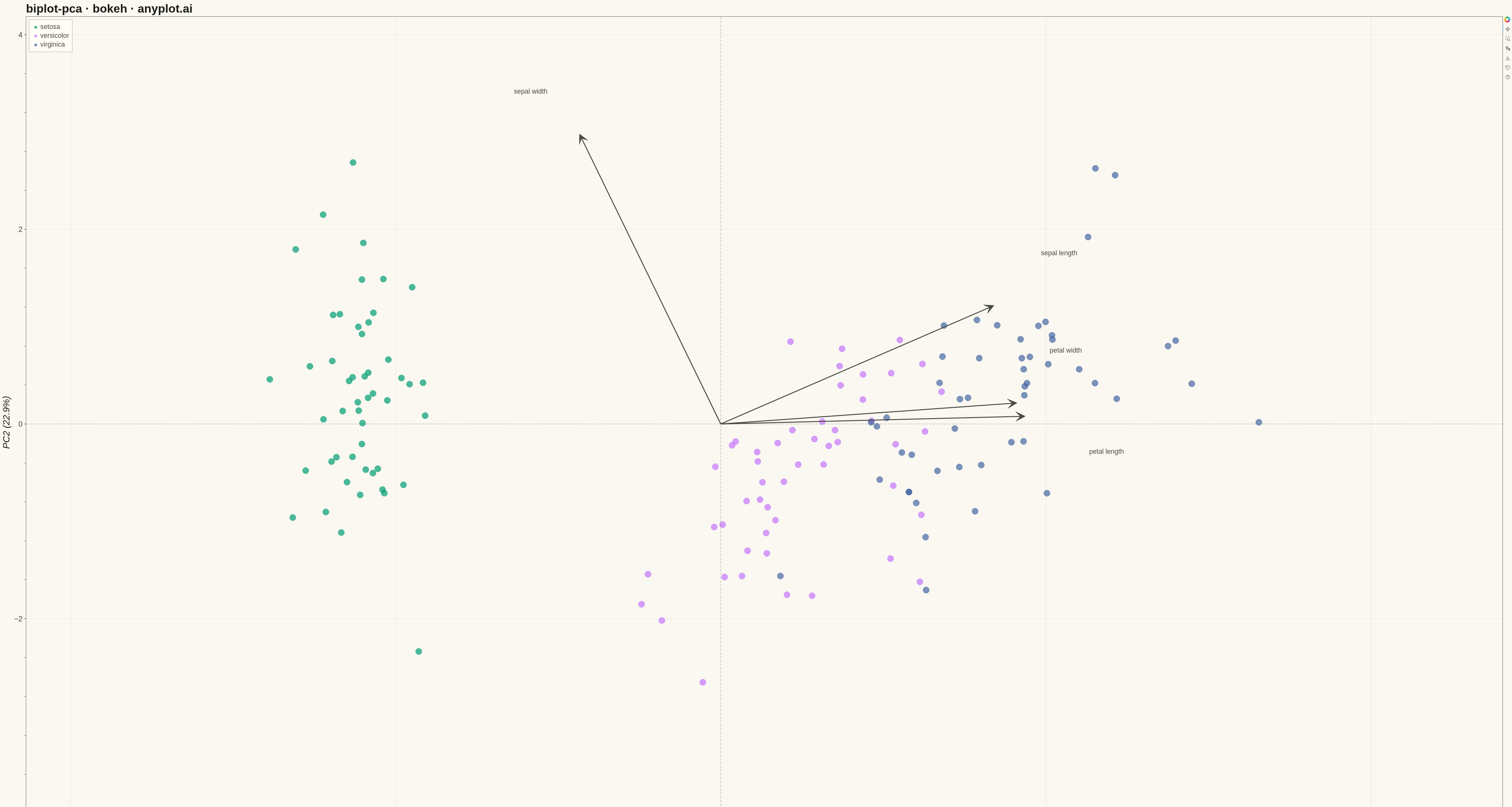

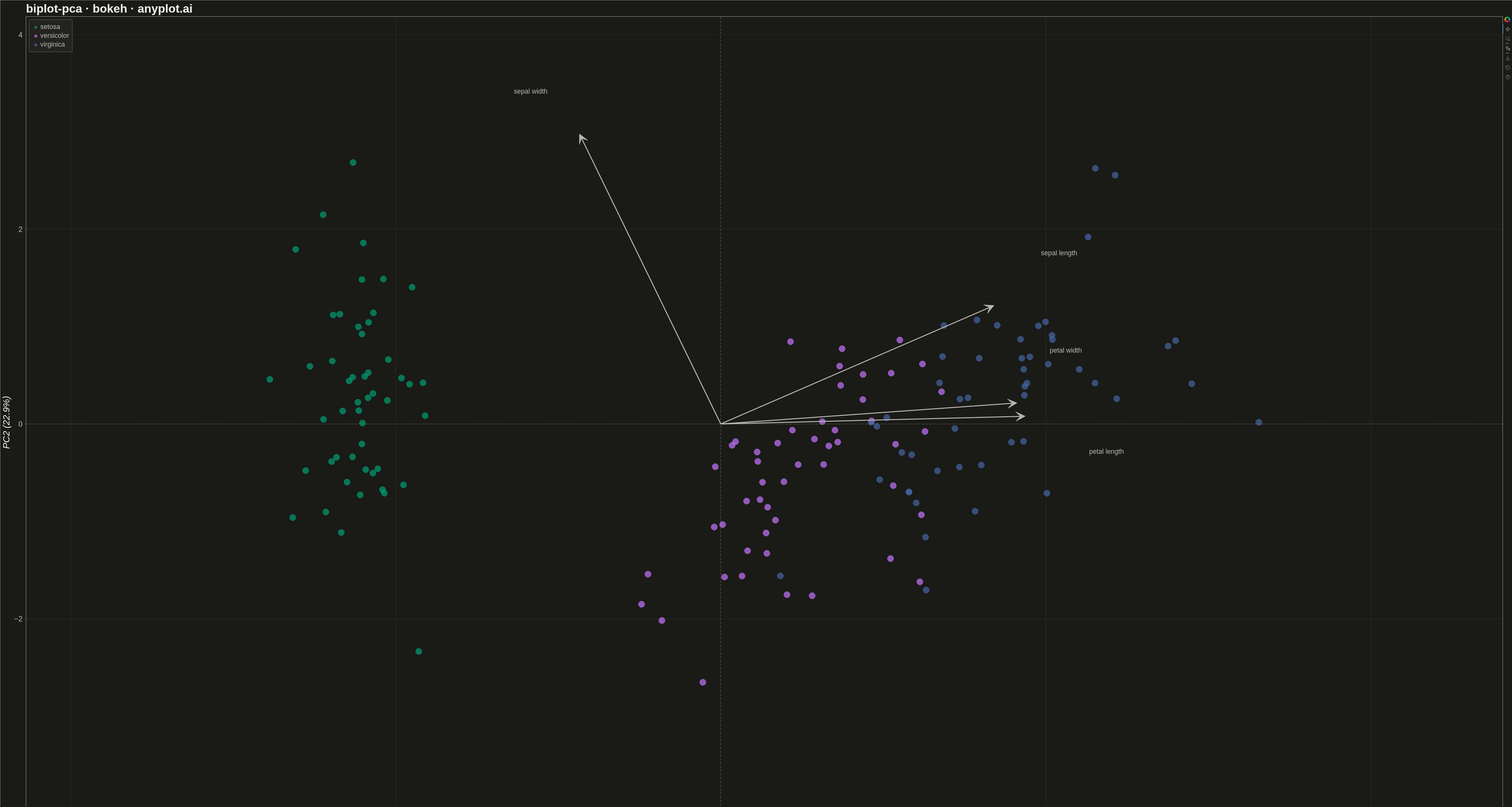

PCA Biplot with Scores and Loading Vectors rendered with Bokeh

Python source (Bokeh)

""" anyplot.ai
biplot-pca: PCA Biplot with Scores and Loading Vectors
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 95/100 | Updated: 2026-05-17
"""

import os
import sys
import time
from pathlib import Path


# Prevent local bokeh.py from shadowing bokeh package
if "" in sys.path:
    sys.path.remove("")
if "." in sys.path:
    sys.path.remove(".")

import numpy as np
from bokeh.io import output_file, save
from bokeh.models import Arrow, ColumnDataSource, Label, VeeHead
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
from sklearn.datasets import load_iris
from sklearn.decomposition import PCA
from sklearn.preprocessing import StandardScaler


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette - first series is ALWAYS #009E73 (brand)
IMPRINT = ["#009E73", "#C475FD", "#4467A3"]

# Data - Iris dataset
iris = load_iris()
X = iris.data
y = iris.target
feature_names = ["sepal length", "sepal width", "petal length", "petal width"]
target_names = iris.target_names

# Standardize features
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)

# PCA
pca = PCA(n_components=2)
scores = pca.fit_transform(X_scaled)
loadings = pca.components_.T
explained_var = pca.explained_variance_ratio_ * 100

# Scale loadings for visibility
score_max = np.abs(scores).max()
loading_scale = score_max * 0.9 / np.abs(loadings).max()
loadings_scaled = loadings * loading_scale

# Create figure with appropriate range
margin = 1.5
x_range = (scores[:, 0].min() - margin, scores[:, 0].max() + margin)
y_range = (scores[:, 1].min() - margin, scores[:, 1].max() + margin)

p = figure(
    width=4800,
    height=2700,
    title="biplot-pca · bokeh · anyplot.ai",
    x_axis_label=f"PC1 ({explained_var[0]:.1f}%)",
    y_axis_label=f"PC2 ({explained_var[1]:.1f}%)",
    x_range=x_range,
    y_range=y_range,
)

# Style title and axes
p.title.text_font_size = "28pt"
p.title.text_color = INK
p.xaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_font_size = "22pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT

# Theme-adaptive styling
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10

# Plot observation scores by group
for i, name in enumerate(target_names):
    mask = y == i
    source = ColumnDataSource(data={"x": scores[mask, 0], "y": scores[mask, 1]})
    p.scatter(x="x", y="y", source=source, size=20, alpha=0.7, color=IMPRINT[i], legend_label=name)

# Style legend
if p.legend:
    p.legend.location = "top_left"
    p.legend.label_text_font_size = "16pt"
    p.legend.label_text_color = INK_SOFT
    p.legend.background_fill_color = ELEVATED_BG
    p.legend.background_fill_alpha = 0.9
    p.legend.border_line_color = INK_SOFT
    p.legend.border_line_alpha = 0.5

# Draw loading arrows
arrow_color = INK_SOFT

# Custom label offsets for each feature to avoid overlap
label_offsets = {
    "sepal length": (0.4, 0.5),
    "sepal width": (-0.3, 0.4),
    "petal length": (0.5, -0.4),
    "petal width": (0.3, 0.5),
}

for i, name in enumerate(feature_names):
    x_end = loadings_scaled[i, 0]
    y_end = loadings_scaled[i, 1]

    # Add arrow
    p.add_layout(
        Arrow(
            end=VeeHead(size=30, fill_color=arrow_color, line_color=arrow_color),
            x_start=0,
            y_start=0,
            x_end=x_end,
            y_end=y_end,
            line_width=3,
            line_color=arrow_color,
        )
    )

    # Add label with custom offset
    offset_x, offset_y = label_offsets[name]
    label = Label(
        x=x_end + offset_x,
        y=y_end + offset_y,
        text=name,
        text_font_size="16pt",
        text_color=INK_SOFT,
        text_align="center",
    )
    p.add_layout(label)

# Add origin reference lines
p.line(x=[x_range[0], x_range[1]], y=[0, 0], line_width=2, line_color=INK_SOFT, line_alpha=0.3, line_dash="dashed")
p.line(x=[0, 0], y=[y_range[0], y_range[1]], line_width=2, line_color=INK_SOFT, line_alpha=0.3, line_dash="dashed")

# Save HTML
output_file(f"plot-{THEME}.html")
save(p)

# Screenshot with headless Chrome via Selenium
W, H = 4800, 2700
opts = Options()
for arg in (
    "--headless=new",
    "--no-sandbox",
    "--disable-dev-shm-usage",
    "--disable-gpu",
    f"--window-size={W},{H}",
    "--hide-scrollbars",
):
    opts.add_argument(arg)

driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()

Part of PCA Biplot with Scores and Loading Vectors on anyplot.ai.
