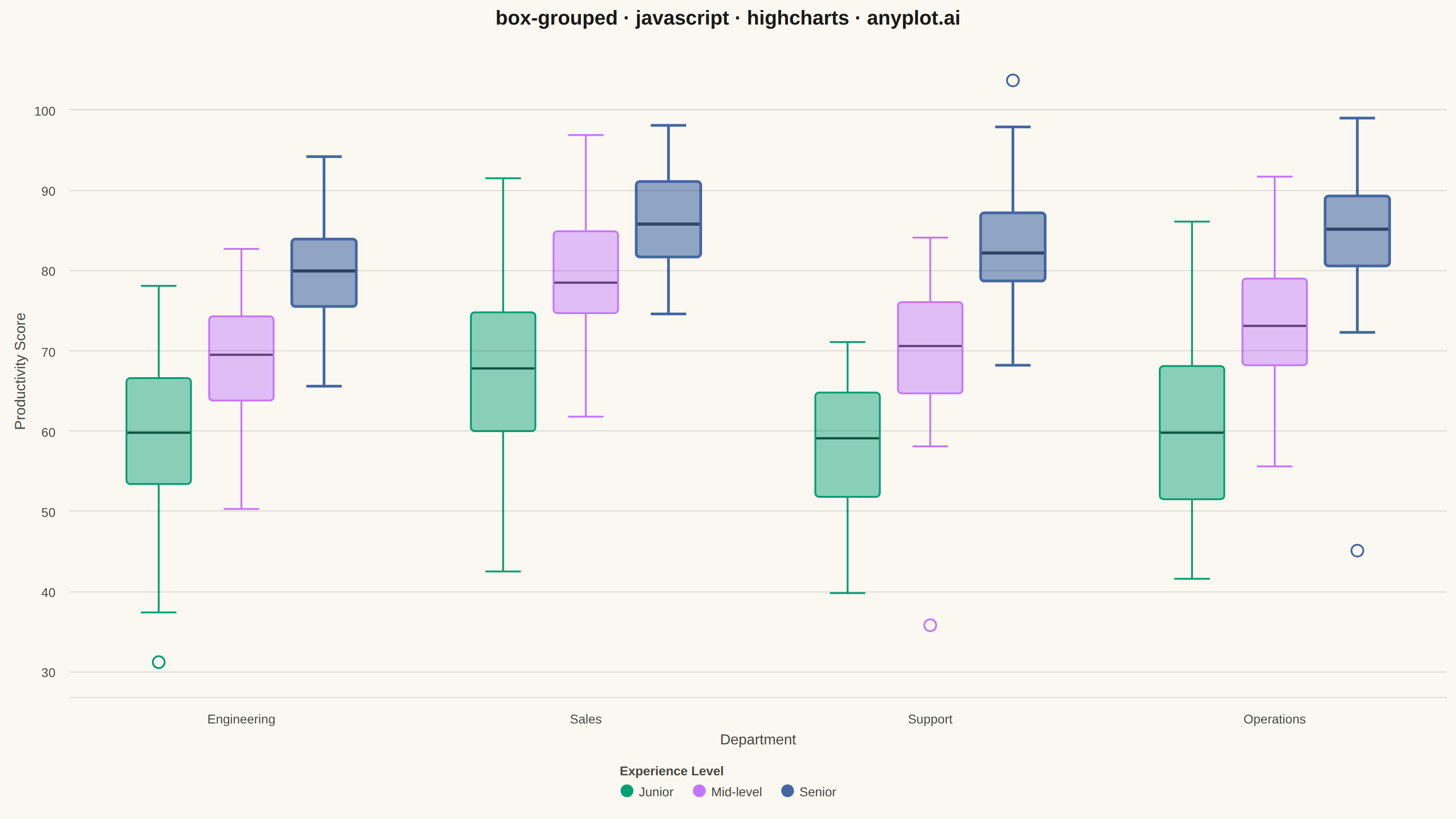

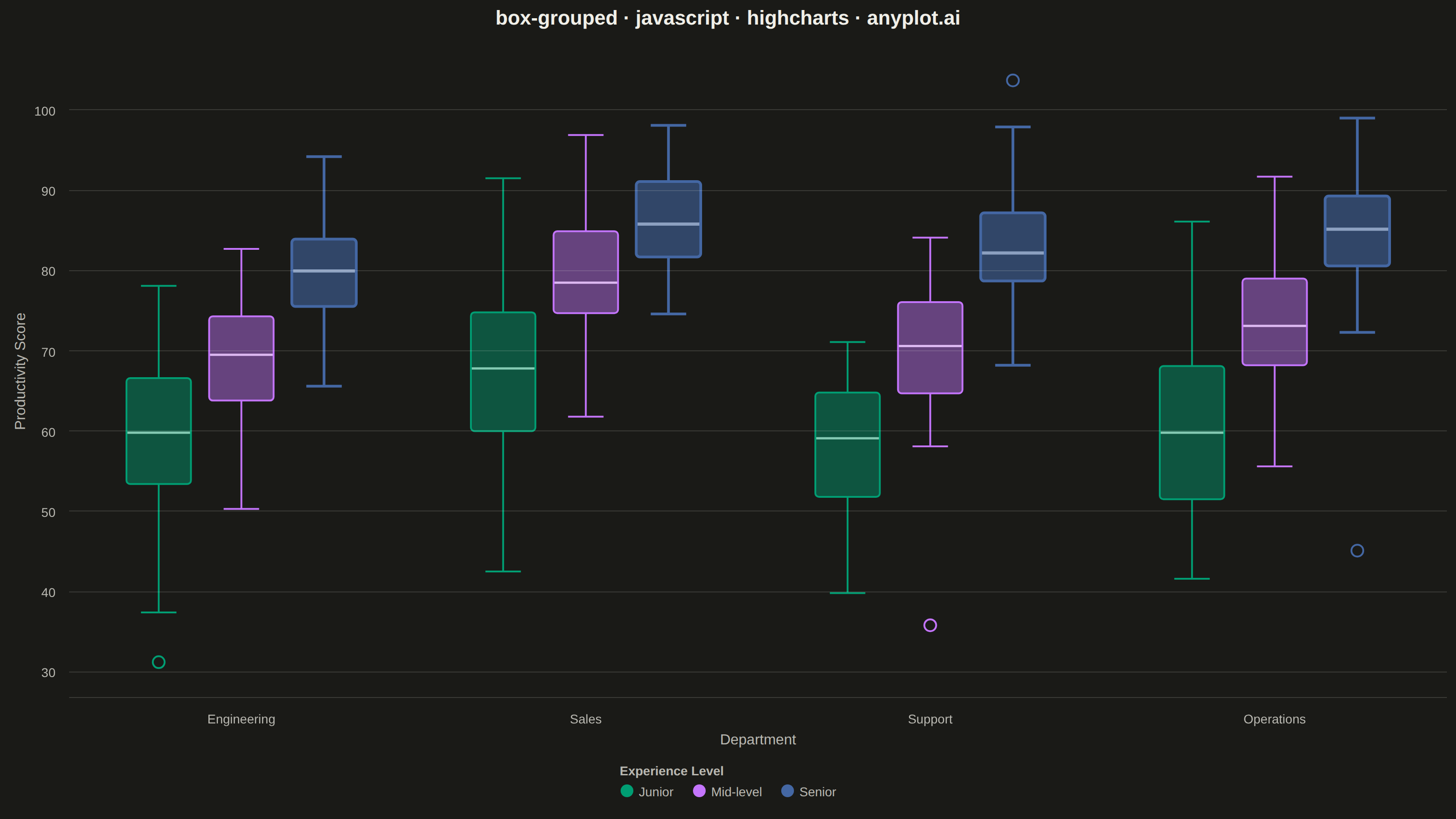

A grouped box plot displays multiple box plots side-by-side within each category, enabling comparison of distributions across subgroups. Each group contains boxes representing different subcategories or conditions, making it ideal for multi-factor comparisons and A/B testing scenarios with multiple metrics.
// anyplot.ai
// box-grouped: Grouped Box Plot
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-08-18
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
function makeLcg(seed) {
let state = seed >>> 0;
return function lcg() {
state = (state * 1664525 + 1013904223) >>> 0;
return state / 4294967296;
};
}
const rand = makeLcg(42);
function randNormal(mean, std) {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
return mean + z * std;
}
const departments = ["Engineering", "Sales", "Support", "Operations"];
const levels = ["Junior", "Mid-level", "Senior"];
// Baseline productivity score per department, plus a per-level offset and
// spread — seniority raises the median and tightens the spread.
const deptBase = { Engineering: 58, Sales: 66, Support: 60, Operations: 63 };
const levelOffset = { Junior: 0, "Mid-level": 12, Senior: 21 };
const levelStd = { Junior: 10, "Mid-level": 8.5, Senior: 6.5 };
const sampleSize = 45;
const rawSamples = departments.map((dept) =>
levels.map((level) => {
const mean = deptBase[dept] + levelOffset[level];
const std = levelStd[level];
const values = [];
for (let j = 0; j < sampleSize; j++) {
values.push(Math.round(randNormal(mean, std) * 10) / 10);
}
return values;
})
);
// A few realistic outliers: a struggling senior, a standout junior.
rawSamples[0][2].push(94.2);
rawSamples[1][0].push(91.5);
rawSamples[2][1].push(35.8);
rawSamples[3][2].push(45.1);
function quantile(sorted, q) {
const pos = (sorted.length - 1) * q;
const base = Math.floor(pos);
const rest = pos - base;
return sorted[base + 1] !== undefined
? sorted[base] + rest * (sorted[base + 1] - sorted[base])
: sorted[base];
}
const boxStats = rawSamples.map((deptSamples) =>
deptSamples.map((values) => {
const sorted = values.slice().sort((a, b) => a - b);
const q1 = quantile(sorted, 0.25);
const median = quantile(sorted, 0.5);
const q3 = quantile(sorted, 0.75);
const iqr = q3 - q1;
const lowFence = q1 - 1.5 * iqr;
const highFence = q3 + 1.5 * iqr;
const inFence = sorted.filter((v) => v >= lowFence && v <= highFence);
const outliers = sorted.filter((v) => v < lowFence || v > highFence);
return {
q1,
median,
q3,
whiskerLow: Math.min(...inFence),
whiskerHigh: Math.max(...inFence),
outliers,
};
})
);
const allValues = rawSamples.flat(2);
const valueRange = Math.max(...allValues) - Math.min(...allValues);
const yPad = valueRange * 0.06;
const yMin = Math.min(...allValues) - yPad;
const yMax = Math.max(...allValues) + yPad;
// --- Chart -------------------------------------------------------------------
let customGroup = null;
function drawLine(renderer, group, x1, y1, x2, y2, color, width) {
renderer
.path(["M", x1, y1, "L", x2, y2])
.attr({ "stroke-width": width, stroke: color, zIndex: 3 })
.add(group);
}
Highcharts.chart("container", {
chart: {
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
events: {
render() {
if (customGroup) customGroup.destroy();
customGroup = this.renderer.g("grouped-boxes").add();
const xAxis = this.xAxis[0];
const yAxis = this.yAxis[0];
const nSub = levels.length;
const slot = Math.abs(xAxis.toPixels(1, false) - xAxis.toPixels(0, false));
const groupWidth = slot * 0.72;
const boxWidth = (groupWidth / nSub) * 0.78;
const capWidth = boxWidth * 0.55;
boxStats.forEach((deptStats, i) => {
const xc0 = xAxis.toPixels(i, false);
deptStats.forEach((s, k) => {
const color = t.palette[k % t.palette.length];
const offset = (k - (nSub - 1) / 2) * (groupWidth / nSub);
const xc = xc0 + offset;
const left = xc - boxWidth / 2;
// Senior (last level) gets a bolder stroke to call out the
// seniority -> productivity trend the data tells.
const isSenior = k === nSub - 1;
const lineWidth = isSenior ? 3 : 2;
const medianWidth = isSenior ? 3.5 : 2.5;
const fillOpacity = isSenior ? 0.58 : 0.45;
const yQ1 = yAxis.toPixels(s.q1, false);
const yQ3 = yAxis.toPixels(s.q3, false);
const yMed = yAxis.toPixels(s.median, false);
const yWhiskerLow = yAxis.toPixels(s.whiskerLow, false);
const yWhiskerHigh = yAxis.toPixels(s.whiskerHigh, false);
// Whiskers + caps
drawLine(this.renderer, customGroup, xc, yQ3, xc, yWhiskerHigh, color, lineWidth);
drawLine(this.renderer, customGroup, xc, yQ1, xc, yWhiskerLow, color, lineWidth);
drawLine(
this.renderer, customGroup,
xc - capWidth / 2, yWhiskerHigh, xc + capWidth / 2, yWhiskerHigh,
color, lineWidth
);
drawLine(
this.renderer, customGroup,
xc - capWidth / 2, yWhiskerLow, xc + capWidth / 2, yWhiskerLow,
color, lineWidth
);
// Box body (Q1–Q3)
const r = Math.min(4, boxWidth * 0.12);
this.renderer
.rect(left, yQ3, boxWidth, yQ1 - yQ3, r)
.attr({
fill: Highcharts.color(color).setOpacity(fillOpacity).get(),
stroke: color,
"stroke-width": lineWidth,
zIndex: 4,
})
.add(customGroup);
// Median line
drawLine(this.renderer, customGroup, left, yMed, left + boxWidth, yMed, t.ink, medianWidth);
// Outliers
s.outliers.forEach((v) => {
this.renderer
.circle(xc, yAxis.toPixels(v, false), 6.5)
.attr({ fill: t.pageBg, stroke: color, "stroke-width": 2, zIndex: 6 })
.add(customGroup);
});
});
});
},
},
},
credits: { enabled: false },
colors: t.palette,
title: {
text: "box-grouped · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
xAxis: {
categories: departments,
title: { text: "Department", style: { color: t.inkSoft, fontSize: "16px" } },
lineWidth: 1,
lineColor: t.grid,
tickWidth: 0,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
},
yAxis: {
min: yMin,
max: yMax,
startOnTick: false,
endOnTick: false,
title: { text: "Productivity Score", style: { color: t.inkSoft, fontSize: "16px" } },
gridLineColor: t.grid,
lineWidth: 0,
tickWidth: 0,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
},
legend: {
title: { text: "Experience Level", style: { color: t.inkSoft, fontSize: "14px" } },
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
tooltip: { enabled: false },
plotOptions: {
series: { animation: false },
column: {
opacity: 0,
borderWidth: 0,
enableMouseTracking: false,
states: { hover: { enabled: false } },
},
},
series: levels.map((level, k) => ({
type: "column",
name: level,
color: t.palette[k % t.palette.length],
data: boxStats.map((deptStats) => deptStats[k].median),
showInLegend: true,
})),
});
Part of Grouped Box Plot on anyplot.ai.
