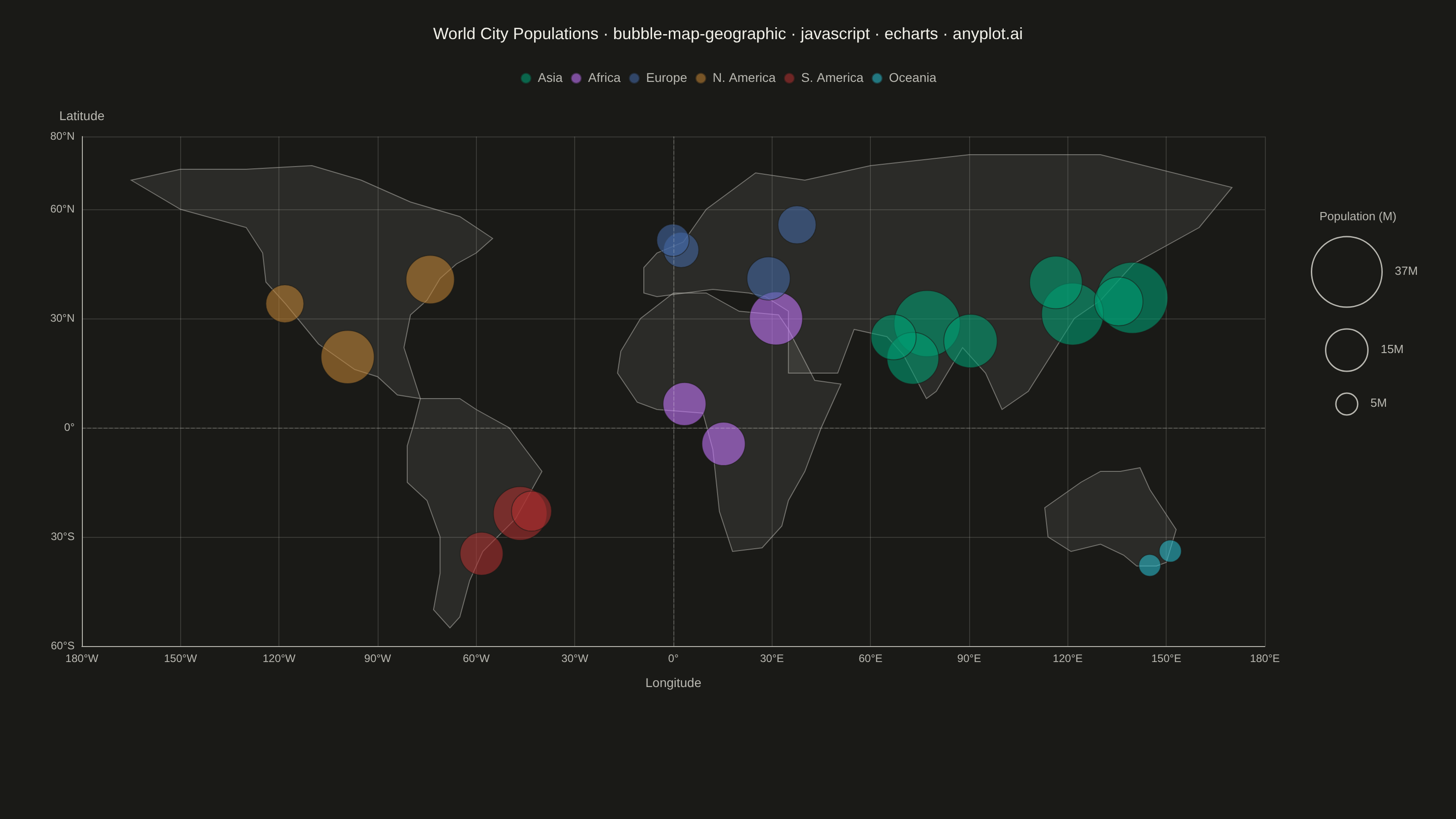

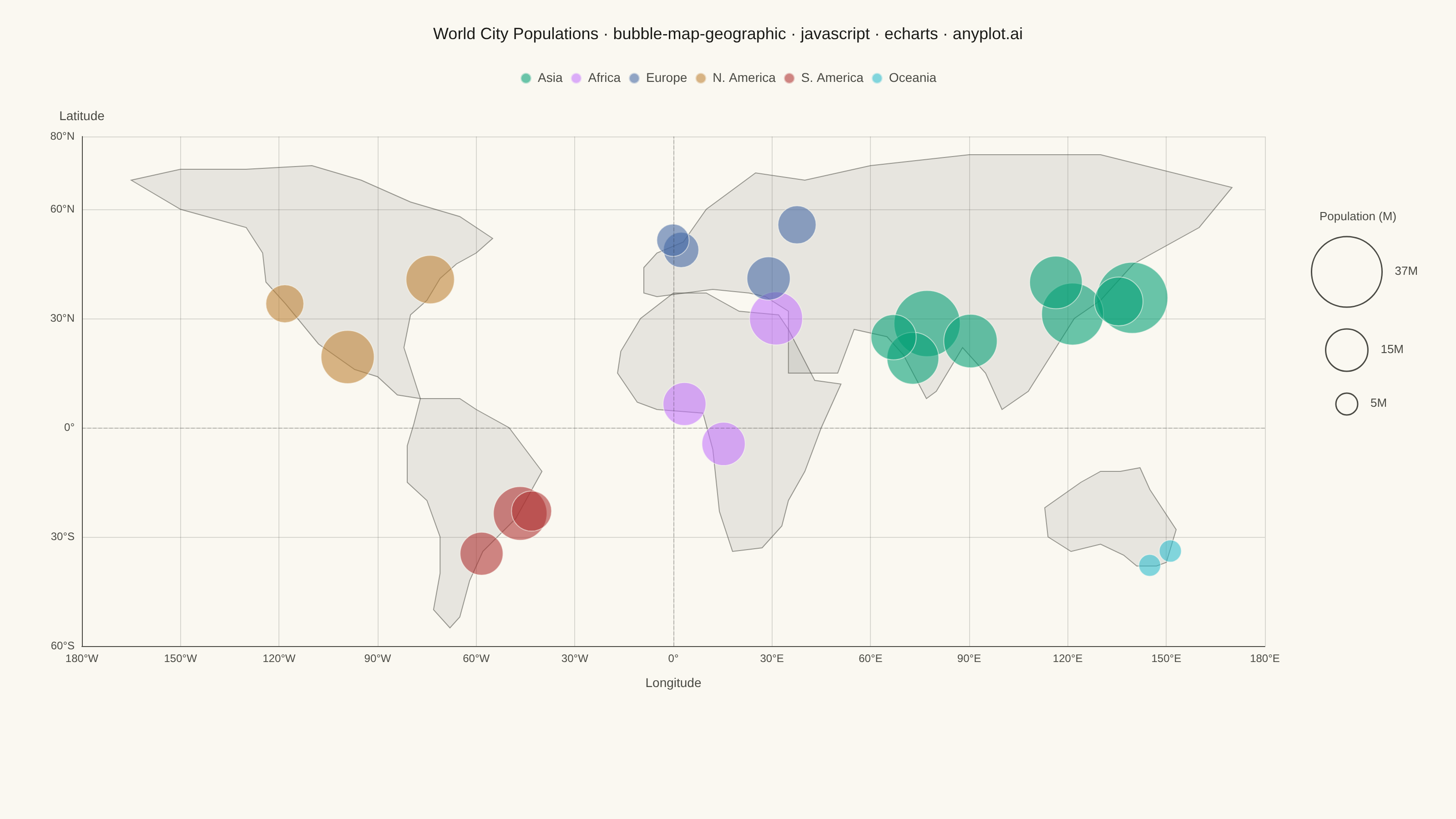

A geographic bubble map where markers are sized proportionally to quantitative data values at each location. Unlike scatter maps where size is optional, bubble maps use marker size as the primary visual encoding to show data magnitude across geographic regions. This visualization makes it immediately apparent where high and low values occur spatially, enabling intuitive comparison of quantities across locations.
// anyplot.ai
// bubble-map-geographic: Bubble Map with Sized Geographic Markers
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-01
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// World metro-area population by city (millions, approximate), grouped by
// continent for color + legend. [longitude, latitude, population].
const REGIONS = [
{
name: "Asia",
color: t.palette[0],
cities: [
{ name: "Tokyo", lon: 139.65, lat: 35.68, pop: 37.4 },
{ name: "Delhi", lon: 77.21, lat: 28.61, pop: 32.9 },
{ name: "Shanghai", lon: 121.47, lat: 31.23, pop: 29.2 },
{ name: "Dhaka", lon: 90.41, lat: 23.81, pop: 22.5 },
{ name: "Beijing", lon: 116.41, lat: 39.9, pop: 21.9 },
{ name: "Mumbai", lon: 72.88, lat: 19.08, pop: 21.3 },
{ name: "Osaka", lon: 135.5, lat: 34.69, pop: 19.1 },
{ name: "Karachi", lon: 67.01, lat: 24.86, pop: 16.8 },
],
},
{
name: "Africa",
color: t.palette[1],
cities: [
{ name: "Cairo", lon: 31.24, lat: 30.04, pop: 22.2 },
{ name: "Kinshasa", lon: 15.27, lat: -4.44, pop: 15.6 },
{ name: "Lagos", lon: 3.38, lat: 6.52, pop: 15.4 },
],
},
{
name: "Europe",
color: t.palette[2],
cities: [
{ name: "Istanbul", lon: 28.97, lat: 41.01, pop: 15.6 },
{ name: "Moscow", lon: 37.62, lat: 55.75, pop: 12.6 },
{ name: "Paris", lon: 2.35, lat: 48.85, pop: 11.1 },
{ name: "London", lon: -0.13, lat: 51.51, pop: 9.6 },
],
},
{
name: "N. America",
color: t.palette[3],
cities: [
{ name: "Mexico City", lon: -99.13, lat: 19.43, pop: 22.3 },
{ name: "New York", lon: -74.01, lat: 40.71, pop: 18.9 },
{ name: "Los Angeles", lon: -118.24, lat: 34.05, pop: 12.5 },
],
},
{
name: "S. America",
color: t.palette[4],
cities: [
{ name: "Sao Paulo", lon: -46.63, lat: -23.55, pop: 22.6 },
{ name: "Buenos Aires", lon: -58.38, lat: -34.6, pop: 15.4 },
{ name: "Rio de Janeiro", lon: -43.17, lat: -22.91, pop: 13.7 },
],
},
{
name: "Oceania",
color: t.palette[5],
cities: [
{ name: "Sydney", lon: 151.21, lat: -33.87, pop: 5.3 },
{ name: "Melbourne", lon: 144.96, lat: -37.81, pop: 5.2 },
],
},
];
// --- Basemap: simplified world continent outlines (rough, low-vertex hand
// trace -- geographic context only, not a precise survey boundary) ----------
const NORTH_AMERICA = [
[-165, 68], [-150, 60], [-130, 55], [-125, 48], [-124, 40], [-118, 34],
[-108, 23], [-97, 16], [-90, 14], [-84, 9], [-77, 8], [-82, 22], [-80, 31],
[-75, 35], [-71, 41], [-66, 45], [-60, 48], [-55, 52], [-65, 58], [-80, 62],
[-95, 68], [-110, 72], [-130, 71], [-150, 71], [-165, 68],
];
const SOUTH_AMERICA = [
[-77, 8], [-79, 1], [-81, -5], [-81, -15], [-75, -20], [-71, -30],
[-71, -40], [-73, -50], [-68, -55], [-65, -52], [-62, -42], [-58, -34],
[-48, -25], [-40, -12], [-50, 0], [-60, 5], [-65, 8], [-77, 8],
];
const AFRICA = [
[-17, 15], [-16, 21], [-10, 30], [0, 37], [10, 37], [20, 32], [32, 31],
[35, 27], [43, 13], [51, 12], [45, 0], [40, -12], [35, -20], [33, -27],
[27, -33], [18, -34], [14, -23], [12, -6], [9, 4], [-5, 5], [-11, 7],
[-17, 15],
];
const EURASIA = [
[-9, 37], [-9, 44], [-5, 48], [3, 51], [10, 60], [25, 70], [40, 68],
[60, 72], [90, 75], [130, 75], [170, 66], [160, 55], [140, 45], [130, 35],
[122, 30], [108, 10], [100, 5], [95, 15], [88, 22], [80, 10], [77, 8],
[70, 20], [65, 25], [55, 27], [50, 15], [35, 15], [35, 32], [28, 36],
[23, 37], [12, 38], [-5, 36], [-9, 37],
];
const AUSTRALIA = [
[113, -22], [114, -30], [121, -34], [130, -32], [137, -35], [141, -38],
[147, -38], [150, -37], [153, -28], [145, -17], [142, -11], [136, -12],
[130, -12], [124, -15], [113, -22],
];
const CONTINENTS = [NORTH_AMERICA, SOUTH_AMERICA, AFRICA, EURASIA, AUSTRALIA];
// Fills+outlines one continent polygon; coordinates are projected through the
// chart's own lon/lat value axes via api.coord (same cartesian2d technique
// used for the coastline/ocean layer in hexbin-map-geographic).
function makeLandRenderer(coords) {
return function renderLand(params, api) {
const points = coords.map(([lon, lat]) => api.coord([lon, lat]));
return {
type: "polygon",
shape: { points },
style: { fill: t.grid, stroke: t.inkSoft, lineWidth: 1, opacity: 0.55 },
silent: true,
};
};
}
const ALL_POPS = REGIONS.flatMap((r) => r.cities.map((c) => c.pop));
const POP_MIN = Math.min(...ALL_POPS);
const POP_MAX = Math.max(...ALL_POPS);
const SIZE_MIN = 24;
const SIZE_MAX = 78;
// Bubble diameter scales with sqrt(value) so bubble AREA — not radius — is
// proportional to population, per anyplot's bubble-map perception rule.
function bubbleSize(pop) {
const s0 = Math.sqrt(POP_MIN);
const s1 = Math.sqrt(POP_MAX);
const ratio = Math.max(0, Math.min(1, (Math.sqrt(pop) - s0) / (s1 - s0)));
return SIZE_MIN + ratio * (SIZE_MAX - SIZE_MIN);
}
// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Size-key legend (fixed screen-space graphic, stacked top-to-bottom) ---
const LEGEND_VALUES = [37, 15, 5];
const LEGEND_X = 1480;
const legendGraphics = [
{
type: "text",
left: LEGEND_X - 30,
top: 232,
style: { text: "Population (M)", fill: t.inkSoft, fontSize: 13, fontWeight: 500 },
},
];
let cy = 260;
for (const v of LEGEND_VALUES) {
const r = bubbleSize(v) / 2;
cy += r;
legendGraphics.push({
type: "circle",
shape: { cx: LEGEND_X, cy, r },
style: { fill: "none", stroke: t.inkSoft, lineWidth: 1.5 },
});
legendGraphics.push({
type: "text",
left: LEGEND_X + r + 14,
top: cy - 7,
style: { text: `${v}M`, fill: t.inkSoft, fontSize: 13 },
});
cy += r + 24;
}
// --- Option -----------------------------------------------------------------
const title = "World City Populations · bubble-map-geographic · javascript · echarts · anyplot.ai";
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: title,
left: "center",
top: 24,
textStyle: { color: t.ink, fontSize: 18, fontWeight: 500 },
},
legend: {
top: 74,
data: REGIONS.map((r) => r.name),
textStyle: { color: t.inkSoft, fontSize: 14 },
itemWidth: 16,
itemHeight: 12,
},
tooltip: {
trigger: "item",
formatter: (p) => `${p.data.name}<br/>${p.data.value[2]}M metro population`,
},
grid: { left: 90, top: 150, width: 1300, height: 560 },
xAxis: {
type: "value",
name: "Longitude",
nameLocation: "middle",
nameGap: 34,
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
min: -180,
max: 180,
interval: 30,
axisLabel: {
color: t.inkSoft,
fontSize: 12,
formatter: (v) => `${Math.abs(v)}°${v < 0 ? "W" : v > 0 ? "E" : ""}`,
},
axisLine: { onZero: false, lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } },
},
yAxis: {
type: "value",
name: "Latitude",
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
min: -60,
max: 80,
interval: 30,
axisLabel: {
color: t.inkSoft,
fontSize: 12,
formatter: (v) => `${Math.abs(v)}°${v < 0 ? "S" : v > 0 ? "N" : ""}`,
},
axisLine: { onZero: false, lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } },
},
graphic: legendGraphics,
series: [
...CONTINENTS.map((coords, i) => ({
name: `Basemap ${i}`,
type: "custom",
coordinateSystem: "cartesian2d",
renderItem: makeLandRenderer(coords),
data: [[0, 0]],
silent: true,
tooltip: { show: false },
z: 0,
})),
...REGIONS.map((region, i) => ({
name: region.name,
type: "scatter",
data: region.cities.map((c) => ({ name: c.name, value: [c.lon, c.lat, c.pop] })),
symbolSize: (val) => bubbleSize(val[2]),
itemStyle: { color: region.color, opacity: 0.58, borderColor: t.pageBg, borderWidth: 1 },
emphasis: { itemStyle: { opacity: 0.9 } },
z: 2,
...(i === 0
? {
markLine: {
silent: true,
symbol: "none",
lineStyle: { color: t.ink, opacity: 0.2, type: "dashed", width: 1 },
label: { show: false },
data: [{ xAxis: 0 }, { yAxis: 0 }],
},
}
: {}),
})),
],
});
