Bubble Map with Sized Geographic Markers — Pygal

A geographic bubble map where markers are sized proportionally to quantitative data values at each location. Unlike scatter maps where size is optional, bubble maps use marker size as the primary visual encoding to show data magnitude across geographic regions. This visualization makes it immediately apparent where high and low values occur spatially, enabling intuitive comparison of quantities across locations.

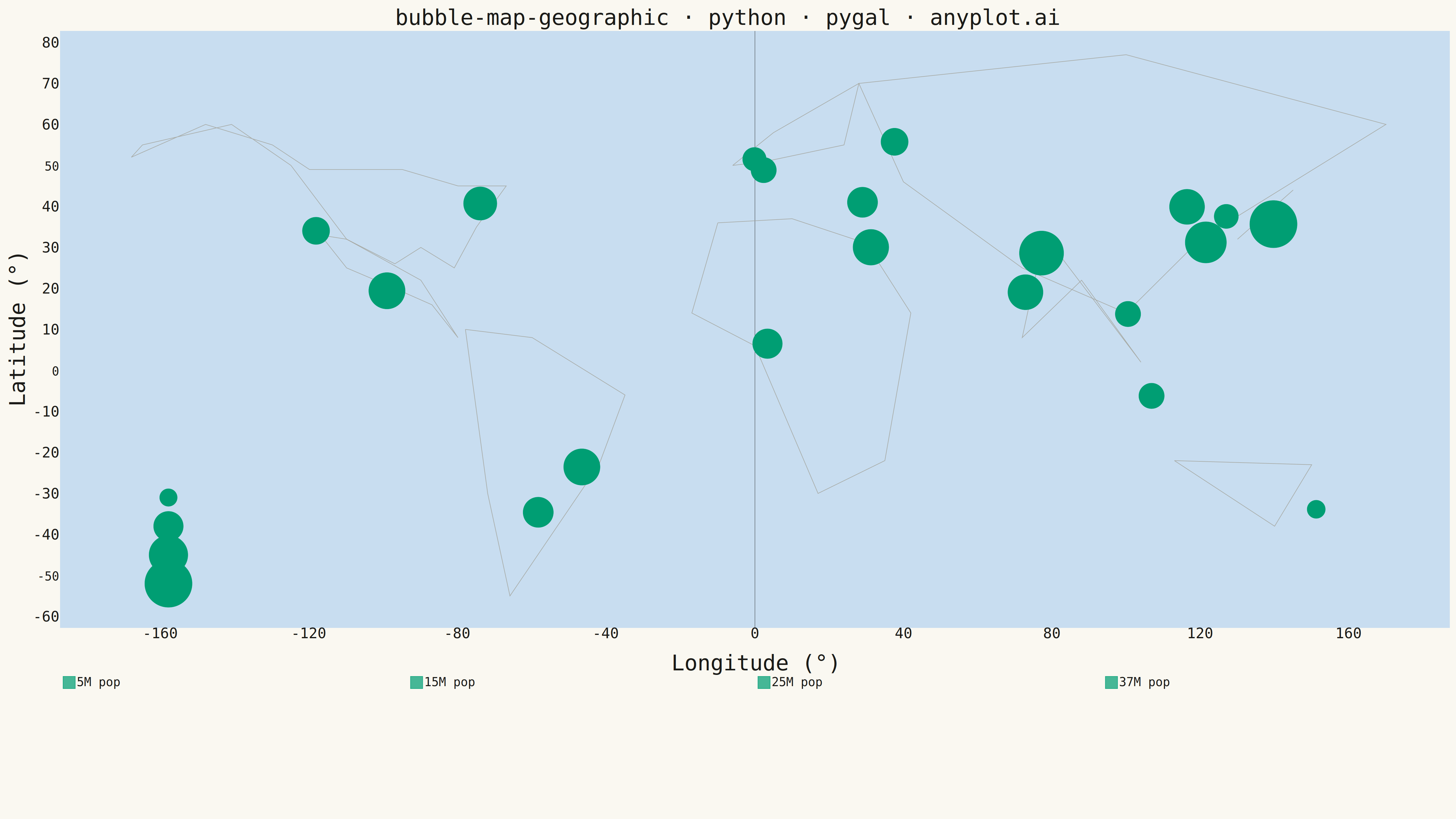

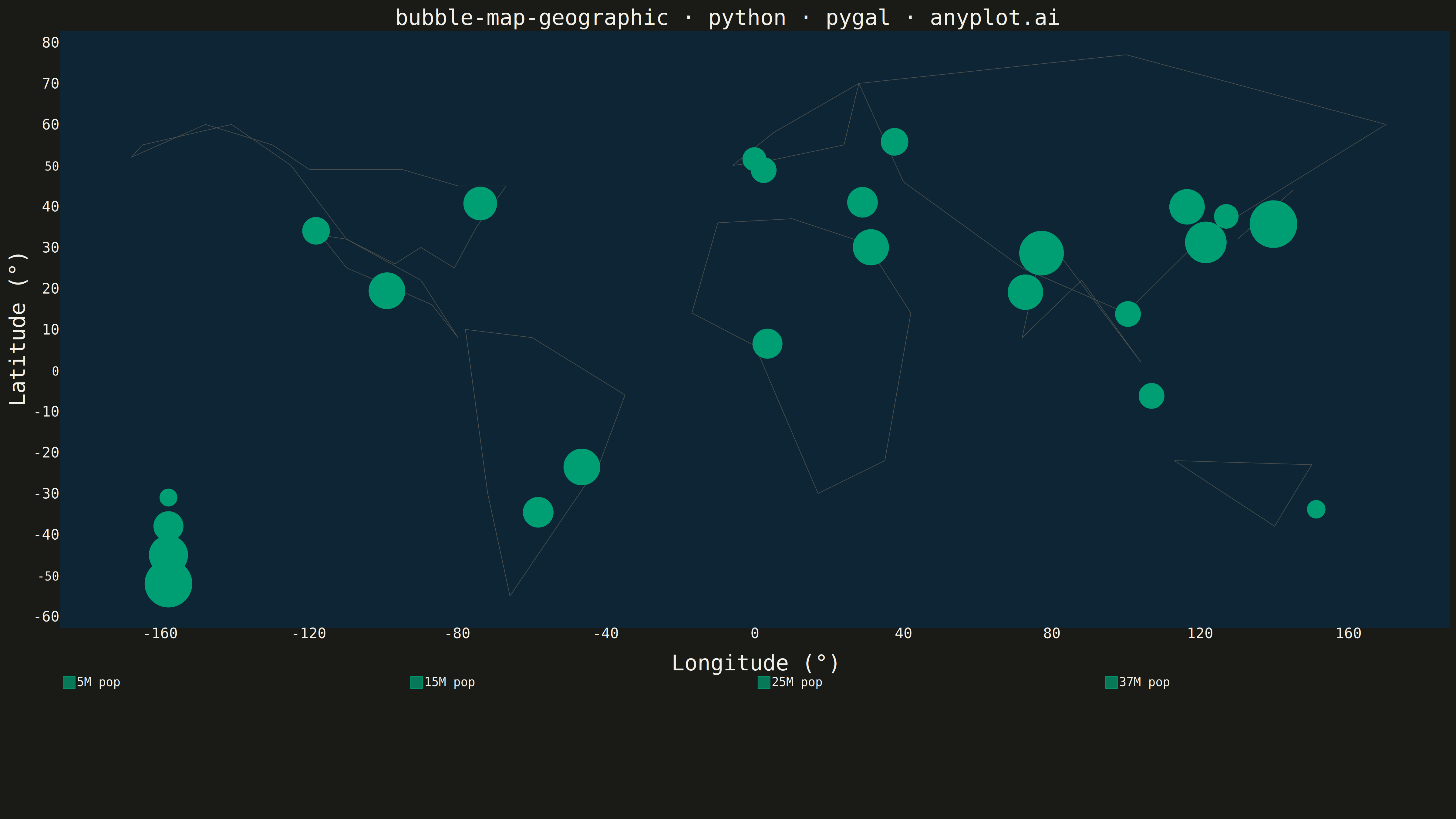

Bubble Map with Sized Geographic Markers rendered with Pygal

Python source (Pygal)

""" anyplot.ai
bubble-map-geographic: Bubble Map with Sized Geographic Markers
Library: pygal 3.1.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-18
"""

import os
import sys


_cwd = sys.path[0] if sys.path and sys.path[0] else None
if _cwd:
    sys.path.remove(_cwd)

import pygal
from pygal.style import Style


if _cwd:
    sys.path.insert(0, _cwd)

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
OCEAN_BG = "#C8DDF0" if THEME == "light" else "#0D2535"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
COAST_COLOR = "#A0A096" if THEME == "light" else "#5A5A52"
BRAND = "#009E73"

# Data — major world cities with population (millions)
cities = {
    "Tokyo": (35.68, 139.69, 37.4),
    "Delhi": (28.61, 77.21, 32.9),
    "Shanghai": (31.23, 121.47, 28.5),
    "Sao Paulo": (-23.55, -46.63, 22.4),
    "Mexico City": (19.43, -99.13, 21.8),
    "Cairo": (30.04, 31.24, 21.3),
    "Mumbai": (19.08, 72.88, 20.7),
    "Beijing": (39.90, 116.41, 20.5),
    "New York": (40.71, -74.01, 18.8),
    "Istanbul": (41.01, 28.98, 15.4),
    "Buenos Aires": (-34.60, -58.38, 15.4),
    "Lagos": (6.52, 3.38, 14.9),
    "Los Angeles": (34.05, -118.24, 12.5),
    "Moscow": (55.76, 37.62, 12.5),
    "Bangkok": (13.76, 100.50, 10.7),
    "Jakarta": (-6.21, 106.85, 10.6),
    "Paris": (48.86, 2.35, 11.0),
    "Seoul": (37.57, 126.98, 9.8),
    "London": (51.51, -0.13, 9.5),
    "Sydney": (-33.87, 151.21, 5.4),
}

# Simplified world coastlines (longitude, latitude)
coastlines = [
    # North America
    [
        (-125, 50),
        (-141, 60),
        (-165, 55),
        (-168, 52),
        (-148, 60),
        (-130, 55),
        (-120, 49),
        (-95, 49),
        (-80, 45),
        (-67, 45),
        (-75, 35),
        (-81, 25),
        (-90, 30),
        (-97, 26),
        (-110, 32),
        (-125, 50),
    ],
    # Mexico / Central America
    [(-117, 33), (-110, 25), (-97, 20), (-87, 16), (-80, 8), (-90, 22), (-110, 32), (-117, 33)],
    # South America
    [(-78, 10), (-60, 8), (-35, -6), (-42, -23), (-66, -55), (-72, -30), (-78, 10)],
    # Europe / Africa
    [(-10, 36), (10, 37), (30, 31), (42, 14), (35, -22), (17, -30), (0, 6), (-17, 14), (-10, 36)],
    # Northern Europe
    [(-6, 50), (5, 58), (28, 70), (24, 55), (3, 51), (-6, 50)],
    # Asia
    [(28, 70), (100, 77), (170, 60), (120, 32), (100, 14), (72, 25), (40, 46), (28, 70)],
    # India / SE Asia
    [(78, 33), (72, 8), (88, 22), (104, 2), (78, 33)],
    # Japan
    [(130, 32), (145, 44), (130, 32)],
    # Australia
    [(113, -22), (150, -23), (140, -38), (113, -22)],
]

# Continuous bubble sizing: area ∝ population → dots_size ∝ sqrt(population)
pops = {name: data[2] for name, data in cities.items()}
k_scale = 78.0 / max(pops.values()) ** 0.5
city_sizes = {name: round(k_scale * pop**0.5) for name, pop in pops.items()}

# Size legend reference markers placed in south Pacific (open ocean)
LEGEND_POPS = [5, 15, 25, 37]
legend_sizes = [round(k_scale * lpop**0.5) for lpop in LEGEND_POPS]
LEGEND_LON = -158
LEGEND_LATS = [-31, -38, -45, -52]

n_coasts = len(coastlines)
n_cities = len(cities)
n_legend = len(LEGEND_POPS)

# Color tuple: coast gray × n_coasts, brand green × (cities + legend entries)
colors_tuple = (COAST_COLOR,) * n_coasts + (BRAND,) * (n_cities + n_legend)

custom_style = Style(
    background=PAGE_BG,
    plot_background=OCEAN_BG,
    foreground=INK,
    foreground_strong=INK,
    foreground_subtle=INK_MUTED,
    colors=colors_tuple,
    opacity=0.72,
    opacity_hover=0.9,
    title_font_size=72,
    label_font_size=48,
    major_label_font_size=40,
    legend_font_size=40,
    value_font_size=36,
    tooltip_font_size=36,
    stroke_width=2,
)

# Plot
chart = pygal.XY(
    width=4800,
    height=2700,
    style=custom_style,
    title="bubble-map-geographic · python · pygal · anyplot.ai",
    x_title="Longitude (°)",
    y_title="Latitude (°)",
    show_legend=True,
    legend_at_bottom=True,
    legend_at_bottom_columns=4,
    legend_box_size=40,
    stroke=False,
    dots_size=3,
    show_x_guides=False,
    show_y_guides=False,
    explicit_size=True,
    print_values=False,
    xrange=(-180, 180),
    range=(-60, 80),
)

# Coastlines (title=None → no legend entry)
for coords in coastlines:
    chart.add(None, coords, stroke=True, dots_size=0, show_dots=False, fill=False)

# Cities: one series per city, dots_size proportional to sqrt(population)
for name, (lat, lon, _pop) in cities.items():
    chart.add(None, [{"value": (lon, lat), "label": f"{name}: {_pop}M"}], stroke=False, dots_size=city_sizes[name])

# Size legend: reference markers in south Pacific showing size scale
for lpop, lsize, llat in zip(LEGEND_POPS, legend_sizes, LEGEND_LATS, strict=False):
    chart.add(
        f"{lpop}M pop", [{"value": (LEGEND_LON, llat), "label": f"Reference: {lpop}M"}], stroke=False, dots_size=lsize
    )

# Save
chart.render_to_png(f"plot-{THEME}.png")
with open(f"plot-{THEME}.html", "wb") as f:
    f.write(chart.render())

Part of Bubble Map with Sized Geographic Markers on anyplot.ai.
